Communication using I2C interface

Inter-Integrated Circuit (I2C) is a chip-to-chip interface supporting two-wire communication. You can connect to I2C peripheral devices and read from and write to them. Using the I2C communication protocol, your Arduino^® board can communicate with microcontrollers and peripherals such as sensors and displays.

Blocks

	I2C Write	Write data to an I2C peripheral device or an I2C peripheral device register
	I2C Read	Read data from I2C peripheral device or I2C peripheral device register

Model Settings

Model Configuration Parameters for Simulink Support Package for Arduino Hardware

Topics

Support for I2C Communication
Set up and use I2C communication with Arduino hardware.

Featured Examples

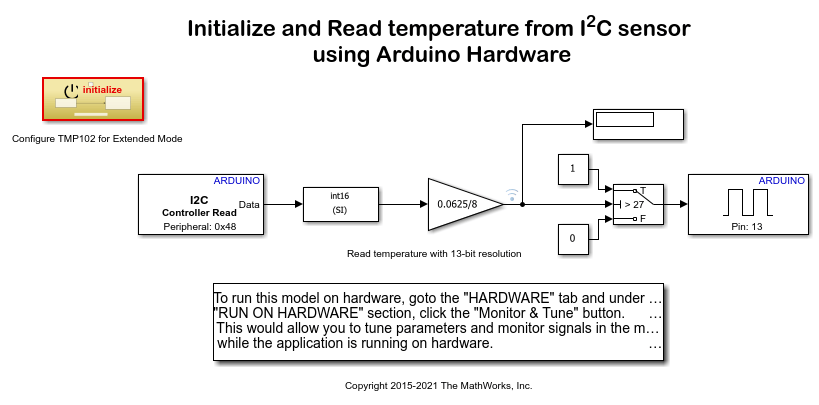

Read Temperature from I2C-Based Sensor Using Arduino Hardware

Use Simulink® Support Package for Arduino® Hardware to configure and read temperature from an I2C based sensor.

Open Model

Develop Gyroscope-Based Pedometer Using Arduino

How MATLAB® Function blocks are used in Simulink® models to implement algorithms using MATLAB functions. An Arduino® MKR1000 board is used to count the number of steps a person takes while walking. The pedometer is attached to the thigh of the person in such a way that the x-axis of the gyroscope is perpendicular to the direction of walking. The data from a gyroscope sensor is sent to an Android device using the User Datagram Protocol (UDP).

Open Model

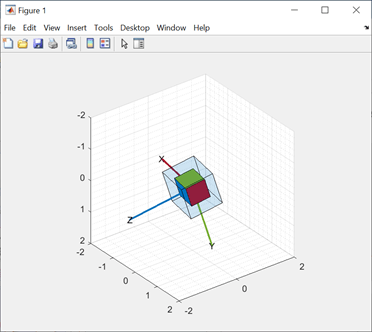

Estimate Orientation Using AHRS Filter and IMU Data in Simulink

Stream IMU data from sensors connected to Arduino® board and estimate orientation using AHRS filter and IMU sensor.

Open Model
