Signal Editor

Create and edit input signals

Description

The Signal Editor tool lets you create and edit input signals that you can organize for multiple simulations.

Mouse, Keyboard, and Touchscreen Shortcuts

You can use these keyboard shortcuts to interact with the Signal Editor.

This table shows edit actions:

ActionKeyboardMouseMulti-Touch

Insert point

Ctrl+P

Click Insert point icon

Tap

Insert line

Ctrl+L

Click Insert line icon

Pan and pinch

Draw

Ctrl+D

Click and draw

Pan

Select a point

Ctrl+T

Click Select point icon, then click and select point or area

To select all areas, double-click

Pan and pinch

To select all areas, double-tap

Move a point

Ctrl+M

Click Move point icon and drag

Tap and move

Continuously delete points on a line

Click Eraser icon


Fit to view if zoom action is selected

Three mouse clicks

Triple tap

Zoom out if zoom action is selected

Two mouse clicks

Double tap

Expand along the x-axis

Ctrl+mouse pan

Touch and drag along the x-axis in opposite directions

Expand along the y-axis

Shift+mouse pan

Touch and drag along the y-axis in opposite directions

This table shows zoom actions:

Type of Zoom or PanAction

Zoom in along the T and Y axes.

Click

Zoom in along the time axis. After selecting the icon, on the graph, drag the mouse to select an area to enlarge.

Click

Zoom in along the data value axis. After selecting the icon, on the graph, drag the mouse to select an area to enlarge.

Click

Zoom only in x while zooming in xy.

Zoom in xy while pressing Ctrl

Zoom only in y while zooming in xy.

Zoom in xy while pressing Shift

Zoom out from the graph.

Click

Fit the plot to the graph. After selecting the icon, click the graph to enlarge the plot to fill the graph.

Click

Pan the graph up, down, left, or right. Select the icon. On the graph, hold the left mouse button and move the mouse to the area of the graph that you want to view.

Click

Snap to Grid for Alignment

You can use these alignment commands to snap to the plot grid for accuracy.

Alignment actions:

ActionSnap to Grid

Snap values to x grid lines for point and line insertion and movement and zooming.

Snap X to Grid

Snap values to y grid lines for point and line insertion and movement and zooming.

Snap Y to Grid

Snap values to x minor grid lines for point and line insertion and movement and zooming.

Snap X to Tick

Snap values to y grid lines for point and line insertion and movement and zooming.

Snap Y to Tick

Snap to incremental value in X grid.

Snap X to Increment

Snap to incremental value in Y grid.

Snap Y to Increment

Turn plot markers on and off.

Markers

Signal Editor default

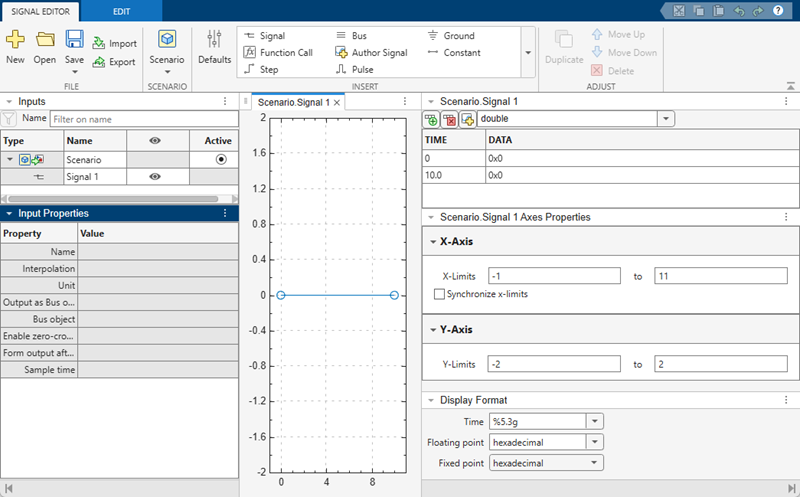

Open the Signal Editor

  • MATLAB® Command Window: Enter signalEditor.

  • Root Inport Mapper: To create a MAT-file for your new signal data, select Signals > New MAT-File. To link in an existing signal data file from an existing scenario and edit the signals in that file, use the Signals > Edit MAT-File.

  • Signal Editor block: Click Start Signal Editor icon.

  • Simulink® Editor toolstrip:

    1. In the Prepare section of the Simulation tab, click the expander.

    2. Click Inputs & Parameter Tuning > Signal Editor.

Signals can be:

  • MATLAB timeseries objects. timeseries objects cannot have empty Data properties.

  • timetable objects. timetable objects cannot represent multiple variables.

  • Structure of MATLAB timeseries or timetable objects.

  • Two-dimensional matrices.

Examples

expand all

In the Inputs pane, you can change signal names and hierarchy order, create duplicates of signals, and delete signals. The software ignores leading and trailing spaces in signal names.

To change a signal name, double-click the name and enter a new name.

To change the unit or interpolation of a signal, in the Inputs pane, select the signal you want to edit, then navigate to the Input Properties pane, and update the Unit or Interpolation value.

To change the order of a signal in the hierarchy, drag and release the signal. For example, you can drag and release signals into a bus.

Alternatively, in the Adjust section, use the Move Up and Move Down buttons.

To copy a signal and paste it under the original, right-click the signal and select Duplicate Signal.

Alternatively, in the Adjust section, use the Duplicate button. You can also adjust the default properties of the signal you duplicate. For more information, see Create Signals with the Same Properties.

To copy a signal and paste it elsewhere in hierarchy, select Copy and then Paste.

To create signals of the same predefined type, in the Adjust section, use the Duplicate button. To change the predefined signal type, click the Defaults icon . The Properties for Insertion dialog box opens.

Properties for Insertion default

On the Signals tab:

  • Data type — From the list, select the signal data type.

    Enumeration — When you select the Enum data type, this parameter displays. Enter the class name of your enumeration.

    If you define an enumeration class that contains the same integer value multiple times, the Signal Editor treats the first enumeration value as the canonical value and equates all subsequent instances of the same underlying integer to the enumerated name. In this example, Red(118)) is canonical, so Pink equals Red.

    classdef(Enumeration) hEnumColors_duplicateValues < Simulink.IntEnumType
      enumeration
        Red(118)
        Yellow(-14)
        Blue(90)
        Green(87)
        White(-14)
        Black(198)
        Brown(90)
        Pink(118)
        Purple(90)
      end
      methods (Static = true)
        function retVal = getDefaultValue()
          retVal = hEnumColors_duplicateValues.Blue;
        end
      end
    end

  • Interpolation — From the list,select linear or zero order hold.

  • Unit — Enter an appropriate unit expression. For a suggested list of unit expressions, see Allowed Units.

  • Dimensions — Enter the number of dimensions for the signal.

  • Signal type — From the list, select real or complex.

  • Variable type — From the list, select Timeseries (default), Timetable, Logged timeseries, or Logged timetable.

    Logged timeseries and logged timetables objects are Simulink.SimulationData.Signal objects whose Value property is of data type timeseries or timetable.

On the Buses tab:

  • Bus object — From the list, select the bus object for which to define the dimensions. If you leave the Bus object parameter as the default <object name>, the Signal Editor adds empty buses.

  • Dimensions — Enter the number of dimensions for the bus object.

On the Constant tab:

  • Value — Enter constant value to output.

  • Time — Enter sample time.

On the Step tab:

  • Initial value — Enter output value before step.

  • Final value — Enter output value after step.

  • Start time — Enter time when step starts.

  • Step time — Enter time increment when step occurs.

  • Step final time — Enter final step time.

On the Pulse tab:

  • Initial value — Enter initial default value of signal.

  • Value at trigger — Enter value of signal at pulse trigger.

  • Pulse duration — Enter length of time of pulse.

  • Step time — Enter time when step occurs.

  • Trigger time — Enter time when pulse trigger occurs.

In the Inputs section, you can select multiple scenarios or signals simultaneously and perform actions on them.

Start Signal Editor.

In the toolstrip, add two scenarios. Click Scenario twice.

To the first Scenario, add a basic signal and step. In Insert, click Signal and Step.

By default, basic signals are created with linear interpolation while step signals are created with zero-order hold (ZOH) interpolation.

Change the interpolation of both signals to linear. In the Inputs pane, select both Signal and Step. Observe that in the Input Properties pane, the Interpolation field now shows <mixed values>.

Selected signals with mixed values displayed for interpolation property

In the Interpolation field, type linear. Individually select Signal and Step and observe that they now both have linear interpolation.

Add the same signal types to both scenarios. In the Inputs pane, select Scenario and Scenario1. Then in the Insert pane, click Function Call.

Selected scenarios with new FunctionCall signals

Exchange rows and columns of data between Signal Editor and Excel® spreadsheets using cut, copy, and paste operations.

If you do not have an existing Excel spreadsheet, create an Excel spreadsheet and data.

Spreadsheet excerpt with four columns, Time, Signal1, Sjgnal2, Signal3 and four rows of data for times 0, 10, 20, 30.

Select and copy two adjacent items, such as A5 and B5.

In Signal Editor, create a signal and double-click the hide icon (hide/show).

In the Signal pane, select two adjacent cells.

Signal Editor signal data two adjacent cells, time 10 and data 0, to be replaced.

Paste the contents from the spreadsheet to the Signal Editor data table.

Tip

You can cut, copy, and paste directly into a spreadsheet or Signal Editor data table. However, if you cut, copy, and paste to a selected target area, the selected target area must be the same size as the source area.

Signal Editor signal data with two adjacent cells, time 10 and data 0, replaced with copied data from the spreadsheet.

In the Signal Editor tab, create signal data from the standard waveform options.

  • Constant — Straight line waveform with a default value of 1.

    Constant waveform of value 1.

  • Step — Step waveform with default initial value of 0 and final value of 5.

    Step waveform with default initial value of 0 and final value of 5.

  • Pulse — Pulse waveform with default initial value of 0, pulse at trigger 5, and pulse duration of 1.

    Pulse waveform with default initial value of 0, pulse at trigger 5, and pulse duration of 1.

To change the data from these waveforms, you can manually modify them in the plot. If you want to create multiple waveform plots with the same set of initial data, you can change the default signal properties for the waveform.

Start Signal Editor.

In the toolstrip, click Scenario.

To add a pulse waveform to the scenario, select the scenario and from the Insert section, select Pulse.

In the signal hierarchy, double-click the hide icon ().

Pulse waveform with default initial values and table of data.

To change the default of the pulse waveform and its data, in the toolstrip, click Defaults (Signal Editor Defaults button.).

In the Properties for Insertion dialog box, on the Pulse tab, change the values as desired.

Pulse waveform tab of Properties for Insertion dialog box with nondefault values.

To add a second pulse waveform to the scenario, select the scenario, and from the Insert section, click Pulse.

Pulse waveform with default initial value of 0.5, pulse at trigger 5, value at trigger 2, and pulse duration of 0.5.

You can add and delete data to the signals in a linked scenario. To create a model to work with, see Add Signals to Scenarios.

In the MATLAB Command Window, create data by entering this command:

ts = timeseries([0;20],[0;10]);

Add a scenario. Click Scenario.

In the Signal Editor, in the File section, click Import.

In the Import window, in the Select signals to import pane, select the ts signal and click OK.

Drag the ts signal into the scenario.

In the Signal Editor, in the Inputs pane, double-click the hide icon () for the signal ts.

The focus moves to the Edit tab.

Line from time 0 to 10 and data 0 to 20.

Add data to the signal ts.

  1. In the Scenario.ts pane, click the add row icon (), and add signals. To add a signal row between other signals, click the signal above, then click the add row icon.

  2. When done, click anywhere in the pane to update the plot. To reorient the plot, click Fit to View.

    Plot of jagged line .of random points from time 0 to 20 and data 0 to 200

Remove the time 20 line from the signal. Select 20 and click .

Alternatively, if you want to replace all the signal data for ts with a signal defined with signal notations, click the replace button and use the Author and Replace Signal Data dialog box to define new data.

You can move one signal point, two signal points, or an entire plot in Signal Editor. Create a plot to work with, for example, see Create Freehand Signal Data Using Mouse or Multi-Touch Gestures.

Click the Select Select point icon button. This action persists until you select another action.

Click a point. The move icon Move point icon appears on top of the point.

Drag the point to another area of the plot.

Tip

You cannot drag the point horizontally past adjacent points.

Select and move point with select and move icons highlighted.

To move two contiguous signal points, click one point.

  • Click a point.

    • Click anywhere on the line between the two contiguous points.

    • Drag to the other point on the same line.

The move icon Move point icon appears on top of the points.

Drag the points to another area of the plot.

Tip

You cannot drag the point horizontally past adjacent points.

Select and move two points with select and move icons highlighted.

To move an entire plot, select the entire plot. Alternatively, double-click anywhere on the plot.

The move icon Move point icon appears on top of the plot.

Drag the plot to another area of the canvas.

Select and move entire plot with select and move icons highlighted.

Related Examples

Parameters

expand all

File

Open a new Signal Editor session.

Open MAT-file containing signals to be displayed and edited in Signal Editor.

Save the contents of Signal Editor. Clicking this button also makes the signal data visible to the Signal Editor block.

Import signals from registered file types that Signal Editor supports. For more information, see Import Custom File Type.

Save signals to registered file types that Signal Editor supports. For more information, see Export Signals to Custom Registered File Types.

Scenario

Create scenario to contain signals.

Insert

Change the predefined signal type and properties by clicking .

Insert basic signal by clicking Insert basic signal icon.. For more information, see Work with Basic Signal Data.

Insert function-call signal by clicking Insert function-call signal icon..

If you need a function-call signal for a root inport with explicit periodic sample time, insert a ground signal instead. Simulink then executes the function-call automatically.

Insert constant signal with value of 1 by clicking Insert constant signal icon..

Insert bus by clicking Insert bus signal icon.. To the bus you can add signals using any of the other signal insertions techniques.

Author signal using MATLAB expressions or workspace variables by clicking . The dialog box displays:

  • Time — Enter the range of time for the data.

  • Data — Enter the MATLAB expression for the signal.

  • Data type — Select or enter the signal data type.

    • double

    • single

    • int8

    • uint8

    • int16

    • uin16

    • int32

    • uint32

    • boolean

    • fixdt(1,16)

    • fixdt(1,16,0)

    • fixdt(1,16,2^0,0)

    • string

    • Enum: <class name>

    If you enter your time and data and then select a fixed-point data type, the Signal Editor displays a fixed-point proposed data type for your data.

    • To help you select a fixed-point data type, click the Show Histogram button (). Clicking this button displays a plot of the signal data using the selected fixed-point data type. The graph displays:

      ColumnInformation
      ValuesThe negative, positive, and zero signal values.
      Potential OverflowsBins the signal values that may overflow.
      In-RangeBins the signal values that are within acceptable range.
      Potential UnderflowsBins the signal values that may underflow.

      To see the difference that a data type may have on the histogram, select:

      • User Specified

      • Binary Scaling

      • Slope & Bias Scaling

      For more information, see Histogram Plot of Signal (Fixed-Point Designer).

    • To apply the proposed fixed-point data type to your data, click the Use proposed data type button ().

For more information, see Create Signals with MATLAB Expressions and Variables.

Insert step waveform signal with an initial value of 0 and a final value of 1 by clicking Insert step waveform signal icon..

Insert ground signal by clicking Insert ground signal icon..

Insert pulse signal waveform signal with an initial value of 0, trigger value of 1, and initial pulse duration of 1 by clicking Insert pulse waveform signal icon..

Adjust

Copy signal and paste it under original signal.

Move signal up the signal hierarchy in a bus or scenario by clicking the signal and then clicking Move Up.

Move signal down the signal hierarchy in a bus or scenario by clicking the signal and then clicking Move Down.

Delete signal by selecting one or more signals and clicking Delete signal icon..

Programmatic Use

expand all

signalEditor opens the Signal Editor from the MATLAB Command Window.

signalEditor('Model','modelName'); opens the Signal Editor for the model, 'modelName'. You can specify one model per call to the signalEditor function.

Note

Load the model before starting Signal Editor for it.

signalEditor('DataSource','dataSourceName'); opens the Signal Editor for the data source, 'dataSourceName'. You can specify one data set file per call to the signalEditor function

Note

You can start multiple sessions of Signal Editor for the same model. However, you can associate a data set file with only one Signal Editor at a time. A data set file cannot have multiple Signal Editor sessions associated with it.

Version History

Introduced in R2017b

expand all

See Also

Blocks

Live Editor Tasks
