Import Requirements from Test Specifications
You can use third-party applications like Microsoft® Word to author requirements and then import the requirements to Requirements Toolbox™. Importing requirements allows you to author and manage requirements in third-party tools and use Requirements Toolbox analyze and measure the traceability of those requirements.
In this step of the tutorial, you import requirements from a test specification authored in Microsoft Word, view the original requirements in the Word document, and link the requirements to MATLAB® tests.

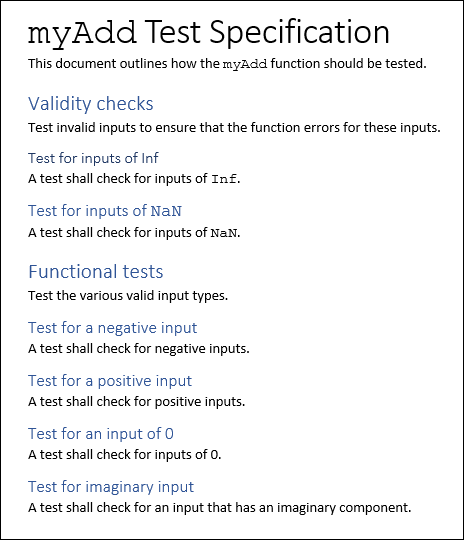

View Test Specification
MyAdd project, which contains the test specification.
Navigate to the
documents folder and open the test specification
The test specification describes how to test the
myAdd function. Some of the requirements for the test cases refine the functional requirements in
myAddReqs and add additional detail for how to test the function. Each requirement in the document has a bookmark.
Import Requirements from Microsoft Word

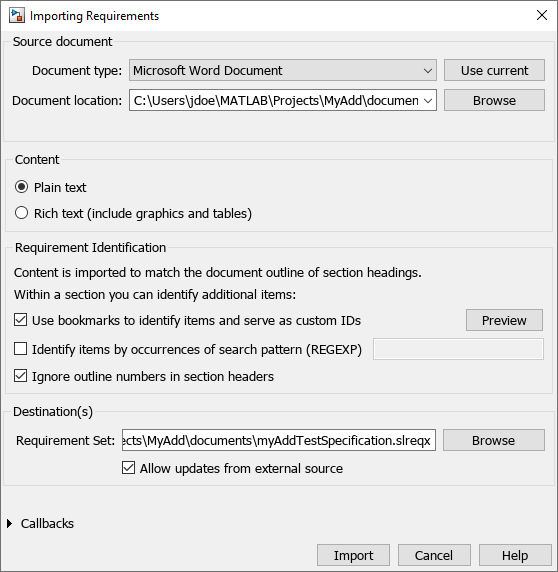

You can import requirements from Microsoft Word to Requirements Toolbox by opening the Requirements Editor and, in the File section, clicking Import. In the Importing Requirements dialog, you can choose the document type to import. Then, you can set the import settings to suit your needs.
In this example, the requirements are already imported from
myAddTestSpecification.docx with these settings selected:
The requirement set called
myAddTestSpecification.slreqx in the documents folder of the project contains the imported requirements.

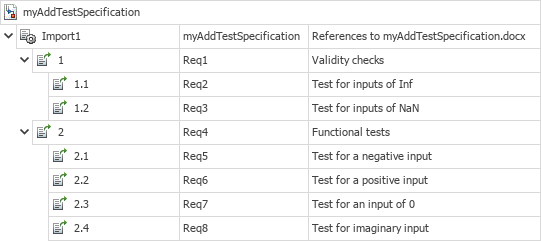

View Imported Requirements
Open the imported requirement set.
The imported requirements in the Requirements Editor retain the hierarchy from the Word document. The bookmarks from the Word document are the requirement IDs in the imported requirements.

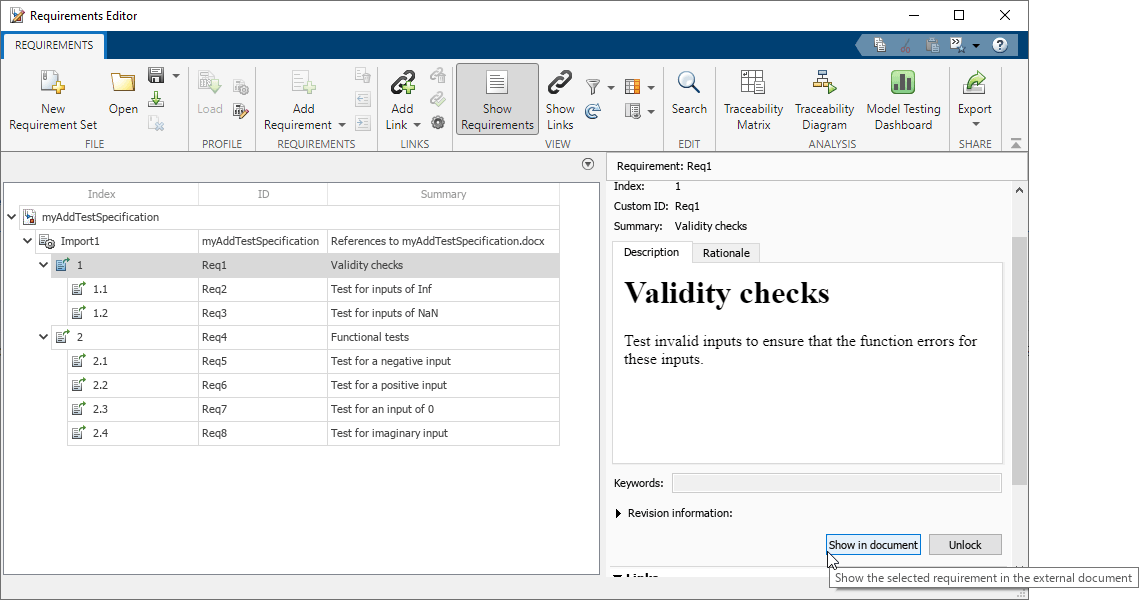

Navigate from the requirement that has the summary
Validity checks back to the original requirement in Microsoft Word. In the Requirements Editor, select the requirement, and, in the right pane, under Properties, click Show in document. Microsoft Word opens the document and highlights the requirement.
Link Requirements to Tests

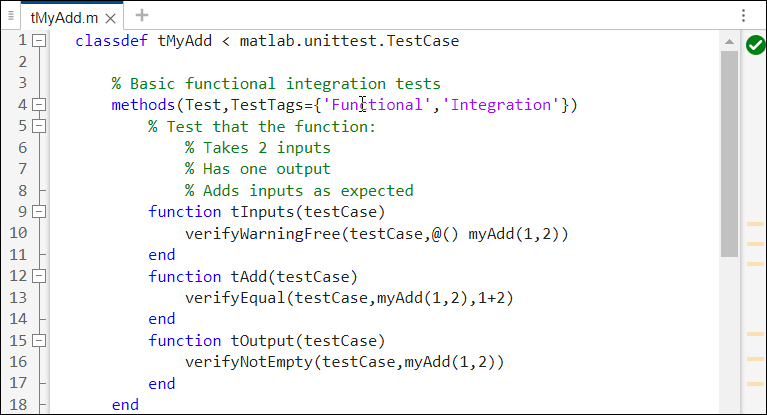

Open the test file
tMyAdd file is a test class that contains MATLAB tests for the
myAdd function. The tests verify the functional behavior described in
myAddReqs and the additional test requirements specified in
myAddTestSpecification.docx. The functions define the tests.

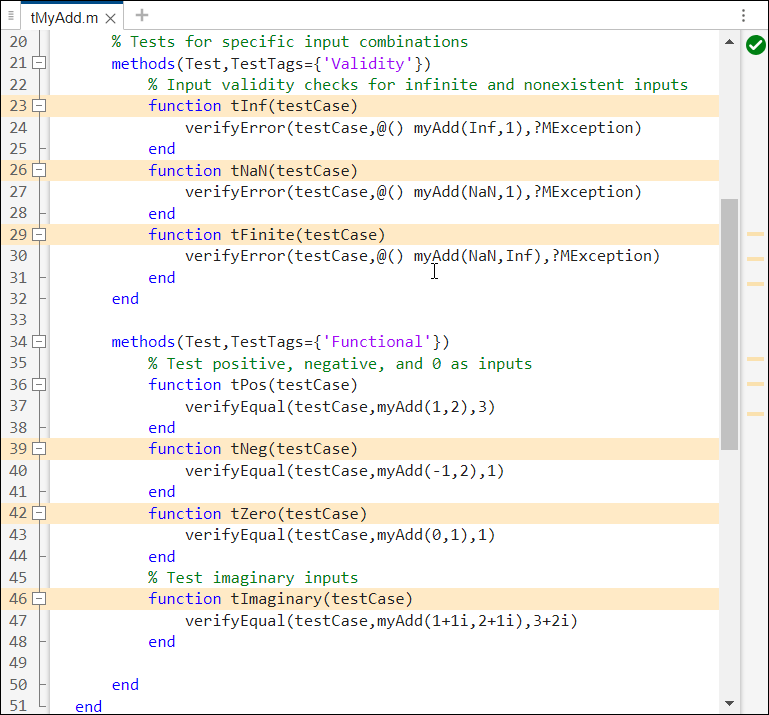

The requirements highlighting indicates that tests on lines 23, 26, 29, 39, 42 and 46 have links to requirements.

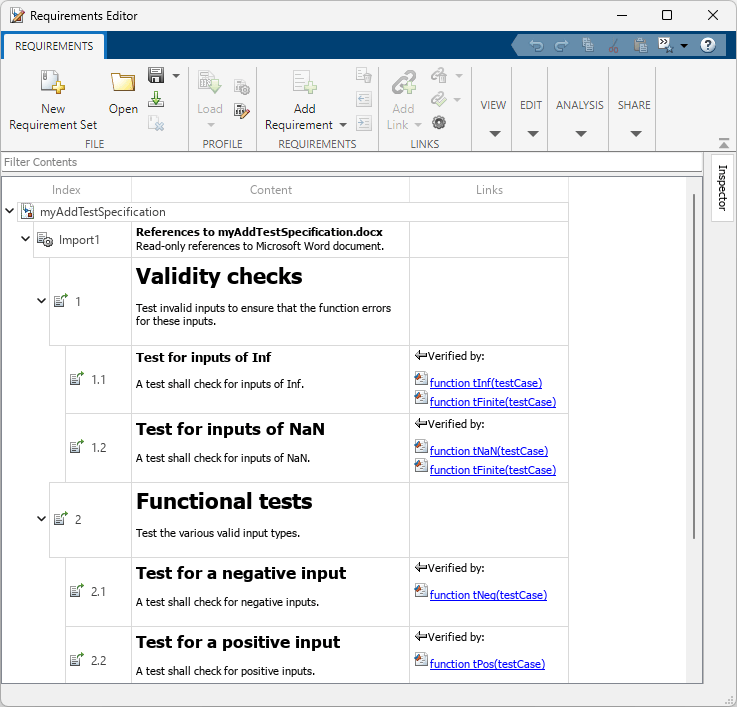

Open the Requirements Editor and click Show Links. The
tMyAdd~m link set contains links between the imported requirements and the tests in
The test defined on line 36 and the requirement with the summary
Test for a positive input do not have a link. Create the link between those items:
tMyAdd.m, select line 36.
In the Requirements Editor, click Show Requirements.
Select the requirement that has the summary
Test for a positive input.
Click Add Link > Link from Selection in MATLAB Editor.
Save the link set.
