convertToSTT
Description
Examples
Convert Chart to State Transition Table
This example shows how to convert a Stateflow® chart to a state transition table.

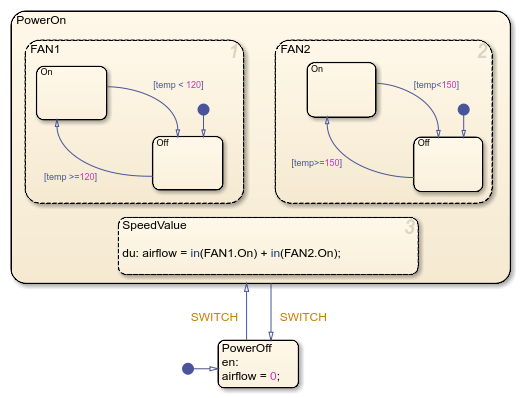

Open the example model and access the Stateflow.Chart
object.
load_system("convertToSTTModel.slx") ch = find(sfroot,"-isa","Stateflow.Chart");

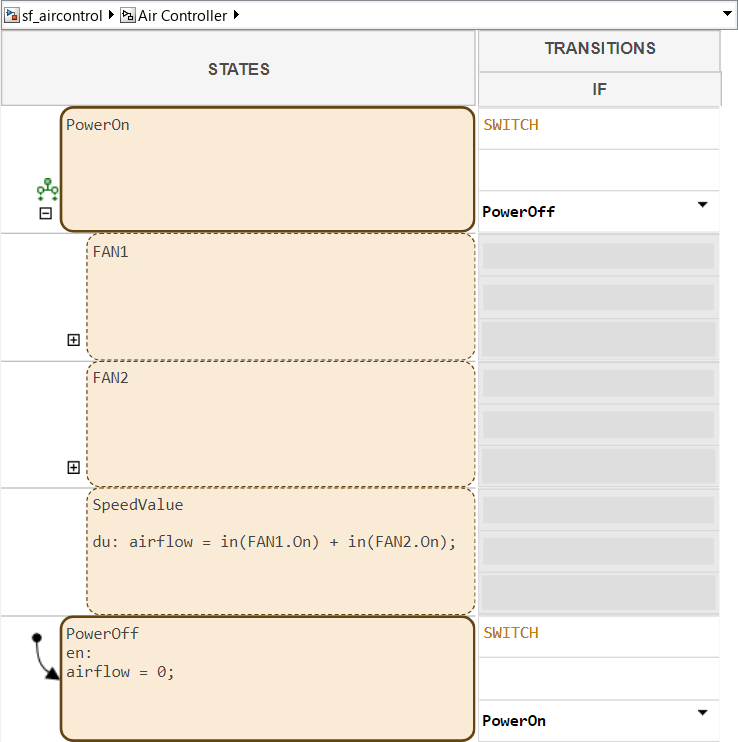

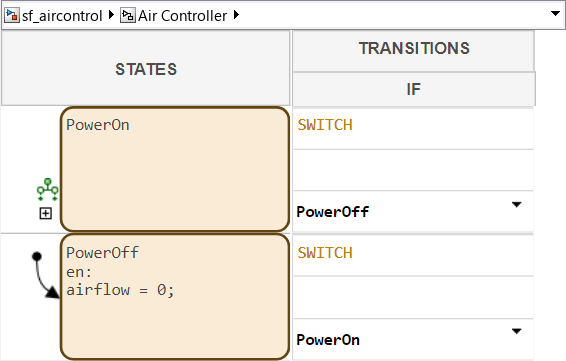

Convert the chart to a state transition table.
convertedSTT = ch.convertToSTT
convertedSTT = StateTransitionTableChart with properties: Path: 'convertToSTTModel/State Transition Table' Machine: [1x1 Stateflow.Machine] StateFont: [1x1 Stateflow.STTStateFont] TransitionFont: [1x1 Stateflow.STTTransFont] Debug: [1x1 Stateflow.ChartDebug] ActionLanguage: 'MATLAB' ChartColor: [1 0.9608 0.8824] ConstantFoldingTimeOut: 40000 DerivativesFormatString: '$N_dot' EmlDefaultFimath: 'Same as MATLAB Default' FimathForFiConstructors: 'Same as FIMATH for fixed-point input signals' EnableBitOps: 0 EnableNonTerminalStates: 0 EnableZeroCrossings: 1 EnumTypeName: 'State_Transition_TableModeType' ExecuteAtInitialization: 0 ErrorColor: [1 0 0] ExportChartFunctions: 0 InitializeOutput: 0 InputFimath: 'fimath(......' JunctionColor: [0.6824 0.3294 0] NoCodegenForCustomTargets: 0 NonTerminalMaxCounts: 1000 OutputData: [] RequirementInfo: '' SaturateOnIntegerOverflow: 1 StateColor: [0 0 0] StateLabelColor: [0 0 0] SelectionColor: [1 0 0.5176] TransitionColor: [0.2902 0.3294 0.6039] TransitionLabelColor: [0.2902 0.3294 0.6039] TreatUndefinedSymbolsAsExtrinsic: 0 TreatAsFi: 'Fixed-point' Visible: 0 HasOutputData: 0 OutputMonitoringMode: 'ChildActivity' StateActivityOutputDataType: 'Enum' StateMachineType: 'Classic' Editor: [1x1 Stateflow.Editor] Decomposition: 'EXCLUSIVE_OR' NonTerminalUnstableBehavior: 'Proceed' Name: 'State Transition Table' SampleTime: '-1' hadBreakpoints: 0 Description: '' Dirty: 1 Document: '' Iced: 0 Locked: 0 SupportVariableSizing: 1 TreatDimensionOfLengthOneAsFixedSize: 1 Tag: [] Id: 156 ChartUpdate: 'INHERITED' StatesWhenEnabling: 'held' PaperOrientation: 'landscape' PaperPositionMode: 'auto' PaperPosition: [2.2361 2.9861 6.5278 2.5278] PaperSize: [11 8.5000] PaperUnits: 'inches' PaperType: 'usletter' TiledPaperMargins: [0.5000 0.5000 0.5000 0.5000] TiledPageScale: 1 ShowPageBoundaries: 'off'
Input Arguments
chart
— Chart to convert
Stateflow.Chart
object
Stateflow chart to convert, specified as a Stateflow.Chart
object.
Limitations
Charts that contain super-transitions are not supported.
Chart must be at the top level of the Simulink® model.
Chart may not include variant transitions.
Version History
Introduced in R2023b
