resubLoss

Resubstitution classification loss for classification tree model

Syntax

L = resubLoss(tree)

L = resubLoss(tree,Name=Value)

[L,SE,Nleaf,BestLevel] = resubLoss(___)

Description

L = resubLoss(tree) returns the classification loss L by resubstitution for the trained classification tree model tree using the training data stored in tree.X and the corresponding true class labels stored in tree.Y. By default, resubLoss uses the loss computed for the data used by fitctree to create tree.

The classification loss (L) is a resubstitution quality measure. Its interpretation depends on the loss function (LossFun), but in general, better classifiers yield smaller classification loss values. The default LossFun value is "mincost" (minimal expected misclassification cost).

L = resubLoss(tree,Name=Value) specifies additional options using one or more name-value arguments. For example, you can specify the loss function, pruning level, and the tree size that resubLoss uses to calculate the classification loss.

[L,SE,Nleaf,BestLevel] = resubLoss(___) also returns the standard errors of the classification errors, the number of leaf nodes in the trees of the pruning sequence, and the best pruning level as defined in the TreeSize name-value argument. By default, BestLevel is the pruning level that gives loss within one standard deviation of the minimal loss.

Examples

Compute the In-Sample Classification Error

Compute the resubstitution classification error for the ionosphere data.

load ionosphere
tree = fitctree(X,Y);
L = resubLoss(tree)

L =
0.0114

Examine the Classification Error for Each Subtree

Unpruned decision trees tend to overfit. One way to balance model complexity and out-of-sample performance is to prune a tree (or restrict its growth) so that in-sample and out-of-sample performance are satisfactory.

Load Fisher's iris data set. Partition the data into training (50%) and validation (50%) sets.

load fisheriris
n = size(meas,1);
rng(1) % For reproducibility
idxTrn = false(n,1);
idxTrn(randsample(n,round(0.5*n))) = true; % Training set logical indices
idxVal = idxTrn == false;                  % Validation set logical indices

Grow a classification tree using the training set.

Mdl = fitctree(meas(idxTrn,:),species(idxTrn));

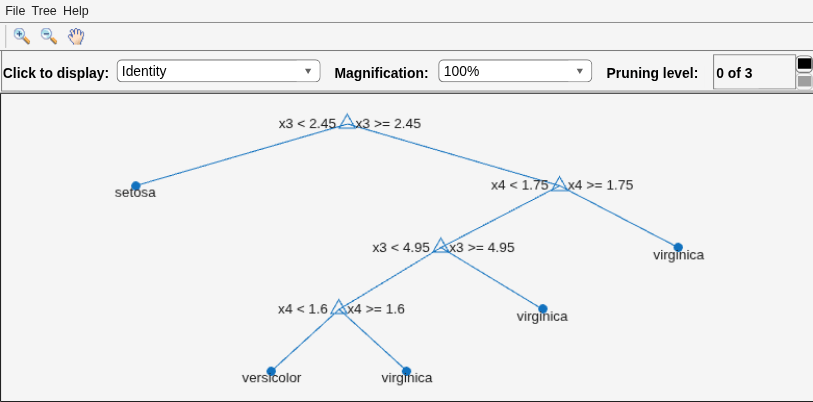

View the classification tree.

view(Mdl,'Mode','graph');

The classification tree has four pruning levels. Level 0 is the full, unpruned tree (as displayed). Level 3 is just the root node (i.e., no splits).

Examine the training sample classification error for each subtree (or pruning level) excluding the highest level.

m = max(Mdl.PruneList) - 1;
trnLoss = resubLoss(Mdl,'Subtrees',0:m)

trnLoss = 3×1

    0.0267
    0.0533
    0.3067

• The full, unpruned tree misclassifies about 2.7% of the training observations.

• The tree pruned to level 1 misclassifies about 5.3% of the training observations.

• The tree pruned to level 2 (i.e., a stump) misclassifies about 30.6% of the training observations.

Examine the validation sample classification error at each level excluding the highest level.

valLoss = loss(Mdl,meas(idxVal,:),species(idxVal),'Subtrees',0:m)

valLoss = 3×1

    0.0369
    0.0237
    0.3067

• The full, unpruned tree misclassifies about 3.7% of the validation observations.

• The tree pruned to level 1 misclassifies about 2.4% of the validation observations.

• The tree pruned to level 2 (i.e., a stump) misclassifies about 30.7% of the validation observations.

To balance model complexity and out-of-sample performance, consider pruning Mdl to level 1.

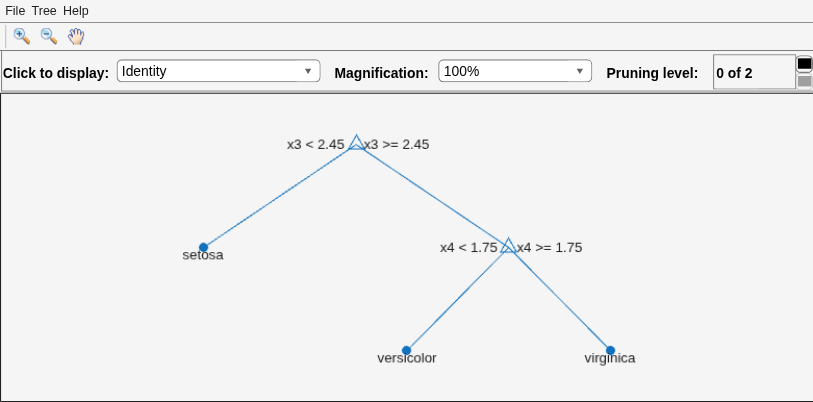

pruneMdl = prune(Mdl,'Level',1);
view(pruneMdl,'Mode','graph')

Input Arguments

tree — Classification tree model

ClassificationTree model object

Classification tree model, specified as a ClassificationTree model object trained with fitctree.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: L = resubLoss(tree,Subtrees="all") specifies to use all subtrees when computing the resubstitution classification loss for tree.

LossFun — Loss function

"mincost" (default) | "binodeviance" | "classifcost" | "classiferror" | "exponential" | "hinge" | "logit" | "quadratic" | function handle

Loss function, specified as a built-in loss function name or a function handle.

The following table describes the values for the built-in loss functions.

Value	Description
"binodeviance"	Binomial deviance
"classifcost"	Observed misclassification cost
"classiferror"	Misclassified rate in decimal
"exponential"	Exponential loss
"hinge"	Hinge loss
"logit"	Logistic loss
"mincost"	Minimal expected misclassification cost (for classification scores that are posterior probabilities)
"quadratic"	Quadratic loss

"mincost" is appropriate for classification scores that are posterior probabilities. Classification trees return posterior probabilities as classification scores by default (see predict).

Specify your own function using function handle notation. Suppose that n is the number of observations in X, and K is the number of distinct classes (numel(tree.ClassNames)). Your function must have the signature

lossvalue = lossfun(C,S,W,Cost)

where:

• The output argument lossvalue is a scalar.

• You specify the function name (lossfun).

• C is an n-by-K logical matrix with rows indicating the class to which the corresponding observation belongs. The column order corresponds to the class order in tree.ClassNames.

  Create C by setting C(p,q) = 1, if observation p is in class q, for each row. Set all other elements of row p to 0.

• S is an n-by-K numeric matrix of classification scores. The column order corresponds to the class order in tree.ClassNames. S is a matrix of classification scores, similar to the output of predict.

• W is an n-by-1 numeric vector of observation weights. If you pass W, the software normalizes the weights to sum to 1.

• Cost is a K-by-K numeric matrix of misclassification costs. For example, Cost = ones(K) - eye(K) specifies a cost of 0 for correct classification and 1 for misclassification.

For more details on loss functions, see Classification Loss.

Example: LossFun="binodeviance"

Example: LossFun=@lossfun

Data Types: char | string | function_handle

Subtrees — Pruning level

0 (default) | vector of nonnegative integers | "all"

Pruning level, specified as a vector of nonnegative integers in ascending order or "all".

If you specify a vector, then all elements must be at least 0 and at most max(tree.PruneList). 0 indicates the full, unpruned tree, and max(tree.PruneList) indicates the completely pruned tree (that is, just the root node).

If you specify "all", then resubLoss operates on all subtrees (in other words, the entire pruning sequence). This specification is equivalent to using 0:max(tree.PruneList).

resubLoss prunes tree to each level specified by Subtrees, and then estimates the corresponding output arguments. The size of Subtrees determines the size of some output arguments.

For the function to invoke Subtrees, the properties PruneList and PruneAlpha of tree must be nonempty. In other words, grow tree by setting Prune="on" when you use fitctree, or by pruning tree using prune.

Example: Subtrees="all"

Data Types: single | double | char | string

TreeSize — Tree size

"se" (default) | "min"

Tree size, specified as one of these values:

• "se" — resubLoss returns the best pruning level (BestLevel), which corresponds to the highest pruning level with the loss within one standard deviation of the minimum (L+se, where L and se relate to the smallest value in Subtrees).

• "min" — resubLoss returns the best pruning level, which corresponds to the element of Subtrees with the smallest loss. This element is usually the smallest element of Subtrees.

Example: TreeSize="min"

Data Types: char | string

Output Arguments

L — Classification loss

numeric vector

Classification loss, returned as a vector of scalar values that has the same length as Subtrees. The meaning of the error depends on the loss function (LossFun).

SE — Standard error of loss

numeric vector

Standard error of loss, returned as a numeric vector of the same length as Subtrees.

Nleaf — Number of leaf nodes

vector of integer values

Number of leaf nodes in the pruned subtrees, returned as a vector of integer values that has the same length as Subtrees. Leaf nodes are terminal nodes, which give responses, not splits.

BestLevel — Best pruning level

numeric scalar

Best pruning level, returned as a numeric scalar whose value depends on TreeSize:

• When TreeSize is "se", the loss function returns the highest pruning level whose loss is within one standard deviation of the minimum (L+se, where L and se relate to the smallest value in Subtrees).

• When TreeSize is "min", the loss function returns the element of Subtrees with the smallest loss, usually the smallest element of Subtrees.

More About

Classification Loss

Classification loss functions measure the predictive inaccuracy of classification models. When you compare the same type of loss among many models, a lower loss indicates a better predictive model.

Consider the following scenario.

• L is the weighted average classification loss.

• n is the sample size.

• For binary classification:

  • y_j is the observed class label. The software codes it as –1 or 1, indicating the negative or positive class (or the first or second class in the ClassNames property), respectively.

  • f(X_j) is the positive-class classification score for observation (row) j of the predictor data X.

  • m_j = y_jf(X_j) is the classification score for classifying observation j into the class corresponding to y_j. Positive values of m_j indicate correct classification and do not contribute much to the average loss. Negative values of m_j indicate incorrect classification and contribute significantly to the average loss.

• For algorithms that support multiclass classification (that is, K ≥ 3):

  • y_j^* is a vector of K – 1 zeros, with 1 in the position corresponding to the true, observed class y_j. For example, if the true class of the second observation is the third class and K = 4, then y₂^* = [0 0 1 0]′. The order of the classes corresponds to the order in the ClassNames property of the input model.

  • f(X_j) is the length K vector of class scores for observation j of the predictor data X. The order of the scores corresponds to the order of the classes in the ClassNames property of the input model.

  • m_j = y_j^*′f(X_j). Therefore, m_j is the scalar classification score that the model predicts for the true, observed class.

• The weight for observation j is w_j. The software normalizes the observation weights so that they sum to the corresponding prior class probability stored in the Prior property. Therefore,

  $${\displaystyle \sum _{j=1}^n{w}_j}=1.$$

Given this scenario, the following table describes the supported loss functions that you can specify by using the LossFun name-value argument.

Loss Function	Value of LossFun	Equation
Binomial deviance	"binodeviance"	$$L={\displaystyle \sum _{j=1}^n{w}_j\log \left\{1+\exp \left[-2m_j\right]\right\}}.$$
Observed misclassification cost	"classifcost"	$$L={\displaystyle \sum _{j=1}^n{w}_j}{c}_{y_j{\widehat{y}}_j},$$ where $${\widehat{y}}_j$$ is the class label corresponding to the class with the maximal score, and $$c_{y_j{\widehat{y}}_j}$$ is the user-specified cost of classifying an observation into class $${\widehat{y}}_j$$ when its true class is yj.
Misclassified rate in decimal	"classiferror"	$$L={\displaystyle \sum _{j=1}^n{w}_j}I\left\{{\widehat{y}}_j\ne y_j\right\},$$ where I{·} is the indicator function.
Cross-entropy loss	"crossentropy"	"crossentropy" is appropriate only for neural network models. The weighted cross-entropy loss is $$L=-{\displaystyle \sum _{j=1}^n\frac{{\tilde{w}}_j\log (m_j)}{Kn}},$$ where the weights $${\tilde{w}}_j$$ are normalized to sum to n instead of 1.
Exponential loss	"exponential"	$$L={\displaystyle \sum _{j=1}^n{w}_j\exp \left(-m_j\right)}.$$
Hinge loss	"hinge"	$$L={\displaystyle \sum }_{j=1}^n{w}_j\max \left\{0,1-m_j\right\}.$$
Logistic loss	"logit"	$$L={\displaystyle \sum _{j=1}^n{w}_j\log \left(1+\exp \left(-m_j\right)\right)}.$$
Minimal expected misclassification cost	"mincost"	"mincost" is appropriate only if classification scores are posterior probabilities. The software computes the weighted minimal expected classification cost using this procedure for observations j = 1,...,n. Estimate the expected misclassification cost of classifying the observation Xj into the class k: $${\gamma }_{jk}={\left(f{\left(X_j\right)}^{\prime }C\right)}_k.$$ f(Xj) is the column vector of class posterior probabilities for the observation Xj. C is the cost matrix stored in the Cost property of the model. For observation j, predict the class label corresponding to the minimal expected misclassification cost: $${\widehat{y}}_j=\underset{k=1,\mathrm{...},K}{\text{argmin}}{\gamma }_{jk}.$$ Using C, identify the cost incurred (cj) for making the prediction. The weighted average of the minimal expected misclassification cost loss is $$L={\displaystyle \sum _{j=1}^n{w}_j{c}_j}.$$
Quadratic loss	"quadratic"	$$L={\displaystyle \sum _{j=1}^n{w}_j{\left(1-m_j\right)}^2}.$$

If you use the default cost matrix (whose element value is 0 for correct classification and 1 for incorrect classification), then the loss values for "classifcost", "classiferror", and "mincost" are identical. For a model with a nondefault cost matrix, the "classifcost" loss is equivalent to the "mincost" loss most of the time. These losses can be different if prediction into the class with maximal posterior probability is different from prediction into the class with minimal expected cost. Note that "mincost" is appropriate only if classification scores are posterior probabilities.

This figure compares the loss functions (except "classifcost", "crossentropy", and "mincost") over the score m for one observation. Some functions are normalized to pass through the point (0,1).

True Misclassification Cost

The true misclassification cost is the cost of classifying an observation into an incorrect class.

You can set the true misclassification cost per class by using the Cost name-value argument when you create the classifier. Cost(i,j) is the cost of classifying an observation into class j when its true class is i. By default, Cost(i,j)=1 if i~=j, and Cost(i,j)=0 if i=j. In other words, the cost is 0 for correct classification and 1 for incorrect classification.

Expected Misclassification Cost

The expected misclassification cost per observation is an averaged cost of classifying the observation into each class.

Suppose you have Nobs observations that you want to classify with a trained classifier, and you have K classes. You place the observations into a matrix X with one observation per row.

The expected cost matrix CE has size Nobs-by-K. Each row of CE contains the expected (average) cost of classifying the observation into each of the K classes. CE(n,k) is

$${\displaystyle \sum _{i=1}^K\widehat{P}\left(i|X(n)\right)C\left(k|i\right)},$$

where:

• K is the number of classes.

• $$\widehat{P}\left(i|X(n)\right)$$ is the posterior probability of class i for observation X(n).

• $$C\left(k|i\right)$$ is the true misclassification cost of classifying an observation as k when its true class is i.

Extended Capabilities

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

This function fully supports GPU arrays. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2011a
