# fitrqnet

## Syntax

## Description

returns a trained regression quantile neural network model `Mdl`

= fitrqnet(`Tbl`

,`ResponseVarName`

)`Mdl`

. The
function trains the model using the predictors in the table `Tbl`

and the
response values in the `ResponseVarName`

table variable.

By default, the function uses the median (0.5 quantile).

specifies options using one or more name-value arguments in addition to any of the input
argument combinations in previous syntaxes. For example, you can specify the quantiles by
using the `Mdl`

= fitrqnet(___,`Name=Value`

)`Quantiles`

name-value argument.

## Examples

### Fit Quantile Neural Network Regression Model

Fit a quantile neural network regression model using the 0.25, 0.50, and 0.75 quantiles.

Load the `carbig`

data set, which contains measurements of cars made in the 1970s and early 1980s. Create a matrix `X`

containing the predictor variables `Acceleration`

, `Displacement`

, `Horsepower`

, and `Weight`

. Store the response variable `MPG`

in the variable `Y`

.

```
load carbig
X = [Acceleration,Displacement,Horsepower,Weight];
Y = MPG;
```

Delete rows of `X`

and `Y`

where either array has missing values.

R = rmmissing([X Y]); X = R(:,1:end-1); Y = R(:,end);

Partition the data into training data (`XTrain`

and `YTrain`

) and test data (`XTest`

and `YTest`

). Reserve approximately 20% of the observations for testing, and use the rest of the observations for training.

rng(0,"twister") % For reproducibility of the partition c = cvpartition(length(Y),"Holdout",0.20); trainingIdx = training(c); XTrain = X(trainingIdx,:); YTrain = Y(trainingIdx); testIdx = test(c); XTest = X(testIdx,:); YTest = Y(testIdx);

Train a quantile neural network regression model. Specify to use the `0.25`

, `0.50`

, and `0.75`

quantiles (that is, the lower quartile, median, and upper quartile). To improve the model fit, standardize the numeric predictors. Use a ridge (L2) regularization term of `1`

. Adding a regularization term can help prevent quantile crossing.

```
Mdl = fitrqnet(XTrain,YTrain,Quantiles=[0.25,0.50,0.75], ...
Standardize=true,Lambda=0.05)
```

Mdl = RegressionQuantileNeuralNetwork ResponseName: 'Y' CategoricalPredictors: [] LayerSizes: 10 Activations: 'relu' OutputLayerActivation: 'none' Quantiles: [0.2500 0.5000 0.7500]

`Mdl`

is a `RegressionQuantileNeuralNetwork`

model object. You can use dot notation to access the properties of `Mdl`

. For example, `Mdl.LayerWeights`

and `Mdl.LayerBiases`

contain the weights and biases, respectively, for the fully connected layers of the trained model.

In this example, you can use the layer weights, layer biases, predictor means, and predictor standard deviations directly to predict the test set responses for each of the three quantiles in `Mdl.Quantiles`

. In general, you can use the `predict`

object function to make quantile predictions.

```
firstFCStep = (Mdl.LayerWeights{1})*((XTest-Mdl.Mu)./Mdl.Sigma)' ...
+ Mdl.LayerBiases{1};
reluStep = max(firstFCStep,0);
finalFCStep = (Mdl.LayerWeights{end})*reluStep + Mdl.LayerBiases{end};
predictedY = finalFCStep'
```

`predictedY = `*78×3*
13.9602 15.1340 16.6884
11.2792 12.2332 13.4849
19.5525 21.7303 23.9473
22.6950 25.5260 28.1201
10.4533 11.3377 12.4984
17.6935 19.5194 21.5152
12.4312 13.4797 14.8614
11.7998 12.7963 14.1071
16.6860 18.3305 20.2070
24.1142 27.0301 29.7811
⋮

isequal(predictedY,predict(Mdl,XTest))

`ans = `*logical*
1

Each column of `predictedY`

corresponds to a separate quantile (0.25, 0.5, or 0.75).

Visualize the predictions of the quantile neural network regression model. First, create a grid of predictor values.

minX = floor(min(X))

`minX = `*1×4*
8 68 46 1613

maxX = ceil(max(X))

`maxX = `*1×4*
25 455 230 5140

gridX = zeros(100,size(X,2)); for p = 1:size(X,2) gridp = linspace(minX(p),maxX(p))'; gridX(:,p) = gridp; end

Next, use the trained model `Mdl`

to predict the response values for the grid of predictor values.

gridY = predict(Mdl,gridX)

`gridY = `*100×3*
31.2419 35.0661 38.6357
30.8637 34.6317 38.1573
30.4854 34.1972 37.6789
30.1072 33.7627 37.2005
29.7290 33.3283 36.7221
29.3507 32.8938 36.2436
28.9725 32.4593 35.7652
28.5943 32.0249 35.2868
28.2160 31.5904 34.8084
27.8378 31.1560 34.3300
⋮

For each observation in `gridX`

, the `predict`

object function returns predictions for the quantiles in `Mdl.Quantiles`

.

View the `gridY`

predictions for the second predictor (`Displacement`

). Compare the quantile predictions to the true test data values.

predictorIdx = 2; plot(XTest(:,predictorIdx),YTest,".") hold on plot(gridX(:,predictorIdx),gridY(:,1)) plot(gridX(:,predictorIdx),gridY(:,2)) plot(gridX(:,predictorIdx),gridY(:,3)) hold off xlabel("Predictor (Displacement)") ylabel("Response (MPG)") legend(["True values","0.25 predicted values", ... "0.50 predicted values","0.75 predicted values"]) title("Test Data")

The red curve shows the predictions for the 0.25 quantile, the yellow curve shows the predictions for the 0.50 quantile, and the purple curve shows the predictions for the 0.75 quantile. The blue points indicate the true test data values.

Notice that the quantile prediction curves do not cross each other.

### Prevent Quantile Crossing Using Regularization

When training a quantile neural network regression model, you can use a ridge (L2) regularization term to prevent quantile crossing.

Load the `carbig`

data set, which contains measurements of cars made in the 1970s and early 1980s. Create a table containing the predictor variables `Acceleration`

, `Cylinders`

, `Displacement`

, and so on, as well as the response variable `MPG`

.

load carbig cars = table(Acceleration,Cylinders,Displacement, ... Horsepower,Model_Year,Origin,Weight,MPG);

Remove rows of `cars`

where the table has missing values.

cars = rmmissing(cars);

Categorize the cars based on whether they were made in the USA.

cars.Origin = categorical(cellstr(cars.Origin)); cars.Origin = mergecats(cars.Origin,["France","Japan",... "Germany","Sweden","Italy","England"],"NotUSA");

Partition the data into training and test sets using `cvpartition`

. Use approximately 80% of the observations as training data, and 20% of the observations as test data.

rng(0,"twister") % For reproducibility of the data partition c = cvpartition(height(cars),"Holdout",0.20); trainingIdx = training(c); carsTrain = cars(trainingIdx,:); testIdx = test(c); carsTest = cars(testIdx,:);

Train a quantile neural network regression model. Use the `0.25`

, `0.50`

, and `0.75`

quantiles (that is, the lower quartile, median, and upper quartile). To improve the model fit, standardize the numeric predictors before training.

Mdl = fitrqnet(carsTrain,"MPG",Quantiles=[0.25 0.5 0.75], ... Standardize=true);

`Mdl`

is a `RegressionNeuralNetwork`

model object.

Determine if the test data predictions for the quantiles in `Mdl.Quantiles`

cross each other by using the `predict`

object function of `Mdl`

. The `crossingIndicator`

output argument contains a value of `1`

(`true`

) for any observation with quantile predictions that cross.

[~,crossingIndicator] = predict(Mdl,carsTest); sum(crossingIndicator)

ans = 2

In this example, two of the observations in `carsTest`

have quantile predictions that cross each other.

To prevent quantile crossing, specify the `Lambda`

name-value argument in the call to `fitrqnet`

. Use a `0.05`

ridge (L2) penalty term.

newMdl = fitrqnet(carsTrain,"MPG",Quantiles=[0.25 0.5 0.75], ... Standardize=true,Lambda=0.05); [predictedY,newCrossingIndicator] = predict(newMdl,carsTest); sum(newCrossingIndicator)

ans = 0

With regularization, the predictions for the test data set do not cross for any observations.

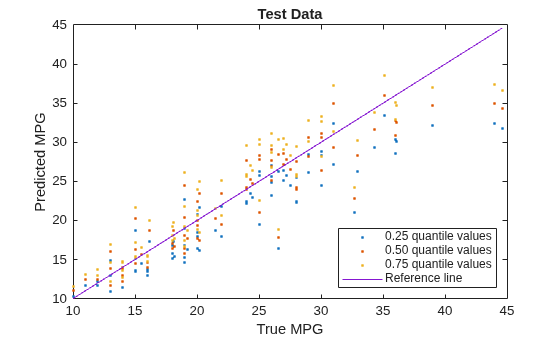

Visualize the predictions returned by `newMdl`

by using a scatter plot with a reference line. Plot the predicted values along the vertical axis and the true response values along the horizontal axis. Points on the reference line indicate correct predictions.

plot(carsTest.MPG,predictedY(:,1),".") hold on plot(carsTest.MPG,predictedY(:,2),".") plot(carsTest.MPG,predictedY(:,3),".") plot(carsTest.MPG,carsTest.MPG) hold off xlabel("True MPG") ylabel("Predicted MPG") legend(["0.25 quantile values","0.50 quantile values", ... "0.75 quantile values","Reference line"], ... Location="southeast") title("Test Data")

Blue points correspond to the 0.25 quantile, red points correspond to the 0.50 quantile, and yellow points correspond to the 0.75 quantile.

## Input Arguments

`Tbl`

— Sample data

table

Sample data used to train the model, specified as a table. Each row of `Tbl`

corresponds to one observation, and each column corresponds to one predictor variable.
Optionally, `Tbl`

can contain one additional column for the response
variable. Multicolumn variables and cell arrays other than cell arrays of character
vectors are not allowed.

If

`Tbl`

contains the response variable, and you want to use all remaining variables in`Tbl`

as predictors, then specify the response variable by using`ResponseVarName`

.If

`Tbl`

contains the response variable, and you want to use only a subset of the remaining variables in`Tbl`

as predictors, then specify a formula by using`formula`

.If

`Tbl`

does not contain the response variable, then specify a response variable by using`Y`

. The length of the response variable and the number of rows in`Tbl`

must be equal.

`ResponseVarName`

— Response variable name

name of variable in `Tbl`

Response variable name, specified as the name of a variable in
`Tbl`

. The response variable must be a numeric vector.

You must specify `ResponseVarName`

as a character vector or string
scalar. For example, if `Tbl`

stores the response variable
`Y`

as `Tbl.Y`

, then specify it as
`"Y"`

. Otherwise, the software treats all columns of
`Tbl`

, including `Y`

, as predictors when
training the model.

**Data Types: **`char`

| `string`

`formula`

— Explanatory model of response variable and subset of predictor variables

character vector | string scalar

Explanatory model of the response variable and a subset of the predictor variables,
specified as a character vector or string scalar in the form
`"Y~x1+x2+x3"`

. In this form, `Y`

represents the
response variable, and `x1`

, `x2`

, and
`x3`

represent the predictor variables.

To specify a subset of variables in `Tbl`

as predictors for
training the model, use a formula. If you specify a formula, then the software does not
use any variables in `Tbl`

that do not appear in
`formula`

.

The variable names in the formula must be both variable names in `Tbl`

(`Tbl.Properties.VariableNames`

) and valid MATLAB^{®} identifiers. You can verify the variable names in `Tbl`

by
using the `isvarname`

function. If the variable names
are not valid, then you can convert them by using the `matlab.lang.makeValidName`

function.

**Data Types: **`char`

| `string`

`X`

— Predictor data

numeric matrix

Predictor data used to train the model, specified as a numeric matrix.

By default, the software treats each row of `X`

as one
observation, and each column as one predictor.

The length of `Y`

and the number of observations in
`X`

must be equal.

To specify the names of the predictors in the order of their appearance in
`X`

, use the `PredictorNames`

name-value
argument.

**Note**

If you orient your predictor matrix so that observations correspond to columns and
specify `ObservationsIn="columns"`

, then you might experience a
significant reduction in computation time.

**Data Types: **`single`

| `double`

**Note**

The software treats `NaN`

, empty character vector
(`''`

), empty string (`""`

),
`<missing>`

, and `<undefined>`

elements as
missing values, and removes observations with any of these characteristics:

Missing value in the response (for example,

`Y`

or`ValidationData`

`{2}`

)At least one missing value in a predictor observation (for example, a row in

`X`

or`ValidationData{1}`

)`NaN`

value or`0`

weight (for example, a value in`Weights`

or`ValidationData{3}`

)

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **```
fitrqnet(Tbl,"MPG",Quantiles=[0.25 0.5
0.75],Standardize=true)
```

specifies to use the 0.25, 0.5, and 0.75 quantiles and
to standardize the data before training.

**Neural Network Options**

`Quantiles`

— Quantiles

`0.5`

(default) | vector of values in the range [0,1]

Quantiles to use for training `Mdl`

, specified as a vector of
values in the range [0,1]. The function trains a model that separates the bottom 100**q* percent of training responses from the top 100*(1 – *q*) percent of training responses for each quantile
*q*.

**Example: **`Quantiles=[0.25 0.5 0.75]`

**Data Types: **`single`

| `double`

`LayerSizes`

— Sizes of fully connected layers

`10`

(default) | positive integer vector

Sizes of the fully connected layers in the quantile neural network regression
model, specified as a positive integer vector. Element *i* of
`LayerSizes`

is the number of outputs in the fully connected
layer *i* of the neural network model.

`LayerSizes`

does not include the size of the final fully
connected layer. For more information, see Quantile Neural Network Structure.

**Example: **`LayerSizes=[100 25 10]`

**Data Types: **`single`

| `double`

`Activations`

— Activation functions for fully connected layers

`"relu"`

(default) | `"tanh"`

| `"sigmoid"`

| `"none"`

| string array | cell array of character vectors

Activation functions for the fully connected layers of the quantile neural network regression model, specified as a character vector, string scalar, string array, or cell array of character vectors with values from this table.

Value | Description |
---|---|

`"relu"` | Rectified linear unit (ReLU) function — Performs a threshold operation on each element of the input, where any value less than zero is set to zero, that is, $$f\left(x\right)=\{\begin{array}{cc}x,& x\ge 0\\ 0,& x<0\end{array}$$ |

`"tanh"` | Hyperbolic tangent (tanh) function — Applies the |

`"sigmoid"` | Sigmoid function — Performs the following operation on each input element: $$f(x)=\frac{1}{1+{e}^{-x}}$$ |

`"none"` | Identity function — Returns each input element without performing any transformation, that is, |

If you specify one activation function only, then

`Activations`

is the activation function for every fully connected layer of the neural network model, excluding the final fully connected layer (see Quantile Neural Network Structure).If you specify an array of activation functions, then element

*i*of`Activations`

is the activation function for layer*i*of the neural network model.

**Example: **`Activations="sigmoid"`

**Data Types: **`char`

| `string`

| `cell`

`LayerWeightsInitializer`

— Function to initialize fully connected layer weights

`"glorot"`

(default) | `"he"`

Function to initialize the fully connected layer weights, specified as
`"glorot"`

or `"he"`

.

Value | Description |
---|---|

`"glorot"` | Initialize the weights with the Glorot initializer [1]
(also known as the Xavier initializer). For each layer, the Glorot
initializer independently samples from a uniform distribution with
zero mean and variance `2/(I+O)` , where
`I` is the input size and `O`
is the output size for the layer. |

`"he"` | Initialize the weights with the He initializer [2].
For each layer, the He initializer samples from a normal
distribution with zero mean and variance `2/I` ,
where `I` is the input size for the layer. |

**Example: **`LayerWeightsInitializer="he"`

**Data Types: **`char`

| `string`

`LayerBiasesInitializer`

— Type of initial fully connected layer biases

`"zeros"`

(default) | `"ones"`

Type of initial fully connected layer biases, specified as `"zeros"`

or
`"ones"`

.

If you specify the value

`"zeros"`

, then each fully connected layer has an initial bias of 0.If you specify the value

`"ones"`

, then each fully connected layer has an initial bias of 1.

**Example: **`LayerBiasesInitializer="ones"`

**Data Types: **`char`

| `string`

`ObservationsIn`

— Predictor data observation dimension

`"rows"`

(default) | `"columns"`

Predictor data observation dimension, specified as `"rows"`

or
`"columns"`

.

**Note**

If you orient your predictor matrix so that observations correspond to columns and
specify `ObservationsIn="columns"`

, then you might experience a
significant reduction in computation time. You cannot specify
`ObservationsIn="columns"`

for predictor data in a
table.

**Example: **`ObservationsIn="columns"`

**Data Types: **`char`

| `string`

`Lambda`

— Regularization term strength

`0`

(default) | nonnegative scalar

Regularization term strength, specified as a nonnegative scalar. The software constructs the objective function for minimization from the quantile loss averaged over the quantiles (see Quantile Loss) and the ridge (L2) penalty term.

**Example: **`Lambda=1e-4`

**Data Types: **`single`

| `double`

`Standardize`

— Flag to standardize predictor data

`false`

or `0`

(default) | `true`

or `1`

Flag to standardize the predictor data, specified as a numeric or logical `0`

(`false`

) or `1`

(`true`

). If you
set `Standardize`

to `true`

, then the software
centers and scales each numeric predictor variable by the corresponding column mean and
standard deviation. The software does not standardize categorical predictors.

**Example: **`Standardize=true`

**Data Types: **`single`

| `double`

| `logical`

**Convergence Control Options**

`Verbose`

— Verbosity level

`0`

(default) | `1`

Verbosity level, specified as `0`

or `1`

. The
`Verbose`

name-value argument controls the display of diagnostic
information at the command line.

Value | Description |
---|---|

`0` | `fitrqnet` does not display diagnostic
information. |

`1` | `fitrqnet` periodically displays diagnostic
information. |

`fitrqnet`

stores the diagnostic information in
`Mdl`

. Use `Mdl.ConvergenceInfo.History`

to
access the diagnostic information.

**Example: **`Verbose=1`

**Data Types: **`single`

| `double`

`VerboseFrequency`

— Frequency of verbose printing

`1`

(default) | positive integer scalar

Frequency of verbose printing, which is the number of iterations between printing diagnostic information at the command line, specified as a positive integer scalar. A value of 1 indicates to print diagnostic information at every iteration.

**Note**

To use this name-value argument, you must set
`Verbose`

to
`1`

.

**Example: **`VerboseFrequency=5`

**Data Types: **`single`

| `double`

`InitialStepSize`

— Initial step size

`[]`

(default) | positive scalar | `"auto"`

Initial step size, specified as a positive scalar or `"auto"`

. By
default, `fitrqnet`

does not use the initial step size to
determine the initial Hessian approximation used in training the model. However, if
you specify an initial step size $${\Vert {s}_{0}\Vert}_{\infty}$$, then the initial inverse-Hessian approximation is $$\frac{{\Vert {s}_{0}\Vert}_{\infty}}{{\Vert \nabla {\mathcal{L}}_{0}\Vert}_{\infty}}I$$. $$\nabla {\mathcal{L}}_{0}$$ is the initial gradient vector, and $$I$$ is the identity matrix.

To have `fitrqnet`

determine an initial step size
automatically, specify the value as `"auto"`

. In this case, the
function determines the initial step size by using $${\Vert {s}_{0}\Vert}_{\infty}=0.5{\Vert {\eta}_{0}\Vert}_{\infty}+0.1$$. $${s}_{0}$$ is the initial step vector, and $${\eta}_{0}$$ is the vector of unconstrained initial weights and biases.

**Example: **`InitialStepSize="auto"`

**Data Types: **`single`

| `double`

| `char`

| `string`

`IterationLimit`

— Maximum number of training iterations

`1e3`

(default) | positive integer scalar

Maximum number of training iterations, specified as a positive integer scalar.

The software returns a trained model regardless of whether the training routine
successfully converges. `Mdl.ConvergenceInfo.ConvergenceCriterion`

contains convergence information.

**Example: **`IterationLimit=1e8`

**Data Types: **`single`

| `double`

`GradientTolerance`

— Relative gradient tolerance

`1e-6`

(default) | nonnegative scalar

Relative gradient tolerance, specified as a nonnegative scalar.

Let $${\mathcal{L}}_{t}$$ be the loss function at training iteration *t*, $$\nabla {\mathcal{L}}_{t}$$ be the gradient of the loss function with respect to the weights and biases at iteration *t*, and $$\nabla {\mathcal{L}}_{0}$$ be the gradient of the loss function at an initial point. If $$\mathrm{max}\left|\nabla {\mathcal{L}}_{t}\right|\le a\cdot \text{GradientTolerance}$$, where $$a=\mathrm{max}\left(1,\mathrm{min}\left|{\mathcal{L}}_{t}\right|,\mathrm{max}\left|\nabla {\mathcal{L}}_{0}\right|\right)$$, then the training process terminates.

**Example: **`GradientTolerance=1e-5`

**Data Types: **`single`

| `double`

`LossTolerance`

— Loss tolerance

`1e-6`

(default) | nonnegative scalar

Loss tolerance, specified as a nonnegative scalar.

If the function loss at some iteration is smaller than `LossTolerance`

, then the training process terminates.

**Example: **`LossTolerance=1e-8`

**Data Types: **`single`

| `double`

`StepTolerance`

— Step size tolerance

`1e-6`

(default) | nonnegative scalar

Step size tolerance, specified as a nonnegative scalar.

If the step size at some iteration is smaller than `StepTolerance`

, then the training process terminates.

**Example: **`StepTolerance=1e-4`

**Data Types: **`single`

| `double`

`ValidationData`

— Validation data for training convergence detection

cell array | table

Validation data for training convergence detection, specified as a cell array or a table.

During the training process, the software periodically estimates the validation loss by using
`ValidationData`

. If the validation loss increases more than
`ValidationPatience`

times consecutively, then the software
terminates the training.

You can specify `ValidationData`

as a table if you use a table `Tbl`

of predictor data that contains the response variable. In this case, `ValidationData`

must contain the same predictors and response contained in `Tbl`

. The software does not apply weights to observations, even if `Tbl`

contains a vector of weights. To specify weights, you must specify `ValidationData`

as a cell array.

If you specify `ValidationData`

as a cell array, then it must have the following format:

`ValidationData{1}`

must have the same data type and orientation as the predictor data. That is, if you use a predictor matrix`X`

, then`ValidationData{1}`

must be an*m*-by-*p*or*p*-by-*m*matrix of predictor data that has the same orientation as`X`

. The predictor variables in the training data`X`

and`ValidationData{1}`

must correspond. Similarly, if you use a predictor table`Tbl`

of predictor data, then`ValidationData{1}`

must be a table containing the same predictor variables contained in`Tbl`

. The number of observations in`ValidationData{1}`

and the predictor data can vary.`ValidationData{2}`

must match the data type and format of the response variable, either`Y`

or`ResponseVarName`

. If`ValidationData{2}`

is an array of responses, then it must have the same number of elements as the number of observations in`ValidationData{1}`

. If`ValidationData{1}`

is a table, then`ValidationData{2}`

can be the name of the response variable in the table. If you want to use the same`ResponseVarName`

or`formula`

, you can specify`ValidationData{2}`

as`[]`

.Optionally, you can specify

`ValidationData{3}`

as an*m*-dimensional numeric vector of observation weights or the name of a variable in the table`ValidationData{1}`

that contains observation weights. The software normalizes the weights with the validation data so that they sum to 1.

If you specify `ValidationData`

and want to display the validation loss at the command line, set `Verbose`

to `1`

.

**Data Types: **`table`

| `cell`

`ValidationFrequency`

— Number of iterations between validation evaluations

`1`

(default) | positive integer scalar

Number of iterations between validation evaluations, specified as a positive integer scalar. A value of 1 indicates to evaluate validation metrics at every iteration.

**Note**

To use this name-value argument, you must specify `ValidationData`

.

**Example: **`ValidationFrequency=5`

**Data Types: **`single`

| `double`

`ValidationPatience`

— Stopping condition for validation evaluations

`6`

(default) | nonnegative integer scalar

Stopping condition for validation evaluations, specified as a nonnegative integer
scalar. Training stops if the validation loss is greater than or equal to the minimum
validation loss computed so far, `ValidationPatience`

times
consecutively. You can check the `Mdl.ConvergenceInfo.History`

table
to see the running total of times that the validation loss is greater than or equal to
the minimum (`Validation Checks`

).

**Example: **`ValidationPatience=10`

**Data Types: **`single`

| `double`

**Other Regression Options**

`CategoricalPredictors`

— Categorical predictors list

vector of positive integers | logical vector | character matrix | string array | cell array of character vectors | `"all"`

Categorical predictors list, specified as one of the values in this table. The descriptions assume that the predictor data has observations in rows and predictors in columns.

Value | Description |
---|---|

Vector of positive integers |
Each entry in the vector is an index value indicating that the corresponding predictor is
categorical. The index values are between 1 and If |

Logical vector |
A |

Character matrix | Each row of the matrix is the name of a predictor variable. The names must match the entries in `PredictorNames` . Pad the names with extra blanks so each row of the character matrix has the same length. |

String array or cell array of character vectors | Each element in the array is the name of a predictor variable. The names must match the entries in `PredictorNames` . |

`"all"` | All predictors are categorical. |

By default, if the
predictor data is in a table (`Tbl`

), `fitrqnet`

assumes that a variable is categorical if it is a logical vector, categorical vector, character
array, string array, or cell array of character vectors. If the predictor data is a matrix
(`X`

), `fitrqnet`

assumes that all predictors are
continuous. To identify any other predictors as categorical predictors, specify them by using
the `CategoricalPredictors`

name-value argument.

For the identified categorical predictors, `fitrqnet`

creates
dummy variables using two different schemes, depending on whether a categorical variable
is unordered or ordered. For an unordered categorical variable,
`fitrqnet`

creates one dummy variable for each level of the
categorical variable. For an ordered categorical variable,
`fitrqnet`

creates one less dummy variable than the number of
categories. For details, see Automatic Creation of Dummy Variables.

**Example: **`CategoricalPredictors="all"`

**Data Types: **`single`

| `double`

| `logical`

| `char`

| `string`

| `cell`

`PredictorNames`

— Predictor variable names

string array of unique names | cell array of unique character vectors

Predictor variable names, specified as a string array of unique names or cell array of unique
character vectors. The functionality of `PredictorNames`

depends on the
way you supply the training data.

If you supply

`X`

and`Y`

, then you can use`PredictorNames`

to assign names to the predictor variables in`X`

.The order of the names in

`PredictorNames`

must correspond to the predictor order in`X`

. Assuming that`X`

has the default orientation, with observations in rows and predictors in columns,`PredictorNames{1}`

is the name of`X(:,1)`

,`PredictorNames{2}`

is the name of`X(:,2)`

, and so on. Also,`size(X,2)`

and`numel(PredictorNames)`

must be equal.By default,

`PredictorNames`

is`{'x1','x2',...}`

.

If you supply

`Tbl`

, then you can use`PredictorNames`

to choose which predictor variables to use in training. That is,`fitrqnet`

uses only the predictor variables in`PredictorNames`

and the response variable during training.`PredictorNames`

must be a subset of`Tbl.Properties.VariableNames`

and cannot include the name of the response variable.By default,

`PredictorNames`

contains the names of all predictor variables.A good practice is to specify the predictors for training using either

`PredictorNames`

or`formula`

, but not both.

**Example: **`PredictorNames=["SepalLength","SepalWidth","PetalLength","PetalWidth"]`

**Data Types: **`string`

| `cell`

`ResponseName`

— Response variable name

`"Y"`

(default) | character vector | string scalar

Response variable name, specified as a character vector or string scalar.

If you supply

`Y`

, then you can use`ResponseName`

to specify a name for the response variable.If you supply

`ResponseVarName`

or`formula`

, then you cannot use`ResponseName`

.

**Example: **`ResponseName="response"`

**Data Types: **`char`

| `string`

`ResponseTransform`

— Function for transforming raw response values

`"none"`

(default) | function handle | function name

Function for transforming raw response values, specified as a function handle or
function name. The default is `"none"`

, which means
`@(y)y`

, or no transformation. The function should accept a vector
(the original response values) and return a vector of the same size (the transformed
response values).

**Example: **Suppose you create a function handle that applies an exponential
transformation to an input vector by using `myfunction = @(y)exp(y)`

.
Then, you can specify the response transformation as
`ResponseTransform=myfunction`

.

**Data Types: **`char`

| `string`

| `function_handle`

`Weights`

— Observation weights

nonnegative numeric vector | name of variable in `Tbl`

Observation weights, specified as a nonnegative numeric vector or the name of a variable in `Tbl`

. The software weights each observation in `X`

or `Tbl`

with the corresponding value in `Weights`

. The length of `Weights`

must equal the number of observations in `X`

or `Tbl`

.

If you specify the input data as a table `Tbl`

, then
`Weights`

can be the name of a variable in
`Tbl`

that contains a numeric vector. In this case, you must
specify `Weights`

as a character vector or string scalar. For
example, if the weights vector `W`

is stored as
`Tbl.W`

, then specify it as `"W"`

. Otherwise, the
software treats all columns of `Tbl`

, including `W`

,
as predictors when training the model.

By default, `Weights`

is `ones(n,1)`

, where `n`

is the number of observations in `X`

or `Tbl`

.

`fitrqnet`

normalizes the weights to sum to 1.

**Data Types: **`single`

| `double`

| `char`

| `string`

## Output Arguments

`Mdl`

— Trained quantile neural network model

`RegressionQuantileNeuralNetwork`

model object

Trained quantile neural network model, returned as a `RegressionQuantileNeuralNetwork`

model object.

To reference properties of `Mdl`

, use dot notation.

## More About

### Quantile Neural Network Structure

The default quantile neural network regression model has the following layer structure.

Structure | Description |
---|---|

| Input — This layer corresponds to the predictor data in
`Tbl` or `X` . |

First fully connected layer — This layer has 10 outputs, by default.
You can widen the layer or add more fully connected layers to the network by specifying the `LayerSizes` name-value argument.You can find the weights and biases for this layer in the `Mdl.LayerWeights{1}` and`Mdl.LayerBiases{1}` properties of`Mdl` , respectively.
| |

ReLU activation function —
You can change the activation function by specifying the `Activations` name-value argument.
| |

Final fully connected layer — This layer has one output for each quantile
specified by the
You can find the weights and biases for this layer in the `Mdl.LayerWeights{end}` and`Mdl.LayerBiases{end}` properties of`Mdl` , respectively.
| |

Output — This layer corresponds to the predicted response values. |

## Tips

You can use the α/2 and 1 – α/2 quantiles to create a prediction interval that captures an estimated 100*(1 – α) percent of the variation in the response.

## Algorithms

### Training Solver

`fitrqnet`

uses a limited-memory Broyden-Fletcher-Goldfarb-Shanno
quasi-Newton algorithm (LBFGS) [3] as its loss function
minimization technique, where the software minimizes the quantile loss averaged over the
quantiles (see Quantile Loss). The LBFGS solver uses a
standard line-search method with an approximation to the Hessian.

## Version History

**Introduced in R2024b**

## See Also

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
