binScatterPlot
Scatter plot of bins for tall arrays
Syntax
Description
binScatterPlot(
creates a binned
scatter plot of the data in X,Y
)X
and Y
. The
binScatterPlot
function uses an automatic binning algorithm
that returns bins with a uniform area, chosen to cover the range of elements in
X
and Y
and reveal the underlying shape of
the distribution.
binScatterPlot(
specifies additional options with one or more name-value pair arguments using any of
the previous syntaxes. For example, you can specify X,Y
,Name,Value
)'Color'
and a
valid color option to change the color theme of the plot, or
'Gamma'
with a positive scalar to adjust the level of
detail.
returns a h
= binScatterPlot(___)Histogram2
object. Use this object to inspect
properties of the plot.
Examples
Binned Scatter Plot of Normally Distributed Random Data

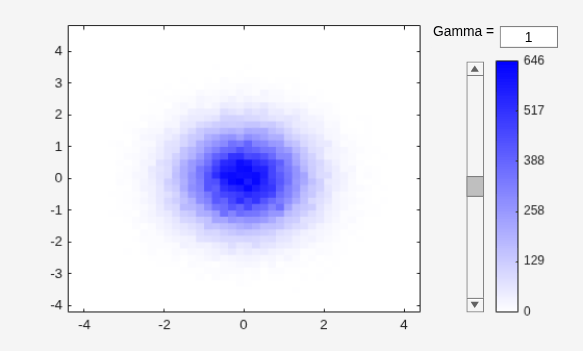

Create two tall vectors of random data. Create a binned scatter plot for the data.
When you perform calculations on tall arrays, MATLAB® uses either a parallel pool (default if you have Parallel Computing Toolbox™) or the local MATLAB session. To run the example using the local MATLAB session when you have Parallel Computing Toolbox, change the global execution environment by using the mapreducer
function.
mapreducer(0) X = tall(randn(1e5,1)); Y = tall(randn(1e5,1)); binScatterPlot(X,Y)
Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 2: Completed in 0.5 sec - Pass 2 of 2: Completed in 0.12 sec Evaluation completed in 1.3 sec Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.13 sec Evaluation completed in 0.19 sec
The resulting figure contains a slider to adjust the level of detail in the image.
Specify Number of Scatter Plot Bins
Specify a scalar value as the third input argument to use the same number of bins in each dimension, or a two-element vector to use a different number of bins in each dimension.
When you perform calculations on tall arrays, MATLAB® uses either a parallel pool (default if you have Parallel Computing Toolbox™) or the local MATLAB session. To run the example using the local MATLAB session when you have Parallel Computing Toolbox, change the global execution environment by using the mapreducer
function.
mapreducer(0)

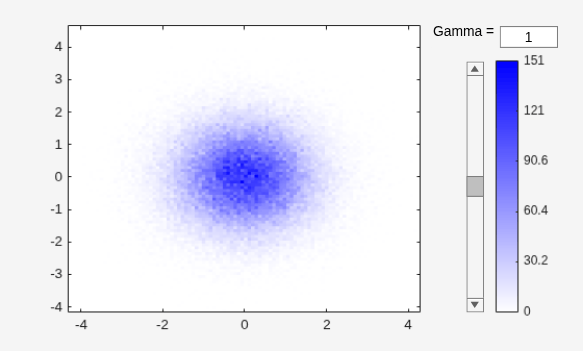

Plot a binned scatter plot of random data sorted into 100 bins in each dimension.
X = tall(randn(1e5,1)); Y = tall(randn(1e5,1)); binScatterPlot(X,Y,100)
Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.22 sec Evaluation completed in 0.41 sec Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.11 sec Evaluation completed in 0.16 sec

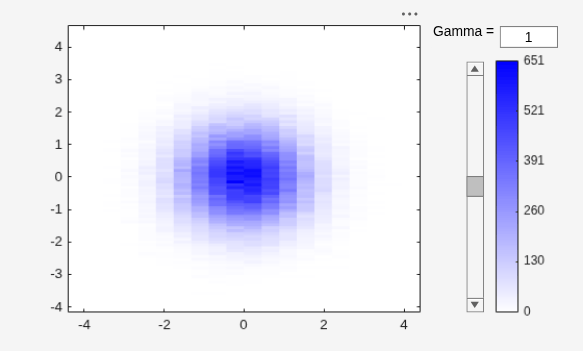

Use 20 bins in the x-dimension and continue to use 100 bins in the y-dimension.
binScatterPlot(X,Y,[20 100])
Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.08 sec Evaluation completed in 0.15 sec Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.096 sec Evaluation completed in 0.13 sec
Specify Bin Edges for Scatter Plot
Plot a binned scatter plot of random data with specific bin edges. Use bin edges of Inf
and -Inf
to capture outliers.
When you perform calculations on tall arrays, MATLAB® uses either a parallel pool (default if you have Parallel Computing Toolbox™) or the local MATLAB session. To run the example using the local MATLAB session when you have Parallel Computing Toolbox, change the global execution environment by using the mapreducer
function.
mapreducer(0)

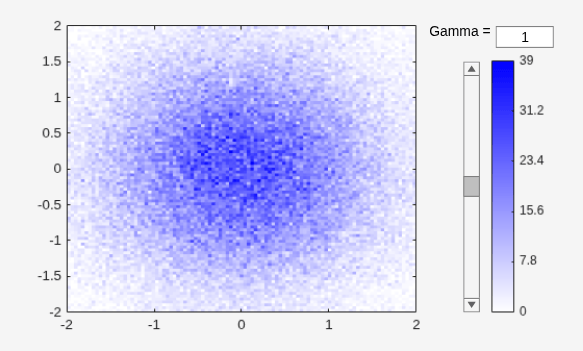

Create a binned scatter plot with 100 bin edges between [-2 2]
in each dimension. The data outside the specified bin edges is not included in the plot.
X = tall(randn(1e5,1)); Y = tall(randn(1e5,1)); Xedges = linspace(-2,2); Yedges = linspace(-2,2); binScatterPlot(X,Y,Xedges,Yedges)
Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.54 sec Evaluation completed in 0.72 sec

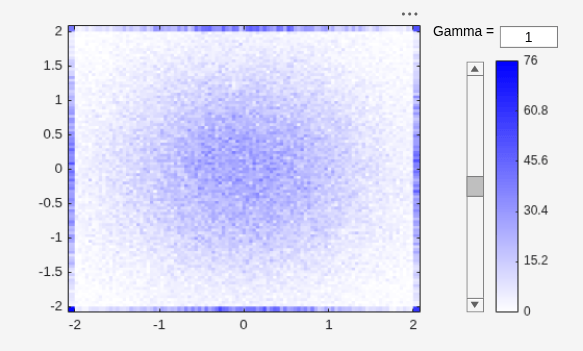

Use coarse bins extending to infinity on the edges of the plot to capture outliers.
Xedges = [-Inf linspace(-2,2) Inf]; Yedges = [-Inf linspace(-2,2) Inf]; binScatterPlot(X,Y,Xedges,Yedges)
Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.14 sec Evaluation completed in 0.21 sec
Adjust Plot Color Theme

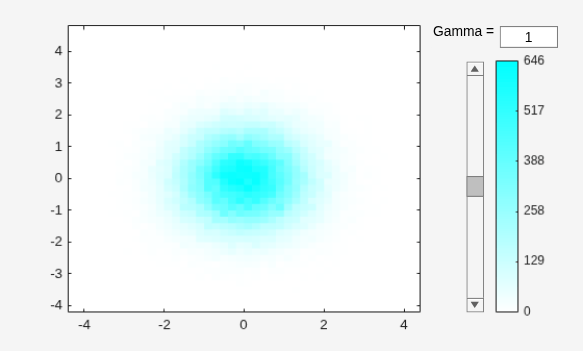

Plot a binned scatter plot of random data, specifying 'Color'
as 'c'
.
When you perform calculations on tall arrays, MATLAB® uses either a parallel pool (default if you have Parallel Computing Toolbox™) or the local MATLAB session. To run the example using the local MATLAB session when you have Parallel Computing Toolbox, change the global execution environment by using the mapreducer
function.
mapreducer(0) X = tall(randn(1e5,1)); Y = tall(randn(1e5,1)); binScatterPlot(X,Y,'Color','c')
Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 2: Completed in 0.52 sec - Pass 2 of 2: Completed in 0.12 sec Evaluation completed in 1.4 sec Evaluating tall expression using the Local MATLAB Session: - Pass 1 of 1: Completed in 0.14 sec Evaluation completed in 0.2 sec
Input Arguments
X,Y
— Data to distribute among bins (as separate arguments)
tall vectors | tall matrices | tall multidimensional arrays
Data to distribute among bins, specified as separate arguments of tall
vectors, matrices, or multidimensional arrays. X
and
Y
must be the same size. If X
and
Y
are not vectors, then
binScatterPlot
treats them as single column
vectors, X(:)
and Y(:)
.
Corresponding elements in X
and Y
specify the x and y coordinates of 2-D
data points, [X(k),Y(k)]
. The underlying data types of
X
and Y
can be different, but
binScatterPlot
concatenates these inputs into a
single N
-by-2
tall matrix of the
dominant underlying data type.
binScatterPlot
ignores all NaN
values. Similarly, binScatterPlot
ignores
Inf
and -Inf
values, unless the
bin edges explicitly specify Inf
or
-Inf
as a bin edge.
Note
If X
or Y
contain integers of
type int64
or uint64
that are
larger than flintmax
, then it is recommended that you
explicitly specify the bin edges.binScatterPlot
automatically bins the input data using double precision, which lacks
integer precision for numbers greater than
flintmax
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| logical
nbins
— Number of bins in each dimension
scalar | vector
Number of bins in each dimension, specified as a positive scalar integer
or two-element vector of positive integers. If you do not specify
nbins
, then binScatterPlot
automatically calculates how many bins to use based on the values in
X
and Y
.
If
nbins
is a scalar, thenbinScatterPlot
uses that many bins in each dimension.If
nbins
is a vector, thennbins(1)
specifies the number of bins in the x-dimension andnbins(2)
specifies the number of bins in the y-dimension.
Example: binScatterPlot(X,Y,20)
uses 20 bins in each
dimension.
Example: binScatterPlot(X,Y,[10 20])
uses 10 bins in the
x
-dimension and 20 bins in the
y
-dimension.
Xedges
— Bin edges in x-dimension
vector
Bin edges in x-dimension, specified as a vector.
Xedges(1)
is the first edge of the first bin in the
x-dimension, and Xedges(end)
is
the outer edge of the last bin.
The value [X(k),Y(k)]
is in the
(i,j)
th bin if Xedges(i)
≤
X(k)
< Xedges(i+1)
and
Yedges(j)
≤ Y(k)
<
Yedges(j+1)
. The last bins in each dimension also
include the last (outer) edge. For example, [X(k),Y(k)]
falls into the i
th bin in the last row if
Xedges(end-1)
≤ X(k)
≤
Xedges(end)
and
Yedges(i)
≤ Y(k)
<
Yedges(i+1)
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| logical
Yedges
— Bin edges in y-dimension
vector
Bin edges in y-dimension, specified as a vector.
Yedges(1)
is the first edge of the first bin in the
y-dimension, and Yedges(end)
is
the outer edge of the last bin.
The value [X(k),Y(k)]
is in the
(i,j)
th bin if Xedges(i)
≤
X(k)
< Xedges(i+1)
and
Yedges(j)
≤ Y(k)
<
Yedges(j+1)
. The last bins in each dimension also
include the last (outer) edge. For example, [X(k),Y(k)]
falls into the i
th bin in the last row if
Xedges(end-1)
≤ X(k)
≤
Xedges(end)
and
Yedges(i)
≤ Y(k)
<
Yedges(i+1)
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| logical
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: binScatterPlot(X,Y,'BinWidth',[5 10])
BinMethod
— Binning algorithm
'auto'
(default) | 'scott'
| 'integers'
Binning algorithm, specified as the comma-separated pair consisting of
'BinMethod'
and one of these values.
Value | Description |
---|---|
'auto' | The default 'auto' algorithm uses
a maximum of 100 bins and chooses a bin width to cover
the data range and reveal the shape of the underlying
distribution. |
'scott' | Scott’s rule is optimal if the data is close to being
jointly normally distributed. This rule is appropriate
for most other distributions, as well. It uses a bin
size of [3.5*std(X)*numel(X)^(-1/4),
3.5*std(Y)*numel(Y)^(-1/4)] . |
'integers' | The integer rule is useful with integer data, as it creates a bin for each integer. It uses a bin width of 1 and places bin edges halfway between integers. To avoid accidentally creating too many bins, you can use this rule to create a limit of 65536 bins (216). If the data range is greater than 65536, then the integer rule uses wider bins instead. |
Note
The BinMethod
property of the resulting
Histogram2
object always has a value of
'manual'
.
BinWidth
— Width of bins in each dimension
scalar | vector
Width of bins in each dimension, specified as the comma-separated pair
consisting of 'BinWidth'
and a scalar or two-element
vector of positive integers, [xWidth yWidth]
. A
scalar value indicates the same bin width for each dimension.
If you specify BinWidth
, then
binScatterPlot
can use a maximum of 1024 bins (210) along each dimension. If instead the specified bin
width requires more bins, then binScatterPlot
uses
a larger bin width corresponding to the maximum number of bins.
Example: binScatterPlot(X,Y,'BinWidth',[5 10])
uses
bins with size 5
in the
x
-dimension and size 10
in the
y
-dimension.
Color
— Plot color theme
'b'
(default) | 'y'
| 'm'
| 'c'
| 'r'
| 'g'
| 'k'
Plot color theme, specified as the comma-separated pair consisting of
'Color'
and one of these options.
Option | Description |
---|---|
'b' | Blue |
'm' | Magenta |
'c' | Cyan |
'r' | Red |
'g' | Green |
'y' | Yellow |
'k' | Black |
Gamma
— Gamma correction
1
(default) | positive scalar
Gamma correction, specified as the comma-separated pair consisting of
'Gamma'
and a positive scalar. Use this option to
adjust the brightness and color intensity to affect the amount of detail
in the image.
gamma < 1
— As gamma decreases, the shading of bins with smaller bin counts becomes progressively darker, including more detail in the image.gamma > 1
— As gamma increases, the shading of bins with smaller bin counts becomes progressively lighter, removing detail from the image.The default value of 1 does not apply any correction to the display.
XBinLimits
— Bin limits in x-dimension
vector
Bin limits in x-dimension, specified as the
comma-separated pair consisting of 'XBinLimits'
and a
two-element vector, [xbmin,xbmax]
. The vector
indicates the first and last bin edges in the
x-dimension.
binScatterPlot
only plots data that falls within
the bin limits inclusively, Data(Data(:,1)>=xbmin &
Data(:,1)<=xbmax)
.
YBinLimits
— Bin limits in y-dimension
vector
Bin limits in y-dimension, specified as the
comma-separated pair consisting of 'YBinLimits'
and a
two-element vector, [ybmin,ybmax]
. The vector
indicates the first and last bin edges in the
y-dimension.
binScatterPlot
only plots data that falls within
the bin limits inclusively, Data(Data(:,2)>=ybmin &
Data(:,2)<=ybmax)
.
Output Arguments
h
— Binned scatter plot
Histogram2
object
Binned scatter plot, returned as a Histogram2
object.
For more information, see Histogram2 Properties.
Extended Capabilities
Tall Arrays
Calculate with arrays that have more rows than fit in memory.
The
binScatterPlot
function fully supports tall arrays. For more information,
see Tall Arrays.
Version History
Introduced in R2016b
