Custom Code Integration for STM32 Processors

Since R2026a

This example uses:

Open Live Script

This example shows how to integrate custom C code into a Simulink® model by implementing a real-time clock (RTC) peripheral on STM32 processor based boards. The example shows how to call external driver code, exchange data between Simulink and the hardware, and compare different integration methods.

You might need to integrate C code when you want to reuse vendor-supplied drivers, legacy firmware, or hand-optimized algorithms without rewriting them as Simulink blocks. This example demonstrates how different integration workflows support these use cases and highlights the trade-offs between simplicity, flexibility, and control.

The example shows the following ways to integrate custom C code:

  • C Caller block

  • System Outputs block

  • S-Function Builder

  • MATLAB® Function block

Each workflow offers advantages depending on your modeling requirements and the structure of the existing C code.

Required Hardware

  • STM32H5xx Based Board

Code Integration Workflow Comparison

This table compares code-integration workflows to help you choose the option that best fits your modeling and implementation needs.

Integration Method

Supports Outputs

Supports Multiple Functions

Requires Guards

Code Reuse

Complexity

C Caller Block

✔️

❌

✔️

✔️

Low

System Outputs Block

❌

✔️

❌

✔️

Medium

S-Function Builder

✔️

✔️

✔️

✔️

High

MATLAB Function Block

✔️

✔️

❌

✔️

Medium

Integrate Code by Using C Caller Block

To call user-defined C functions directly from a Simulink model, use the C Caller block. This approach works well when you already have C functions—such as device drivers or utility functions—and want to reuse them without restructuring your model.

Advantages

  • Simple integration of existing C functions

  • Direct mapping between function outputs and Simulink signals

  • Low setup complexity

Limitations

  • STM32 firmware headers often require guards to prevent parsing errors

  • A single function cannot return multiple outputs directly

Model

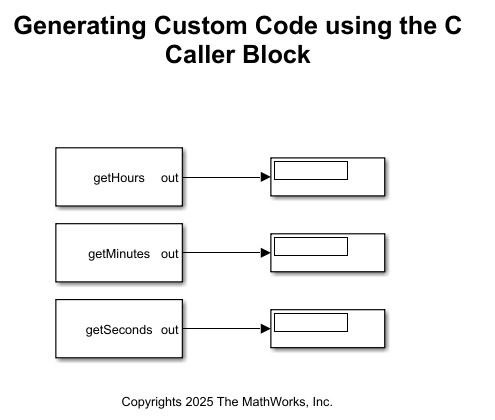

The model RTC_Example_Model_C_Caller.slx uses a custom driver to initialize the RTC peripheral and read time and date values.

open_system("RTC_Example_Model_C_Caller")

In this model:

  • The C Caller block appears inside the execution path where RTC data is required

  • Each block corresponds to a specific C function

  • Block inputs and outputs map directly to function arguments and return values

Configure Model to use External C Code

To make external C functions available to the model:

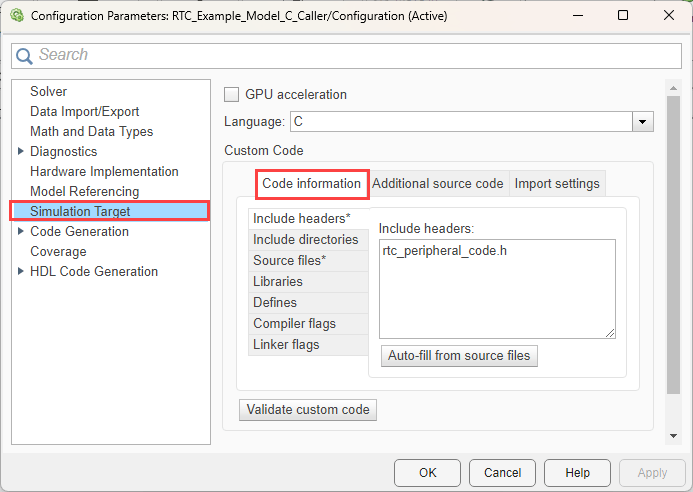

  1. Open the Configuration Parameters dialog box (Ctrl+E).

  2. Navigate to Simulation Target > Code information.

  3. Specify the required header and source files:

    1. Add the header file rtc_module_code.h to Include files

    2. Add the source file rtc_module_code.c to Source files

These files contain the function prototypes and implementations called by the C Caller blocks.

Once configured, Simulink includes the specified files during code generation and calls the functions when the model executes.

Run Model in External Mode

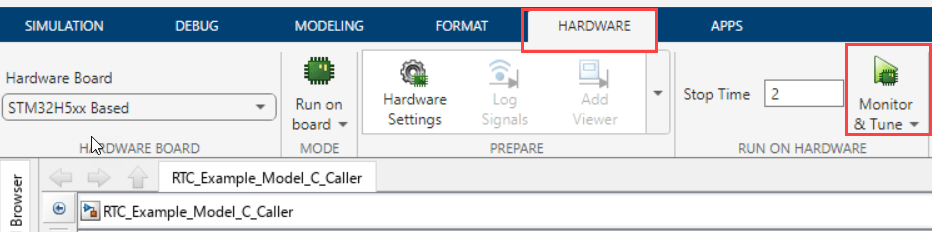

On the Hardware tab, click Monitor & Tune to run the model in external mode. External mode enables communication between Simulink® and the target hardware while the model runs on the processor. Use the Display blocks to observe signal values in real time during execution.

Integrate Code Using System Outputs Block

To insert custom C code at specific execution points, such as subsystem entry or exit, use the System Outputs block. This is useful when you need to run code for initialization, logging, or event handling rather than producing signal outputs.

Advantages

  • Inserts code at well-defined execution boundaries

  • Useful for profiling, instrumentation, or event-driven logic

  • Does not require STM32-specific header guards

Limitations

  • Cannot output data directly to Simulink signals

  • Data exchange requires memory-based mechanisms

  • Execution order must be carefully managed

Model

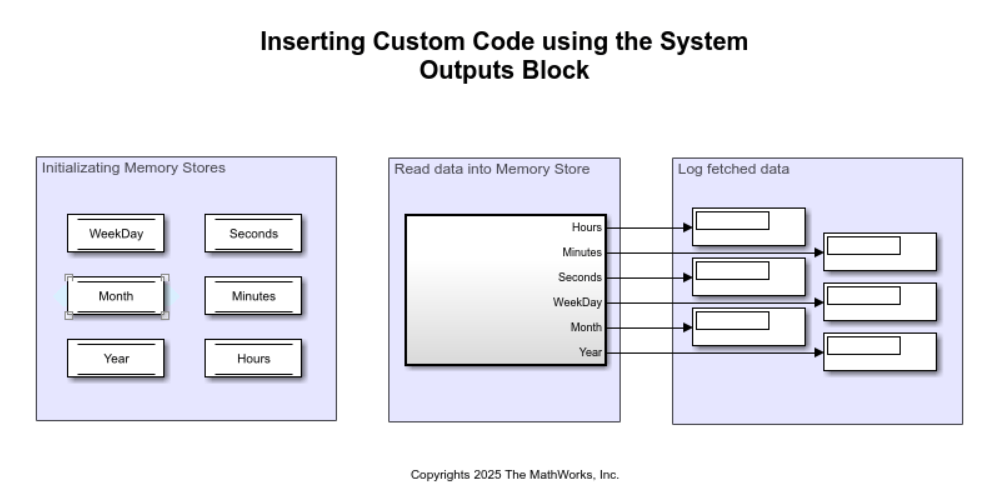

The model RTC_Example_Model_SystemOutput.slx uses System Outputs blocks at subsystem boundaries to invoke RTC-related code.

open_system("RTC_Example_Model_SystemOutput")

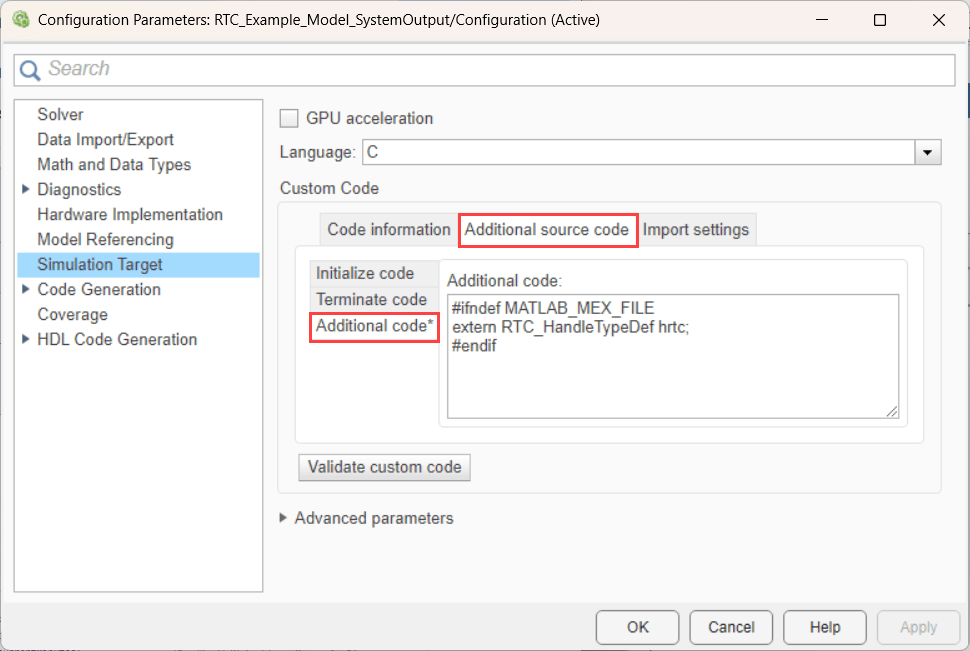

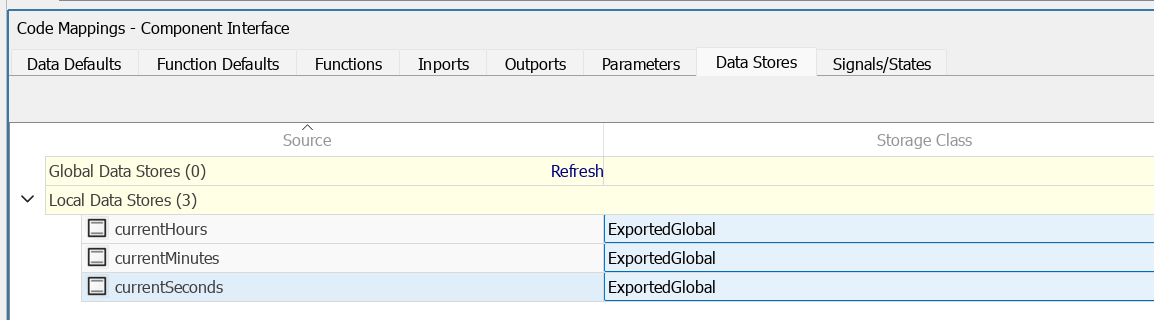

Because this approach does not produce signal outputs, data exchange occurs through Memory Data Store blocks. The data store variables use the ExportedGlobal storage class, which allows the generated code to declare the variables as global symbols. The external C code then accesses these shared variables using extern declarations.

This pattern is commonly used when integrating low-level firmware code that maintains internal state and does not naturally map to Simulink signal interfaces.

Configure Data Exchange

To exchange data between the model and the C code:

  1. Define shared variables in your C source files.

  2. Declare those variables using the extern keyword in header files.

  3. Configure corresponding Data Store Memory blocks in Simulink.

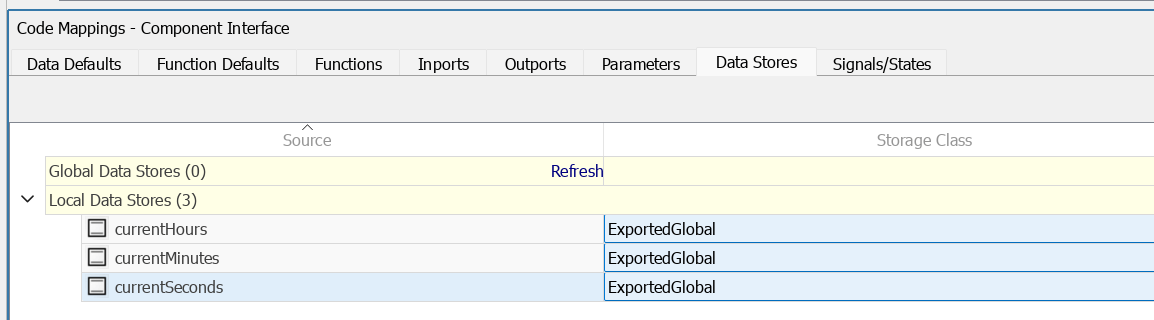

  4. Set the Storage Class to ExportedGlobal.

When the model runs, both generated code and external C code access the same memory locations.

Integrate Code Using S-Function Builder

To create reusable S-functions that integrate custom C code, use the S-Function Builder block. Define custom functions directly in the block or reference external C source files.

The S-Function Builder provides the most flexibility for integrating C code. It is suitable when you need multiple inputs and outputs, reusable blocks, or tighter control over execution behavior.

Advantages

  • Supports multiple inputs and outputs

  • Allows inline or external C code

  • Highly configurable and reusable

Limitations

  • Higher setup complexity

  • Requires STM32 firmware guards

  • Execution order must be explicitly managed

Model

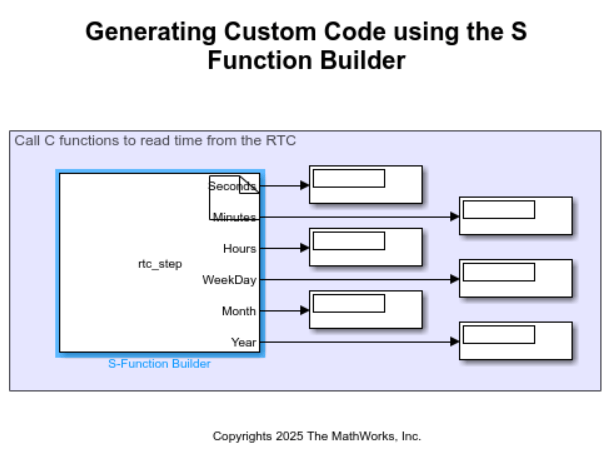

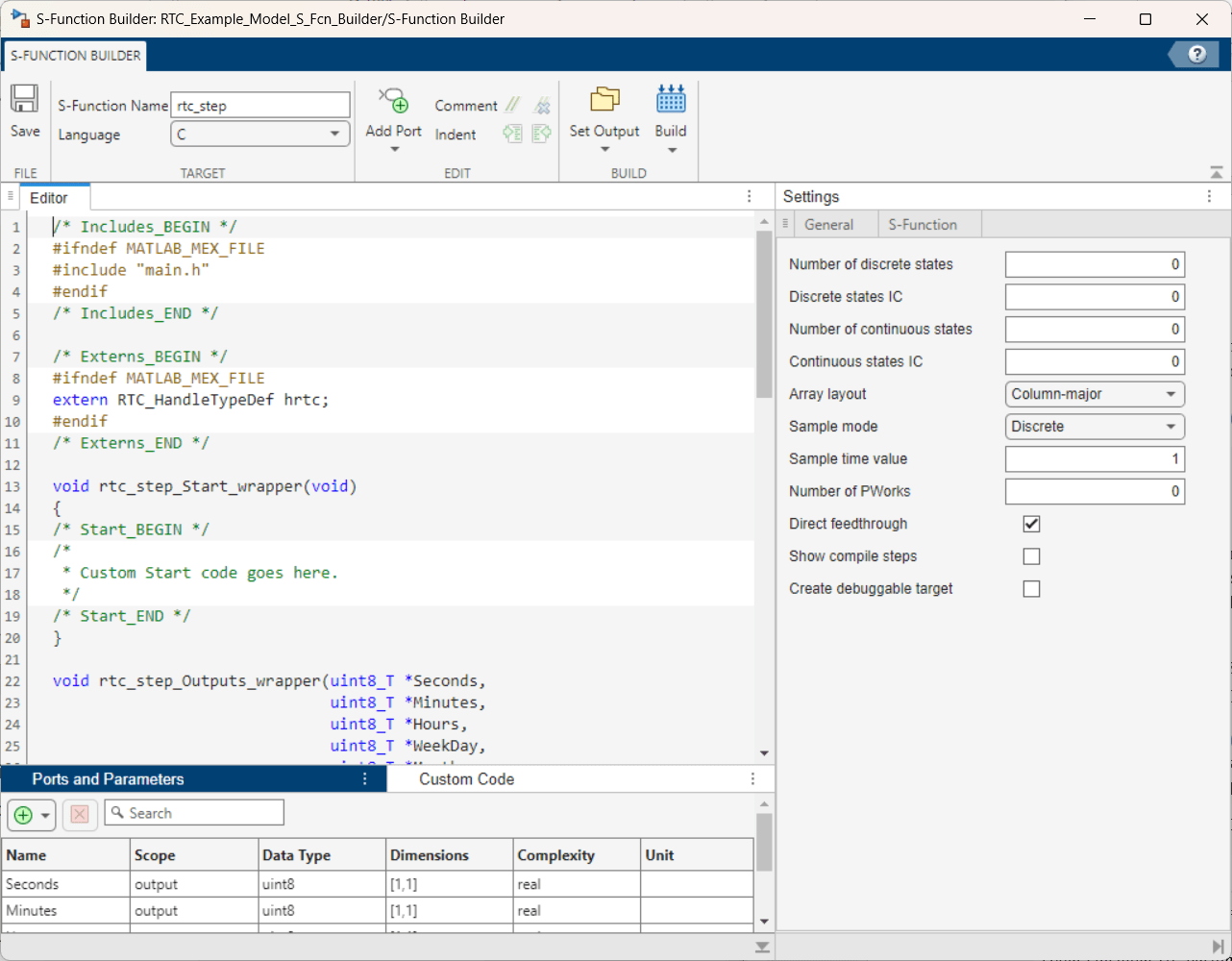

The model RTC_Example_Model_S_Fcn_Builder.slx uses an S-Function created with the S-Function Builder.

open_system("RTC_Example_Model_S_Fcn_Builder")

In this workflow:

  • You define function interfaces (inputs, outputs, parameters) in the builder

  • You either write C code directly in the tool or reference external source files

  • Simulink generates wrapper code that integrates the S-function into the model

This approach is appropriate when you want a reusable block abstraction around existing code.

Integrate Code Using MATLAB Function Block

To call custom C functions from MATLAB® code by using the coder library, use the MATLAB® Function block. This approach supports simulation and code generation.

The MATLAB® Function block allows you to call C functions from MATLAB code using supported coder constructs. This approach works well when you want to combine algorithmic MATLAB code with lower-level C functionality.

Advantages

  • Supports simulation and code generation

  • Works with scalar and structured data

  • Integrates naturally with MATLAB algorithms

Limitations

  • Requires familiarity with MATLAB Coder constructs

  • Additional setup required for bus-based data exchange

Without Bus Objects

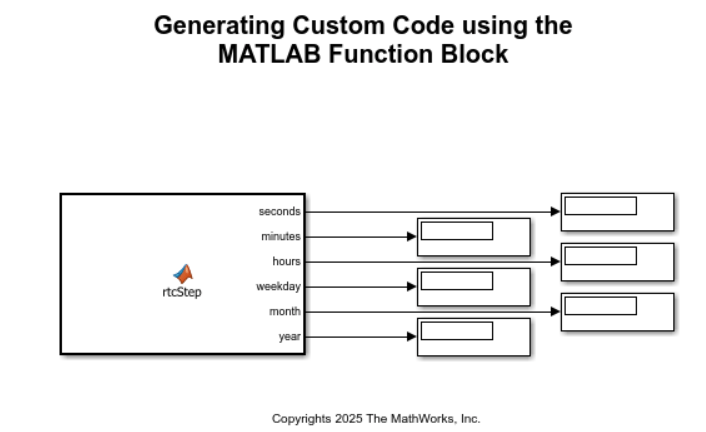

The model RTC_Example_ML_Function.slx demonstrates calling C functions directly from a MATLAB Function block using coder.ceval.

This approach is suitable when working with simple data types and function interfaces.

        open_system("RTC_Example_ML_Function")

With Bus Objects

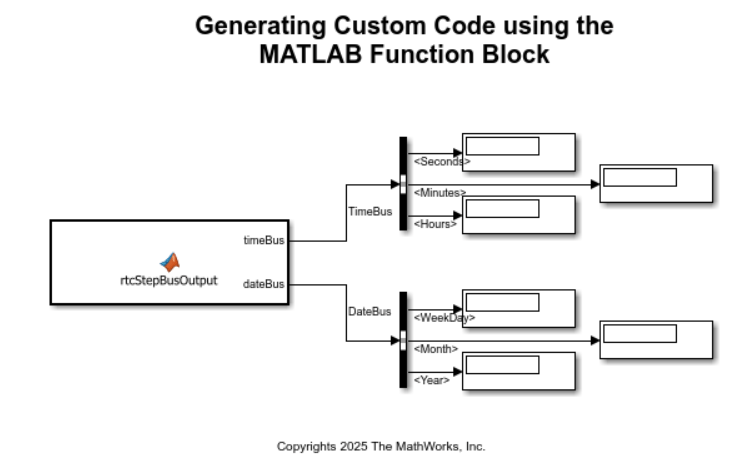

The model RTC_Example_ML_Function_Bus.slx extends this workflow by using bus objects defined in the initialization script custom_code_init_callback.m.

Bus objects allow structured data exchange, which is useful when working with complex peripheral data or grouped signals.

        open_system("RTC_Example_ML_Function_Bus")
