mod
Symbolic modulus after division
Starting in R2020b, mod
no longer finds the modulus for each
coefficient of a symbolic polynomial. For more information, see Version History.
Syntax
Description
Examples
Find Modulus of Integers Divided by Integers
Find the modulus after division when both the dividend and divisor are integers.
Find the modulus after division for these numbers.
m = [mod(sym(27),4), mod(sym(27),-4), mod(sym(-27),4), mod(sym(-27),-4)]
m =
Find Modulus of Rationals Divided by Integers
Find the modulus after division when the dividend is a rational number, and the divisor is an integer.
Find the modulus after division for these numbers.
m = [mod(sym(22/3),5), mod(sym(1/2),7), mod(sym(27/6),-11)]
m =
Find Modulus of Polynomial Expression Divided by Integer
Find the modulus after division when the dividend is a polynomial expression, and the divisor is an integer. If the dividend is a polynomial expression, then mod
returns a symbolic expression without evaluating the modulus.
Find the modulus after division by for the polynomial .
syms x
a = x^3 - 2*x + 999;
mUneval = mod(a,10)
mUneval =
To evaluate the modulus for each polynomial coefficient, first extract the coefficients of each term using coeffs
.
[c,t] = coeffs(a)
c =
t =
Next, find the modulus of each coefficient in c
divided by 10
. Reconstruct a new polynomial using the evaluated coefficients.
cMod10 = mod(c,10); mEval = sum(cMod10.*t)
mEval =
Find Modulus of Symbolic Matrices
For vectors and matrices, mod
finds the modulus after division element-wise. When both arguments are nonscalar, they must have the same size. If one argument is a scalar, the mod
function expands the scalar input into an array of the same size as the other input.
Find the modulus after division for the elements of two matrices.
A = sym([27,28; 29,30]); B = sym([2,3; 4,5]); M = mod(A,B)
M =
Find the modulus after division for the elements of matrix A
and the value 9
. Here, mod
expands 9
into the 2
-by-2
matrix with all elements equal to 9
.
M = mod(A,9)
M =
Create Periodic Sawtooth Waves
Create two periodic functions that represents sawtooth waves.
Define the sawtooth wave with period T = 2
and amplitude A = 1.5
. Create a symbolic function y(x)
. Use mod
functions to define the sawtooth wave for each period. The sawtooth wave increases linearly for a full period, and it drops back to zero at the start of another period.
T = 2;
A = 1.5;
syms y(x);
y(x) = A*mod(x,T)/T;

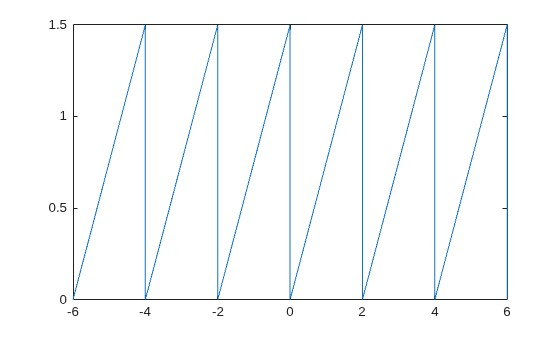

Plot this sawtooth wave for the interval [-6 6]
.
fplot(y,[-6 6])
Next, create another sawtooth wave that is symmetrical within a single period. Use piecewise
to define the sawtooth wave that is increasing linearly for the first half of a period, and then decreasing linearly for the second half of a period.
y(x) = piecewise(0 < mod(x,T) <= (T/2), 2*A*mod(x,T)/T,...
(T/2) < mod(x,T) <= T, 2*A - 2*A*mod(x,T)/T);

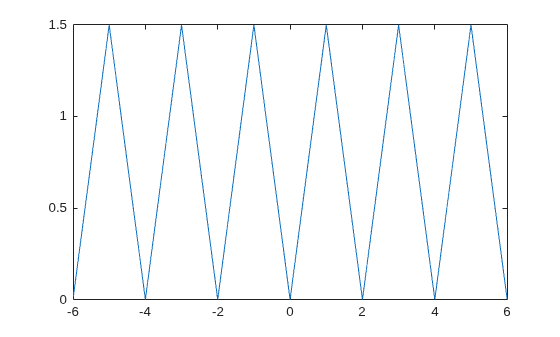

Plot this sawtooth wave for the interval [-6 6]
.
fplot(y,[-6 6])
Input Arguments
a
— Dividend (numerator)
number | symbolic number | symbolic variable | polynomial expression | vector | matrix
Dividend (numerator), specified as a number, symbolic number, variable,
polynomial expression, or a vector or matrix of numbers, symbolic numbers,
variables, or polynomial expressions. Inputs a
and
b
must be the same size unless one is a scalar. The
function expands a scalar input into an array of the same size as the other
input.
b
— Divisor (denominator)
number | symbolic number | vector | matrix
Divisor (denominator), specified as a number, symbolic number, or a vector
or matrix of numbers or symbolic numbers. Inputs a
and
b
must be the same size unless one is a scalar. The
function expands a scalar input into an array of the same size as the other
input.
More About
Modulus
The modulus of a and b is
where floor
rounds (a / b) toward negative infinity. For example, the modulus of –8 and –3 is
–2, but the modulus of –8 and 3 is 1.
If b = 0, then mod(a, b) = mod(a, 0) = 0.
Tips
Calling
mod
for numbers that are not symbolic objects invokes the MATLAB®mod
function.
Version History
Introduced before R2006aR2020b: mod
no longer finds the modulus for each coefficient of a symbolic polynomial
Starting in R2020b, mod
no longer finds the modulus for each
coefficient of a symbolic polynomial. Instead, mod(a,b)
returns
an unevaluated symbolic expression if a
is a symbolic polynomial
and b
is a real number. To find the modulus for each coefficient
of the polynomial a
, use [c,t] = coeffs(a);
sum(mod(c,b).*t)
. You can now create periodic symbolic functions by
defining the periodicity using mod
. For example, see Create Periodic Sawtooth Waves.
