bagOfFeaturesDBoW

Bag of visual words using DBoW2 library

Since R2024b

expand all in page

    Description

    Use the bagOfFeaturesDBoW object to create a bag of words (BoW) vocabulary to use for loop closure detection with vSLAM algorithms. This object uses the distributed bag of words DBoW2 library. This object supports only oriented FAST and rotated BRIEF (ORB) features.

    Creation

    Syntax

    bag = bagOfFeaturesDBoW(imds)
    bag = bagOfFeaturesDBoW(features)
    bag = bagOfFeaturesDBoW(___,Name=Value)
    bag = bagOfFeaturesDBoW(vocabularyFileName)

    Description

    bag = bagOfFeaturesDBoW(imds) creates a bag of features from images specified by the datastore imds. The algorithm uses oriented fast and rotated brief (ORB) features to create the visual vocabulary.

    example

    bag = bagOfFeaturesDBoW(features) creates a bag of features from ORB feature descriptors specified by features.

    bag = bagOfFeaturesDBoW(___,Name=Value) sets properties by using one or more name-value arguments in addition to the previous syntax. For example, Normalization="L2" sets the normalization to L2.

    bag = bagOfFeaturesDBoW(vocabularyFileName) loads an existing DBoW vocabulary file.

    Input Arguments

    expand all

    Images, specified as an ImageDatastore object.

    ORB feature descriptors, specified as a cell array of binaryFeatures objects.

    DBoW vocabulary file, specified as a character string.

    Properties

    expand all

    Vocabulary tree properties, specified as a 2-element vector of the form [depthLevel,branchingFactor]. depthLevel is the number of levels in the vocabulary tree, specified as an integer. branchingFactor is the factor to control the amount that the vocabulary can grow at successive levels in the tree, specified as an integer.

    The capacity of a vocabulary tree to represent visual words is determined by the formula: branchingFactor x depthLevel. Commonly, the depthLevel ranges from 1 to 6, while the branchingFactor varies between 10 and 500. To identify the optimal values for these parameters, conducting empirical analysis is recommended.

    Increasing the branching factor enlarges the vocabulary, potentially improving the accuracy of image similarity assessments. However, this adjustment also leads to an increase in the time required to encode images. Implementing a vocabulary tree with multiple levels can facilitate the creation of vocabularies comprising over 10,000 visual words. Although this multi-level approach streamlines the encoding process for images associated with large vocabularies, it necessitates a more extended setup phase.

    Alternatively, for vocabularies containing only 100 to 1,000 visual words, employing a tree with a single level is advisable. This configuration simplifies the structure and accelerates the creation process, albeit for smaller vocabularies.

    Type of normalization, specified as L1 or L2. Normalization is the method by which to evaluate the similarity or dissimilarity between the feature descriptors for the bag of features.

    • L1 — Calculates the sum of the absolute values of the vector elements.

    • L2 — Calculates the square root of the sum of the squared values of the vector elements.

    This property is read-only.

    Number of levels in the vocabulary tree, specified as an integer. The Normalization property sets this value.

    This property is read-only.

    Number of branches of every node in the vocabulary tree, specified as an integer. The Normalization property sets this value.

    Examples

    collapse all

    Open Live Script

    Load an existing binary features vocabulary.

    bag = bagOfFeaturesDBoW("bagOfFeatures.bin.gz");
    Open Live Script

    Create an image datastore.

    folder = fullfile(toolboxdir("vision"),"visiondata","stopSignImages");
imds=imageDatastore(folder);
    Open Live Script

    Read an image.

    I = imread("cameraman.tif");

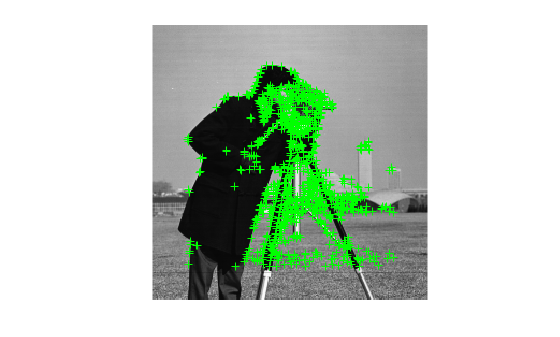

    Detect ORB features in the image.

    points = detectORBFeatures(I);

    Extract ORB features from the detected points in the image. The extractFeatures function returns features and their corresponding locations. This code focuses on only the features for loop closure detection.

    [features,~] = extractFeatures(I,points);

    Create a bag of features using the L2 normalization method, which is used to evaluate the similarity between feature descriptors.

    bag = bagOfFeaturesDBoW({features},Normalization="L2");

    References

    [1] Galvez-López, D., and J. D. Tardos. “Bags of Binary Words for Fast Place Recognition in Image Sequences.” IEEE Transactions on Robotics, vol. 28, no. 5, Oct. 2012, pp. 1188–97. DOI.org (Crossref), https://doi.org/10.1109/TRO.2012.2197158.
