mswcmptp

Multisignal 1-D compression thresholds and performances

collapse all in page

Syntax

[THR_VAL,L2_Perf,N0_Perf] = mswcmptp(DEC,METH)
[THR_VAL,L2_Perf,N0_Perf] = mswcmptp(DEC,METH,PARAM)

Description

[THR_VAL,L2_Perf,N0_Perf] = mswcmptp(DEC,METH) or [THR_VAL,L2_Perf,N0_Perf] = mswcmptp(DEC,METH,PARAM) computes the vectors THR_VAL, L2_Perf and N0_Perf obtained after a compression using the METH method and, if required, the PARAM parameter (see mswcmp for more information on METH and PARAM).

For the ith signal:

  • THR_VAL(i) is the threshold applied to the wavelet coefficients. For a level dependent method, THR_VAL(i,j) is the threshold applied to the detail coefficients at level j

  • L2_Perf(i) is the percentage of energy (L2_norm) preserved after compression.

  • N0_Perf(i) is the percentage of zeros obtained after compression.

You can use three more optional inputs:

[...] = mswcmptp(...,S_OR_H,KEEPAPP,IDXSIG)

  • S_OR_H ('s' or 'h') stands for soft or hard thresholding (see mswthresh for more details).

  • KEEPAPP (true or false) indicates whether to keep approximation coefficients (true) or not (false)

  • IDXSIG is a vector which contains the indices of the initial signals, or 'all'.

The defaults are, respectively, 'h', false and 'all'.

Examples

collapse all

Open Live Script

Load the 23 channel EEG data Espiga3 [4]. The channels are arranged column-wise. The data is sampled at 200 Hz.

load Espiga3

Perform a decomposition at level 2 using the db2 wavelet.

dec = mdwtdec('c',Espiga3,2,'db2')
dec = struct with fields:
        dirDec: 'c'
         level: 2
         wname: 'db2'
    dwtFilters: [1x1 struct]
       dwtEXTM: 'sym'
      dwtShift: 0
      dataSize: [995 23]
            ca: [251x23 double]
            cd: {[499x23 double]  [251x23 double]}

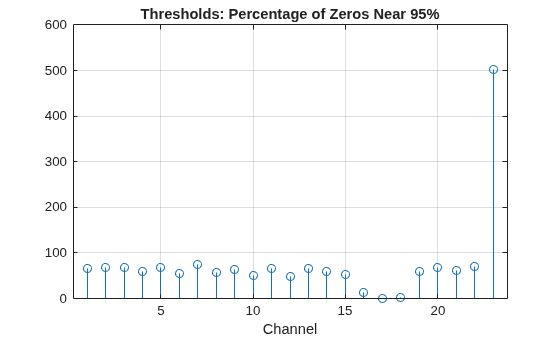

Compute compression thresholds and exact performances obtained after a compression using the method 'N0_perf' and requiring a percentage of zeros near 95% for the wavelet coefficients.

[THR_VAL,L2_Perf,N0_Perf] = mswcmptp(dec,'N0_perf',95);

References

[1] Daubechies, I. Ten Lectures on Wavelets, CBMS-NSF Regional Conference Series in Applied Mathematics. Philadelphia, PA: SIAM Ed, 1992.

[2] Mallat, S. G. “A Theory for Multiresolution Signal Decomposition: The Wavelet Representation,” IEEE Transactions on Pattern Analysis and Machine Intelligence. Vol. 11, Issue 7, July 1989, pp. 674–693.

[3] Meyer, Y. Wavelets and Operators. Translated by D. H. Salinger. Cambridge, UK: Cambridge University Press, 1995.

[4] Mesa, Hector. “Adapted Wavelets for Pattern Detection.” In Progress in Pattern Recognition, Image Analysis and Applications, edited by Alberto Sanfeliu and Manuel Lazo Cortés, 3773:933–44. Berlin, Heidelberg: Springer Berlin Heidelberg, 2005. https://doi.org/10.1007/11578079_96.

Version History

Introduced in R2007a
