treeord

R2026b

Tree order

Syntax

ord = treeord(t)

Description

treeord is a tree-management utility.

ord = treeord(t) returns the order of the tree t.

Examples

Determine Tree Order

Create a tree of order 3 and depth 2.

t = ntree(3,2);

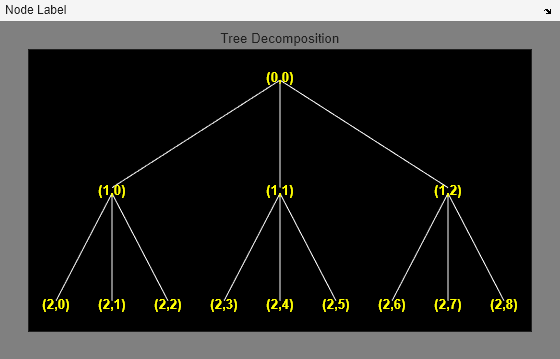

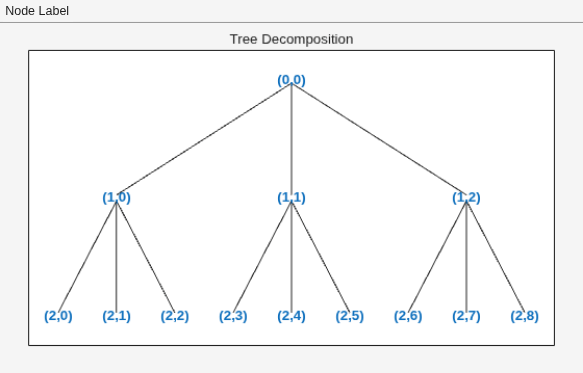

Plot the tree.

plot(t)

Use the treeord function to obtain the tree order.

ord = treeord(t)

ord =
3

Input Arguments

t — Tree

ntree object | dtree object | wptree object

Tree, specified as an ntree, dtree, or wptree object.

Extended Capabilities

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

The treeord function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

Version History

Introduced before R2006a

R2026b: Use thread-based environments

You can use treeord in thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
