LTE OFDM Modulator
Modulate LTE resource grid and return timedomain OFDM samples
Libraries:
Wireless HDL Toolbox /
Modulation
Description

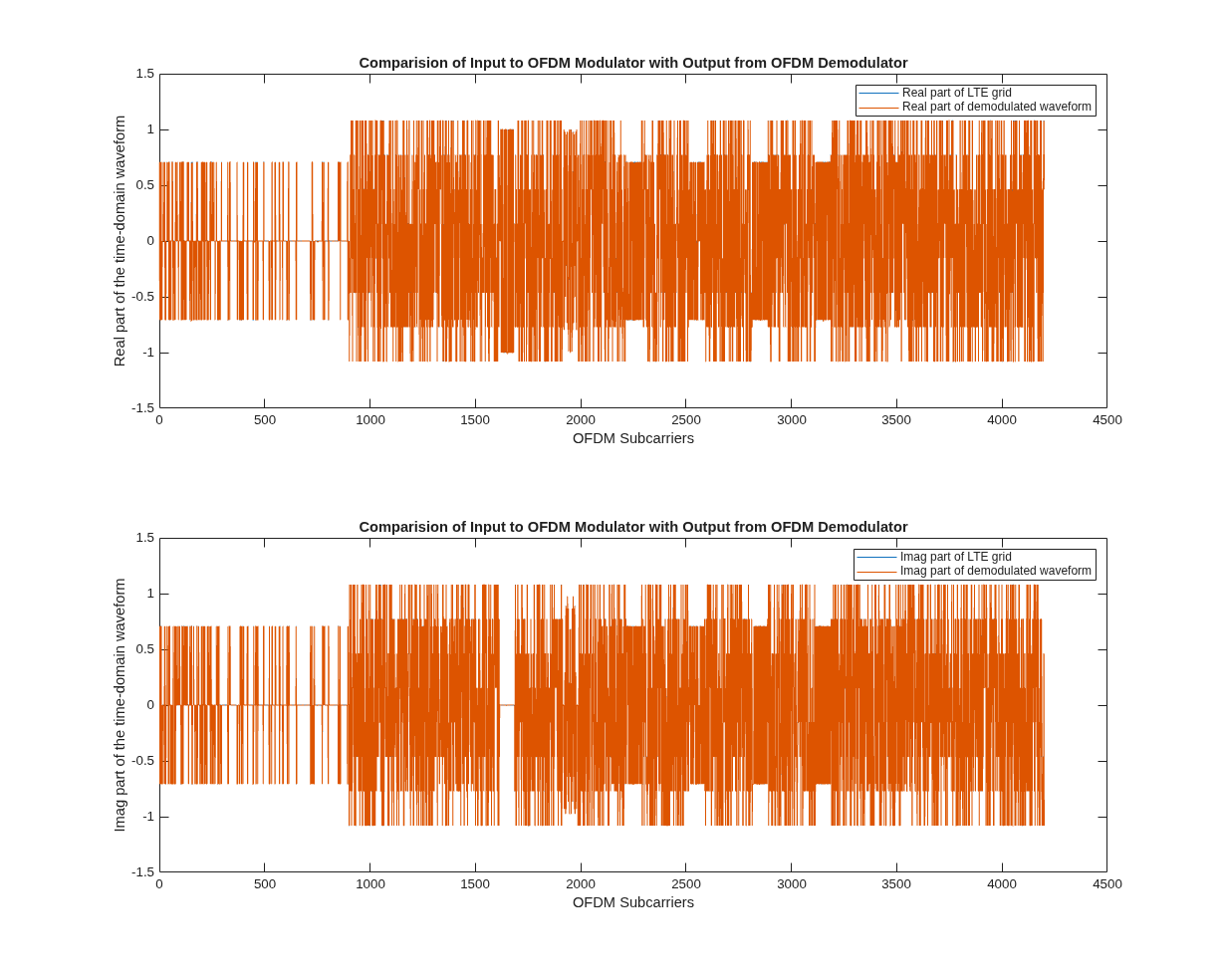

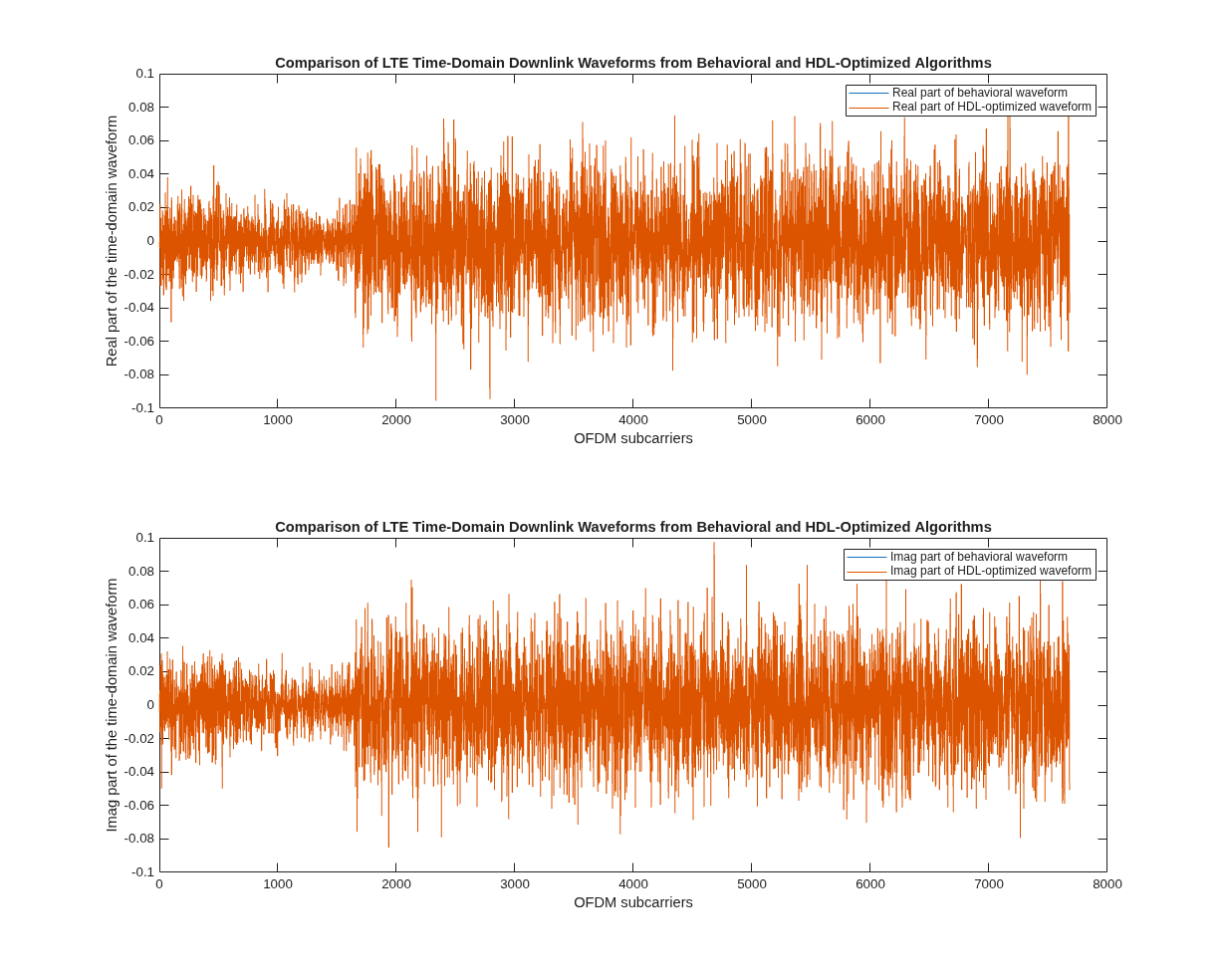

The LTE OFDM Modulator block implements an algorithm for modulating LTE resource grid samples specified by LTE standard TS 36.212 [1]. The block uses an orthogonal frequencydivision multiplexing (OFDM) mechanism in its operation and converts the resource grid input samples to an equivalent timedomain signal output. OFDM is effective for communication over channels with highfrequency selectivity and is widely used in the development of the LTE downlink transmitter. The block implements a windowing feature to reduce the spectral regrowth, or adjacent channel leakage ratio (ACLR), of an OFDM signal.
The block provides an interface and architecture suitable for HDL code generation and hardware deployment.
You can select the number of downlink resource blocks (NDLRB) and choose either normal or extended cyclic prefix (CP), as described in the LTE standard. The latency from the first input sample to the first output sample depends on your selection of the NDLRB.
NDLRB  Latency

6  6268
15  6376
25  6496
50  6796
75  7096
100  7396
Ports
Input
data — Input data
scalar
Input data, specified as a signed real or complex number.
double
and single
data types
are supported for simulation, but not for HDL code generation.
Data Types: single
 double
 int8
 int16
 int32
 signed fixed point
Complex Number Support: Yes
valid — Indicates valid input data
scalar
Control signal that indicates if the data from the
data input port is valid. When this value is
1
(true
), the block captures
the value on the data input port. When this value
is 0
(false
), the block ignores
the values on the data input port.
Data Types: Boolean
NDLRB — Number of downlink resource blocks
6
 15
 25
 50
 75
 100
Number of downlink resource blocks, specified as 6
,
15
, 25
, 50
,
75
, or 100
. The NDLRB must be
one of these six values specified by LTE standard TS 36.212 [1].
The block samples this port at the start of each subframe and ignores
any changes within a subframe.
Dependencies
To enable this port, set the NDLRB source
parameter to Input port
.
Data Types: uint8
 uint16
 uint32
 fixdt(0,K,0), K >= 7
 single
 double
cyclicPrefixType — Type of CP
scalar
Type of CP, specified as a Boolean
scalar. When this value is
0
(false), the block selects normal CP. When this value is
1
(true), the block selects extended CP. The block samples this
port at the start of each subframe and ignores any changes within a subframe.
Dependencies
To enable this port, set the Cyclic prefix source parameter
to Input port
.
Data Types: Boolean
reset — Clears internal states
scalar
Clears internal states, specified as a Boolean
scalar. When this value is 1
(true
), the block stops the current calculation and
clears all internal states. When this value is 0
(false
) and the valid input
value is 1
(true
), the block
begins a new subframe.
Dependencies
To enable this port, select the Enable reset input port parameter.
Data Types: Boolean
Output
data — Output data
scalar
Output data, returned as a signed real or complex number. The data type is the same as the data type of the data input port. When you clear the Divide butterfly outputs by two parameter, the word length increases by 1 bit per stage in inverse fast fourier transform (IFFT).
Data Types: single
 double
 int8
 int16
 int32
 signed fixed point
Complex Number Support: Yes
valid — Indicates valid output data
scalar
Control signal that indicates if the data from the
data output port is valid. The block sets this
value to 1
(true
) when the
modulated samples are available on the data output
port.
Data Types: Boolean
ready — Indicates block is ready
scalar
Control signal that indicates that the block is ready for new input
data. When this value is 1
(true
),
the block accepts input data in the next time step. When this value is
0
(false
), the block ignores
input data in the next time step.
Data Types: Boolean
Parameters
Main
NDLRB source — Source of NDLRB
Property
(default)  Input port
You can set the NDLRB by selecting a parameter value or using an input
port. To enable the NDLRB parameter, select
Property
. To enable the
NDLRB port, select Input
port
.
NDLRB — Number of downlink resource blocks
6
(default)  15
 25
 50
 75
 100
Number of downlink resource blocks, specified as 6
,
15
, 25
, 50
,
75
, or 100
. NDLRB must be one
of these six values specified by LTE standard TS 36.212 [1].
Dependencies
To enable this parameter, set the NDLRB
source parameter to
Property
.
Cyclic prefix source — Source of cyclic prefix
Property
(default)  Input port
You can set the cyclic prefix by selecting a parameter value or using
an input port. To enable the Cyclic prefix type
parameter, select Property
. To enable the
cyclicPrefixType port, select
Input port
.
Cyclic prefix type — Type of cyclic prefix
Normal
(default)  Extended
Type of cyclic prefix, specified as Normal
or Extended
.
Dependencies
To enable this parameter, set the Cyclic prefix
source parameter to
Property
.
Windowing — Spectral growth reduction
off
(default)  on
Select this parameter to perform a windowing operation that reduces spectral growth and uses the NDRLB window length specified by the Window length per NDLRB parameter. Clear this parameter to disable windowing operation.
Window length per NDLRB — NDRLB window length
[4, 6, 4, 6, 8, 8
] (default)  row vector of NDLRB window lengths
NDRLB window length, specified as a row vector of nonnegative integers
whose elements correspond to the window lengths for NDRLB
6
, 15
, 25
,
50
, 75
, and
100
respectively. By default, the window lengths
for NDRLB 6, 15, 25, 50, 75, and 100 are 4, 6, 4, 6, 8, and 8,
respectively. The window length for each NDLRB can range from 0 to the
minimum CP value.
For normal CP, the minimum CP values for NDRLB
6
,15
,25
,50
,75
, and100
are 9, 18, 36, 72, 144, and 144, respectively.For extended CP, the minimum CP values for NDRLB
6
,15
,25
,50
,75
, and100
are 32, 64, 128, 256, 512, and 512, respectively.
Dependencies
To enable this parameter, select the Windowing parameter.
Enable reset input port — Reset signal
off
(default)  on
Select this parameter to enable the reset port on the block icon.
Output data sample rate — Output sample rate
Use maximum output data sample
rate
(default)  Match output data sample rate to
NDLRB
This parameter specifies the type of sample rate for the block to select for the output data.
To provide an output data sample rate of 30.72 MHz, select
Use maximum output data sample rate
.To provide an output data sample rate based on the NDLRB parameter, select
Match output data sample rate to NDLRB
. The output sampling rates for NDLRB6
,15
,25
,50
,75
, and100
are 1.92 MHz, 3.84 MHz, 7.68 MHz, 15.36 MHz, 30.72 MHz, and 30.72 MHz, respectively.
For more information, see Base Rate Controller.
IFFT Block Parameters
Divide butterfly outputs by two — Bitwidth control
on
(default)  off
When you select this parameter, the IFFT block in the LTE OFDM Modulator block implements an overall 1/N scale factor by dividing the output of each butterfly multiplication by two. This adjustment keeps the output of the IFFT block in the same amplitude range as its input. If you disable this parameter, the block avoids overflow by increasing the word length by 1 bit after each butterfly multiplication.
Rounding Method — Rounding mode for internal fixedpoint calculations
Floor
(default)  Ceiling
 Convergent
 Nearest
 Round
 Zero
This parameter specifies the type of rounding mode for internal fixedpoint calculations. Rounding applies to twiddlefactor multiplication and scaling operations. For more information about rounding modes, see Rounding Modes.
When the input is any integer or fixedpoint data type, the IFFT
algorithm uses fixedpoint arithmetic for internal calculations. This
parameter does not apply when the input data is of data type
single
or double
.
Algorithms
The LTE OFDM Modulator block operation sequence is carried over using these blocks: OFDM Symbol Formation, IFFT, FFT Shift, CP Addition, Windowing, and Base Rate Controller. The OFDM Symbol Formation block maps the resource grid input to active subcarrier bins to form 2048 subcarriers. The IFFT block converts the frequencydomain signal to timedomain signal, and the FFT Shift block performs timedomain FFT shift. The CP Addition block adds CPlength samples from the end of the symbol to its prefix. The Windowing block performs windowing and overlapping of adjacent OFDM symbols of complex symbols in the resource array. The Base Rate Controller block defines the sample rate of the output data. The parameters shown in the following figure configure the behavior of the block.
OFDM Symbol Formation
An OFDM Symbol Formation subsystem calculates the number of active and inactive subcarriers and the number of CP samples. It generates a ready signal and subcarriers (active, inactive, and DC) for each OFDM symbol as per LTE standard.
The OFDM Symbol Formation subsystem calculates the number of active subcarriers based on the NDLRB value.
Number of active subcarriers = 12 x NDLRB
The number of inactive subcarriers is a difference of IFFT size and the number of active subcarriers. To save hardware resources by avoiding multiple IFFTs, the IFFT size is fixed to 2048.
Number of inactive subcarriers = 2048 — Number of active carriers
The block outputs a signal from ready port to indicate when
the block is ready to accept input data. This signal depends on the
valid input signal, NDLRB, CP type, and OFDM symbol number.
The ready output signal is generated for one time step, and the
valid input signal is checked for next time step. The block
accepts the input data and the ready output signal remains high
(1
) until the OFDM symbol data is received. If the
valid input is low (0
), the
ready signal extends until the valid
input signal receives high (1
). After receiving active
subcarriers, the block sets the ready output signal to low
(0
) for a time period equal to the sum of the number of
inactive subcarriers and the number of CP samples.
These figures show the timing diagrams of the ready output signal for NDLRB values 25 and 100, respectively.
IFFT
The IFFT block converts a frequencydomain signal to a timedomain signal. LTE supports six standard bandwidth options: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, and 20 MHz. These bandwidth options require an FFT length of 128, 256, 512, 1024, and 2048, respectively. The block uses 2048 FFT length, which corresponds to the maximum bandwidth of LTE, that is 20MHz. The FFT length of IFFT is configured to the highest FFT size to generate single hardware, which supports all LTE bandwidth options.
The Divide butterfly outputs by two parameter controls if the FFT implements an overall 1/N scale factor by dividing the output of each butterfly multiplication by two. This adjustment keeps the output of the IFFT in the same amplitude range as its input. When the Divide butterfly outputs by two parameter is cleared, the block avoids overflow by increasing the word length by 1 bit after each butterfly multiplication.
FFT Shift
Conventionally, transceivers perform an FFT shift in the frequency domain. However, this method requires memory and introduces latency related to the size of the FFT. Instead, a transceiver can execute the same operation in the time domain using the frequency shifting property of Fourier transforms. Shifting a function in one domain corresponds to a multiplication by a complex exponential function in the other domain. To reduce hardware resources and latency, this block performs the FFT shift by multiplying the timedomain samples by a complex exponential function.
These equations describe an FFT shift. The equation for an Npoint FFT is
$$X(k)=F[x(n)]={\displaystyle \sum _{n=0}^{N1}x(n){e}^{\frac{j2\pi nk}{N}}}$$
For an FFT shift of N/2 carriers in either direction, substitute $$k=k\frac{N}{2}$$, resulting in
$$X(k{\scriptscriptstyle \frac{N}{2}})={\displaystyle \sum _{n=0}^{N1}x(n){e}^{\frac{j2\pi n(k{\scriptscriptstyle \frac{N}{2}})}{N}}}$$
This equation simplifies to
$$X(k\frac{N}{2})={\displaystyle \sum _{n=0}^{N1}{e}^{j\pi n}x(n){e}^{\frac{j2\pi nk}{N}}}$$
Since $$\sum _{n=0}^{N1}x(n){e}^{\frac{j2\pi nk}{N}}$$ is equivalent to $$F[x(n)]$$, and $${e}^{j\pi}=1$$, this equation simplifies to
$$X(k\frac{N}{2})=F[{{\displaystyle (1)}}^{n}x(n)]$$
The final equation shows that an FFT shift in the time domain simplifies to multiplication by (1)^{n}. Therefore, the block implements the FFT shift by multiplying the timedomain samples by either +1 or –1.
CP Addition
Cyclic prefix addition is a process of adding the last samples of an OFDM symbol as a prefix to each OFDM symbol. CP addition for an OFDM symbol with Nfft samples and CP samples N_{CP} is shown in this figure.
The LTE OFDM Modulator block uses FFT size of 2048 for all NDLRB resources to avoid multiple IFFTs. The block uses CP values corresponding to NDLRB 100.
The Cyclic prefix type parameter controls whether the block
expects a normal or an extended CP. The block requires the input to maintain a
sample rate of 30.72 MHz. It assumes that each symbol is 2048 samples plus the
cyclic prefix size associated with the rate. When using a normal CP, the prefix of
the first symbol in each slot has 160 samples, while each subsequent symbol contains
a prefix of 144 samples. When using an extended CP, all symbols contain 512 samples.
For more information about the cyclic prefix length (in samples) of each OFDM symbol
in a subframe, see the lteOFDMModulate
(LTE Toolbox) function.
Windowing
Windowing reduces the spectral regrowth, or adjacent channel leakage ratio (ACLR), of an OFDM signal. The feature is optional. To enable windowing, select the Windowing parameter.
For more information about windowing, see the lteOFDMModulate
(LTE Toolbox) function.
Base Rate Controller
This block generates the output data at a sample rate of 30.72 MHz by using the maximum output data sample rate or output data sample rate with the specified NDLRB.
This figure shows the output data when you set the Output data sample
rate parameter to Use maximum output data sample
rate
.
This figure shows the output data when you set the Output data sample
rate parameter to Match output data sample rate to
NDLRB
parameter. For NDLRB value 25, the output sample rate is
7.68 MHz, and the block returns valid output data at every fourth cycle.
Performance
The performance of the synthesized HDL code varies with your target and synthesis
options. The input data type used for generating HDL code is
fixdt(1,16,14)
.
This table shows the resource and performance data synthesis results when using the block with default configuration. The generated HDL targeted to Xilinx^{®} Zynq^{®} XC7Z045IFFG9002L FPGA. The design achieves a clock frequency of 247 MHz.
Resource  Number Used

LUTs  8050
Registers  9682
DSPs  22
Block RAM  22
F7 Muxes  0
F8 Muxes  0
RAMB36/FIFO  12
RAMB18  20
References
[1] 3GPP TS 36.212. "Multiplexing and channel coding." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network; Evolved Universal Terrestrial Radio Access (EUTRA). URL: https://www.3gpp.org.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports C/C++ code generation for Simulink^{®} accelerator and rapid accelerator modes and for DPI component generation.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

You cannot generate HDL for this block inside a Resettable Synchronous Subsystem (HDL Coder).
Version History
Introduced in R2019a
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
