weightingFilter

Frequency-weighted filter

Description

The weightingFilter System object™ performs frequency-weighted filtering independently across each input channel.

To perform frequency-weighted filtering:

1. Create the weightingFilter object and set its properties.

2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

weightFilt = weightingFilter

weightFilt = weightingFilter(weightType)

weightFilt = weightingFilter(weightType,Fs)

weightFilt = weightingFilter(___,Name,Value)

Description

weightFilt = weightingFilter creates a System object, weightFilt, that performs frequency-weighted filtering independently across each input channel.

weightFilt = weightingFilter(weightType) sets the Method property to weightType.

weightFilt = weightingFilter(weightType,Fs) sets the SampleRate property to Fs.

weightFilt = weightingFilter(___,Name,Value) sets each property Name to the specified Value. Unspecified properties have default values.

Example: weightFilt = weightingFilter('C-weighting','SampleRate',96000) creates a C-weighting filter with a sample rate of 96,000 Hz.

Properties

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Method — Type of weighting

'A-weighting' (default) | 'C-weighting' | 'K-weighting'

Type of weighting, specified as 'A-weighting', 'C-weighting', or 'K-weighting'. See Algorithms for more information.

Tunable: No

Data Types: char | string

SampleRate — Input sample rate (Hz)

44100 (default) | positive scalar

Input sample rate in Hz, specified as a positive scalar.

Tunable: Yes

Data Types: single | double

Usage

Syntax

audioOut = weightFilt(audioIn)

Description

audioOut = weightFilt(audioIn) applies frequency-weighted filtering to the input signal, audioIn, and returns the filtered signal, audioOut. The type of filtering is specified by the algorithm and properties of the weightingFilter System object, weightFilt.

Input Arguments

audioIn — Audio input to weighting filter

matrix

Audio input to the weighting filter, specified as a matrix. The columns of the matrix are treated as independent audio channels.

Data Types: single | double

Output Arguments

audioOut — Audio output from weighting filter

matrix

Audio output from the weighting filter, returned as a matrix the same size as audioIn.

Data Types: single | double

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Specific to weightingFilter

visualize	Visualize and validate filter response
getFilter	Return biquad filter object with design parameters set
createAudioPluginClass	Create audio plugin class that implements functionality of System object
isStandardCompliant	Verify filter design is IEC 61672-1:2002 compliant

Common to All System Objects

clone	Create duplicate System object
isLocked	Determine if System object is in use
release	Release resources and allow changes to System object property values and input characteristics
reset	Reset internal states of System object
step	Run System object algorithm

Note

weightingFilter supports additional filter analysis functions. See Compare and Analyze Weighting Types for details.

Examples

Validate Filter Compliance

Check the compliance status of filter designs and visualize them.

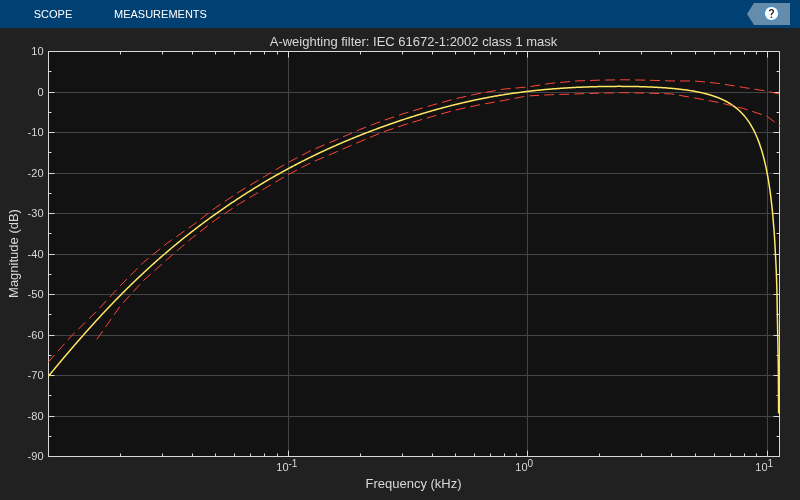

Create an A-weighting filter with a 22.5 kHz sample rate. Verify that the filter is standard compliant and visualize the filter design.

aWeight = weightingFilter('A-weighting','SampleRate',22500);
complianceStatus = isStandardCompliant(aWeight,'class 1')

complianceStatus = logical
   0

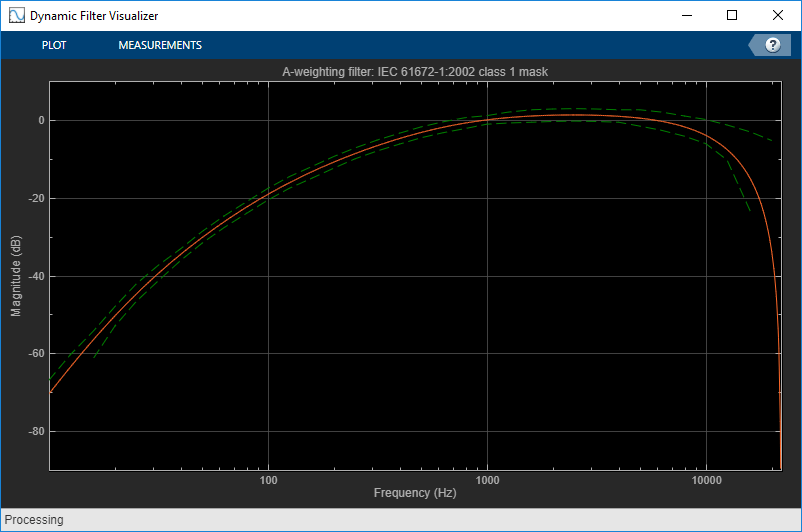

visualize(aWeight,'class 1')

Change your A-weighting filter sample rate to 44.1 kHz. Verify that the filter is standard compliant and visualize the filter design.

aWeight.SampleRate = 44100;

complianceStatus = isStandardCompliant(aWeight,'class 1')

complianceStatus = logical
   1

Perform A-Weighted Filtering

Use the weightingFilter System object™ to design an A-weighted filter, and then process an audio signal using your frequency-weighted filter design.

Create a dsp.AudioFileReader System object.

samplesPerFrame = 1024;
reader = dsp.AudioFileReader('Filename', ...
    'RockGuitar-16-44p1-stereo-72secs.wav', ...
    'SamplesPerFrame',samplesPerFrame, ...
    'PlayCount',Inf);

Create a weightingFilter System object. Use the sample rate of the reader as the sample rate of the weighting filter.

Fs = reader.SampleRate;
weightFilt = weightingFilter('A-weighting',Fs);

Create a spectrum analyzer to visualize the original audio signal and the audio signal after frequency-weighted filtering.

scope = dsp.SpectrumAnalyzer( ...
    'SampleRate',Fs, ...
    'PlotAsTwoSidedSpectrum',false, ...
    'FrequencyScale','Log', ...
    'FrequencyResolutionMethod','WindowLength', ...
    'WindowLength',samplesPerFrame, ...
    'Title','A-Weighted Filtering', ...
    'ShowLegend',true, ...
    'ChannelNames',{'Original signal','Filtered signal'});

Process the audio signal in an audio stream loop. Visualize the filtered audio and the original audio. As a best practice, release the System objects when complete.

tic
while toc < 20
    x = reader();
    y = weightFilt(x);
    scope([x(:,1),y(:,1)])
end

release(weightFilt)
release(reader)
release(scope)

Compare and Analyze Weighting Types

Compare the A-weighted, C-weighted, and K-weighted filtering of an engine sound.

Create an A-weighting filter, a C-weighting filter, and a K-weighting filter. Compare and analyze the filters using FVTool.

wF{1} = weightingFilter;
wF{2} = weightingFilter('C-weighting');
wF{3} = weightingFilter('K-weighting');

fvt = fvtool(wF{1},wF{2},wF{3},'FrequencyScale','Log', ...
    'Fs',wF{1}.SampleRate);
legend(fvt,'A-weighting','C-weighting','K-weighting', ...
    Location="best")

The weightingFilter object supports several filter analysis methods. For more information, use help at the command line:

help weightingFilter.helpFilterAnalysis

    The following analysis methods are available for discrete-time filter System objects:

    fvtool       -  Filter visualization tool
    info         -  Filter information
    freqz        -  Frequency response
    phasez       -  Phase response
    zerophase    -  Zero-phase response
    grpdelay     -  Group delay response
    phasedelay   -  Phase delay response
    impz         -  Impulse response
    impzlength   -  Length of impulse response
    stepz        -  Step response
    zplane       -  Pole/zero plot
    cost         -  Cost estimate for implementation of the filter System object
    measure      -  Measure characteristics of the frequency response

    outputDelay  -  Output delay value
    order        -  Filter order
    coeffs       -  Filter coefficients in a structure
    firtype      -  Determine the type (1-4) of a linear phase FIR filter System object
    tf           -  Convert to transfer function
    zpk          -  Convert to zero-pole-gain
    ss           -  Convert to state space representation

    isallpass    -  Verify if filter System object is allpass
    isfir        -  Verify if filter System object is FIR
    islinphase   -  Verify if filter System object is linear phase
    ismaxphase   -  Verify if filter System object is maximum phase
    isminphase   -  Verify if filter System object is minimum phase
    isreal       -  Verify if filter System object is minimum real
    issos        -  Verify if filter System object is in second-order sections form
    isstable     -  Verify if filter System object is stable

    realizemdl   -  Filter realization (Simulink diagram)

    specifyall   -  Fully specify fixed-point filter System object settings

    cascade      -  Create a FilterCascade System object

    Second-order sections:

    scale        -  Scale second-order sections of BiquadFilter System object
    scalecheck   -  Check scaling of BiquadFilter System object
    reorder      -  Reorder second-order sections of BiquadFilter System object
    cumsec       -  Cumulative second-order section of BiquadFilter System object
    scaleopts    -  Create an options object for second-order section scaling
    sos          -  Convert to second-order-sections (for IIRFilter System objects only)

    Fixed-Point (Fixed-Point Designer Required):

    freqrespest  -  Frequency response estimate via filtering
    freqrespopts -  Create an options object for frequency response estimate
    noisepsd     -  Power spectral density of filter output due to roundoff noise
    noisepsdopts -  Create an options object for output noise PSD computation

    Multirate Analysis:

    polyphase                - Polyphase decomposition of multirate filter System object
    gain (CIC decimator)     - Gain of CIC decimator filter System object
    gain (CIC interpolator)  - Gain of CIC interpolator filter System object

    For decimator, interpolator, or rate change filter System objects
    the analysis tools perform computations relative to the rate at
    which the filter is running. If a sampling frequency is specified,
    it is assumed that the filter is running at that rate.

Help for weightingFilter.helpFilterAnalysis is inherited from superclass dsp.internal.FilterAnalysis

Create a dsp.AudioFileReader and specify a sound file. Create an audioDeviceWriter with default properties. In an audio stream loop, play the white noise, and then listen to it filtered through the A-weighted, C-weighted, and K-weighted filters, successively.

fileReader = dsp.AudioFileReader('Engine-16-44p1-stereo-20sec.wav');
deviceWriter = audioDeviceWriter('SampleRate',fileReader.SampleRate);

fprintf('No filtering...')

No filtering...

for i = 1:400
    x = fileReader();
    if i==100
        index = 1;
        fprintf('A-weighted filtering...')
    elseif i==200
        index = 2;
        fprintf('C-weighted filtering...')
    elseif i==300
        index = 3;
        fprintf('K-weighted filtering...\n')
    end
    if i>99
        y = wF{index}(x);
    else
        y = x;
    end
    deviceWriter(y);
end

A-weighted filtering...

C-weighted filtering...

K-weighted filtering...

As a best practice, release your objects once done.

release(deviceWriter)
release(fileReader)

Use Weighting Filter Design with Biquad Filter

The weightingFilter object uses second-order sections (SOS) for filtering. To extract the weighting filter design, use getFilter to return a dsp.BiquadFilter object with the SOSMatrix and ScaleValues properties set.

Use weightingFilter to create C-weighted and A-weighted filter objects. Use getFilter to return corresponding dsp.BiquadFilter objects.

cFilt = weightingFilter('C-weighting');
aFilt = weightingFilter('A-weighting');
cSOSFilter = getFilter(cFilt);
aSOSFilter = getFilter(aFilt);

Create an audio file reader and audio device writer for audio input/output. Use the sample rate of your reader as the sample rate of your writer.

fileReader = dsp.AudioFileReader('JetAirplane-16-11p025-mono-16secs.wav');
deviceWriter = audioDeviceWriter('SampleRate',fileReader.SampleRate);

In an audio stream loop, play the unfiltered signal. Release your file reader so that the next time you call it, it reads from the beginning of the file.

tic
while toc<8
    x = fileReader();
    deviceWriter(x);
end
release(fileReader)

Play the signal processed by the A-weighted filter. Then play the signal processed by the C-weighted filter. Cache the power in each frame of the original and filtered signals for analysis. As a best practice, release your file reader and device writer once complete.

y = [];
count = 1;
tic
while ~isDone(fileReader)
    x = fileReader();
    aFiltered = aSOSFilter(x);
    cFiltered = cSOSFilter(x);
    if toc>8
        deviceWriter(cFiltered);
    else
        deviceWriter(aFiltered);
    end
    xPower(count) = var(x);
    aPower(count) = var(aFiltered);
    cPower(count) = var(cFiltered);
    y = [y;x];
    count = count+1;
end

release(fileReader)
release(deviceWriter)

Plot the power of the original signal, the A-weighted signal, and the C-weighted signal over time.

subplot(2,1,1)
spectrogram(y,512,256,4096,fileReader.SampleRate,'yaxis')
title('Original Signal')

subplot(2,1,2)
t = linspace(0,16.3468,count-1);
plot(t,xPower,'r',t,aPower,'b',t,cPower,'g')
legend('Original Signal','A-Weighted','C-Weighted')
xlabel('Time (s)')
ylabel('Power')

Algorithms

A-Weighting

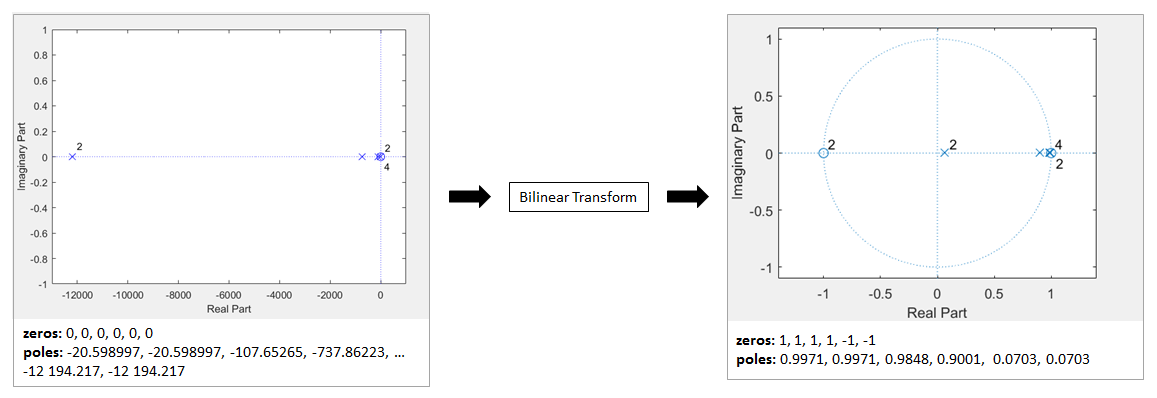

The A-curve is a wide bandpass filter centered at 2.5 kHz, with approximately 20 dB attenuation at 100 Hz. A-weighted SPL measurements of noise level are increasingly found in sales literature for domestic appliances. In most countries, the use of A-weighting is mandated for the protection of workers against noise-induced deafness. The ISO and ICOA standards mandate A-weighting for all civil aircraft noise measurements.

The ANSI S1.42.2001 [1] defines this weighting curve. The IEC 61672-1:2002 [2] standard defines the minimum and maximum attenuation limits for an A-weighting filter.

ANSI S1.42.2001 defines the weighting curve by specifying analog poles and zeros. Audio Toolbox™ converts the specified poles and zeros to the digital domain using a bilinear transform:

C-Weighting

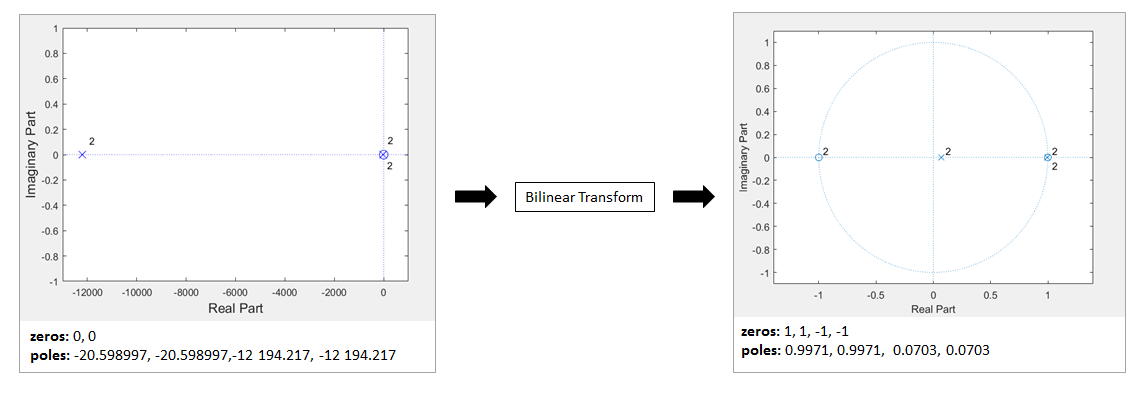

The C-curve is "flat," but with limited bandwidth: It has –3 dB corners at 31.5 Hz and 8 kHz. C-curves are used in sound level meters for sounds that are louder than those intended for A-weighting filters.

The ANSI S1.42-2001 [1] defines the C-weighting curve. The IEC 61672-1:2002 [2] standard defines the minimum and maximum attenuation limits for C-weighting filters.

ANSI S1.42.2001 defines the weighting curve by specifying analog poles and zeros. Audio Toolbox converts the specified poles and zeros to the digital domain using a bilinear transform:

K-Weighting

The K-weighting filter is used for loudness normalization in broadcast. It is composed of two stages of filtering: a first stage shelving filter and a second stage highpass filter.

The ITU-R BS.1770-4 [3] standard defines this curve.

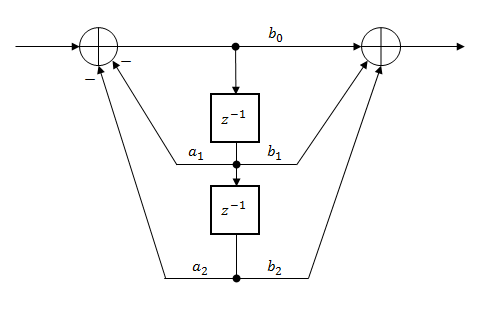

Assume a second-order filter.

The table shows the coefficients for the filters.

First Stage Shelving Coefficients	Second Stage Highpass Coefficients
$$a_1=-1.69065929318241$$	$$a_1=-1.99004745483398$$
$$a_2=0.73248077421585$$	$$a_2=0.99007225036621$$
$$b_0=1.53512485958697$$	$$b_0=1.0$$
$$b_1=-2.6916918940638$$	$$b_1=-2.0$$
$$b_2=1.19839281085285$$	$$b_2=1.0$$

The coefficients presented by ITU-R BS.1770-4 are defined for 48 kHz. These coefficients are recomputed for nonstandard sample rates using the algorithm described in [4].

References

[1] Acoustical Society of America. Design Response of Weighting Networks for Acoustical Measurements. ANSI S1.42-2001. New York, NY: American National Standards Institute, 2001.

[2] International Electrotechnical Commission. Electroacoustics Sound Level Meters Part 1: Specifications. First Edition. IEC 61672-1. 2002–2005.

[3] International Telecommunication Union. Algorithms to measure audio programme loudness and true-peak audio level. ITU-R BS.1770-4. 2015.

[4] Mansbridge, Stuart, Saoirse Finn, and Joshua D. Reiss. "Implementation and Evaluation of Autonomous Multi-track Fader Control." Paper presented at the 132nd Audio Engineering Society Convention, Budapest, Hungary, 2012.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

System Objects in MATLAB Code Generation (MATLAB Coder)

Version History

Introduced in R2016b
