# MIMO Feedback Loop

This example shows how to obtain the closed-loop response of a MIMO feedback loop in three different ways.

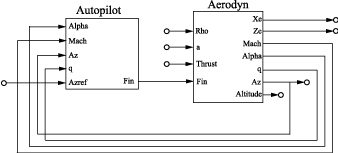

In this example, you obtain the response from `Azref`

to `Az`

of the MIMO feedback loop of the following block diagram.

You can compute the closed-loop response using one of the following three approaches:

Name-based interconnection with

`connect`

Name-based interconnection with

`feedback`

Index-based interconnection with

`feedback`

You can use whichever of these approaches is most convenient for your application.

Load the plant `Aerodyn`

and the controller `Autopilot`

into the MATLAB® workspace. These models are stored in the datafile `MIMOfeedback.mat`

.

`load('MIMOfeedback.mat')`

`Aerodyn`

is a 4-input, 7-output state-space (`ss`

) model. `Autopilot`

is a 5-input, 1-output `ss`

model. The inputs and outputs of both models names appear as shown in the block diagram.

Compute the closed-loop response from `Azref`

to `Az`

using `connect`

.

T1 = connect(Autopilot,Aerodyn,'Azref','Az');

Warning: The following block inputs are not used: Rho,a,Thrust.

Warning: The following block outputs are not used: Xe,Ze,Altitude.

The `connect`

function combines the models by joining the inputs and outputs that have matching names. The last two arguments to `connect`

specify the input and output signals of the resulting model. Therefore, `T1`

is a state-space model with input `Azref`

and output `Az`

. The `connect`

function ignores the other inputs and outputs in `Autopilot`

and `Aerodyn`

.

Compute the closed-loop response from `Azref`

to `Az`

using name-based interconnection with the `feedback`

command. Use the model input and output names to specify the interconnections between `Aerodyn`

and `Autopilot`

.

When you use the `feedback`

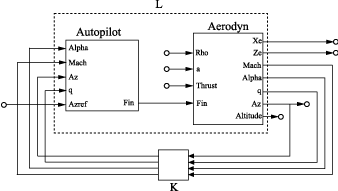

function, think of the closed-loop system as a feedback interconnection between an open-loop plant-controller combination `L`

and a diagonal unity-gain feedback element `K`

. The following block diagram shows this interconnection.

L = series(Autopilot,Aerodyn,'Fin'); FeedbackChannels = {'Alpha','Mach','Az','q'}; K = ss(eye(4),'InputName',FeedbackChannels,... 'OutputName',FeedbackChannels); T2 = feedback(L,K,'name',+1);

The closed-loop model `T2`

represents the positive feedback interconnection of `L`

and `K`

. The `'name'`

option causes `feedback`

to connect `L`

and `K`

by matching their input and output names.

`T2`

is a 5-input, 7-output state-space model. The closed-loop response from `Azref`

to `Az`

is `T2('Az','Azref')`

.

Compute the closed-loop response from `Azref`

to `Az`

using `feedback`

, using indices to specify the interconnections between `Aerodyn`

and `Autopilot`

.

L = series(Autopilot,Aerodyn,1,4); K = ss(eye(4)); T3 = feedback(L,K,[1 2 3 4],[4 3 6 5],+1);

The vectors `[1 2 3 4]`

and `[4 3 6 5]`

specify which inputs and outputs, respectively, complete the feedback interconnection. For example, `feedback`

uses output 4 and input 1 of `L`

to create the first feedback interconnection. The function uses output 3 and input 2 to create the second interconnection, and so on.

`T3`

is a 5-input, 7-output state-space model. The closed-loop response from `Azref`

to `Az`

is `T3(6,5)`

.

Compare the step response from `Azref`

to `Az`

to confirm that the three approaches yield the same results.

step(T1,T2('Az','Azref'),T3(6,5),2)
