removeLayers

Remove layers from layer graph or network

Syntax

lgraphUpdated = removeLayers(lgraph,layerNames)

netUpdated = removeLayers(net,layerNames)

Description

lgraphUpdated = removeLayers(lgraph,layerNames) removes the layers specified by layerNames from the layer graph lgraph. The function also removes any connections to the removed layers.

netUpdated = removeLayers(net,layerNames) removes the layers specified by layerNames from the dlnetwork object net. The function also removes any connections to the removed layers.

Examples

Remove Layer from Layer Graph

Create a layer graph from an array of layers.

layers = [
    imageInputLayer([28 28 1],'Name','input')
    convolution2dLayer(3,16,'Padding','same','Name','conv_1')
    batchNormalizationLayer('Name','BN_1')
    reluLayer('Name','relu_1')];

lgraph = layerGraph(layers);

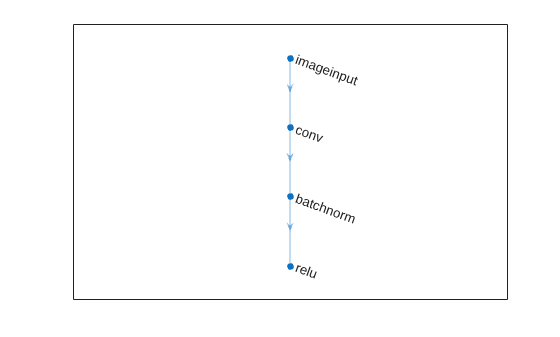

figure
plot(lgraph)

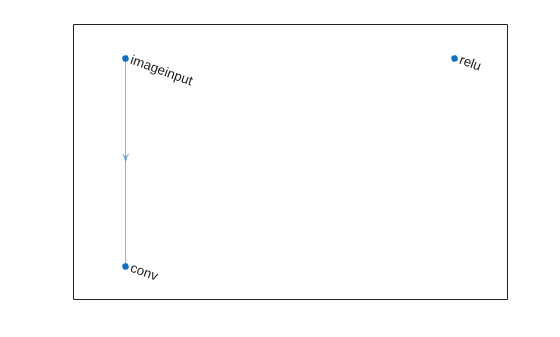

Remove the 'BN_1' layer and its connections.

lgraph = removeLayers(lgraph,'BN_1');
figure
plot(lgraph)

Input Arguments

lgraph — Layer graph

LayerGraph object

Layer graph, specified as a LayerGraph object. To create a layer graph, use layerGraph.

net — Neural network

dlnetwork object

Neural network, specified as a dlnetwork object.

layerNames — Names of layers to remove

character vector | cell array of character vectors | string array

Names of layers to remove, specified as a character vector, a cell array of character vectors, or a string array.

To remove a single layer from the layer graph, specify the name of the layer.

To remove multiple layers, specify the layer names in an array, where each element of the array is a layer name.

Example: 'conv1'

Example: {'conv1','add1'}

Output Arguments

lgraphUpdated — Updated layer graph

LayerGraph object

Updated layer graph, returned as a LayerGraph object.

netUpdated — Updated network

dlnetwork object

Updated network, returned as an uninitialized dlnetwork object.

To initialize the learnable parameters of a dlnetwork object, use the initialize function.

The removeLayers function does not preserve quantization information. If the input network is a quantized network, then the output network does not contain quantization information.

Version History

Introduced in R2017b
