# Create Bidirectional LSTM (BiLSTM) Function

*Since R2023b*

This example shows how to create a bidirectional long-short term memory (BiLSTM) function for custom deep learning functions.

In a deep learning model, a bidirectional LSTM (BiLSTM) operation learns bidirectional long-term dependencies between time steps of time series or sequence data. These dependencies can be useful when you want the network to learn from the complete time series at each time step.

For most tasks, you can train a network that contains a `bilstmLayer`

object. To use the BiLSTM operation in a function, you can create a BiLSTM function using this example as a guide.

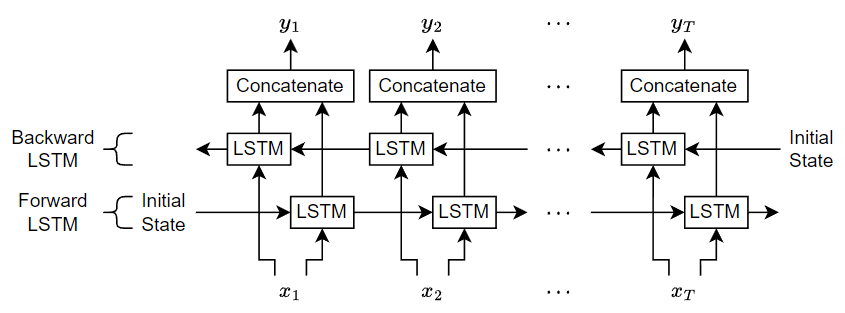

A BiLSTM consists of two LSTM components: the "forward LSTM" that operates from the first time step to the last time step and the "backward LSTM" that operates from the last time step to the first time step. After passing the data through the two LSTM components, the operation concatenates the outputs together along the channel dimension.

### Create BiLSTM Function

Create the `bilstm`

function, listed at the end of the example, that applies a BiLSTM operation to the input using the initial hidden state, initial cell state, and the input weights, recurrent weights, and the bias.

### Initialize BiLSTM Parameters

Specify the input size (for example, the embedding dimension of the input layer) and the number of hidden units.

inputSize = 256; numHiddenUnits = 50;

Initialize the BILSTM parameters. The BiLSTM operation requires a set of input weights, recurrent weights, and bias for both the forward and backward parts of the operation. For these parameters, specify the concatenation of the forward and backward components. In this case, the input weights have size `[8*numHiddenUnits inputSize]`

, the recurrent weights have size `[8*numHiddenUnits numHiddenUnits]`

, and the bias has size `[8*numHiddenUnits 1]`

.

Initialize the input weights, recurrent weights, and the bias using the `initializeGlorot`

, `initializeOrthogonal`

, and `initializeUnitForgetGate`

functions, respectively. These functions are attached to this example as supporting files. To access these functions, open the example as a live script.

Initialize the input weights using the `initializeGlorot`

function.

numOut = 8*numHiddenUnits; numIn = inputSize; sz = [numOut numIn]; inputWeights = initializeGlorot(sz,numOut,numIn);

Initialize the recurrent weights using the `initializeOrthogonal`

function.

sz = [8*numHiddenUnits numHiddenUnits]; recurrentWeights = initializeOrthogonal(sz);

Initialize the input weights using the `initializeUnitForgetGate`

function.

bias = initializeUnitForgetGate(2*numHiddenUnits);

Initialize the BiLSTM hidden and cell state with zeros using the `initializeZeros`

function attached to this example as a supporting file. To access this function, open the example as a live script. Similar to the parameters, specify the concatenation of the forward and backward components. In this case, the hidden and cell state each have size `[2*numHiddenUnits 1]`

.

sz = [2*numHiddenUnits 1]; H0 = initializeZeros(sz); C0 = initializeZeros(sz);

### Apply BiLSTM Operation

Specify an array of random data with mini-batch size 128 and sequence length 75. The first dimension of the input (the channel dimension) must match the input size of the BiLSTM operation.

miniBatchSize = 128; sequenceLength = 75; X = rand([inputSize miniBatchSize sequenceLength],"single"); X = dlarray(X,"CBT");

Apply the BiLSTM operation and view the size of the output.

Y = bilstm(X,H0,C0,inputWeights,recurrentWeights,bias); size(Y)

`ans = `*1×3*
100 128 75

For models that require only the last time step of the sequence, extract the vectors corresponding to the last output of the forward LSTM and backward LSTM components.

YLastForward = Y(1:numHiddenUnits,:,end); YLastBackward = Y(numHiddenUnits+1:end,:,1); YLast = cat(1, YLastForward, YLastBackward); size(YLast)

`ans = `*1×3*
100 128 1

### BiLSTM Function

The `bilstm`

function applies a BiLSTM operation to the formatted `dlarray`

input `X`

using the initial hidden state `H0`

, initial cell state `C0`

, and parameters `weights`

, `recurrentWeights`

, and `bias`

. The input weights have size `[8*numHiddenUnits inputSize]`

, the recurrent weights have size `[8*numHiddenUnits numHiddenUnits]`

, and the bias has size `[8*numHiddenUnits 1]`

. The hidden and cell state each have size `[2*numHiddenUnits 1]`

.

function [Y,hiddenState,cellState] = bilstm(X,H0,C0,inputWeights,recurrentWeights,bias) % Determine forward and backward parameter indices numHiddenUnits = numel(bias)/8; idxForward = 1:4*numHiddenUnits; idxBackward = 4*numHiddenUnits+1:8*numHiddenUnits; % Forward and backward states H0Forward = H0(1:numHiddenUnits); H0Backward = H0(numHiddenUnits+1:end); C0Forward = C0(1:numHiddenUnits); C0Backward = C0(numHiddenUnits+1:end); % Forward and backward parameters inputWeightsForward = inputWeights(idxForward,:); inputWeightsBackward = inputWeights(idxBackward,:); recurrentWeightsForward = recurrentWeights(idxForward,:); recurrentWeightsBackward = recurrentWeights(idxBackward,:); biasForward = bias(idxForward); biasBackward = bias(idxBackward); % Forward LSTM [YForward,hiddenStateForward,cellStateForward] = lstm(X,H0Forward,C0Forward,inputWeightsForward, ... recurrentWeightsForward,biasForward); % Backward LSTM XBackward = X; idx = finddim(X,"T"); if ~isempty(idx) XBackward = flip(XBackward,idx); end [YBackward,hiddenStateBackward,cellStateBackward] = lstm(XBackward,H0Backward,C0Backward,inputWeightsBackward, ... recurrentWeightsBackward,biasBackward); if ~isempty(idx) YBackward = flip(YBackward,idx); end % Output Y = cat(1,YForward,YBackward); hiddenState = cat(1,hiddenStateForward,hiddenStateBackward); cellState = cat(1,cellStateForward,cellStateBackward); end
