FIR Halfband Decimator

Decimate signal using polyphase FIR halfband filter

•

Libraries:
DSP System Toolbox / Filtering / Multirate Filters

Description

The FIR Halfband Decimator block performs polyphase decimation of the input signal by a factor of 2. The block uses an FIR equiripple design or a Kaiser window design to construct the halfband filters. The implementation takes advantage of the zero-valued coefficients of the FIR halfband filter, making one of the polyphase branches a delay. You can use the block to implement the analysis portion of a two-band filter bank to separate a signal into lowpass and highpass subbands. For more information, see Algorithms.

The block supports fixed-point operations and ARM^® Cortex^® code generation. For more information on ARM Cortex code generation, see Code Generation for ARM Cortex-M and ARM Cortex-A Processors.

Examples

Design and Implement FIR Halfband Decimator in Simulink

Since R2023b

Design and implement an FIR halfband decimator using the FIR Halfband Decimator block. Pass a noisy input through the decimator. Plot the spectrum of the input and the decimated subband outputs in the spectrum analyzer.

This example also shows how to use the Allow arbitrary frame length for fixed-size input signals parameter.

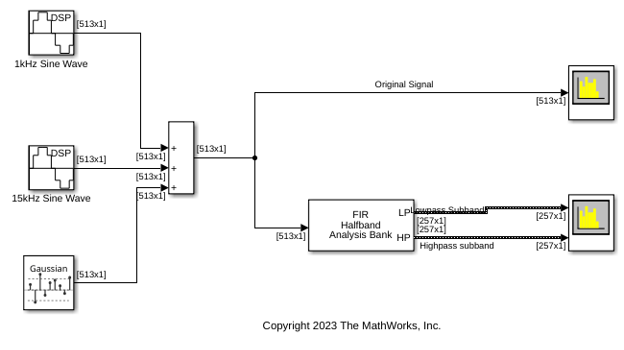

Open and inspect the DesignAndImplementFIRHalfbandDecimator model. The input signal in the model is a noisy sinusoidal signal with 513 samples per frame and contains two frequencies, one at 1 kHz and the other at 15 kHz. The Random Source block adds white Gaussian noise with a mean of 0 and a variance of 0.05 to this signal. The input signal is a fixed-size signal, that is, the frame length of the signal (513 samples per frame) does not vary during simulation.

To allow an arbitrary frame length for a fixed-size signal, that is, to allow a frame length that is not a multiple of the decimation factor 2, select the Allow arbitrary frame length for fixed-size input signals parameter in FIR Halfband Decimator block dialog box.

The FIR halfband decimator has a transition width of 4.1 kHz and a stopband attenuation of 80 dB. The decimator outputs the highpass subband signal.

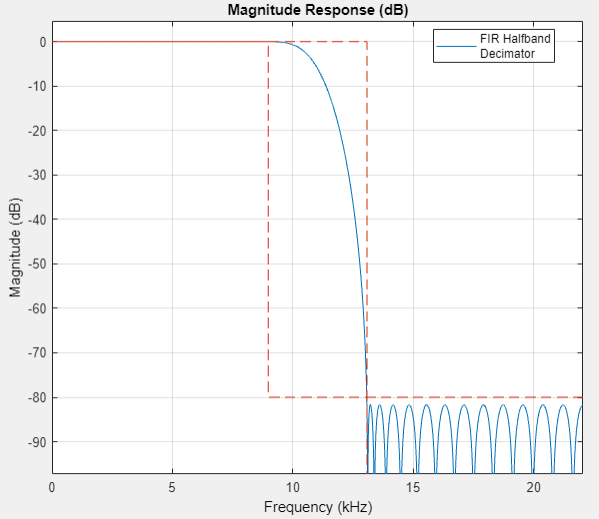

Visualize the magnitude response of the filter by clicking the View Filter Response button in the block dialog box.

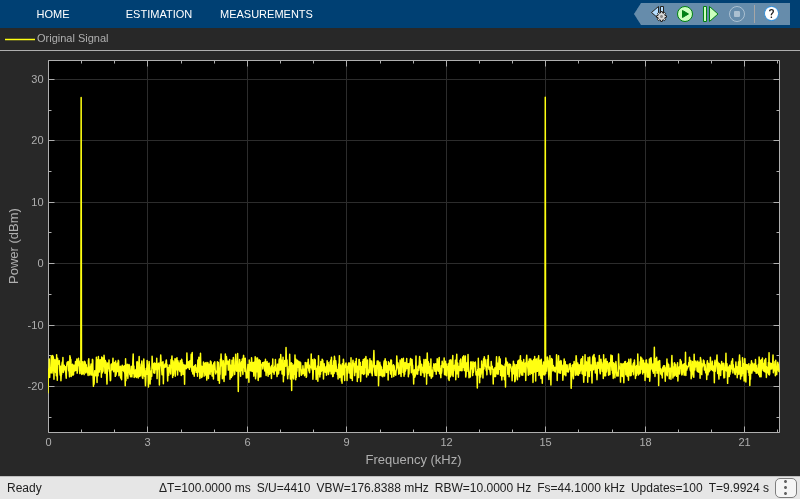

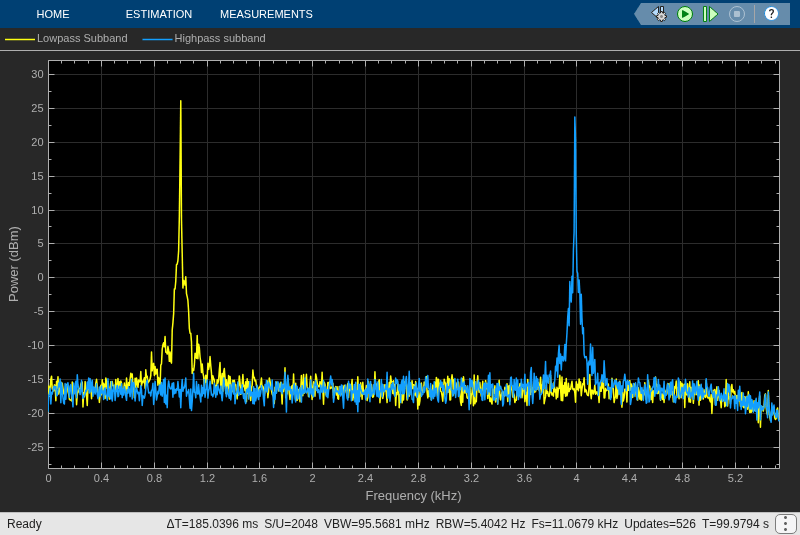

Pass the noisy sinusoidal signal through the decimator. Plot the spectrum of the input and the lowpass and highpass subband outputs in two separate spectrum analyzer windows.

The block allows arbitrary frame lengths for variable-size signals irrespective of the setting of the Allow arbitrary frame length for fixed-size input signals parameter. When the input is a variable-size signal, the frame length of the signal can vary during simulation.

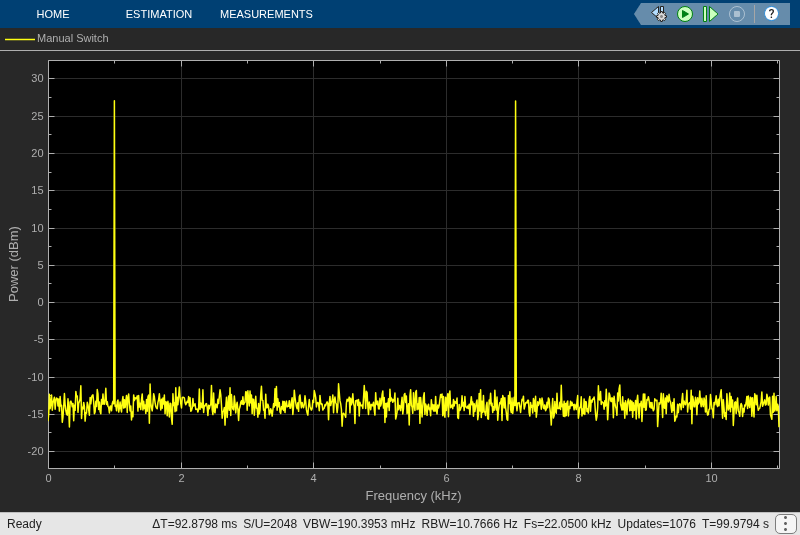

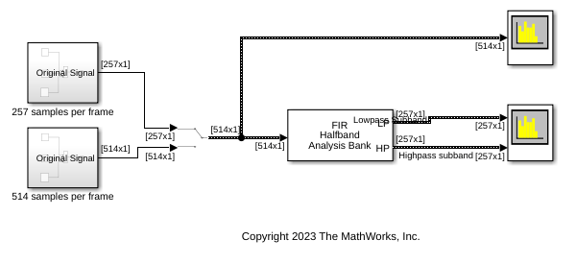

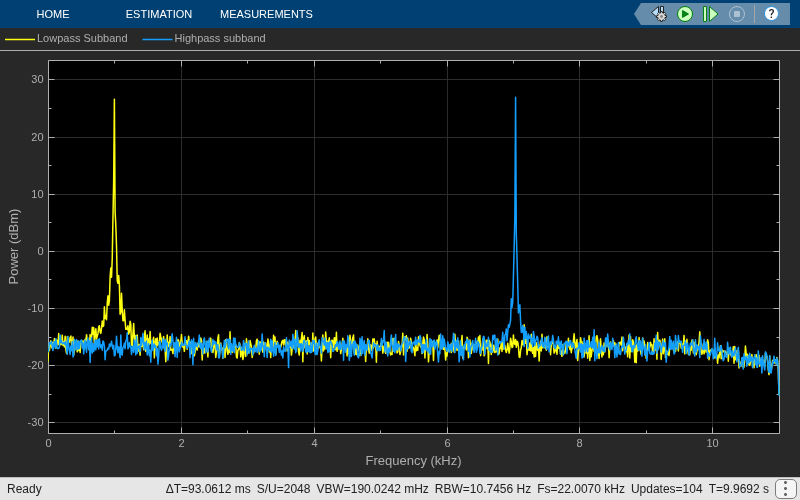

Open the DesignAndImplementFIRHalfbandDecimator_Varsize model. The input is a variable-size signal. The input frame length can vary between 257 and 514 samples per frame.

Extract Low Frequency Subband From Speech in Simulink

Since R2023b

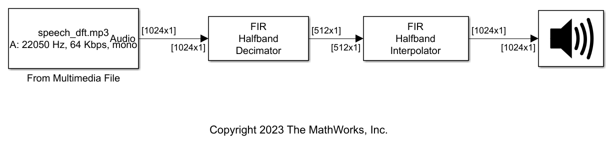

Use the FIR Halfband Decimator and FIR Halfband Interpolator blocks to extract and reconstruct the low-frequency subband from a speech signal.

Open and inspect the ExtractLowFrequencySubbandFromSpeechFIR.slx model. The input audio data is a single-channel speech signal with the sample rate of 22050 Hz.

Specify the Sample rate mode parameter of the FIR Halfband Decimator and FIR Halfband Interpolator blocks to Use normalized frequency (0 to 1). This option enables you to specify the transition width of the decimation and interpolation filters in normalized frequency units. Set the transition width to 0.093 in normalized frequency units and the stopband attenuation to 80 dB. The design method is set to Auto by default. In the Auto mode, the block selects the equiripple or Kaiser window design method based on the design parameters of the filter.

Read the speech signal from the audio file in frames of 1024 samples. The FIR Halfband Decimator block extracts and outputs the lowpass subband of the speech signal. The FIR Halfband Interpolator block reconstructs the lowpass approximation of the speech signal by interpolating the lowpass subband.

The Audio Device Writer block plays the filtered output.

Design and Implement Two-Channel FIR Filter Bank in Simulink

Use the FIR Halfband Decimator and FIR Halfband Interpolator blocks to implement a two-channel filter bank. This example uses an audio file input and shows that the power spectrum of the filter bank output does not differ significantly from the input. Play the output of the filter bank using the Audio Device Writer block.

Open and inspect the TwoChannelFIRFilterBank.slx model. The input audio data is a single-channel speech signal with a sample rate of 22050 Hz.

The FIR Halfband Decimator block acts as an FIR halfband analysis bank as the Output highpass subband parameter is selected in the block dialog box. The FIR Halfband Interpolator block acts as an FIR halfband synthesis bank as the Input highpass subband parameter is selected in the block dialog box.

Set the Sample rate mode parameter in the FIR Halfband Decimator and FIR Halfband Interpolator blocks to Inherit from input port so that the blocks inherit the sample rate from the respective input ports. Set the transition width to 4.1 kHz and the stopband attenuation to 80 dB. The design method is set to Auto by default. In the Auto mode, the block selects the equiripple or Kaiser window design methods based on the design parameters of the filter.

Read the speech signal from the audio file in frames of 1024 samples. The FIR halfband analysis bank extracts the lowpass and highpass subbands of the speech signal. The FIR halfband synthesis filter bank synthesizes the speech signal from the lowpass and highpass subbands.

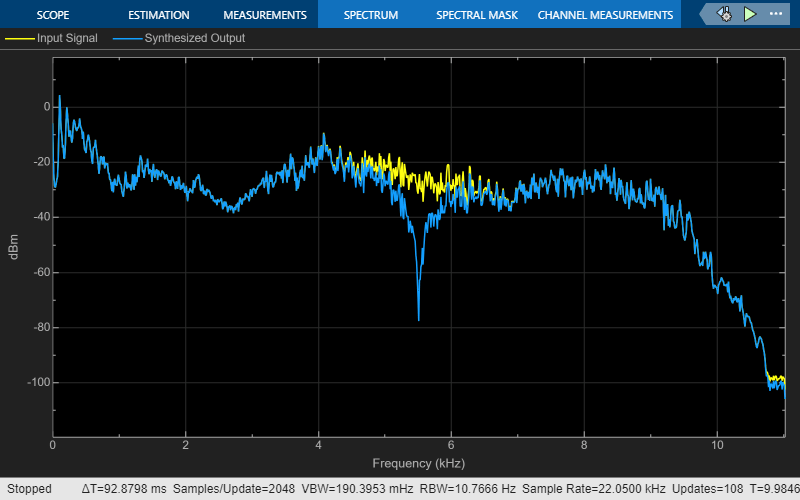

Display the power spectrum of the audio input and the output of the synthesis filter bank in the spectrum analyzer. Play the synthesized speech signal using the Audio Device Writer block.

Ports

Input

Input — Input signal

column vector | matrix

Specify the input signal as a column vector or a matrix of size P-by-Q.

The block treats each column of the input signal as a separate channel. If the input is a two-dimensional signal, the first dimension represents the channel length (or frame size) and the second dimension represents the number of channels. If the input is a one-dimensional signal, then the block interprets it as a single-channel signal.

This block supports variable-size input signals (frame length changes during simulation).

When you input a variable-size signal, the frame length of the signal can be arbitrary, that is, the input frame length does not have to be a multiple of the decimation factor 2. When you input a fixed-size signal (frame length does not change during simulation), the frame length can be arbitrary only when you select the Allow arbitrary frame length for fixed-size input signals parameter. (since R2023b)

This block supports variable-size input signals.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point
Complex Number Support: Yes

Output

LP — Lowpass subband of decimator output

column vector | matrix

Lowpass subband of the decimator output, returned as a column vector or a matrix. As the filter is a halfband filter, the downsampling factor is always 2.

The dimensions of the output signal depend on the dimensions of the input signal and on whether you select the Allow arbitrary frame length for fixed-size input signals parameter. (since R2023b)

This table provides more details on the dimensions of the lowpass subband output signal when you input a fixed-size input signal.

Fixed-Size Input Signal

Input Signal	Output Signal
P-by-Q, where P is a multiple of the decimation factor 2	Fixed-size signal of size (P/2)-by-Q
P-by-Q, where P is not a multiple of the decimation factor 2 (since R2023b)	Variable-size signal with an upper bound of size ceil(P/2)-by-Q when you select Allow arbitrary frame length for fixed-size input signals (since R2023b) If you do not select Allow arbitrary frame length for fixed-size input signals, the block errors. (since R2023b)

This table gives more details on the dimensions of the lowpass subband output signal when you input a variable-size input signal. When you input a variable-size signal (frame length changes during simulation), the Allow arbitrary frame length for fixed-size input signals parameter is visible in the block dialog box but does not have any impact on the input frame length. You can input a variable-size signal of any frame length even if you do not select the Allow arbitrary frame length for fixed-size input signals parameter. (since R2023b)

Variable-Size Input Signal

Input Signal	Output Signal
P-by-Q	Variable-size signal with an upper bound of size ceil(P/2)-by-Q (since R2023b)

When the output is of fixed-point data type, it is signed only.

This port is unnamed until you select the Output highpass subband parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | fixed point
Complex Number Support: Yes

HP — Highpass subband of decimator output

column vector | matrix

Highpass subband of the decimator output, returned as a column vector or a matrix. As the filter is a halfband filter, the downsampling factor is always 2.

The dimensions of the output signal depend on the dimensions of the input signal and on whether you select the Allow arbitrary frame length for fixed-size input signals parameter. (since R2023b)

This table provides more details on the dimensions of the highpass subband output signal when you input a fixed-size input signal.

Fixed-Size Input Signal

Input Signal	Output Signal
P-by-Q, where P is a multiple of the decimation factor 2	Fixed-size signal of size (P/2)-by-Q
P-by-Q, where P is not a multiple of the decimation factor 2 (since R2023b)	Variable-size signal with an upper bound of size ceil(P/2)-by-Q when you select Allow arbitrary frame length for fixed-size input signals (since R2023b) If you do not select Allow arbitrary frame length for fixed-size input signals, the block errors. (since R2023b)

This table gives more details on the dimensions of the highpass subband output signal when you input a variable-size input signal. When you input a variable-size signal (frame length changes during simulation), the Allow arbitrary frame length for fixed-size input signals parameter is visible in the block dialog box but does not have any impact on the input frame length. You can input a variable-size signal of any frame length even if you do not select the Allow arbitrary frame length for fixed-size input signals parameter. (since R2023b)

Variable-Size Input Signal

Input Signal	Output Signal
P-by-Q	Variable-size signal with an upper bound of size ceil(P/2)-by-Q (since R2023b)

When the output is of fixed-point data type, it is signed only.

Dependency

To enable this port, select the Output highpass subband parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | fixed point
Complex Number Support: Yes

Parameters

Main Tab

Filter specification — Filter design parameters

Transition width and stopband attenuation (default) | Filter order and transition width | Filter order and stopband attenuation | Coefficients

Select the parameters that the block uses to design the FIR halfband filter.

• Transition width and stopband attenuation (default) — Design the filter using Transition width (Hz) and Stopband attenuation (dB). This design is the minimum-order design.

• Filter order and transition width — Design the filter using Filter order and Transition width (Hz).

• Filter order and stopband attenuation — Design the filter using Filter order and Stopband attenuation (dB).

• Coefficients — Specify the filter coefficients directly through the Numerator parameter.

Filter order — Filter order

52 (default) | even positive integer

Specify the filter order as an even positive integer.

Dependencies

To enable this parameter, set Filter specification to Filter order and transition width or Filter order and stopband attenuation.

Transition width (Hz) — Transition width

4.1e3 (default) | positive scalar

Specify the transition width as a positive scalar in Hz or in normalized frequency units (since R2023b).

If you set the Sample rate mode parameter to:

• Specify on dialog or Inherit from input port –– The value of the transition width is in Hz and must be less than half the value of the input sample rate.

• Use normalized frequency (0 to 1) –– The value of the transition width is in normalized frequency units. The value must be a positive scalar less than 1.0.

(since R2023b)

Dependencies

To enable this parameter, set Filter specification to Filter order and transition width or Transition width and stopband attenuation.

Stopband attenuation (dB) — Stopband attenuation

80 (default) | positive real scalar

Specify the stopband attenuation as a real positive scalar in dB.

Dependencies

To enable this parameter, set Filter specification to Filter order and stopband attenuation or Transition width and stopband attenuation.

Numerator — FIR halfband filter coefficients

designHalfbandFIR('TransitionWidth',0.186, 'StopbandAttenuation',80, 'Structure','decim') (default) | row vector

Specify the FIR halfband filter coefficients directly as a row vector. The coefficients must comply with the FIR halfband impulse response format. If (length(Numerator) − 1)/2 is even, where (length(Numerator) − 1) is the filter order, every other coefficient starting with the first coefficient must be 0 except the center coefficient which must be 0.5. If (length(Numerator) − 1)/2 is odd, the sequence of alternating zeros with 0.5 at the center starts at the second coefficient.

Dependencies

To enable this parameter, set Filter specification to Coefficients.

Design method — Filter design method

Auto (default) | Equiripple | Kaiser

Specify the filter design method as one of the following:

• Auto –– The algorithm automatically chooses the filter design method depending on the filter design parameters. The algorithm uses the equiripple or the Kaiser window method to design the filter.

  If the design constraints are very tight, such as very high stopband attenuation or very narrow transition width, then the algorithm automatically chooses the Kaiser method, as this method is optimal for designing filters with very tight specifications. However, if the design constraints are not tight, then the algorithm chooses the equiripple method.

  When you set the Design method parameter to Auto, you can determine the method used by the algorithm by examining the passband and stopband ripple characteristics of the designed filter. If the block used the equiripple method, the passband and stopband ripples of the designed filter have a constant amplitude in the frequency response. If the filter design method the block chooses in the Auto mode is not suitable for your application, manually specify the Design method as Equiripple or Kaiser.

• Equiripple –– The algorithm uses the equiripple method.

• Kaiser –– The algorithm uses the Kaiser window method.

Dependencies

To enable this parameter, set Filter specification to Filter order and stopband attenuation, Filter order and transition width, or Transition width and stopband attenuation.

Output highpass subband — Output highpass subband

off (default) | on

When you select this check box, the block acts as an analysis filter bank and analyzes the input signal into highpass and lowpass subbands. When you clear this check box, the block acts as an FIR halfband decimator.

Sample rate mode — Mode to specify the input sample rate

Use normalized frequency (0 to 1) (default) | Specify on dialog | Inherit from input port

Since R2023b

Specify the input sample rate using one of these options:

• Use normalized frequency (0 to 1) –– Specify the transition width in normalized frequency units (0 to 1).

• Specify on dialog –– Specify the input sample rate in the block dialog box using the Input sample rate (Hz) parameter.

• Inherit from input port –– The block inherits the sample rate from the input signal.

Dependencies

To enable this parameter, set Filter specification to any value other than Coefficients.

Input sample rate (Hz) — Sample rate of input signal

44100 (default) | positive real scalar

Specify the sample rate of the input signal as a positive scalar in Hz.

Dependencies

To enable this parameter, set:

• Filter specification to any value other than Coefficients.

• Sample rate mode to Specify on dialog.

(since R2023b)

Allow arbitrary frame length for fixed-size input signals — Allow arbitrary frame length for fixed-size input signals

off (default) | on

Since R2023b

Specify whether a fixed-size input signal (whose size does not change during simulation) can have an arbitrary frame length, where the frame length does not have to be a multiple of the decimation factor 2. The block uses this parameter only for fixed-size input signals and ignores it if the input data varies in size during simulation.

When the input signal is a variable-size signal, the signal can have an arbitrary frame length, that is, the frame length does not have to be a multiple of the decimation factor 2.

For fixed-size input signals, if you:

• Select the Allow arbitrary frame length for fixed-size input signals parameter, the frame length of the signal does not have to be a multiple of the decimation factor 2. If the input is not a multiple of the decimation factor, then the output is generally a variable-size signal. Therefore, to support arbitrary input size, the block must also support variable-size operations, which you can enable by selecting the Allow arbitrary frame length for fixed-size input signals parameter.

• Clear the Allow arbitrary frame length for fixed-size input signals parameter, the input frame length must be a multiple of the decimation factor 2.

View Filter Response — View Filter Response

button

Click this button to open the Filter Visualization Tool (FVTool) and display the magnitude and phase response of the FIR Halfband Decimator. The response is based on the values you specify in the block parameters dialog box. Changes made to these parameters update FVTool.

To update the magnitude response while FVTool is running, modify the dialog box parameters and click Apply.

To view the magnitude response and phase response simultaneously, click the Magnitude and Phase responses button on the toolbar.

Dependencies

To visualize the filter response, set Sample rate mode to Specify on dialog or Use normalized frequency (0 to 1).

Simulate using — Type of simulation to run

Interpreted execution (default) | Code generation

Specify the type of simulation to run. You can set this parameter to:

• Interpreted execution –– Simulate model using the MATLAB^® interpreter. This option shortens startup time.

• Code generation –– Simulate model using generated C code. The first time you run a simulation, Simulink^® generates C code for the block. The C code is reused for subsequent simulations as long as the model does not change. This option requires additional startup time but provides faster subsequent simulations.

Data Types Tab

Rounding mode — Rounding mode for output fixed-point operations

Floor (default) | Ceiling | Nearest | Round | Simplest | Zero

Select the rounding mode for output fixed-point operations. The default is Floor.

Coefficients — Word and fraction lengths of coefficients

fixdt(1,16) (default) | fixdt(1,16,0)

Specify the fixed-point data type of the coefficients as one of the following:

• fixdt(1,16) (default) — Signed fixed-point data type of word length 16 with binary point scaling. The block determines the fraction length automatically from the coefficient values in such a way that the coefficients occupy maximum representable range without overflowing.

• fixdt(1,16,0) — Signed fixed-point data type of word length 16 and fraction length 0. You can change the fraction length to any other integer value.

• <data type expression> — Specify the coefficients data type by using an expression that evaluates to a data type object. For example, numerictype(fixdt([ ],18, 15)). Specify the sign mode of this data type as [ ] or true.

• Refresh Data Type — Refresh to the default data type.

Click the Show data type assistant button to display the data type assistant, which helps you set the coefficients data type.

Block Characteristics

Data Types	double | fixed point | integer | single
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	yes
Zero-Crossing Detection	no

More About

Halfband Filters

An ideal lowpass halfband filter is given by

$$h(n)=\frac{1}{2\pi }{\displaystyle {\int }_{-\pi /2}^{\pi /2}{e}^{j\omega n}}d\omega =\frac{\sin (\frac{\pi }{2}n)}{\pi n}.$$

An ideal filter is not realizable because the impulse response is noncausal and not absolutely summable. However, the impulse response of an ideal lowpass filter possesses some important properties that are required in a realizable approximation. The impulse response of an ideal lowpass halfband filter is:

• Equal to 0 for all even-indexed samples.

• Equal to 1/2 at n=0 as shown by L'Hôpital's rule on the continuous-valued equivalent of the discrete-time impulse response

The ideal highpass halfband filter is given by

$$g(n)=\frac{1}{2\pi }{\displaystyle {\int }_{-\pi }^{-\pi /2}{e}^{j\omega n}}d\omega +\frac{1}{2\pi }{\displaystyle {\int }_{\pi /2}^{\pi }{e}^{j\omega n}}d\omega .$$

Evaluating the preceding integral gives the following impulse response

$$g(n)=\frac{\sin (\pi n)}{\pi n}-\frac{\sin (\frac{\pi }{2}n)}{\pi n}.$$

The impulse response of an ideal highpass halfband filter is:

• Equal to 0 for all even-indexed samples

• Equal to 1/2 at n=0

The FIR halfband decimator uses a causal FIR approximation to the ideal halfband response, which is based on minimizing the $${\ell }^{\infty }$$ norm of the error (minimax). See Algorithms for more information.

Kaiser Window

The coefficients of a Kaiser window are computed from this equation:

$$w(n)=\frac{I_0\left(\beta \sqrt{1-{\left(\frac{n-N/2}{N/2}\right)}^2}\right)}{I_0(\beta )},0\le n\le N,$$

where I₀ is the zeroth-order modified Bessel function of the first kind.

To obtain a Kaiser window that represents an FIR filter with stopband attenuation of α dB, use this β.

$$\beta =\{\begin{array}{ll}0.1102(\alpha -8.7),\hfill & \alpha >50\hfill \\ 0.5842{(\alpha -21)}^{0.4}+0.07886(\alpha -21),\hfill & 50\ge \alpha \ge 21\hfill \\ 0,\hfill & \alpha <21\hfill \end{array}$$

The filter order n is given by:

$$n=\frac{\alpha -7.95}{2.285(\Delta \omega )},$$

where Δω is the transition width.

Algorithms

Filter Design Method

The FIR halfband decimator algorithm uses the equiripple or the Kaiser window method to design the FIR halfband filter. When the design constraints are tight, such as very high stopband attenuation or very narrow transition width, use the Kaiser window method. When the design constraints are not tight, use the equiripple method. If you are not sure of which method to use, set the design method to Auto. In this mode, the algorithm automatically chooses a design method that optimally meets the specified filter constraints.

Halfband Equiripple Design

In the equiripple method, the algorithm uses a minimax (minimize the maximum error) FIR design to design a fullband linear phase filter with the desired specifications. The algorithm upsamples a fullband filter to replace the even-indexed samples of the filter with zeros and creates a halfband filter. It then sets the filter tap corresponding to the group delay of the filter in samples to 1/2. This yields a causal linear-phase FIR filter approximation to the ideal halfband filter defined in Halfband Filters. See [1] for a description of this filter design method using the Remez exchange algorithm. Since you can design a filter using this approximation method with a constant ripple both in the passband and stopband, the filter is also known as the equiripple filter.

Kaiser Window Design

In the Kaiser window method, the algorithm first truncates the ideal halfband filter defined in Halfband Filters, then it applies a Kaiser window defined in Kaiser Window. This yields a causal linear-phase FIR filter approximation to the ideal halfband filter.

For more information on designing FIR halfband filters, see FIR Halfband Filter Design.

Polyphase Implementation with Halfband Filters

The FIR halfband decimator uses an efficient polyphase implementation for halfband filters when you filter the input signal. The chief advantage of the polyphase implementation is that you can downsample the signal prior to filtering. This allows you to filter at the lower sampling rate.

Splitting a filter’s impulse response h(n) into two polyphase components results in an even polyphase component with z-transform of

$$H_0(z)={\displaystyle \sum _{n}h}(2n)z^{-n},$$

and an odd polyphase component with z-transform of

$$H_1(z)={\displaystyle \sum _{n}h}(2n+1)z^{-n}.$$

The z-transform of the filter can be written in terms of the even and odd polyphase components as

$$H(z)=H_0(z^2)+z^{-1}{H}_1(z^2).$$

You can represent filtering the input signal and then downsampling it by 2 using this figure.

Using the multirate noble identity for downsampling, you can move the downsampling operation before the filtering. This allows you to filter at the lower rate.

For a halfband filter, the only nonzero coefficient in the even polyphase component is the coefficient corresponding to z⁰. Implementing the halfband filter as a causal FIR filter shifts the nonzero coefficient to approximately z^-N/4 where N is the number of filter taps. This process is illustrated in the following figure. The top plot shows a halfband filter of order 52. The bottom plot shows the even polyphase component. Both of these filters are noncausal. Delaying the even polyphase component by 13 samples creates a causal FIR filter.

To efficiently implement the halfband decimator, the algorithm replaces the delay block and downsampling operator with a commutator switch. When the first input sample is delivered, the commutator switch feeds this input to the even branch and the halfband decimator computes the first output value. As more input samples come in, the switch delivers one sample at a time to each branch alternatively. The decimator generates output every time the even branch generates an output. This halves the sampling rate of the input signal.

Which polyphase component reduces to a simple delay depends on whether the half order of the filter is even or odd. Here is the implementation when the filter half order is even. In this diagram, H₀(z) becomes the gain followed by the delay.

When the filter half order is odd, H₁(z) becomes the gain followed by the delay. This is because the delay required to make the even polyphase component causal can be odd or even depending on the filter half order.

To confirm this behavior, run the following code in the MATLAB command prompt and inspect the polyphase components of the following filters.

filterspec = "Filter order and stopband attenuation";
halfOrderEven = dsp.FIRHalfbandDecimator(Specification=filterspec,...
    FilterOrder=64,StopbandAttenuation=80,DesignMethod="Auto");
halfOrderOdd = dsp.FIRHalfbandDecimator(Specification=filterspec,...
    FilterOrder=54,StopbandAttenuation=80,DesignMethod="Auto");
polyphase(halfOrderEven)
polyphase(halfOrderOdd)

Analysis Filter Bank

The FIR halfband decimator acts as an analysis filter bank and generates two power-complementary output signals by adding and subtracting the two polyphase branch outputs respectively.

For more information on filter banks, see Overview of Filter Banks.

To summarize, the FIR halfband decimator:

• Decimates the input prior to filtering and filters the even and odd polyphase components of the input separately with the even and odd polyphase components of the filter.

• Exploits the fact that one filter polyphase component is a simple delay for a halfband filter.

• Acts as an analysis filter bank.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2015b

R2024a: Change in the default value of Simulate using parameter

The default value of the Simulate using parameter is now Interpreted execution. With this change, the block uses the MATLAB interpreter for simulation by default.

R2023b: Support for normalized frequencies

When you set the Sample rate mode parameter to Use normalized frequency (0 to 1), you can specify the transition width in normalized frequency units (0 to 1).

R2023b: Support for arbitrary input frame length

This block supports an input signal with an arbitrary frame length when the:

• Input signal is a fixed-size signal (frame length does not change during simulation) and you select the Allow arbitrary frame length for fixed-size input signals parameter.

• Input signal is a variable-size signal (frame length changes during simulation).

When this block supports an input signal with an arbitrary frame length, the input frame length does not have to be a multiple of the decimation factor 2 and the output signal is a variable-size signal.
