Usage of Different Subsystem Types
To learn how to use different types of subsystems in your design and model your algorithm hierarchically, use these guidelines. Each guideline has a severity level that indicates the level of compliance requirements. For more information, see HDL Modeling Guidelines Severity Levels.
Virtual Subsystem: Use as DUT
A virtual subsystem is a subsystem that is not a conditionally-executed subsystem or an Atomic Subsystem. By default, a regular Subsystem block that you add to your Simulink® model is a virtual subsystem. Non-virtual subsystem types include Atomic Subsystem, model reference, Variant Subsystem, and a variant model.
To determine whether a subsystem is virtual, use the
get_param function with the
Atomic and Virtual Subsystems: Generate Reusable HDL Files
To enable resource sharing on a subsystem unit, see General Considerations for Sharing of Subsystems.
You must turn off signal logging for generating reusable code from atomic and virtual subsystems. Generation of reusable code from atomic and virtual subsystem might not succeed if you log the signals inside the subsystems.
Variant Subsystem: Using Variant Subsystems for HDL Code Generation
The Variant Subsystem, Variant Model, Variant Assembly Subsystem block is a template preconfigured to contain two Subsystem blocks to use as Variant Subsystem choices. During simulation, a variant control decides which of the two Subsystem blocks is active. Therefore, you can use the Variant Subsystem to create two different configurations or subsystem behaviors and then specify the active configuration at the model compile stage or simulation-loop stage of simulation.
You cannot use a Variant Subsystem as the DUT. To generate code, place the Variant Subsystem inside the Subsystem that you want to use as the DUT. The file name and instance name of the generated code is created only for the active configuration or both active and inactive configurations.
You cannot share multiple Variant Subsystem blocks by using the Variant Subsystem optimization.
You must make sure that when verifying the functionality of the generated code, the active variant that you used when simulating the model is the same as the active variant that you used for generating HDL code.
For an example, open the model
hdlcoder_variant_subsystem_design.slx. If you open the DUT Subsystem, you see a Variant Subsystem block,
Divide. The Variant Subsystem has two different subsystems,
Op. If you open the Block Parameters dialog box for the

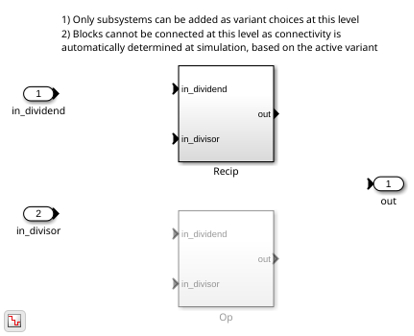

Divide Subsystem, you see the Variant control expression and the Condition that determines which Subsystem to enable during simulation. The Variant activation time determines at which stage of simulation to enable the Subsystem. In this case,
1 and the activation time is
update diagram. The
Recip Subsystem becomes active during simulation.
load_system('hdlcoder_variant_subsystem_design') set_param('hdlcoder_variant_subsystem_design','SimulationCommand','Update') open_system('hdlcoder_variant_subsystem_design/DUT/Divide')
To generate HDL code, run this command:
An HDL file with the name
Recip.vhd is generated because the
Recip Subsystem is active at code generation time and therefore has code generated for it.
To generate HDL code for both
Op, change the settings of these parameters on the Block Parameters dialog box of the
Divide Subsystem, then run the
1. Set Variant activation time to
2. Set the variant control variable
Rcp of type
Simulink.VariantControl, normal MATLAB® variable, or
Simulink.Parameter and set its value to an integer value. In this example,
Rcp is a normal MATLAB variable with an
Rcp = int16(1);
3. Set Allow zero active variant controls to
4. Set Propagate conditions outside of variant subsystem to
Note: Ensure that Treat as atomic unit of
Op Subsystems is set to
Generate the HDL code using the following command.
HDL files with the name
Op.vhd are generated because the code is generated for both the
HDL Coder generates the following VHDL® code for the Variant Subsystem
Divide, which has its variant control variable set to a tunable parameter,
Rcp. The code generator creates a DUT port and adds a comment to indicate that the port corresponds to a tunable parameter. You can change the value of
Rcp by providing the value to the pin on the chip that is mapped to
ENTITY Divide IS PORT( clk : IN std_logic; reset : IN std_logic; enb : IN std_logic; in_dividend : IN std_logic_vector(15 DOWNTO 0); -- sfix16_En14 in_divisor : IN std_logic_vector(15 DOWNTO 0); -- sfix16_En13 Rcp : IN std_logic_vector(23 DOWNTO 0); -- sfix24_En9 Tunable port out_rsvd : OUT std_logic_vector(23 DOWNTO 0) -- sfix24_En9 ); END Divide;
VariantMerge_For_Outport_out_out1 <= Op_out1_signed WHEN Selected_Index_floor = to_signed(16#0001#, 15) ELSE Recip_out1_signed WHEN Selected_Index_floor = to_signed(16#0002#, 15) ELSE GroundForVM_out_out1;
Model References: Build Model Design Using Smaller Partitions
Modeling a large design hierarchically can increase code generation time. If you specify generation of reports such as the traceability report, the code generation time can further increase significantly. To avoid such performance issues, it is recommended that you partition your design into smaller partitions. Use the Model block to unify a model that consists of smaller partitions. It also enables incremental code generation. You can generate HDL code for the parent model or the referenced model. To see the generated HDL code, in the
hdlsrc folder, a folder is created for the parent model with a separate subfolder for the referenced model.
When generating the HDL test bench, if the test bench consists of blocks that operate with a continuous sample time, you can convert the DUT to a referenced model. This conversion enables the DUT to run at a fixed-step, discrete sample time. To learn more, see Convert DUT Subsystem to Model Reference for Testbenches with Continuous Blocks.
For an example, open the model

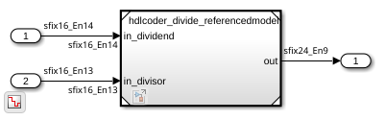

hdlcoder_divide_parentmodel.slx. When you double-click the DUT Subsystem, you see a Model block that references the model
load_system('hdlcoder_divide_parentmodel') set_param('hdlcoder_divide_parentmodel', 'SimulationCommand', 'Update') open_system('hdlcoder_divide_parentmodel/DUT')

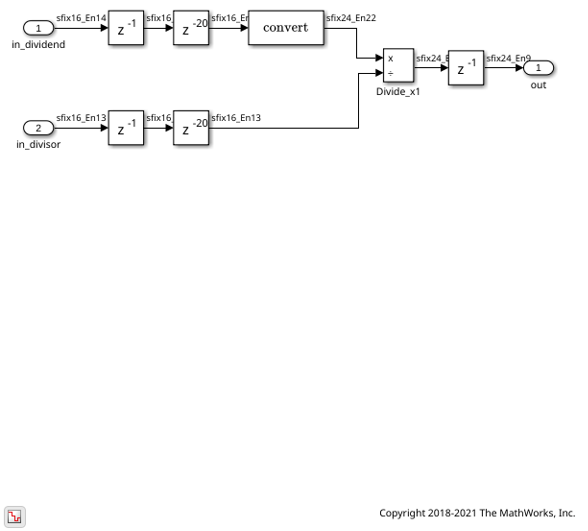

To see the referenced model, double-click the Model block:
To generate HDL code, enter this command:
For more information, see Model Referencing for HDL Code Generation.
Block Settings of Enabled and Triggered Subsystems
A Triggered Subsystem is a subsystem that receives a control signal via a Trigger block. The Triggered Subsystem executes for one cycle each time a trigger event occurs. When you generate HDL code for a triggered subsystem:
Do not use the Triggered Subsystem block as the DUT. Place the Triggered Subsystem inside another Subsystem block, and use that Subsystem as the DUT.
You can add unit delays to the output signals of the Triggered Subsystem, outside of the Triggered Subsystem block. The unit delays prevents HDL Coder™ from inserting additional bypass registers in the HDL code.
Make sure that the Use trigger signal as clock setting does not result in timing mismatches when you simulate the testbench to verify the generated code. To learn more, see Using Triggered Subsystems for HDL Code Generation.
For other preferences when configuring the Triggered Subsystem block for HDL code generation, see HDL Code Generation on the Triggered Subsystem page.
An Enabled Subsystem is a subsystem that receives a control signal via an Enable block. The Enabled Subsystem executes at each simulation step where the control signal has a positive value. When you generate HDL code for an Enabled Subsystem:
Do not use the Enabled Subsystem block as the DUT. Place the Enabled Subsystem inside another Subsystem block, and use that Subsystem as the DUT.
You can add a State Control block in
Synchronousmode inside the Enabled Subsystem to generate more efficient and hardware-friendly HDL code. The State Control block in
Synchronousmode prevents HDL Coder from inserting additional bypass registers in the HDL code. The State Control block converts the Enabled Subsystem block to an Enabled Synchronous Subsystem block. To learn more, see Synchronous Subsystem Behavior with the State Control Block.
If you want a State Control block in
Classicmode or do not want a to add a State Control block, you can add unit delays to the output signals of the Enabled Subsystem, outside of the Enabled Subsystem block, to prevent HDL Coder from inserting additional bypass registers in the HDL code.
For other preferences when configuring the Enabled Subsystem block for HDL code generation, see HDL Code Generation on the Enabled Subsystem page.
