labeloverlay

Overlay label matrix regions on 2-D image

Description

example

B = labeloverlay(A,L) fuses the input image, A, with a different color for each nonzero label in label matrix L. The labeloverlay function does not fuse background pixels with a color.

example

B = labeloverlay(A,BW) fuses the input image with a color where mask BW is true. The labeloverlay function does not fuse background pixels (labeled false ) with a color.

B = labeloverlay(A,C) fuses the input image with a different color for each label in categorical matrix C. The labeloverlay function does not fuse pixels of the <undefined> category with a color.

example

B = labeloverlay(___,Name,Value) computes the fused overlay image, B, using Name,Value pairs to control aspects of the computation.

Examples

collapse all

Read an image, then segment it using the superpixels function.

A = imread('kobi.png');
[L,N] = superpixels(A,20);

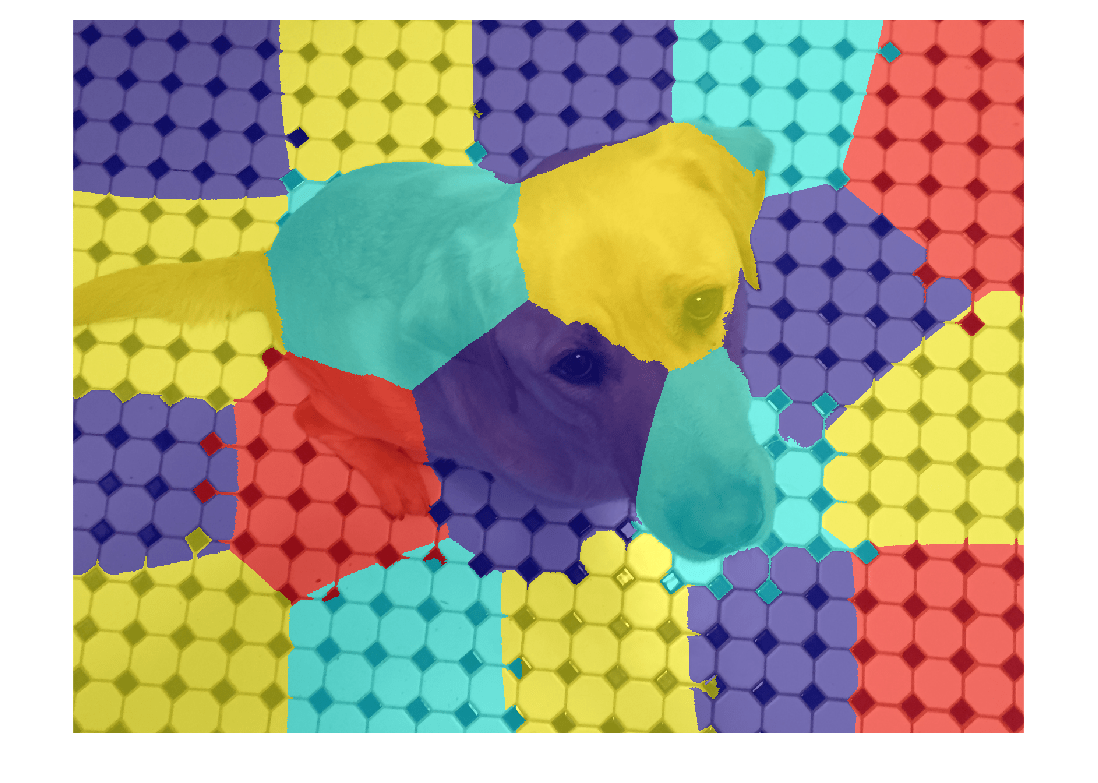

Fuse the segmentation results with the original image. Display the fused image.

B = labeloverlay(A,L);
imshow(B)

Figure contains an axes object. The axes object contains an object of type image.

Read a grayscale image and display it.

A = imread('coins.png');
imshow(A)

Figure contains an axes object. The axes object contains an object of type image.

Create a mask using binary thresholding.

t = graythresh(A);
BW = imbinarize(A,t);
imshow(BW)

Figure contains an axes object. The axes object contains an object of type image.

Fuse the mask with the original image. Display the fused image.

B = labeloverlay(A,BW);
imshow(B)

Figure contains an axes object. The axes object contains an object of type image.

Read a grayscale image.

A = imread('coins.png');

Create a mask using binary thresholding.

BW = imbinarize(A);

Create categorical labels based on the image contents.

stringArray = repmat("table",size(BW));
stringArray(BW) = "coin";
categoricalSegmentation = categorical(stringArray);

Fuse the categorical labels with the original image. Display the fused image.

B = labeloverlay(A,categoricalSegmentation);
imshow(B)

Figure contains an axes object. The axes object contains an object of type image.

Fuse the original image with only one label from the categorical segmentation. Change the colormap, increase the opacity of the label, and display the result.

figure
C = labeloverlay(A,categoricalSegmentation,'IncludedLabels',"coin", ...
    'Colormap','autumn','Transparency',0.25);
imshow(C)

Figure contains an axes object. The axes object contains an object of type image.

Input Arguments

collapse all

Input image, specified as a 2-D grayscale or color image.

Data Types: single | double | int8 | int16 | uint8 | uint16

Labels, specified as a matrix of nonnegative integers.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Mask, specified as a logical matrix.

Data Types: logical

Category labels, specified as a categorical matrix.

Data Types: categorical

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Colormap','hot' displays labels in colors from the 'hot' colormap.

Colormap, specified as the comma-separated pair consisting of 'Colormap' and one of these values:

  • An l-by-3 colormap. RGB triplets in each row of the colormap must be normalized to the range [0, 1]. l is the number of labels in label matrix L, binary mask BW, or categorical matrix C.

  • A string or character vector corresponding to one of the valid inputs to the colormap function. labeloverlay permutes the specified colormap so that adjacent labels are more distinct.

Example: [0.2, 0.1, 0.5; 0.1, 0.5, 0.8]

Example: 'hot'

Data Types: single | double | char | string

Labels to display in the fused image, specified as the comma-separated pair consisting of 'IncludedLabels' and one of the following:

  • An integer, or vector of integers, in the range [0, max(L(:))]. By default, labeloverlay displays all nonzero labels.

  • A string, or vector of strings, corresponding to labels in categorical matrix C. By default, labeloverlay displays all defined categorical labels.

Any label not included in the vector is considered the background. For example, in the vector [1,3,4], the value 2 would be considered the background, if it existed as a label.

Example: [1,3,4]

Example: ["flower","stem"]

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | string

Transparency of displayed labels, specified as the comma-separated pair consisting of 'Transparency' and a number in the range [0, 1].

  • A value of 0 makes the colored labels completely opaque.

  • A value of 1 makes the colored labels completely transparent.

Data Types: single | double

Output Arguments

collapse all

Fused image, returned as a numeric matrix of the same size as A.

Data Types: uint8

Version History

Introduced in R2017b
