Linearization and Analog Signal Processing
R2026bIn electronic systems that combine analog processing with logic gates, some parameters are essential to the overall behavior of the system. These parameters include the finite slew rate of circuit output signals, the propagation delay of signals, and the exact decision threshold of circuit inputs. You can add blocks from Mixed-Signal Blockset™ to your model to include these effects in time domain simulations of the system.
Blocks
 | Slew Rate | Model amplitude, rise and fall times, and propagation delay of logic gates |
 | Logic Decision | Threshold crossing detector at input to binary process |
 | Operational Amplifier | Model operational amplifier with two or more poles |
 | Variable Pulse Delay | Delay samples by controlled, continuously variable amount |
 | Lowpass Resampler | Convert signal from one sample time to another |
 | Linear Circuit Wizard | (Not Recommended) Generate or modify linear circuit |
Functions
lowpassResample | Convert signal from one sample time to another |
Topics
- Model Delays in Multi-Stage Ring Oscillator
This example shows how to explore the range of options for simulating the analog applications of digital circuits.
- Model Linear Circuit Response from SPICE Netlist
Model the response of a linear circuit described by a SPICE netlist.
- Ports Supported in Linear Circuit Wizard
Review and modify the ports of a linear circuit before generating a block to model it.
- Define Device Noise Using Linear Circuit Wizard
You can use the Linear Circuit Wizard block to model the device noise generated by a linear circuit.
- MATLAB Systems Generated from Linear Circuit Wizard
You can use a single Linear Circuit Wizard block to configure one or more MATLAB System blocks.
Featured Examples
Circuit Design Details Affect PLL Performance
Use the Linear Circuit Wizard block to evaluate the effect of loop filter circuit design details on the performance of a phase-locked loop.

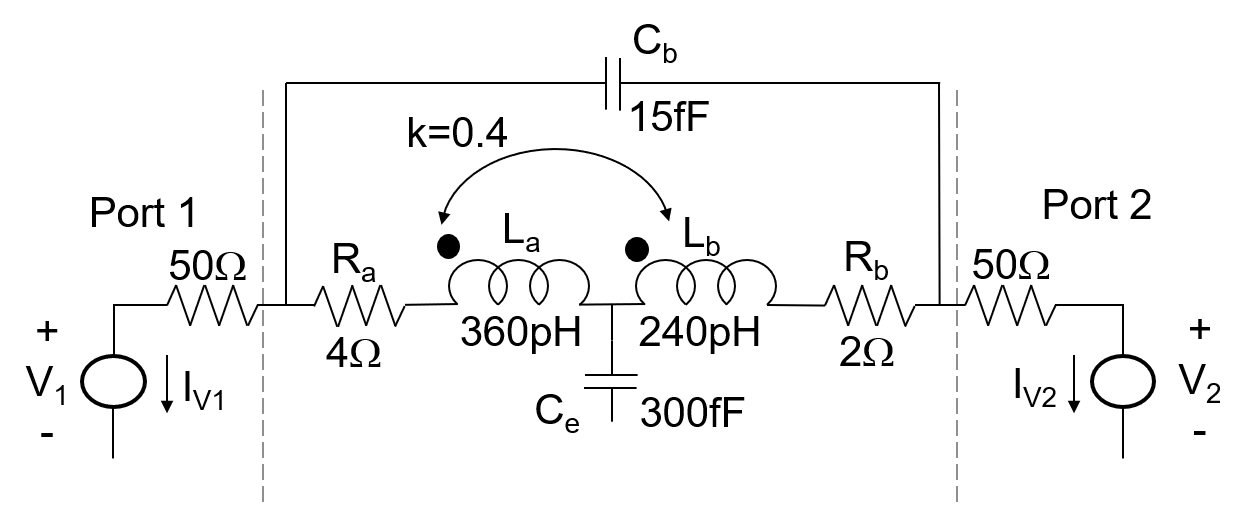

Analyze T-Coil Circuit
Use the Linear Circuit Wizard block to analyze a T-coil impedance matching circuit and generate S-parameter data from the result.
Model Comparator with Hysteresis Using Operational Amplifier
Model an analog comparator with hysteresis using the Operational Amplifier block from Mixed-Signal Blockset™.
