nodeCovariance
Description
gets the stored covariances of nodes with the specified node IDs in the specified factor
graph. You must optimize the factor graph using the covariance
= nodeCovariance(fg
,nodeIDs
)optimize
function
with covariance estimation enabled before you can retrieve the stored node covariances. For
more information about the covariance estimation algorithm and enabling covariance
estimation, see the optimize
and
factorGraphSolverOptions
object, respectively.
Examples
Get Node State Covariance from Factor Graph
Create a factor graph with 5 pose nodes. To make it easier to see the change in node state covariance in this example, specify the same information matrix for all factors.
fg = factorGraph; f1 = factorTwoPoseSE2([1 2],Measurement=[2 0 0],Information=[25 0 0; 0 25 0; 0 0 100]); f2 = factorTwoPoseSE2([2 3],Measurement=[2 0 pi/2],Information=[25 0 0; 0 25 0; 0 0 100]); f3 = factorTwoPoseSE2([3 4],Measurement=[2 0 pi/2],Information=[25 0 0; 0 25 0; 0 0 100]); f4 = factorTwoPoseSE2([4 5],Measurement=[2 0 pi/2],Information=[25 0 0; 0 25 0; 0 0 100]); addFactor(fg,f1); addFactor(fg,f2); addFactor(fg,f3); addFactor(fg,f4);
Add a loop closure between the second and fifth nodes using a factor.
f5 = factorTwoPoseSE2([5 2],Measurement=[2 0 pi/2],Information=[25 0 0; 0 25 0; 0 0 100]); addFactor(fg,f5);
Fix the first node and initialize the node states. The first state can stay at default.
fixNode(fg,1) nodeState(fg,2:5,[2 0 0; 4 0 pi/2; 4 2 pi; 2 2 3*pi/2]);

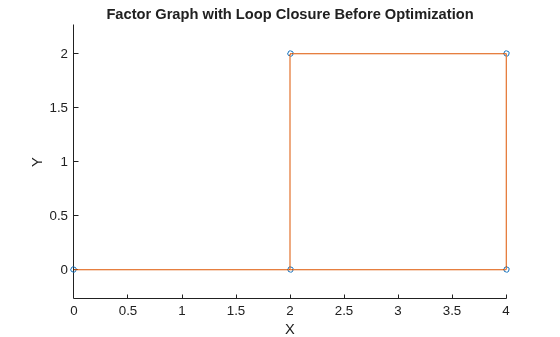

Visualize the factor graph.
show(fg); title("Factor Graph with Loop Closure Before Optimization") axis equal xlabel("X") ylabel("Y") hold on
Create factor graph solver options that indicate to the solver to estimate node state covariance for all types of nodes in the factor graph.
opts = factorGraphSolverOptions(StateCovarianceType="all-types");
Optimize the graph with the custom options to estimate and store the node state covariance.
optimize(fg,opts);
Get the node IDs of the SE(2) pose nodes and get their state covariance matrices.
se2nodes = nodeIDs(fg,NodeType="POSE_SE2");
se2Cov = nodeCovariance(fg,se2nodes);
Extract the diagonal elements of the state covariance matrices. Note that the state covariance values of the first node are zeros because that node is fixed.
se2Cov2Diag = [diag(se2Cov(:,:,1))'; diag(se2Cov(:,:,2))'; diag(se2Cov(:,:,3))'; diag(se2Cov(:,:,4))'; diag(se2Cov(:,:,5))']
se2Cov2Diag = 5×3
0 0 0
0.0400 0.0400 0.0100
0.0720 0.1120 0.0165
0.1380 0.1280 0.0180
0.1300 0.0720 0.0165
Plot the node state covariances. Note that the plotted covariance increases due to drift accumulation with each consecutive node until node 5, which has a lower covariance due to the additional state information provided by the loop closure.
states = nodeState(fg,se2nodes); exampleHelperPlot2DCovariance(se2Cov,states); title("Node Covariance Plot") axis equal
Input Arguments
fg
— Factor graph
factorGraph
object
Factor graph, specified as a factorGraph
object.
nodeIDs
— IDs of nodes for which to retrieve state covariances
N-element row vector of nonnegative integers
IDs of nodes for which to retrieve state covariances, specified as an N-element row vector of nonnegative integers. N is the number of specified node IDs.
All node IDs must specify nodes of the same type. And to get the node state
covariance for any nodes, you must first optimize the factor graph with custom solver
options that specify which node type for which to estimate and store state covariance.
To specify the node type to use, set the StateCovarianceType
property of the factorGraphSolverOptions
object to one or more desired node types.
Output Arguments
covariance
— Node state covariances
M-by-M-by-N array
Node state covariances, returned as an M-by-M-by-N array. Each page in the array represents the state covariance matrix for a node. N is the number of specified node IDs.
The size of the covariance matrices depends on the node type of the specified node IDs:
"POSE_SE2"
— 3-by-3 matrix"POSE_SE3"
— 7-by-7 matrix"POINT_XY"
— 2-by-2 matrix"POINT_XYZ"
— 3-by-3 matrix"IMU_BIAS"
— 6-by-6 matrix"VEL3"
— 3-by-3 matrix
Note
To get the node state covariance for a node type, you must first optimize the
factor graph with custom solver options that specify the node type for which to
estimate and store state covariance. To specify the node type to use, set the
StateCovarianceType
property of the factorGraphSolverOptions
object to one or more desired node types.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
When generating portable C code with a C++ compiler, you must specify hierarchical
packing with non-minimal headers. For more information on packaging options, see the
packNGo
(MATLAB Coder) function.
Version History
Introduced in R2024b
