# issatisfied

Constraint satisfaction of an optimization problem at a set of points

*Since R2024a*

## Syntax

## Description

## Examples

### Check Constraint Satisfaction in Optimization Problem

Create an optimization problem with several linear and nonlinear constraints.

x = optimvar("x"); y = optimvar("y"); obj = (10*(y - x^2))^2 + (1 - x)^2; cons1 = x^2 + y^2 <= 1; cons2 = x + y >= 0; cons3 = y <= sin(x); cons4 = 2*x + 3*y <= 2.5; prob = optimproblem(Objective=obj); prob.Constraints.cons1 = cons1; prob.Constraints.cons2 = cons2; prob.Constraints.cons3 = cons3; prob.Constraints.cons4 = cons4;

Create 100 test points randomly.

rng default % For reproducibility xvals = randn(1,100); yvals = randn(1,100);

Convert the points to an `OptimizationValues`

object for the problem, and determine where all the constraints are satisfied among the points.

vals = optimvalues(prob,x=xvals,y=yvals); allsat = issatisfied(prob,vals);

Plot the feasible (satisfied) points with green circles and the infeasible points with red x marks.

xsat = xvals(allsat); ysat = yvals(allsat); xnosat = xvals(~allsat); ynosat = yvals(~allsat); plot(xsat,ysat,"go",xnosat,ynosat,"rx")

### Change Constraint Satisfaction Tolerance

Create an optimization problem with several linear and nonlinear constraints.

x = optimvar("x"); y = optimvar("y"); obj = (10*(y - x^2))^2 + (1 - x)^2; cons1 = x^2 + y^2 <= 1; cons2 = x + y >= 0; cons3 = y <= sin(x); cons4 = 2*x + 3*y <= 2.5; prob = optimproblem(Objective=obj); prob.Constraints.cons1 = cons1; prob.Constraints.cons2 = cons2; prob.Constraints.cons3 = cons3; prob.Constraints.cons4 = cons4;

Create 100 test points randomly.

rng default % For reproducibility xvals = randn(1,100); yvals = randn(1,100);

Convert the points to an `OptimizationValues`

object for the problem, and determine where all the constraints are satisfied among the points.

vals = optimvalues(prob,x=xvals,y=yvals); allsat = issatisfied(prob,vals);

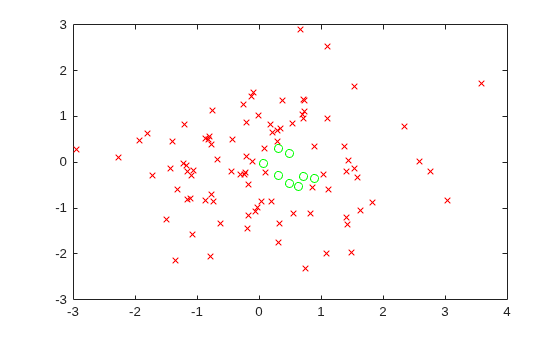

Plot the feasible (satisfied) points with green circles and the infeasible points with red x marks.

xsat = xvals(allsat); ysat = yvals(allsat); xnosat = xvals(~allsat); ynosat = yvals(~allsat); plot(xsat,ysat,"go",xnosat,ynosat,"rx")

Determine which points are feasible with respect to a tolerance of 1 rather than the default 1e-6.

tol = 1; allsat1 = issatisfied(prob,vals,tol);

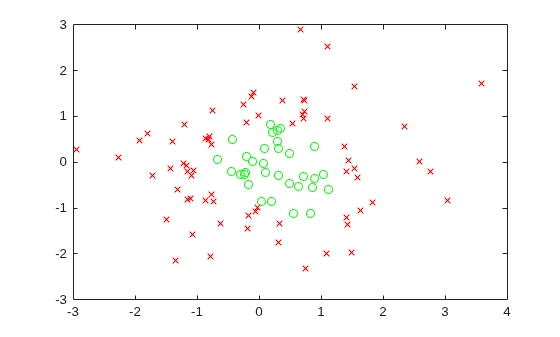

Plot the feasible (satisfied) points with green circles and the infeasible points with red x marks.

xsat1 = xvals(allsat1); ysat1 = yvals(allsat1); xnosat1 = xvals(~allsat1); ynosat1 = yvals(~allsat1); plot(xsat1,ysat1,"go",xnosat1,ynosat1,"rx")

With a looser definition of constraint satisfaction, more points are feasible.

### Determine Which Constraints are Satisfied

Create an optimization problem with several linear and nonlinear constraints.

x = optimvar("x"); y = optimvar("y"); obj = (10*(y - x^2))^2 + (1 - x)^2; cons1 = x^2 + y^2 <= 1; cons2 = x + y >= 0; cons3 = y <= sin(x); cons4 = 2*x + 3*y <= 2.5; prob = optimproblem(Objective=obj); prob.Constraints.cons1 = cons1; prob.Constraints.cons2 = cons2; prob.Constraints.cons3 = cons3; prob.Constraints.cons4 = cons4;

Create 100 test points randomly.

rng default % For reproducibility xvals = randn(1,100); yvals = randn(1,100);

Convert the points to an `OptimizationValues`

object for the problem.

vals = optimvalues(prob,x=xvals,y=yvals);

Evaluate the constraints at the points. `issatisfied`

evaluates all the constraint satisfactions at all the test points simultaneously.

[~,sat] = issatisfied(prob,vals);

Plot the feasible (satisfied) points for the first constraint with green circles and the infeasible points with red x marks.

x1sat = xvals(sat.cons1); y1sat = yvals(sat.cons1); x1nosat = xvals(~sat.cons1); y1nosat = yvals(~sat.cons1); plot(x1sat,y1sat,"go",x1nosat,y1nosat,"rx") title("Constraint 1 Satisfaction")

Repeat this process for the other three constraints.

x2sat = xvals(sat.cons2); y2sat = yvals(sat.cons2); x2nosat = xvals(~sat.cons2); y2nosat = yvals(~sat.cons2); plot(x2sat,y2sat,"go",x2nosat,y2nosat,"rx") title("Constraint 2 Satisfaction")

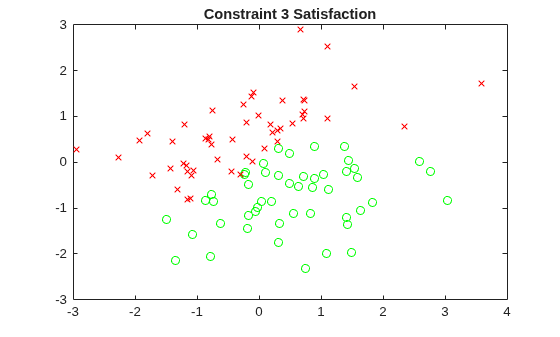

x3sat = xvals(sat.cons3); y3sat = yvals(sat.cons3); x3nosat = xvals(~sat.cons3); y3nosat = yvals(~sat.cons3); plot(x3sat,y3sat,"go",x3nosat,y3nosat,"rx") title("Constraint 3 Satisfaction")

x4sat = xvals(sat.cons4); y4sat = yvals(sat.cons4); x4nosat = xvals(~sat.cons4); y4nosat = yvals(~sat.cons4); plot(x4sat,y4sat,"go",x4nosat,y4nosat,"rx") title("Constraint 4 Satisfaction")

The plots show the different regions of satisfaction for each constraint.

## Input Arguments

`prob`

— Optimization problem

`OptimizationProblem`

object

Optimization problem, specified as an `OptimizationProblem`

object. Create `prob`

using `optimproblem`

. The `issatisfied`

function evaluates
the objectives and constraints in the properties of `prob`

at the
points in `pts`

.

**Example: **`prob = optimproblem(Objective=obj,Constraints=constr)`

`pts`

— Points to evaluate for `prob`

structure | `OptimizationValues`

object

Points to evaluate for `prob`

, specified as a structure or an `OptimizationValues`

object.

The field names in

`pts`

must match the corresponding variable names in the objective and constraint expressions in`prob`

.The values in

`pts`

must be numeric arrays of the same size as the corresponding variables in`prob`

.

If you use a structure for `pts`

, then `pts`

can
contain only one point. In other words, if you want to evaluate multiple points
simultaneously, `pts`

must be an `OptimizationValues`

object.

**Example: **`pts = optimvalues(prob,x=xval,y=yval)`

`tol`

— Tolerance for constraint satisfaction

`1e-6`

(default) | nonnegative scalar

Tolerance for constraint satisfaction, specified as a nonnegative scalar. A
constraint is considered to be satisfied if it evaluates to no more than
`tol`

. Otherwise, the constraint is unsatisfied.

For example, if `c(x)`

is a nonlinear inequality constraint
function, then when `c(pt)`

≤ `tol`

,
`issatisfied`

returns `true`

for that constraint
at the point `pt`

. Similarly, if `ceq(x)`

is a
nonlinear equality constraint function, then when `abs(ceq(pt))`

≤
`tol`

, `issatisfied`

returns
`true`

for that constraint at the point `pt`

.

**Data Types: **`double`

## Output Arguments

`allsat`

— Indication that all constraints are satisfied

logical vector

Indication that all constraints are satisfied at the given points, returned as a
logical vector. `allsat(i)`

corresponds to the query point
`pts(i)`

. The returned value is `true`

if all values
of the constraint functions are no more than `tol`

.

`sat`

— Indication that a constraint is satisfied at the given points

`OptimizationValues`

vector

Indication that a constraint is satisfied at the given points, returned as an `OptimizationValues`

vector. Index into
`sat`

using the constraint names. For example, if a constraint is
named `mycons`

, then `sat.mycons`

is a logical array
with `true`

values for satisfied constraints.

## More About

### Constraint Expression Values

For a constraint expression at a point `pt`

:

If the constraint is

`L <= R`

, the constraint value is`evaluate(L,pt)`

–`evaluate(R,pt)`

.If the constraint is

`L >= R`

, the constraint value is`evaluate(R,pt)`

–`evaluate(L,pt)`

.If the constraint is

`L == R`

, the constraint value is`abs(evaluate(L,pt) – evaluate(R,pt))`

.

Generally, a constraint is considered to be satisfied (or feasible) at a point if the constraint value is less than or equal to a tolerance.

## Version History

**Introduced in R2024a**
