rfsystem
Generate RF Blockset model and perform circuit envelope or idealized baseband simulation
Since R2021a
Description
Use the rfsystem
System object™ to generate RF Blockset™ model and perform circuit envelope and idealized
baseband (since R2023a) simulation of an RF system designed using an rfbudget
object. This
object supports vector inputs and has no limitations on the frame size.
Note
You can add or delete RF Blockset blocks from the model but you cannot modify the parameters of the
Inport and Outport blocks. After this update, the input
rfbudget
object to the rfsystem
will be preserved and
you can inspect this rfbudget
object using the RF Budget
Analyzer app.
To perform circuit envelope simulation of an RF system:
Create the
rfsystem
object and set its properties.Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
Creation
Description
generates an RF Blockset model from the RF budget object rfs
= rfsystem(rfb
)rfb
and perform circuit
envelope or idealized baseband (since R2023a) simulation.
Use Object Functions to open, save, close, or hide the RF Blockset model.
sets Properties using name-value
arguments. For example, rfs
= rfsystem(rfb
,Name=Value
)rfsystem(rfb,'ModelName'='rfmodel')
sets the
name of the RF Blockset model to rfmodel
.
Properties
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release
function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
'ModelName'
— Name of RF Blockset model
'untitled'
(default) | string scalar | character vector
Name of the RF Blockset model, specified as a string scalar or character vector.
Example:
'ModelName','RFModel'
'InputFrequency'
— Input frequency
'rfb.InputFrequency'
(default) | row vector
Input frequency for each input in the RF system, specified as a row vector in Hz.
The default value of this property is the value you specify in the
InputFrequency
argument in the rfbudget
object.
If the rfb.InputFrequency(1)
is set to 0
,
then in:
Circuit Envelope Simulation — Your RF system has two inputs, I and Q, at DC.
Idealized Baseband Simulation — Your RF system input is at DC with the I and Q components distributed on the real and imaginary parts of the signal input argument. (since R2023a)
Note
You can set InputFrequency
to a vector after creating the
System object if you want to investigate the intermodulation of nearby signals using
the same model.
'OutputFrequency'
— Output frequency
'rfb.OutputFrequency(:,end)'
(default) | row vector
Output frequency for each output of the RF system, specified as a row vector in Hz.
This output frequency is derived from the RF system designed using an
rfbudget
object.
If the value of the rfb.OutputFrequency(1)
is
0
, then in:
Circuit Envelope Simulation — Your RF system will have two outputs, I and Q, at DC.
Idealized Baseband Simulation — Your RF system output is at DC, with the I and Q components distributed on the real and imaginary components of the signal returned output. (since R2023a)
'SampleTime'
— Time step for circuit envelope simulation
1/rfb.SignalBandwidth/8
(default) | positive scalar
Time step for circuit envelope simulation, specified as a positive scalar. This property sets the step size between simulations.
'Rx'
— Number of input chains
1
(default) | positive scalar
Number of input chains in a multiple-input single-output receiver system, specified as a positive scalar.
Note
You can set:
Either the
'Rx'
or the'Tx'
property when creating the System object.'Rx'
property only when creating the System object.
'Tx'
— Number of output chains
1
(default) | positive scalar
Number of output chains in a single-input multiple-output transmitter system, specified as a positive scalar.
Note
You can set:
Either the
'Rx'
or the'Tx'
property when creating the System object.'Rx'
property only when creating the System object.
'SLInputs'
— Number of optional Simulink® inputs
0
(default) | positive scalar
Number of optional Simulink inputs, specified as a positive scalar. The Simulink inputs are added as Inport (Simulink) block in the model.
By default, the Signal Type parameter in the Simulink
Inport blocks is set to complex
. To change
this complex signal to real, either add a Complex to Real-Imag (Simulink) block to your model, or in the Simulink
Inport block, on the Signal Attributes tab set
the Signal Type parameter real
.
'SLOutputs'
— Number of optional Simulink outputs
0
(default) | positive scalar
Number of optional Simulink outputs, specified as a positive scalar. The Simulink outputs are added as Outport (Simulink) blocks in the model.
By default, the Signal Type parameter in the Simulink
Outport block is set to complex
. To change
this complex signal to real, either add a Complex to Real-Imag (Simulink) block to your model, or in the Simulink
Inport block, on the Signal Attributes tab set
the Signal Type parameter real
.
'RFInputs'
— Number of RF inputs
nonnegative scalar
This property is read-only.
Number of RF inputs implemented as RF Blockset Inport blocks in the generated model, returned as a nonnegative scalar. The value of this property depends on the 'Rx' property and the first value in the 'InputFrequency' row vector.
'RFOutputs'
— Number of RF outputs
nonnegative scalar
This property is read-only.
Number of RF outputs implemented as RF Blockset Outport blocks in the generated model, returned as a nonnegative scalar. The value of this property depends on the 'Tx' property and the last value in the 'OutputFrequency' row vector.

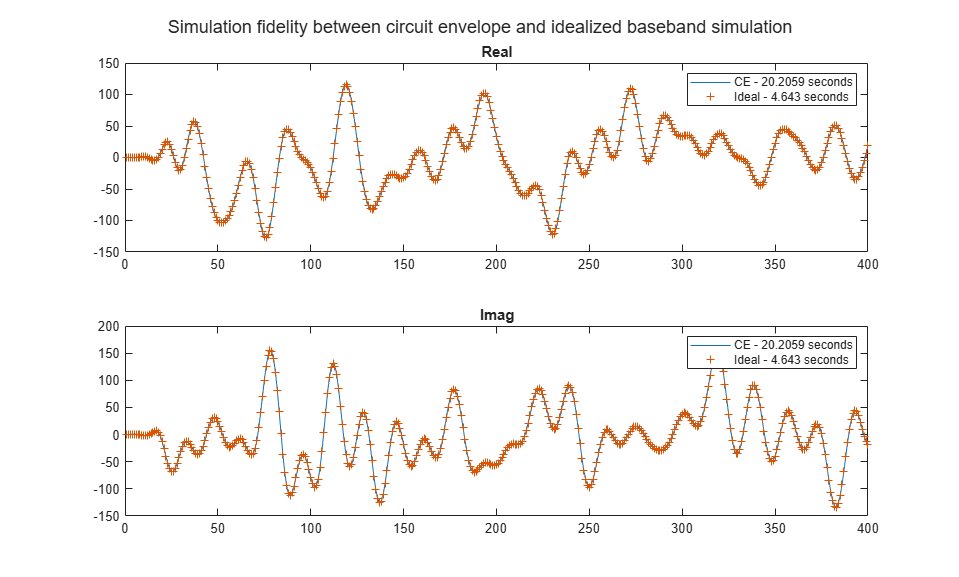

'Library'
— RF Blockset libraries
'CircuitEnvelope'
(default) | 'IdealizedBaseband'
Since R2023a
RF Blockset libraries, specified as one of the following:
'CircuitEnvelope'
— Use Circuit Envelope library blocks to perform circuit envelope simulation.'IdealizedBaseband'
— Use Idealized Baseband library blocks to perform idealized baseband simulation.
Note
This property cannot be reset once the system object is created.
Usage
Syntax
Description
creates
an RF Blockset circuit envelope or idealized baseband simulation output
out
= rfs(in
)out
using input signal values in
. Pass
in
as an input argument to an automatically-generated RF Blockset model.
You can design four architectures, RF to RF, DC to RF, RF to DC, and DC to DC, using
the rfsystem
object. For more information, see Design RF-RF, IQ-RF, RF-IQ, and IQ-IQ Architectures.
Note
Passing multiple input vectors and concatenating the output vectors is equivalent to performing one long simulation with a vertically-concatenated input.
Input Arguments
in
— Time-domain input signal
scalar | column vectors
Time-domain input signal, specified as a scalar or column vectors.
Circuit Envelope Simulation — Specify a column vector of N columns, where N is the number of input frequencies in the 'InputFrequency' property.
Idealized Baseband Simulation — Specify a scalar because idealized Baseband library only supports one carrier frequency. (since R2023a)
If 'RFInputs' >
1
, 'SLInputs' >
1
, or both, pass the inputs to the step
function as arguments out =
rfs(RFin1,RFin2,...,SLin1,SLin2,...)
.
Output Arguments
out
— Time-domain output signal
scalar | column vectors
Time-domain output signal, returned as scalar or column vectors. The
out
is returned as an array of N column
vectors when there are N
'OutputFrequency' values to be computed.
If 'RFOutputs' >
1
, 'SLOutputs' >
1
,or both, then the outputs are returned by the step
function is [RFout1,RFout2,...,SLout1,SLout2,...] =
rfs(in)
.
Object Functions
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named obj
, use
this syntax:
release(obj)
Specific to rfsystem
open_system | Open RF Blockset model created using
rfsystem
|
save_system | Save RF Blockset model created using rfsystem
|
close_system | Close RF Blockset model window created using
rfsystem
|
hide_system | Hide RF Blockset model window created using
rfsystem
|
load_system | Load RF Blockset model to memory |
RF Budget Analyzer | Analyze gain, noise figure, IP2, and IP3 of cascaded RF elements and export to RF Blockset |
Examples
Perform Circuit Envelope Simulation on RF Receiver
Design an RF receiver to perform circuit envelope simulation.
Create fifth- and seventh-order bandpass RF filters.
f1 = rffilter('ResponseType','Bandpass','FilterOrder',5, ... 'PassbandFrequency',[4.85 5.15]*1e9); f2 = rffilter('ResponseType','Bandpass','FilterOrder',7, ... 'PassbandFrequency',[10 130]*1e6);
Create two amplifier objects with 3
dB and 5
dB gain, respectively.
a1 = amplifier('Gain',3,'NF',1.53,'OIP3',35); a2 = amplifier('Gain',5,'NF',8,'OIP3',37);
Create a modulator with a local frequency of 4.93
GHz.
d = modulator('Gain',0,'NF',4,'OIP3',50,'LO',4.93e9, ... 'ConverterType','Down');
Design an RF receiver with the budget elements at an input frequency of 5
GHz, an available input power of -30
dBm, and a bandwidth of 200
MHz.
rfb = rfbudget([f1 a1 d f2 a2],5e9,-30,200e6);
Create an RF system for the RF receiver using the rfbudget
object.
rfs = rfsystem(rfb);
Specify input time-domain signal for the RF system.
in = [1e-3*ones(8,1); zeros(8,1)] .* ones(1,10); in = in(:);
Calculate the output time-domain signal of the RF system.
out = rfs(in); out = [out; rfs(in)];
Specify the sample time of the RF system.
t = rfs.SampleTime*(0:length(out)-1);
Plot the simulated output.
plot(t,[in; in],'-o',t,abs(out),'-+') grid on
Release system resources and turn off fast restart.
release(rfs)
Open an RF Blockset model of the designed RF system using the open_system
object function.
open_system(rfs)
Design RF-RF, IQ-RF, RF-IQ, and IQ-IQ Architectures
Design four different chain architectures using an RF System object.
Create an input column vector.
in = (1:8)';
Design RF-RF Architecture
Create an rfbudget
object using an amplifier
object.
a = amplifier;
Calculate the RF budget of the amplifier at an input frequency of 5
GHz, an available input power of –30
dBm, and a bandwidth of 10
KHz.
rfb = rfbudget(a,5e9,-30,10e3);
Create an RF system using the rfbudget
object.
rfs = rfsystem(rfb);
Create an RF-RF architecture using the input column vector.
out0 = rfs(in);
Release system resources and turn off fast restart.
release(rfs)
Open an RF Blockset model of the RF system.
open_system(rfs)
Design IQ-RF Architecture
Use a modulator
object with an up converter to create an rfbudget
object.
u = modulator('ConverterType','Up','LO',1e9);
Calculate the RF budget of the modulator at an input frequency of 0
GHz, an available input power of –30
dBm, and a bandwidth of 10
KHz.
rfb2 = rfbudget(u,0,-30,10e3);
Create an RF system using the rfbudget
object.
rfs2 = rfsystem(rfb2);
Create an IQ-RF architecture using the input column vector.
inI = in; inQ = in; out = rfs2(inI,inQ);
Release system resources and turn off fast restart.
release(rfs2)
Open an RF Blockset model of the RF system.
open_system(rfs2)
Design RF-IQ Architecture
Use a modulator
object with a down converter to create an rfbudget
object.
d = modulator('ConverterType','Down','LO',1e9);
Calculate the RF budget of the modulator at an input frequency of 1
GHz, an available input power of –30
dBm, and a bandwidth of 10
KHz.
rfb3 = rfbudget(d,1e9,-30,10e3);
Create an RF system using the rfbudget
object.
rfs3 = rfsystem(rfb3);
Create an RF-IQ architecture using the input column vector.
[outI,outQ] = rfs3(in);
Release system resources and turn off fast restart.
release(rfs3)
Open an RF Blockset model of the RF system.
open_system(rfs3)
Design IQ-IQ Architecture
Create an rfbudget
object using an amplifier
object.
a1 = amplifier;
Calculate the RF budget of the amplifier at an input frequency of 0
GHz, an available input power of –30
dBm, and a bandwidth of 10
KHz.
rfb4 = rfbudget(a1,0,-30,10e3);
Create an RF system using the rfbudget
object.
rfs4 = rfsystem(rfb4);
Create an IQ-IQ architecture using the input column vector.
[outI2,outQ2] = rfs4(inI,inQ);
Release system resources and turn off fast restart.
release(rfs4)
Open an RF Blockset model of the RF system.
open_system(rfs4)
Model MISO Receiver and SIMO Transmitter Systems
Create a fifth-order bandpass RF filter.
f1 = rffilter('ResponseType','Bandpass','FilterOrder',5, ... 'PassbandFrequency',[4.85 5.15]*1e9);
Create an amplifier with 3 dB gain.
a1 = amplifier('Gain',3,'NF',1.53,'OIP3',35);
Create a modulator with a local frequency of 4.93 GHz.
d = modulator('Gain',0,'NF',4,'OIP3',50,'LO',4.93e9, ... 'ConverterType','Down');
Create a seventh-order bandpass RF filter.
f2 = rffilter('ResponseType','Bandpass','FilterOrder',7, ... 'PassbandFrequency',[10 130]*1e6);
Create another amplifier with a 3 dB gain.
a2 = amplifier('Gain',5,'NF',8,'OIP3',37);
Design an RF receiver with the budget elements at an input frequency of 5 GHz, an available input power of –30 dBm, and a bandwidth of 200 MHz.
b = rfbudget([f1 a1 d f2 a2],5e9,-30,200e6);
Duplicate the budget chain into a multiple-input single-output receiver (MISO) system with four branches.
rfs = rfsystem(b,Rx=4);
Open the underlying RF system model to inspect the MISO receiver
open_system(rfs)
set_param(bdroot,'ZoomFactor','FitSystem')
Create four inputs to the MISO receiver. The pulsed carrier square wave input is time-sliced into four pieces.
in1 = [1e-3*[1;1;0;0;0;0;0;0]; zeros(8,1)] .* ones(1,10); in1 = in1(:); in2 = [1e-3*[0;0;1;1;0;0;0;0]; zeros(8,1)] .* ones(1,10); in2 = in2(:); in3 = [1e-3*[0;0;0;0;1;1;0;0]; zeros(8,1)] .* ones(1,10); in3 = in3(:); in4 = [1e-3*[0;0;0;0;0;0;1;1]; zeros(8,1)] .* ones(1,10); in4 = in4(:); out = rfs(in1,in2,in3,in4);
Release system resources and turn off fast restart.
release(rfs) reset(rfs)
Plot the circuit envelope simulated result.
t = rfs.SampleTime*(0:length(out)-1); plot(t,in1+in2+in3+in4,'-o',t,abs(out),'-+') grid on
Type rfBudgetAnalyzer(rfs)
command at the command line to open the MISO receiver in the RF Budget Analyzer app to visualize the initial budget chain b
.
Duplicate the budget chain into a single-input multiple-output (SIMO) array system with sixteen branches.
rfs2 = rfsystem(b,Tx=16);
Open the underlying RF system model to inspect the SIMO receiver
open_system(rfs2)
Type this command at the MATLAB® command line to create 16 outputs to the SIMO transmitter.
[out1(1:16).val] = rfs2(in1);
Name Your RF Blockset Model
Create a fifth-order bandpass RF filter.
f1 = rffilter('ResponseType','Bandpass','FilterOrder',5,'PassbandFrequency',[4.85 5.15]*1e9);
Create an amplifier with the gain of 3
dB, noise figure of 1.53
dB, and OIP3 of 35
dBm.
a1 = amplifier('Gain',3,'NF',1.53,'OIP3',35);
Create an rfbudget
object using these elements at an input frequency of 5
GHz, an available input power of -30
dBm, and a bandwidth of 200
MHz.
rfb = rfbudget([f1 a1],5e9,-30,200e6);
Create an RF system using the rfbdget object. Name the model and save the RF Blockset model.
rfs = rfsystem(rfb,'ModelName','myRFSystem_Model') save_system(rfs);
rfs = rfsystem with properties: ModelName: 'myRFSystem_Model' SampleTime: 6.2500e-10 InputFrequency: 5.0000e+09 OutputFrequency: 5.0000e+09 RFInputs: 1 RFOutputs: 1 Library: 'CircuitEnvelope'
Perform HB Analysis on RF Receiver Designed Using rfsystem
Design an RF receiver using the rfsystem
system object. View the object in the the RF Budget Analyzer app to perform harmonic balance (HB) analysis.
Create fifth- and seventh-order bandpass RF filters.
f1 = rffilter('ResponseType','Bandpass','FilterOrder',5, ... 'PassbandFrequency',[4.85 5.15]*1e9); f2 = rffilter('ResponseType','Bandpass','FilterOrder',7, ... 'PassbandFrequency',[10 130]*1e6);
Create two amplifier objects with 3
dB and 5
dB gain, respectively.
a1 = amplifier('Gain',3,'NF',1.53,'OIP3',35); a2 = amplifier('Gain',5,'NF',8,'OIP3',37);
Create a modulator with a local frequency of 4.93
GHz.
d = modulator('Gain',0,'NF',4,'OIP3',50,'LO',4.93e9, ... 'ConverterType','Down');
Design an RF receiver with the budget elements at an input frequency of 5
GHz, an available input power of – 30
dBm, and a bandwidth of 10
MHz.
rfb = rfbudget([f1 a1 d f2 a2],5e9,-30,10e6);
Create an RF system for the RF receiver using the rfbudget
object.
rfs = rfsystem(rfb);
Open an RF Blockset model of the designed RF system using the open_system
function.
open_system(rfs)
Type rfBudgetAnalyzer(rfs) command at the MATLAB® command line to open this RF system in the RF Budget Analyzer app.
To conduct HB analysis in the app, click the HB-Analyze button.
Tips
Create multiple
rfsystem
outputs using this optional syntax:[
out
(1:n).val
] =rfs
(in
), where
n
is the number of output chains in a single-input multiple-output (SIMO) transmitter system 'Tx' using the input signalin
.
Version History
Introduced in R2021aR2023a: Support for idealized baseband simulation
Use the Library
property to create an rfsystem
System object using Idealized Baseband library blocks to perform idealized baseband
simulation.
R2022a: Enhancements to rfsystem
Updates to the rfsystem
System object now enable you to:
Model multiple-input and single-output (MISO) and single-input and single-output (SIMO) systems by specifying number of input and output RF chains using the 'Rx' and 'Tx' properties.
Add Simulink inports and outports to your RF Blockset model by specifying number of Simulink input and output ports using 'SLInputs' and 'SLOutputs' properties.
Export your RF system to the RF Budget Analyzer app, type
rfBudgetAnalyzer(rfs)
at the MATLAB® command line.Use the
load_system
function specific to the System object to add the system model to memory.Use the
close_system
function specific to the System object to close the system model window.
See Also
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
