show

R2026b

Display PCB component structure or PCB shape

collapse all in page

Syntax

show(pcbcomponent)

show(shape)

Description

show(pcbcomponent) displays the PCB component structure in the figure window.

example

show(shape) plots the shape as a filled region using patches.

example

Examples

collapse all

Create Default Spiral Inductor

Open Live Script

Create and view a default spiral inductor.

inductor = spiralInductor

inductor =
  spiralInductor with properties:

          SpiralShape: 'Square'
        InnerDiameter: 5.0000e-04
                Width: 2.5000e-04
              Spacing: 2.5000e-04
             NumTurns: 4
               Height: 0.0010
    GroundPlaneLength: 0.0056
     GroundPlaneWidth: 0.0056
            Substrate: [1×1 dielectric]
            Conductor: [1×1 metal]

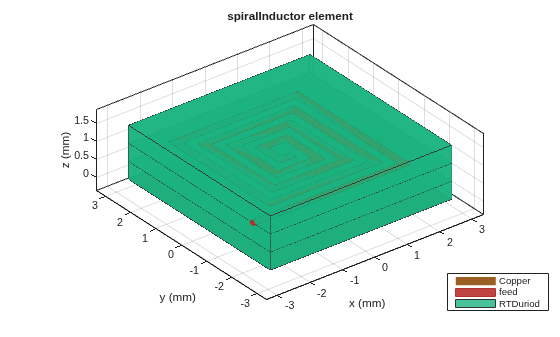

show(inductor)

Figure contains an axes object. The axes object with title spiralInductor element, xlabel x (mm), ylabel y (mm) contains 10 objects of type patch, surface. These objects represent Copper, feed, RTDuriod.

Create Default Curved U-Bend

Open Live Script

Create a curved U-bend with default properties.

curvedubend = ubendCurved

curvedubend =
  ubendCurved with properties:

              Name: 'myCurvedubend'
    ReferencePoint: [0 0]
            Length: [0.0150 0.0050 0.0150]
             Width: [0.0050 0.0050 0.0050]
       CurveRadius: 0.0035

View the shape.

show(curvedubend)

Input Arguments

collapse all

`pcbcomponent` — PCB component object
object handle

PCB component object, specified as an object handle.

Example: microstrip = microstripLine; show(microstrip)

`shape` — Shape created using custom elements and shape objects
object handle

Shape created using custom elements and shape objects of RF PCB Toolbox, specified as an object handle.

Example: shape = bendCurved; show(shape)

Version History

Introduced in R2021b
