mlreportgen.ppt.TextOrientation class

Package: mlreportgen.ppt

Orientation of text in a table entry

Description

Use an mlreportgen.ppt.TextOrientation format object to specify the orientation of the text in a table entry in a PPT API presentation.

The mlreportgen.ppt.TextOrientation class is a handle class.

Class Attributes

ConstructOnLoad
true
HandleCompatible
true

For information on class attributes, see Class Attributes (MATLAB).

Creation

Description

textOrientationObj = mlreportgen.ppt.TextOrientation() sets the Value property to 'horizontal'.

example

textOrientationObj = mlreportgen.ppt.TextOrientation(orientation) sets the Value property to orientation.

Properties

expand all

Orientation of the table entry text, specified as a character vector or string scalar. Specify one of the values in the table.

ValueDescription
'horizontal'Text orientation is horizontal.
'down'Text orientation is vertical, with the content rotated 90 degrees, clockwise.
'up'Text orientation is vertical, with the content rotated 90 degrees, counterclockwise.

ID for this PPT API object, specified as a character vector or string scalar. A session-unique ID is generated as part of object creation. You can specify an ID to replace the generated ID.

Tag for this PPT API object, specified as a character vector or string scalar. A session-unique tag is generated as part of the creation of this object. The generated tag has the form CLASS:ID, where CLASS is the object class and ID is the value of the Id property of the object.

Specifying your own tag value can help you to identify where an issue occurred during presentation generation.

Examples

collapse all

To specify the orientation of the text in a table entry in a presentation, add an mlreportgen.ppt.TextOrientation object to the Style property of the mlreportgen.ppt.TableEntry object that represents the table entry. This example generates a table with vertically oriented text in the first row.

Create a presentation.

import mlreportgen.ppt.*
ppt = Presentation("myTextOrientation.pptx");
open(ppt);

Add a slide to the presentation.

slide = add(ppt,"Title and Table");

Create a table.

t = Table({'Entry 11', 'Entry 12'; 'Entry 21', 'Entry 22'});
t.Height = '2in';
t.Width = '2in';
t.StyleName = "Medium style 2 - Accent 1";
t.Style = [t.Style {VAlign("middleCentered")}];

Specify the vertical text orientation for the entries in the first row.

tr1te1 = t.entry(1,1);
tr1te1.Style = [ tr1te1.Style {TextOrientation("down")} ];
tr1te2 = t.entry(1,2);
tr1te2.Style = [ tr1te2.Style {TextOrientation("down")} ];

Add a title and the table to the slide.

replace(slide,"Title","Row One Text Has Vertical Orientation");
replace(slide,"Table",t);

Close and view the presentation.

close(ppt);
rptview(ppt);

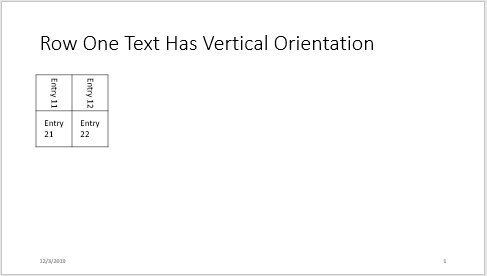

Here is the table in the generated presentation:

Introduced in R2020a
