Phase delay of digital filter

`[phi,w] = phasedelay(b,a,n)`

[phi,w] = phasedelay(sos,n)

[phi,w] = phasedelay(d,n)

[phi,w] = phasedelay(...,n,'whole')

phi = phasedelay(...,w)

[phi,f] = phasedelay(...,n,fs)

[phi,f]
= phasedelay(...,n,'whole',fs)

phi = phasedelay(...,f,fs)

[phi,w,s] = phasedelay(...)

[phi,f,s] = phasedelay(...)

phasedelay(...)

`[phi,w] = phasedelay(b,a,n)`

returns
the `n`

-point phase delay response vector, `phi`

,
and the `n`

-point frequency vector in radians/sample, `w`

,
of the filter defined by numerator coefficients, `b`

,
and denominator coefficients, `a`

. The phase delay
response is evaluated at `n`

equally spaced points
around the upper half of the unit circle. If `n`

is
omitted, it defaults to 512. For best results, set `n`

to
a value greater than the filter order.

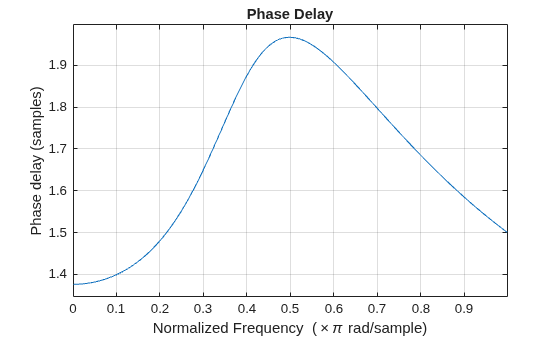

`[phi,w] = phasedelay(sos,n)`

returns the `n`

-point
phase delay response for the second-order sections matrix, `sos`

. `sos`

is
a *K*-by-6 matrix, where the number of sections, *K*,
must be greater than or equal to 2. If the number of sections is less
than 2, `phasedelay`

considers the input to be
a numerator vector, `b`

. Each row of `sos`

corresponds
to the coefficients of a second order (biquad) filter. The *i*th
row of the `sos`

matrix corresponds to ```
[bi(1)
bi(2) bi(3) ai(1) ai(2) ai(3)]
```

.

`[phi,w] = phasedelay(d,n)`

returns the `n`

-point
phase delay response of the digital filter, `d`

.
Use `designfilt`

to generate `d`

based
on frequency-response specifications.

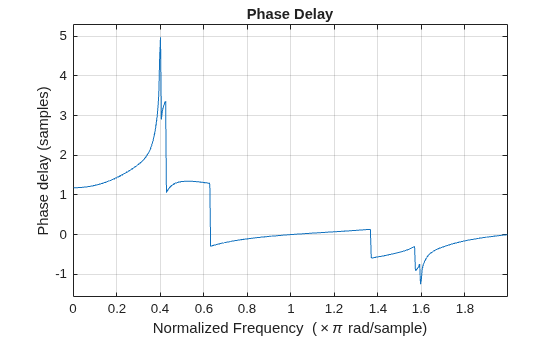

`[phi,w] = phasedelay(...,n,'whole')`

uses `n`

equally
spaced points around the whole unit circle.

`phi = phasedelay(...,w)`

returns
the phase delay response at frequencies specified, in radians/sample,
in vector `w`

. The frequencies are normally between
0 and *π*. `w`

must contain
at least two elements.

`[phi,f] = phasedelay(...,n,fs)`

and ```
[phi,f]
= phasedelay(...,n,'whole',fs)
```

return
the phase delay vector `f`

(in Hz), using the sampling
frequency `fs`

(in Hz). `f`

must
contain at least two elements.

`phi = phasedelay(...,f,fs)`

returns
the phase delay response at the frequencies specified in vector `f`

(in
Hz), using the sampling frequency `fs`

(in Hz).

`[phi,w,s] = phasedelay(...)`

and `[phi,f,s] = phasedelay(...)`

return plotting
information, where `s`

is a structure with fields
you can change to display different frequency response plots.

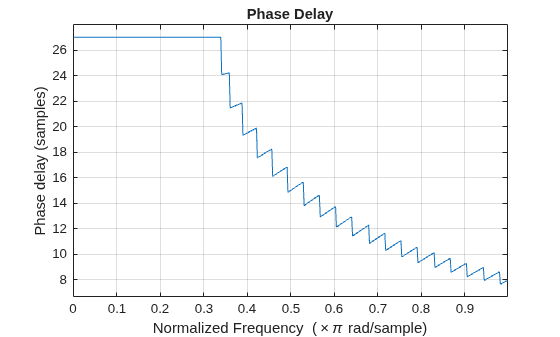

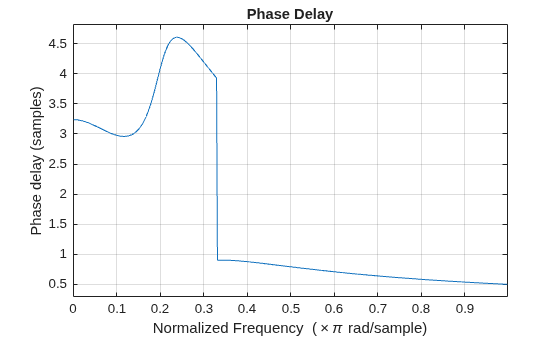

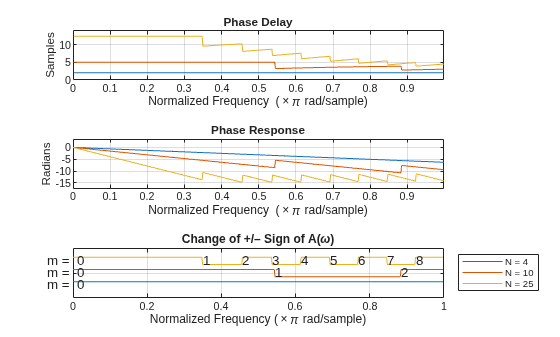

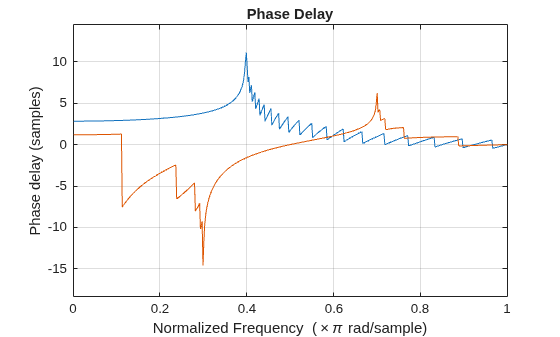

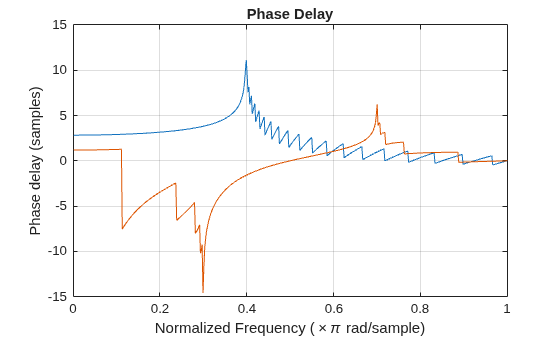

`phasedelay(...)`

with no
output arguments plots the phase delay response versus frequency.

If the input to `phasedelay`

is single precision,
the phase delay response is calculated using single-precision arithmetic.
The output, `phi`

, is single precision.

`designfilt`

| `digitalFilter`

| `freqz`

| `fvtool`

| `grpdelay`

| `phasez`
