remove

R2026b

Remove actor added to world or remove all actors in world

Since R2023a

Syntax

remove(world,actor)

remove(world)

Description

remove(world,actor) removes the actor object specified by actor from the 3D environment world.

remove(world) removes all actors from world.

Examples

Create and Delete Actor During Simulation Using MATLAB

This example shows how to create and delete an actor during a simulation using MATLAB®. First, you create a 3D environment by using the sim3d.World class and build a plane actor by using the sim3d.Actor class. Next, you create ball actors during simulation. Then, you delete the ball actors from the environment. To create and delete actors during simulation using Simulink®, see Create and Delete Actor During Simulation Using Simulink.

Create World

Create a world scene and set up communication with the Unreal Engine® using the output function. Before the Unreal Engine simulates, MATLAB calls the output function.

world = sim3d.World(Output=@outputImpl);

The outputImpl function is a local function defined at the end of this script.

Build Actors

Instantiate a plane actor named Plane. Build the actor appearance by using the createShape function. Add the actor to the world.

plane = sim3d.Actor(ActorName='Plane');
createShape(plane,'box', [50 50 0.1]);
add(world,plane);

Use the UserData property in the sim3d.World object to create a user data structure with a field named Step to store the simulation step during simulation. Initialize the user data structure to 1. You will use this structure to insert a delay before creating and removing actors from the world in the output function. Use the createBall function to create a ball actor and add the ball to the world.

world.UserData.Step = 1;
ball = createBall();
add(world,ball);

Set Up createBall Function

Use the createBall function to create a new ball using the createShape function, and set the properties for the ball.

function ball = createBall()
% Create ball actors in 3D environment
ball = sim3d.Actor();
createShape(ball,'sphere', [0.5 0.5 0.5]);
ball.Mobility = sim3d.utils.MobilityTypes.Movable;
ball.Gravity = true;
ball.Physics = true;
ball.Shadows = false;
ball.Color = [rand rand rand];
ball.Translation = [0, 0, 5];
end

If you do not create a viewpoint, then the Simulation 3D Viewer displays the default view, and you can use the keyboard shortcuts and mouse controls to navigate in the window. For more information on keyboard shortcuts and mouse control, see Navigate in Unreal Engine Environment.

Run Simulation

Run a simulation set for 10 seconds with a sample time of 0.01 seconds.

sampletime = 0.01;
stoptime = 10;
run(world,sampletime,stoptime);

Creating actor Actor6 ...
Creating actor Actor7 ...
Creating actor Actor8 ...
Creating actor Actor9 ...
Deleting actor Actor5 ...
Deleting actor Actor9 ...
Deleting actor Actor7 ...
Deleting actor Actor8 ...
Deleting actor Actor6 ...

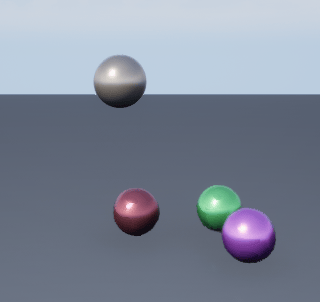

You can see the ball actors being created and deleted from the world during simulation.

Delete World

Delete the world object.

delete(world);

Set Up Output Function

Use the output function to send data to Unreal Engine at each simulation step. The outputImpl function manages the creation and deletion of ball actors in the 3D world. Use the UserData property of the sim3d.World class to track the simulation steps and then create a new ball actor or delete an existing ball actor. The function uses the Actors property of sim3d.World class to create a structure with names of the actors in the world as the fields. The function uses the createBall function to create and add a new ball to the world and uses the remove function to delete a ball actor from the world. The function also increments the step count after each execution.

function outputImpl(world)
% Create and delete actors in scene
if mod(world.UserData.Step, 50) == 0
    if world.UserData.Step < 250
        ball = createBall();
        fprintf("Creating actor %s ... \n", ball.Name)
        world.add(ball);
    else
        actorFields = fields(world.Actors);
        index = floor(length(actorFields) * rand() + 1);
        actorToDelete = actorFields{index};
        if ~(strcmp(actorToDelete, 'MainCamera1') || strcmp(actorToDelete, 'Plane'))
            fprintf("Deleting actor %s ... \n", actorToDelete)
            world.remove(actorToDelete);
        end
    end
end
world.UserData.Step = world.UserData.Step + 1;
end

Input Arguments

world — World object

sim3d.World object

World object that defines the 3D environment, specified as a sim3d.World object.

Example: world = sim3d.World()

actor — Actor object

sim3d.Actor object

Actor object being removed from the 3D world, specified as a sim3d.Actor object.

Version History

Introduced in R2023a
