This example shows how to tune a controller to satisfy time-domain and frequency-domain design requirements using the Response Optimizer.
The example requires Simulink® Control Design™ software.
Open the Simulink model.
sys = 'sdoAircraft'; open_system(sys);

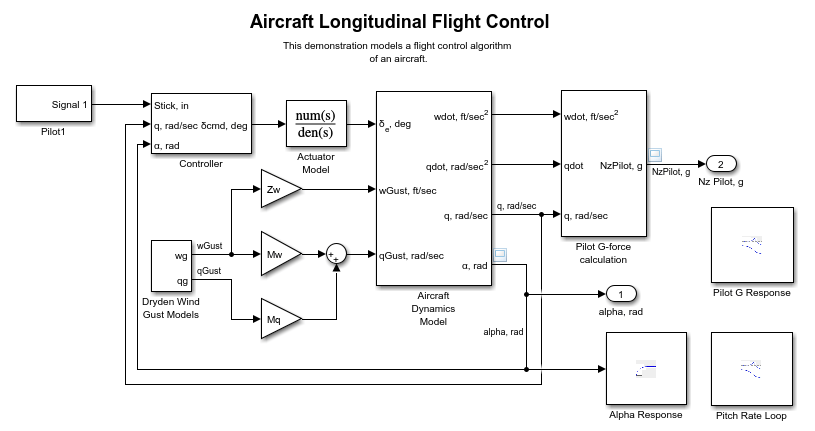

The aircraft model is based on the Simulink
slexAircraftExample model. The model includes:
Subsystems to model aircraft dynamics (
Aircraft Dynamics Model), wind gusts (
Dryden Wind Gust Models), and pilot G-forces (
Pilot G-force calculation).
A step change applied to the aircraft joystick at 1 second into the simulation that causes the aircraft to pitch upward.
You tune the controller gains to meet the following time-domain and frequency-domain design requirements:
alpha response to a step change in the joystick has a rise time of less than 1 second, less than 1% overshoot, and settles to within 1% of steady state within less than 5 seconds
Pitch-rate control loop has good tracking below 1 rad/s and 20 dB noise rejection above 100 rad/s
Closed-loop response from joystick to pilot G-Force is below 0 dB above 5 rad/s.
These requirements reduce the high frequency G-forces experienced by the pilot in response to joystick changes while still maintaining flight performance.
The model includes the following blocks (from Simulink® Design Optimization™ and Simulink Control Design Model Verification libraries):

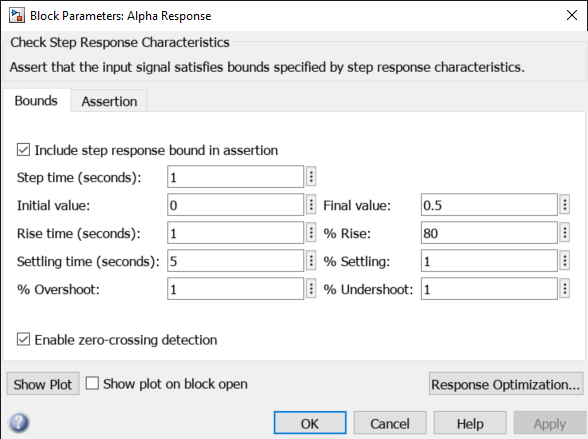

Alpha Response specifies the alpha step response requirement.

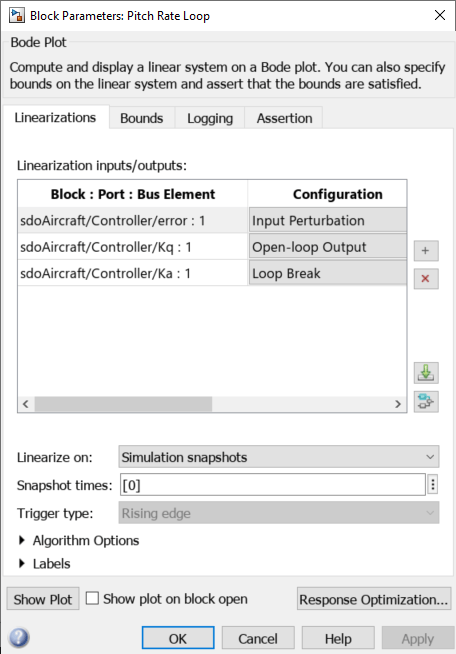

Pitch Rate Loop specifies the pitch-rate performance requirement.
The linearization inputs/outputs are already selected in the Linearizations tab. The pitch-rate loop starts from the input of the controller (the controller error signal) and ends at the output of the pitch-rate sensor. The angle-of-attack loop is opened signal so that the block only computes the pitch-rate loop response. The linear system is computed at a simulation time of 0.

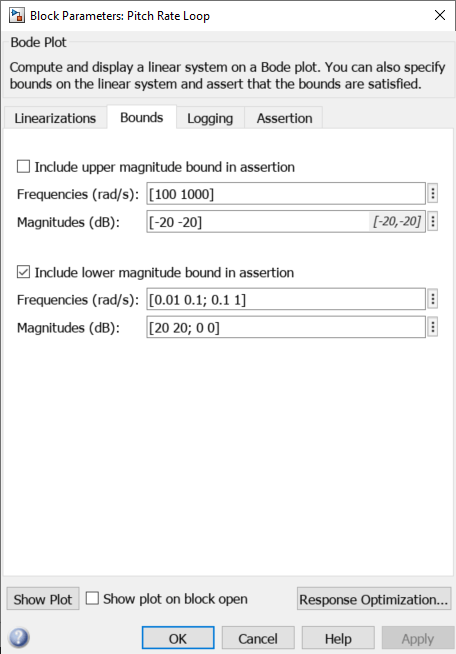

The Bounds tab specifies the following pitch-rate loop shape requirements:
Greater than 20 dB over the range 0.01 rad/s to 0.1 rad/s
Greater than 0 dB over the range 0.1 rad/s to 1 rad/s
Less than -20 dB over the range 100 rad/s to 1000 rad/s

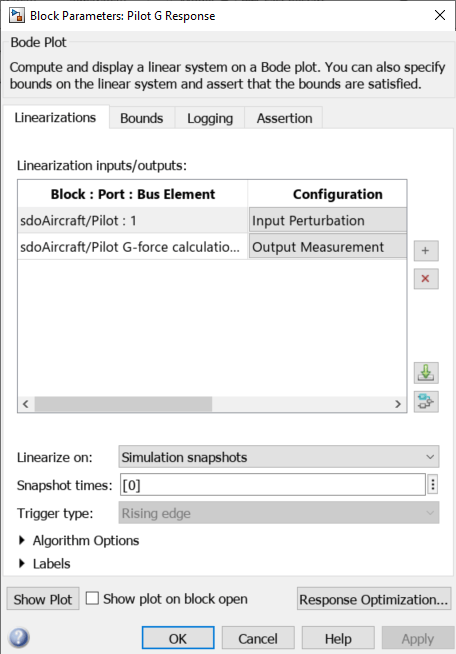

Pilot G Response specifies the G-force requirement.
The linearization inputs/outputs are already selected in the Linearizations tab. The linear system is computed at a simulation time of 0.

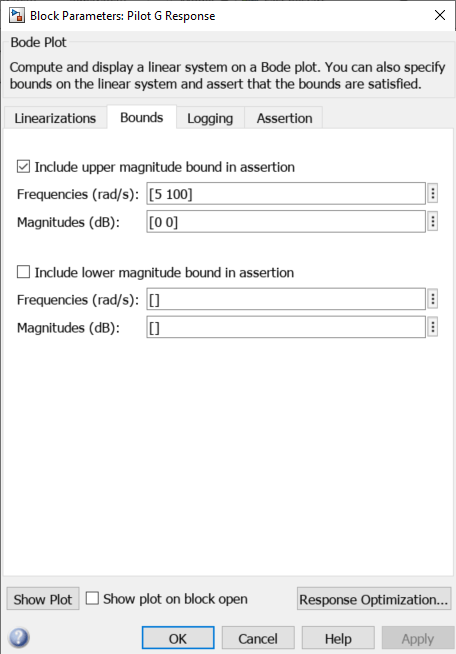

The Bounds tab specifies the G-force requirements of less than 0 dB over the range 5 rad/s 100 rad/s.
Open the Response Optimizer to configure and run design optimization problems interactively. Click Response Optimization on the Block Parameters dialog of
Pitch Rate Loop or
Pilot G Response block. Alternatively, type

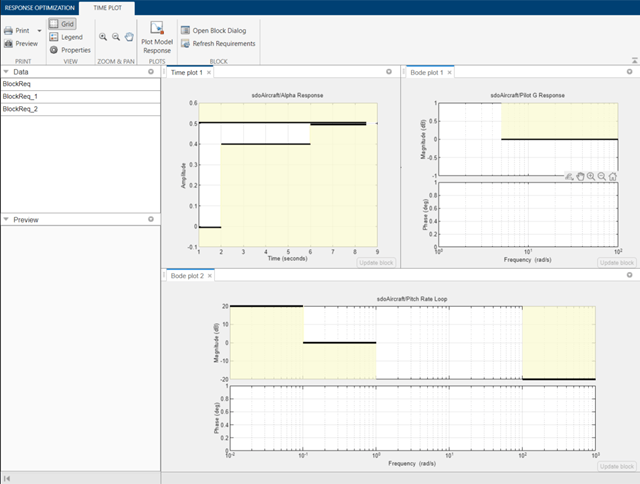

sdotool('sdoAircraft'). To show multiple requirement plots at the same time, use the View tab in the app.
The app detects the requirements specified in the Model Verification blocks and automatically includes them as requirements to satisfy.
Specify the following model parameters as design variables for optimization:
Pitch-rate sensor gain
Alpha sensor gain

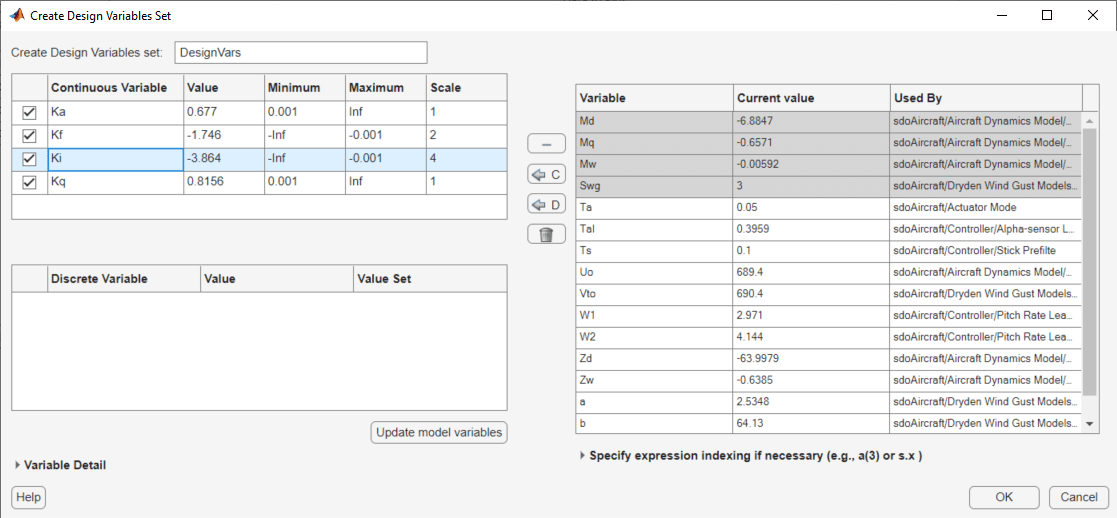

In the Design Variables Set drop-down list, select New. A dialog to select model parameters for optimization opens.
Ka. Click << to add the selected parameters to the design variables set.
Specify minimum and maximum gain values, the
Kf values must remain negative while
Kq must remain positive.
Press Enter after you enter the values.
Click OK. A new variable
DesignVars appears in the Response Optimizer browser.

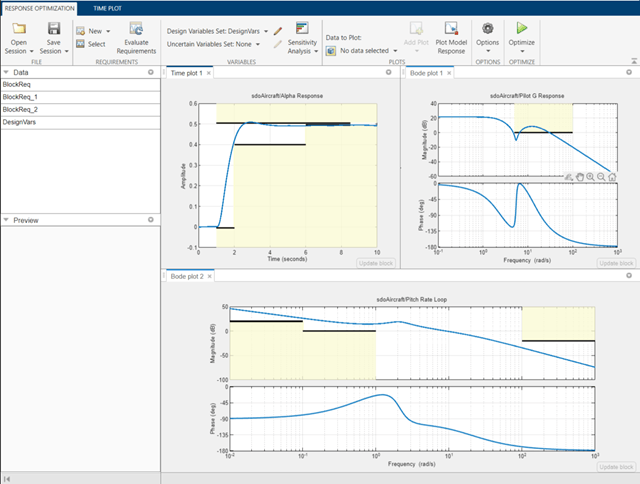

Click Plot Model Response to simulate the model and check how well the initial design satisfies the design requirements.
The plots indicate that the current design does not satisfy the pilot G-force requirement and the alpha step response overshoot requirement is violated.

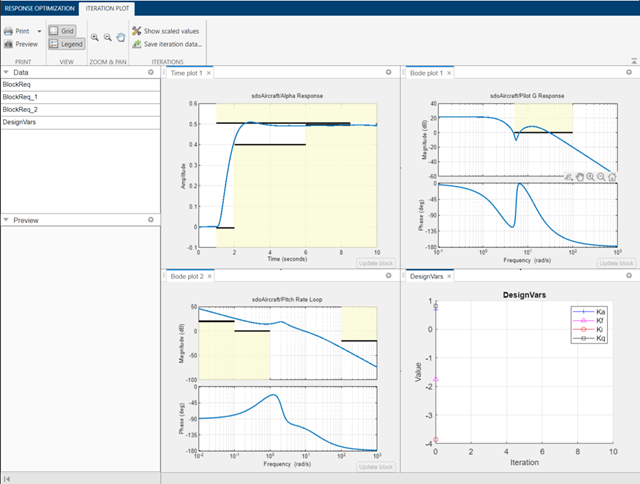

Create a plot to display how the controller variables are modified during the optimization. In the Data To Plot drop-down list, select DesignVars, which contains the optimization design variables
Ka. In the Add Plot drop-down list, select Iteration plot.
To load a pre-configured file and run the optimization, click Open in the Response Optimization tab and select
sdoAircraft_sdosession.mat. Alternatively load the project by typing:
>> load sdoAircraft_sdosession

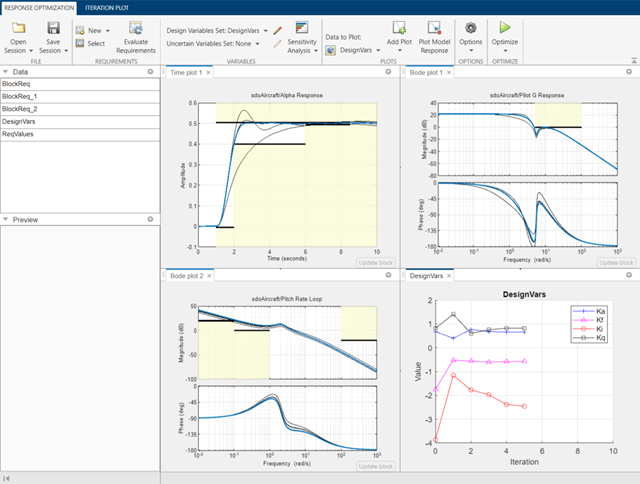

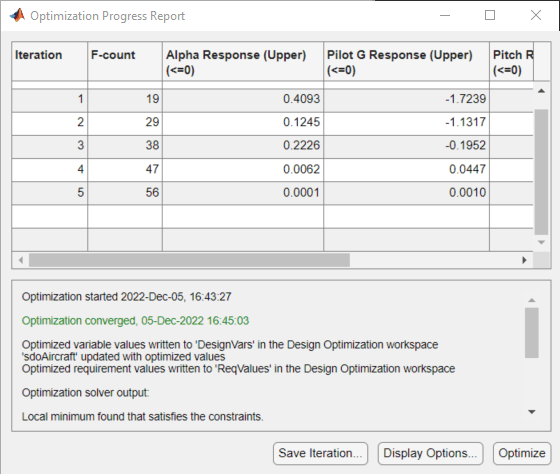

The optimization progress window updates at each iteration and shows that the optimization converged after 5 iterations.
Alpha Response and
Pilot G Response plots indicate that the design requirements are satisfied. The
DesignVars plot shows that the controller gains converged to new values.
To view the optimized design variable values, click
DesignVars in the Response Optimizer browser. The optimized values of the design variables are automatically updated in the Simulink model.
% Close the model bdclose('sdoAircraft')
