# knnsearch

Find *k*-nearest neighbors using searcher object

## Description

searches for the nearest neighbor (i.e., the closest point, row, or observation) in
`Idx`

= knnsearch(`Mdl`

,`Y`

)`Mdl.X`

to each point (i.e., row or observation) in the query
data `Y`

using an exhaustive search, a *K*d-tree,
or a Hierarchical Navigable Small Worlds approximate search.
`knnsearch`

returns `Idx`

, which is a column
vector of the indices in `Mdl.X`

representing the nearest
neighbors.

returns the indices of the closest points in `Idx`

= knnsearch(`Mdl`

,`Y`

,`Name,Value`

)`Mdl.X`

to
`Y`

with additional options specified by one or more
`Name,Value`

pair arguments. For example, specify the number of
nearest neighbors to search for, or distance metric different from the one stored in
`Mdl.Distance`

. You can also specify which action to take if
the closest distances are tied.

`[`

additionally returns the matrix
`Idx`

,`D`

]
= knnsearch(___)`D`

using any of the input arguments in the previous syntaxes.
`D`

contains the distances between each observation in
`Y`

that correspond to the closest observations in
`Mdl.X`

. By default, the function arranges the columns of
`D`

in ascending order by closeness, with respect to the
distance metric.

## Examples

### Search for Nearest Neighbors Using *K*d-tree and Exhaustive Search

`knnsearch`

accepts `ExhaustiveSearcher`

or `KDTreeSearcher`

model objects to search the training data for the nearest neighbors to the query data. An `ExhaustiveSearcher`

model invokes the exhaustive searcher algorithm, and a `KDTreeSearcher`

model defines a *K*d-tree, which `knnsearch`

uses to search for nearest neighbors.

Load Fisher's iris data set. Randomly reserve five observations from the data for query data.

load fisheriris rng(1); % For reproducibility n = size(meas,1); idx = randsample(n,5); X = meas(~ismember(1:n,idx),:); % Training data Y = meas(idx,:); % Query data

The variable `meas`

contains 4 predictors.

Grow a default four-dimensional *K*d-tree.

MdlKDT = KDTreeSearcher(X)

MdlKDT = KDTreeSearcher with properties: BucketSize: 50 Distance: 'euclidean' DistParameter: [] X: [145x4 double]

`MdlKDT`

is a `KDTreeSearcher`

model object. You can alter its writable properties using dot notation.

Prepare an exhaustive nearest neighbor searcher.

MdlES = ExhaustiveSearcher(X)

MdlES = ExhaustiveSearcher with properties: Distance: 'euclidean' DistParameter: [] X: [145x4 double]

`MdlKDT`

is an `ExhaustiveSearcher`

model object. It contains the options, such as the distance metric, to use to find nearest neighbors.

Alternatively, you can grow a *K*d-tree or prepare an exhaustive nearest neighbor searcher using `createns`

.

Search the training data for the nearest neighbors indices that correspond to each query observation. Conduct both types of searches using the default settings. By default, the number of neighbors to search for per query observation is `1`

.

IdxKDT = knnsearch(MdlKDT,Y); IdxES = knnsearch(MdlES,Y); [IdxKDT IdxES]

`ans = `*5×2*
17 17
6 6
1 1
89 89
124 124

In this case, the results of the search are the same.

### Search for Nearest Neighbors of Query Data Using Minkowski Distance

Grow a *K*d-tree nearest neighbor searcher object by using the `createns`

function. Pass the object and query data to the `knnsearch`

function to find *k*-nearest neighbors.

Load Fisher's iris data set.

`load fisheriris`

Remove five irises randomly from the predictor data to use as a query set.

rng(1) % For reproducibility n = size(meas,1); % Sample size qIdx = randsample(n,5); % Indices of query data tIdx = ~ismember(1:n,qIdx); % Indices of training data Q = meas(qIdx,:); X = meas(tIdx,:);

Grow a four-dimensional *K*d-tree using the training data. Specify the Minkowski distance for finding nearest neighbors.

Mdl = createns(X,'Distance','minkowski')

Mdl = KDTreeSearcher with properties: BucketSize: 50 Distance: 'minkowski' DistParameter: 2 X: [145x4 double]

Because `X`

has four columns and the distance metric is Minkowski, `createns`

creates a `KDTreeSearcher`

model object by default. The Minkowski distance exponent is `2`

by default.

Find the indices of the training data (`Mdl.X`

) that are the two nearest neighbors of each point in the query data (`Q`

).

`IdxNN = knnsearch(Mdl,Q,'K',2)`

`IdxNN = `*5×2*
17 4
6 2
1 12
89 66
124 100

Each row of `IdxNN`

corresponds to a query data observation, and the column order corresponds to the order of the nearest neighbors, with respect to ascending distance. For example, based on the Minkowski distance, the second nearest neighbor of `Q(3,:)`

is `X(12,:)`

.

### Include Ties in Nearest Neighbor Search

Load Fisher's iris data set.

`load fisheriris`

Remove five irises randomly from the predictor data to use as a query set.

rng(4); % For reproducibility n = size(meas,1); % Sample size qIdx = randsample(n,5); % Indices of query data X = meas(~ismember(1:n,qIdx),:); Y = meas(qIdx,:);

Grow a four-dimensional *K*d-tree using the training data. Specify the Minkowski distance for finding nearest neighbors.

Mdl = KDTreeSearcher(X);

`Mdl`

is a `KDTreeSearcher`

model object. By default, the distance metric for finding nearest neighbors is the Euclidean metric.

Find the indices of the training data (`X`

) that are the seven nearest neighbors of each point in the query data (`Y`

).

[Idx,D] = knnsearch(Mdl,Y,'K',7,'IncludeTies',true);

`Idx`

and `D`

are five-element cell arrays of vectors, with each vector having at least seven elements.

Display the lengths of the vectors in `Idx`

.

`cellfun('length',Idx)`

`ans = `*5×1*
8
7
7
7
7

Because cell `1`

contains a vector with length greater than *k* = 7, query observation 1 (`Y(1,:)`

) is equally close to at least two observations in `X`

.

Display the indices of the nearest neighbors to `Y(1,:)`

and their distances.

nn5 = Idx{1}

`nn5 = `*1×8*
91 98 67 69 71 93 88 95

nn5d = D{1}

`nn5d = `*1×8*
0.1414 0.2646 0.2828 0.3000 0.3464 0.3742 0.3873 0.3873

Training observations `88`

and `95`

are 0.3873 cm away from query observation `1`

.

### Compare *k*-Nearest Neighbors Using Different Distance Metrics

Train two `KDTreeSearcher`

models using different distance metrics, and compare *k*-nearest neighbors of query data for the two models.

Load Fisher's iris data set. Consider the petal measurements as predictors.

load fisheriris X = meas(:,3:4); % Predictors Y = species; % Response

Train a `KDTreeSearcher`

model object by using the predictors. Specify the Minkowski distance with exponent 5.

KDTreeMdl = KDTreeSearcher(X,'Distance','minkowski','P',5)

KDTreeMdl = KDTreeSearcher with properties: BucketSize: 50 Distance: 'minkowski' DistParameter: 5 X: [150x2 double]

Find the 10 nearest neighbors from `X`

to a query point (`newpoint`

), first using Minkowski then Chebychev distance metrics. The query point must have the same column dimension as the data used to train the model.

newpoint = [5 1.45]; [IdxMk,DMk] = knnsearch(KDTreeMdl,newpoint,'k',10); [IdxCb,DCb] = knnsearch(KDTreeMdl,newpoint,'k',10,'Distance','chebychev');

`IdxMk`

and `IdxCb`

are 1-by-10 matrices containing the row indices of `X`

corresponding to the nearest neighbors to `newpoint`

using Minkowski and Chebychev distances, respectively. Element (1,1) is the nearest, element (1,2) is the next nearest, and so on.

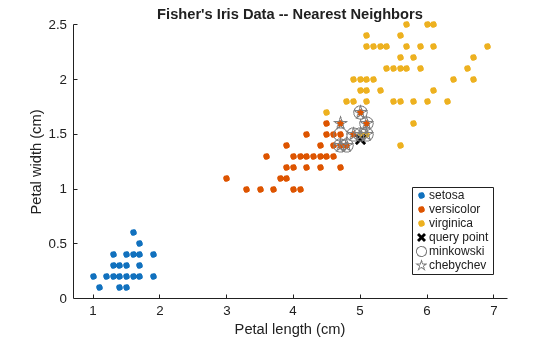

Plot the training data, query point, and nearest neighbors.

figure; gscatter(X(:,1),X(:,2),Y); title('Fisher''s Iris Data -- Nearest Neighbors'); xlabel('Petal length (cm)'); ylabel('Petal width (cm)'); hold on plot(newpoint(1),newpoint(2),'kx','MarkerSize',10,'LineWidth',2); % Query point plot(X(IdxMk,1),X(IdxMk,2),'o','Color',[.5 .5 .5],'MarkerSize',10); % Minkowski nearest neighbors plot(X(IdxCb,1),X(IdxCb,2),'p','Color',[.5 .5 .5],'MarkerSize',10); % Chebychev nearest neighbors legend('setosa','versicolor','virginica','query point',... 'minkowski','chebychev','Location','Best');

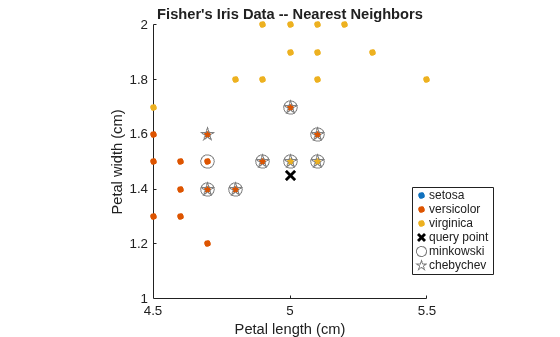

Zoom in on the points of interest.

h = gca; % Get current axis handle. h.XLim = [4.5 5.5]; h.YLim = [1 2]; axis square;

Several observations are equal, which is why only eight nearest neighbors are identified in the plot.

**HNSW Speed and Accuracy for Large Data**

Create a large data set and compare the speed of an HNSW searcher to the speed of an exhaustive searcher for 1000 query points.

Create the data.

rng default % For reproducibility A = diag(1:100); B = randn(100,10); K = kron(A,B); ss = size(K)

`ss = `*1×2*
10000 1000

The data `K`

has `1e4`

rows and `1e3`

columns.

Create an HNSW searcher object `h`

from the data `K`

.

tic; h = hnswSearcher(K); chnsw = toc

chnsw = 10.6544

Create 1000 random query points with 1000 features (columns). Specify to search for five nearest neighbors.

Y = randn(1000, 1000); tic; [idx, D] = knnsearch(h,Y,K=5); thnsw = toc

thnsw = 0.0797

Create an exhaustive searcher object `e`

from the data K.

tic e = ExhaustiveSearcher(K); ces = toc

ces = 0.0021

Creating an exhaustive searcher is much faster than creating an HNSW searcher.

Time the search using `e`

and compare the result to the time using the HNSW searcher `h`

.

tic; [idx0, D0] = knnsearch(e,Y,K=5); tes = toc

tes = 1.4841

In this case, the HNSW searcher computes about 20 times faster than the exhaustive searcher.

Determine how many results of the HNSW search differ in some way from the results of the exhaustive search.

v = abs(idx - idx0); % Count any difference in the five found entries vv = sum(v,2); % vv = 0 means no difference nz = nnz(vv) % Out of 1000 rows how many differ at all?

nz = 118

Here, 118 of 1000 HNSW search results differ from the exhaustive search results.

Try to improve the accuracy of the HNSW searcher by training with nondefault parameters. Specifically, use larger values for `MaxNumLinksPerNode`

and `TrainSetSize`

. These settings affect the speed of training and finding nearest neighbors.

tic; h2 = hnswSearcher(K,MaxNumLinksPerNode=48,TrainSetSize=2000); chnsw2 = toc

chnsw2 = 78.4836

With these parameters, the searcher takes about seven times as long to train.

tic; [idx2, D2] = knnsearch(h2,Y,K=5); thnsw2 = toc

thnsw2 = 0.1049

The speed of finding nearest neighbors using HNSW decreases, but is still more than ten times faster than the exhaustive search.

v = abs(idx2 - idx0); vv = sum(v,2); nz = nnz(vv)

nz = 57

For the slower but more accurate HNSW search, only 57 of 1000 results differ in any way from the exact results. Summarize the timing results in a table.

timet = table([chnsw;ces;chnsw2],[thnsw;tes;thnsw2],'RowNames',["HNSW";"Exhaustive";"HNSW2"],'VariableNames',["Creation" "Search"])

`timet=`*3×2 table*
Creation Search
_________ ________
HNSW 10.654 0.079741
Exhaustive 0.0021304 1.4841
HNSW2 78.484 0.10492

## Input Arguments

`Mdl`

— Nearest neighbor searcher

`ExhaustiveSearcher`

model object | `KDTreeSearcher`

model object | `hnswSearcher`

model object

Nearest neighbor searcher, specified as an `ExhaustiveSearcher`

, `KDTreeSearcher`

, or `hnswSearcher`

model object.

If `Mdl`

is an `ExhaustiveSearcher`

model, then
`knnsearch`

searches for nearest neighbors using an exhaustive
search. If `Mdl`

is a `KDTreeSearcher`

model,
`knnsearch`

uses the grown *K*d-tree to search
for nearest neighbors. If `Mdl`

is an `hnswSearcher`

model, `knnsearch`

uses the Hierarchical Navigable Small Worlds
approximate neighbor search algorithm. For descriptions, see k-Nearest Neighbor Search and Radius Search.

`Y`

— Query data

numeric matrix

Query data, specified as a numeric matrix.

`Y`

is an *m*-by-*K* matrix.
Rows of `Y`

correspond to observations (i.e., examples),
and columns correspond to predictors (i.e., variables or features). `Y`

must
have the same number of columns as the training data stored in `Mdl.X`

.

**Data Types: **`single`

| `double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'K',2,'Distance','minkowski'`

specifies to find the two
nearest neighbors of `Mdl.X`

to each point in `Y`

and to use the Minkowski distance metric.

**For Exhaustive Nearest Neighbor Searchers and**

*K*d-Tree Nearest Neighbor Searchers`Distance`

— Distance metric

`Mdl.Distance`

(default) | `'cityblock'`

| `'euclidean'`

| `'mahalanobis'`

| `'minkowski'`

| `'seuclidean'`

| function handle | ...

Distance metric used to find neighbors of the training data to the query observations, specified as one of the values in this table or function handle.

For all types of nearest neighbor searchers, `knnsearch`

supports these
distance metrics.

Value | Description |
---|---|

`'chebychev'` | Chebychev distance (maximum coordinate difference) |

`'cityblock'` | City block distance |

`'euclidean'` | Euclidean distance |

`'minkowski'` | Minkowski distance. The default exponent is 2. To specify a different exponent, use the
`'P'` name-value
argument. |

If `Mdl`

is an `ExhaustiveSearcher`

model object, then
`knnsearch`

also supports these distance metrics.

Value | Description |
---|---|

`'correlation'` | One minus the sample linear correlation between observations (treated as sequences of values) |

`'cosine'` | One minus the cosine of the included angle between observations (treated as row vectors) |

`'fasteuclidean'` | Euclidean distance computed by using an alternative algorithm that saves time
when the number of predictors is at least 10. In some cases, this faster algorithm can
reduce accuracy. This distance metric is available only when
`NSMethod` is `'exhaustive'` . Algorithms
starting with `'fast'` do not support sparse data. For details, see
Algorithms. |

`'fastseuclidean'` | Standardized Euclidean distance computed by using an alternative algorithm that
saves time when the number of predictors is at least 10. In some cases, this faster
algorithm can reduce accuracy. This distance metric is available only when
`NSMethod` is `'exhaustive'` . Algorithms
starting with `'fast'` do not support sparse data. For details, see
Algorithms. |

`'hamming'` | Hamming distance, which is the percentage of coordinates that differ |

`'jaccard'` | One minus the Jaccard coefficient, which is the percentage of nonzero coordinates that differ |

`'mahalanobis'` | Mahalanobis distance, computed using a positive definite covariance matrix. To change the
value of the covariance matrix, use the `'Cov'` name-value
argument. |

`'seuclidean'` | Standardized Euclidean distance. Each coordinate difference between the rows in
`X` and the query matrix `Y` is scaled by
dividing by the corresponding element of the standard deviation computed from
`X` . To specify a different scaling, use the
`'Scale'` name-value argument. |

`'spearman'` | One minus the sample Spearman's rank correlation between observations (treated as sequences of values) |

If `Mdl`

is an `hnswSearcher`

model object,
`knnsearch`

supports all the distances in the
`ExhaustiveSearcher`

table except for those beginning with
`fast`

: `"fasteuclidean"`

and
`"fastseuclidean"`

.

If `Mdl`

is an `ExhaustiveSearcher`

model object, then you
can also specify a function handle for a custom distance metric
by using `@`

(for example,
`@distfun`

). The custom distance
function must:

Have the form

`function D2 = distfun(ZI,ZJ)`

.Take as arguments:

A 1-by-

*K*vector`ZI`

containing a single row from`Mdl.X`

or`Y`

, where*K*is the number of columns of`Mdl.X`

.An

*m*-by-*K*matrix`ZJ`

containing multiple rows of`Mdl.X`

or`Y`

, where*m*is a positive integer.

Return an

*m*-by-1 vector of distances`D2`

, where`D2(`

is the distance between the observations)`j`

`ZI`

and`ZJ(`

.,:)`j`

For more details, see Distance Metrics.

**Example: **`'Distance','minkowski'`

**Data Types: **`char`

| `string`

| `function_handle`

`IncludeTies`

— Flag to include all nearest neighbors

`false`

(`0`

) (default) | `true `

(`1`

)

Flag to include nearest neighbors that have the same distance from
query observations, specified as the comma-separated pair consisting of
`'IncludeTies'`

and `false`

(`0`

) or `true`

(`1`

).

If `IncludeTies`

is `true`

, then:

`knnsearch`

includes all nearest neighbors whose distances are equal to the*k*th smallest distance in the output arguments, where*k*is the number of searched nearest neighbors specified by the`'K'`

name-value pair argument.`Idx`

and`D`

are*m*-by-`1`

cell arrays such that each cell contains a vector of at least*k*indices and distances, respectively. Each vector in`D`

contains arranged distances in ascending order. Each row in`Idx`

contains the indices of the nearest neighbors corresponding to the distances in`D`

.

If `IncludeTies`

is
`false`

, then `knnsearch`

chooses
the observation with the smallest index among the observations that have
the same distance from a query point.

**Example: **`'IncludeTies',true`

`K`

— Number of nearest neighbors

`1`

(default) | positive integer

Number of nearest neighbors to search for in the training data per
query observation, specified as the comma-separated pair consisting of
`'K'`

and a positive integer.

**Example: **`'K',2`

**Data Types: **`single`

| `double`

`P`

— Exponent for Minkowski distance metric

`2`

(default) | positive scalar

Exponent for the Minkowski distance metric, specified as a positive scalar. This argument is
valid only when `Distance`

is
`"minkowski"`

.

The value of `P`

sets the value of the
`DistParameter`

property in the model
object.

**Example: **`P=3`

**Data Types: **`single`

| `double`

**For**

*K*d-Tree Nearest Neighbor Searchers`SortIndices`

— Flag to sort returned indices according to distance

`true`

(`1`

) (default) | `false`

(`0`

)

Flag to sort returned indices according to distance, specified as the
comma-separated pair consisting of `'SortIndices'`

and
either `true`

(`1`

) or
`false`

(`0`

).

For faster performance, you can set `SortIndices`

to `false`

when the following are true:

`Y`

contains many observations that have many nearest neighbors in`X`

.`Mdl`

is a`KDTreeSearcher`

model object.`IncludeTies`

is`false`

.

In this case, `knnsearch`

returns the
indices of the nearest neighbors in no particular order. When
`SortIndices`

is `true`

, the
function arranges the nearest neighbor indices in ascending order by
distance.

`SortIndices`

is `true`

by
default. When `Mdl`

is an
`ExhaustiveSearcher`

model object or
`IncludeTies`

is `true`

, the
function always sorts the indices.

**Example: **`'SortIndices',false`

**Data Types: **`logical`

**For Exhaustive Nearest Neighbor Searchers**

`Cov`

— Covariance matrix for Mahalanobis distance metric

`cov(Mdl.X,'omitrows')`

(default) | positive definite matrix

Covariance matrix for the Mahalanobis distance metric, specified as the comma-separated pair
consisting of `'Cov'`

and a positive definite matrix.
`Cov`

is a *K*-by-*K* matrix,
where *K* is the number of columns of `Mdl.X`

. If you
specify `Cov`

and do not specify
`'`

`Distance`

`','mahalanobis'`

,
then `knnsearch`

returns an error message.

**Example: **`'Cov',eye(3)`

**Data Types: **`single`

| `double`

`Scale`

— Scale parameter value for standardized Euclidean distance metric

`std(Mdl.X,'omitnan')`

(default) | nonnegative numeric vector

Scale parameter value for the standardized Euclidean distance metric, specified as the
comma-separated pair consisting of `'Scale'`

and a nonnegative numeric
vector. `Scale`

has length *K*, where
*K* is the number of columns of `Mdl.X`

.

The software scales each difference between the training and query data using the
corresponding element of `Scale`

. If you specify
`Scale`

and do not specify
`'`

`Distance`

`','seuclidean'`

,
then `knnsearch`

returns an error message.

**Example: **```
'Scale',quantile(Mdl.X,0.75) -
quantile(Mdl.X,0.25)
```

**Data Types: **`single`

| `double`

**For HNSW Searchers**

`SearchSetSize`

— Size of candidate list of nearest neighbors

`max(10,K)`

(default) | positive integer from `K`

through
`N`

Size of the candidate list of nearest neighbors for a single query
point during the search process, specified as a positive integer from
`K`

through `N`

. Larger values
lead to a more complete search, which increases the likelihood of
finding the true nearest neighbors, but slow the search.
`SearchSetSize`

must be at least
`K`

, the number of features in the data (number of
columns in `Mdl.X`

), and must be no more than
`N`

, the number of rows in the training data
(number of rows in `Mdl.X`

).

**Example: **`SearchSetSize=15`

**Data Types: **`double`

**Note**

If you specify
`'`

`Distance`

`'`

,
`'`

`Cov`

`'`

,
`'`

`P`

`'`

, or
`'`

`Scale`

`'`

, then
`Mdl.Distance`

and `Mdl.DistParameter`

do
not change value.

## Output Arguments

`Idx`

— Training data indices of nearest neighbors

numeric matrix | cell array of numeric vectors

Training data indices of nearest neighbors, returned as a numeric matrix or cell array of numeric vectors.

If you do not specify

`IncludeTies`

(`false`

by default), then`Idx`

is an*m*-by-*k*numeric matrix, where*m*is the number of rows in`Y`

and*k*is the number of searched nearest neighbors specified by the`'K'`

name-value pair argument.`Idx(j,i)`

indicates that`Mdl.X(Idx(j,i),:)`

is one of the*k*closest observations in`Mdl.X`

to the query observation`Y(j,:)`

.If you specify

`'IncludeTies',true`

, then`Idx`

is an*m*-by-`1`

cell array such that cell`j`

(`Idx{j}`

) contains a vector of at least*k*indices of the closest observations in`Mdl.X`

to the query observation`Y(j,:)`

.

If `SortIndices`

is `true`

, then
`knnsearch`

arranges the indices in ascending order
by distance.

`D`

— Distances of nearest neighbors

numeric matrix | cell array of numeric vectors

Distances of the nearest neighbors to the query data, returned as a numeric matrix or cell array of numeric vectors.

If you do not specify

`IncludeTies`

(`false`

by default), then`D`

is an*m*-by-*k*numeric matrix, where*m*is the number of rows in`Y`

and*k*is the number of searched nearest neighbors specified by the`'K'`

name-value pair argument.`D(j,i)`

is the distance between`Mdl.X(Idx(j,i),:)`

and the query observation`Y(j,:)`

with respect to the distance metric.If you specify

`'IncludeTies',true`

, then`D`

is an*m*-by-`1`

cell array such that cell`j`

(`D{j}`

) contains a vector of at least*k*distances of the closest observations in`Mdl.X`

to the query observation`Y(j,:)`

.

If `SortIndices`

is `true`

, then
`knnsearch`

arranges the distances in ascending
order.

## Tips

`knnsearch`

finds the *k* (positive integer)
points in `Mdl.X`

that are *k*-nearest for each
`Y`

point. In contrast, `rangesearch`

finds all the points in `Mdl.X`

that are
within distance `r`

(positive scalar) of each `Y`

point.

## Algorithms

### Fast Euclidean Distance Algorithm

The values of the `Distance`

argument that begin `fast`

(such as `'fasteuclidean'`

and `'fastseuclidean'`

)
calculate Euclidean distances using an algorithm that uses extra memory to save
computational time. This algorithm is named "Euclidean Distance Matrix Trick" in Albanie
[1] and elsewhere. Internal
testing shows that this algorithm saves time when the number of predictors is at least 10.
Algorithms starting with `'fast'`

do not support sparse data.

To find the matrix D of distances between all the points *x _{i}* and

*x*, where each

_{j}*x*has

_{i}*n*variables, the algorithm computes distance using the final line in the following equations:

$$\begin{array}{c}{D}_{i,j}^{2}=\Vert {x}_{i}-{x}_{j}{\Vert}^{2}\\ ={(}^{{x}_{i}}({x}_{i}-{x}_{j})\\ =\Vert {x}_{i}{\Vert}^{2}-2{x}_{i}^{T}{x}_{j}+\Vert {x}_{j}{\Vert}^{2}.\end{array}$$

The matrix $${x}_{i}^{T}{x}_{j}$$ in the last line of the equations is called the *Gram
matrix*. Computing the set of squared distances is faster, but slightly less
numerically stable, when you compute and use the Gram matrix instead of computing the
squared distances by squaring and summing. For a discussion, see Albanie [1].

## References

[1] Albanie, Samuel. *Euclidean Distance Matrix Trick.* June, 2019. Available at https://www.robots.ox.ac.uk/%7Ealbanie/notes/Euclidean_distance_trick.pdf.

## Alternative Functionality

`knnsearch`

is an object function that requires an`ExhaustiveSearcher`

,`KDTreeSearcher`

, or`hnswSearcher`

model object and query data. Under equivalent conditions for an exhaustive or K*d*-tree search, the`knnsearch`

object function returns the same results as the`knnsearch`

function with the specified name-value argument`NSMethod="exhaustive"`

or`NSMethod="kdtree"`

, respectively. Note that the`knnsearch`

function does not provide a similar name-value argument for specifying an`hnswSearcher`

model.For

*k*-nearest neighbors classification, see`fitcknn`

and`ClassificationKNN`

.

## References

[1] Friedman, J. H., Bentley, J., and Finkel, R. A. (1977). “An Algorithm
for Finding Best Matches in Logarithmic Expected Time.” *ACM
Transactions on Mathematical Software* Vol. 3, Issue 3, Sept. 1977, pp.
209–226.

[2] Malkov, Yu. A., and D. A. Yashunin. *Efficient and Robust Approximate Nearest Neighbor Search Using Hierarchical Navigable Small World Graphs.* Available at https://arxiv.org/abs/1603.09320.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

This table contains notes about the arguments of

`knnsearch`

. Arguments not included in this table are fully supported.Argument Notes and Limitations `Mdl`

If

`Mdl`

is an`hnswSearcher`

object, you cannot use`Mdl`

for code generation.There are two ways to use

`Mdl`

in code generation. For an example, see Code Generation for Nearest Neighbor Searcher.Use

`saveLearnerForCoder`

,`loadLearnerForCoder`

, and`codegen`

(MATLAB Coder) to generate code for the`knnsearch`

function. Save a trained model by using`saveLearnerForCoder`

. Define an entry-point function that loads the saved model by using`loadLearnerForCoder`

and calls the`knnsearch`

function. Then use`codegen`

to generate code for the entry-point function.Include

`coder.Constant(Mdl)`

in the`-args`

value of`codegen`

(MATLAB Coder).

If

`Mdl`

is a`KDTreeSearcher`

object, and the code generation build type is a MEX function, then`codegen`

(MATLAB Coder) generates a MEX function using Intel^{®}Threading Building Blocks (TBB) for parallel computation. Otherwise,`codegen`

generates code using`parfor`

(MATLAB Coder).MEX function for the

*k*d-tree search algorithm —`codegen`

generates an optimized MEX function using Intel TBB for parallel computation on multicore platforms. You can use the MEX function to accelerate MATLAB^{®}algorithms. For details on Intel TBB, see https://www.intel.com/content/www/us/en/developer/tools/oneapi/onetbb.html.If you generate the MEX function to test the generated code of the

`parfor`

version, you can disable the usage of Intel TBB. Set the`ExtrinsicCalls`

property of the MEX configuration object to`false`

. For details, see`coder.MexCodeConfig`

(MATLAB Coder).MEX function for the exhaustive search algorithm and standalone C/C++ code for both algorithms — The generated code of

`knnsearch`

uses`parfor`

(MATLAB Coder) to create loops that run in parallel on supported shared-memory multicore platforms in the generated code. If your compiler does not support the Open Multiprocessing (OpenMP) application interface or you disable OpenMP library, MATLAB Coder™ treats the`parfor`

-loops as`for`

-loops. To find supported compilers, see Supported Compilers. To disable OpenMP library, set the`EnableOpenMP`

property of the configuration object to`false`

. For details, see`coder.CodeConfig`

(MATLAB Coder).

`'Distance'`

Cannot be a custom distance function.

Must be a compile-time constant; its value cannot change in the generated code.

`knnsearch`

does not support code generation for fast Euclidean distance computations, meaning those distance metrics whose names begin with`fast`

(for example,`'fasteuclidean'`

).

`'IncludeTies'`

Must be a compile-time constant; its value cannot change in the generated code.

`'SortIndices'`

Not supported. The output arguments are always sorted. Name-value pair arguments Names in name-value arguments must be compile-time constants. For example, to allow a user-defined exponent for the Minkowski distance in the generated code, include

`{coder.Constant('Distance'),coder.Constant('Minkowski'),coder.Constant('P'),0}`

in the`-args`

value of`codegen`

(MATLAB Coder).`Idx`

When you specify

`'IncludeTies'`

as`true`

, the sorted order of tied distances in the generated code can be different from the order in MATLAB due to numerical precision.`knnsearch`

returns integer-type (`int32`

) indices in generated standalone C/C++ code. Therefore, the function allows for strict single-precision support when you use single-precision inputs. For MEX code generation, the function still returns double-precision indices to match the MATLAB behavior.*Before R2020a:*`knnsearch`

returns double-precision indices in generated standalone C/C++ code.

For more information, see Introduction to Code Generation and Code Generation for Nearest Neighbor Searcher.

## Version History

**Introduced in R2010a**

### R2024a: Approximate search using `hnswSearcher`

object

Find approximate nearest neighbors using an `hnswSearcher`

model
object. An `hnswSearcher`

object takes longer to create than an
`ExhaustiveSearcher`

or `KDTreeSearcher`

object, but computes approximate nearest neighbors more quickly. Create an
`hnswSearcher`

object by using the
`hnswSearcher`

function or by using `createns`

with the specification `NSMethod="hnsw"`

.
For details, see `hnswSearcher`

.

### R2023a: Fast Euclidean distance using a cache

The `'fasteuclidean'`

and `'fastseuclidean'`

distance metrics accelerate the computation of Euclidean distances by using a cache
and a different algorithm (see Algorithms).

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
