# isanomaly

Find anomalies in data using one-class support vector machine (SVM) for incremental learning

*Since R2023b*

## Syntax

## Description

finds anomalies in the table `tf`

= isanomaly(`Mdl`

,`Tbl`

)`Tbl`

using the `incrementalOneClassSVM`

object `Mdl`

and returns the logical
array `tf`

, whose elements are `true`

when an anomaly is
detected in the corresponding row of `Tbl`

. You must use this syntax if
you create `Mdl`

by passing a table to `incrementalOneClassSVM`

or the `incrementalLearner`

function of `OneClassSVM`

.

specifies the threshold for the anomaly score using any of the input argument combinations
in the previous syntaxes. `tf`

= isanomaly(___,ScoreThreshold=`scoreThreshold`

)`isanomaly`

detects observations with scores
above `scoreThreshold`

as anomalies.

## Examples

### Incrementally Train One-Class SVM Model on Shingled Data

Train a one-class SVM model on a simulated noisy periodic shingled time series containing no anomalies by using `ocsvm`

. Convert the trained model to an incremental learner object, and incrementally fit the time series and detect anomalies.

**Create Simulated Data Stream **

Create a simulated data stream of observations representing a noisy sinusoid signal.

rng(0,"twister"); % For reproducibility period = 100; n = 5001+period; sigma = 0.04; a = linspace(1,n,n)'; b = sin(2*pi*(a-1)/period)+sigma*randn(n,1);

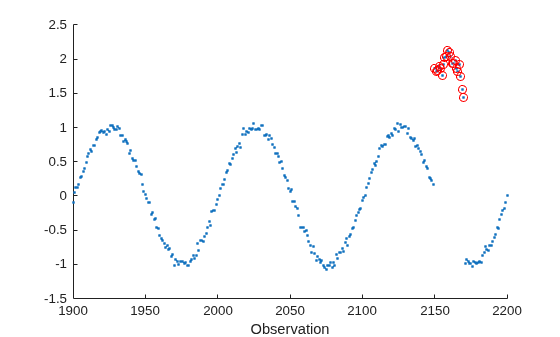

Introduce an anomalous region into the data stream. Plot the data stream portion which contains the anomalous region, and circle the anomalous data points.

c = 2*(sin(2*pi*(a-35)/period)+sigma*randn(n,1));

b(2150:2170) = c(2150:2170); scatter(a,b,".") xlim([1900,2200]) xlabel("Observation") hold on scatter(a(2150:2170),b(2150:2170),"r") hold off

Convert the single-featured data set `b`

into a multi-featured data set by shingling [1] with a shingle size equal to the period of the signal. The $$i$$th shingled observation is a vector of $$k$$ features with values $${b}_{i}$$, $${b}_{i+1}$$, ..., $${b}_{i+k-1}$$, where $$k$$ is the shingle size.

X = []; shingleSize = period; for i = 1:n-shingleSize X = [X;b(i:i+shingleSize-1)']; end

**Train Model and Perform Incremental Anomaly Detection**

Fit a one-class SVM model to the first 1000 shingled observations, specifying a contamination fraction of zero. Convert it to an `incrementalOneClassSVM`

model object.

Mdl = ocsvm(X(1:1000,:),ContaminationFraction=0); IncrementalMdl = incrementalLearner(Mdl);

To simulate a data stream, process the full shingled data set in chunks of 100 observations at a time. At each iteration:

Process 100 observations.

Calculate scores and detect anomalies using the

`isanomaly`

function.Store

`anomIdx`

, the indices of shingled observations marked as anomalies.If the chunk contains fewer than three anomalies, fit and update the previous incremental model.

n = numel(X(:,1)); numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); anomIdx = []; allscores = []; % Incremental fitting rng(0,"twister"); % For reproducibility for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; [isanom,scores] = isanomaly(IncrementalMdl,X(idx,:)); allscores = [allscores;scores]; anomIdx = [anomIdx;find(isanom)+ibegin-1]; if (sum(isanom) < 3) IncrementalMdl = fit(IncrementalMdl,X(idx,:)); end end

**Analyze Incremental Model During Training**

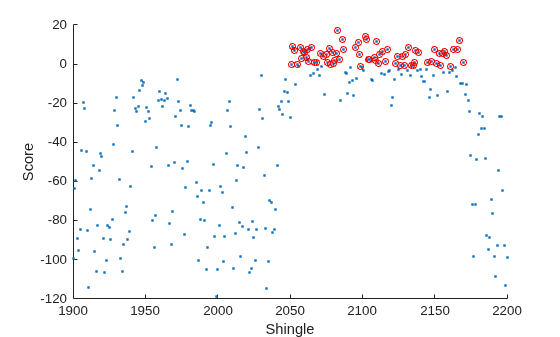

At each iteration, the software calculates a score value for each observation in the data chunk. A negative score value with large magnitude indicates a normal observation, and a large positive value indicates an anomaly. Plot the anomaly score for the observations in the vicinity of the anomaly. Circle the scores of shingles that the software returns as anomalous.

figure scatter(a(1:5000),allscores,".") hold on scatter(a(anomIdx),allscores(anomIdx),20,"or") xlim([1900,2200]) xlabel("Shingle") ylabel("Score") hold off

Because the introduced anomalous region begins at observation 2150, and the shingle size is 100, shingle 2051 is the first one to show a high anomaly score. Some shingles between 2050 and 2170 have scores lying just below the anomaly score threshold due to the noise in the sinusoidal signal. The shingle size affects the performance of the model by defining how many subsequent consecutive data points in the original time series the software uses to calculate the anomaly score for each shingle.

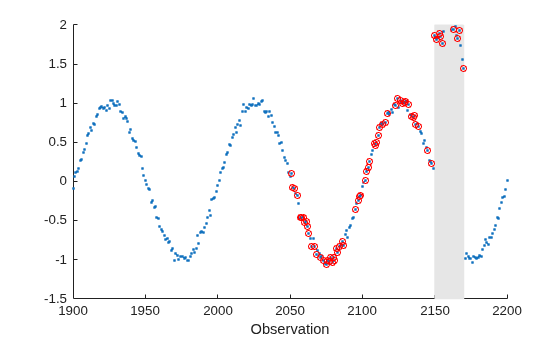

Plot the unshingled data and highlight the introduced anomalous region. Circle the observation number of the first element in each shingle that the software returned as anomalous.

figure xlim([1900,2200]) ylim([-1.5 2]) rectangle(Position=[2150 -1.5 20 3.5],FaceColor=[0.9 0.9 0.9], ... EdgeColor=[0.9 0.9 0.9]) hold on scatter(a,b,".") scatter(a(anomIdx),b(anomIdx),20,"or") xlabel("Observation") hold off

### Perform Incremental Anomaly Detection Using a Score Threshold Buffer

Perform incremental anomaly detection using a score threshold buffer on a simulated noisy periodic shingled time series containing anomalies.

**Create Simulated Data Stream**

Create a simulated data stream of observations representing a noisy sinusoid signal.

rng(0,"twister"); % For reproducibility period = 100; n = 5000; sigma = 0.18; a = linspace(1,n,n)'; X1 = sin(2*pi*a/period)+sigma*randn(n,1); X2 = sin(2*pi*a/period/3)+sigma*randn(n,1);

Introduce an anomalous region into the data stream.

c = 5*sin(2*pi*(a-35)/period+sigma*randn(n,1)); X1(4051:4070) = c(4051:4070); X2(4051:4070) = c(4051:4070); X = [X1 X2];

**Create Incremental One-Class SVM Model**

Create an `incrementalOneClassSVM`

model object. Specify a score warm-up period of 1000 observations.

scoreWarmupPeriod = 1000; IncrementalMdl = incrementalOneClassSVM(ScoreWarmupPeriod=scoreWarmupPeriod);

**Fit Incremental Model and Detect Anomalies**

To simulate a data stream, process the full data set in chunks of 100 observations at a time. At each iteration:

Process 100 observations.

If the incremental model is warm, calculate scores and detect anomalies using the

`isanomaly`

function.Store

`allscores`

, the scores of the observations.Store

`anomIdx`

, the indices of observations detected as anomalies.If the chunk contains fewer than three anomalies, fit and update the previous incremental model.

numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); anomIdx = []; allscores = []; isanom = []; % Incremental fitting for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; if (IncrementalMdl.IsWarm) [isanom,scores] = isanomaly(IncrementalMdl,X(idx,:)); allscores = [allscores;scores]; anomIdx = [anomIdx;find(isanom)+ibegin-1]; end if (sum(isanom) < 3) IncrementalMdl = fit(IncrementalMdl,X(idx,:)); end end

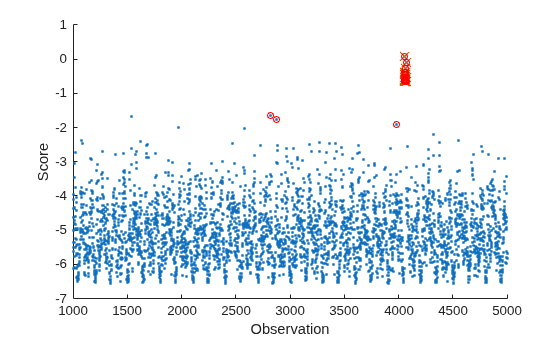

Plot the scores for observations after the warm-up period. Circle the detected anomalies and indicate the introduced anomalous observations with an `x`

marker.

scatter(a(scoreWarmupPeriod+1:end),allscores(1:end),".") xlabel("Observation") ylabel("Score") hold on scatter(a(4051:4070), ... allscores(4051-scoreWarmupPeriod:4070-scoreWarmupPeriod),90,"x") scatter(a(anomIdx),allscores(anomIdx-scoreWarmupPeriod),20,"or") hold off

The software detects all of the observations in the introduced anomalous region as anomalies. However, the software also detects several other observations as anomalies due to the noisy sinusoid signal.

**Detect Anomalies Using a Score Threshold Buffer**

Repeat the incremental anomaly detection procedure with a new incremental one-class SVM model. Specify a score warm-up period of 1000 observations. Only observations with scores above `ScoreThreshold`

+ `thresholdBuffer`

are detected as anomalies. Specify `thresholdBuffer`

= 1.

thresholdBuffer = 1; scoreWarmupPeriod = 1000; IncrementalMdl = incrementalOneClassSVM(ScoreWarmupPeriod=scoreWarmupPeriod); numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); anomIdx = []; allscores = []; isanom = []; % Incremental fitting for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; if (IncrementalMdl.IsWarm) [isanom,scores] = isanomaly(IncrementalMdl,X(idx,:), ... ScoreThreshold=IncrementalMdl.ScoreThreshold+thresholdBuffer); allscores = [allscores;scores]; anomIdx = [anomIdx;find(isanom)+ibegin-1]; end if (sum(isanom) < 3) IncrementalMdl = fit(IncrementalMdl,X(idx,:)); end end

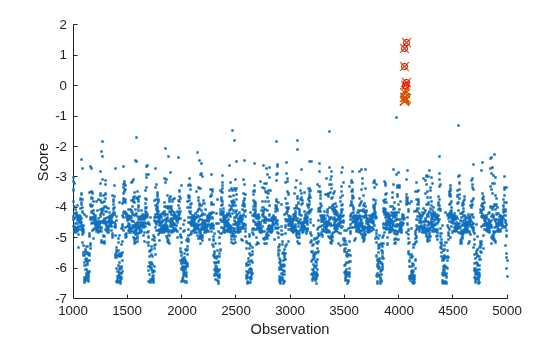

Plot the scores for observations after the warm-up period. The scores are different from those in the previous model due to the stochastic behavior of the one-class SVM training algorithm, which incorporates random feature expansion. Circle the detected anomalies and indicate the introduced anomalous observations with an `x`

marker.

scatter(a(scoreWarmupPeriod+1:end),allscores(1:end),".") xlabel("Observation") ylabel("Score") hold on scatter(a(4051:4070), ... allscores(4051-scoreWarmupPeriod:4070-scoreWarmupPeriod),90,"x") scatter(a(anomIdx),allscores(anomIdx-scoreWarmupPeriod),20,"or") hold off

The software detects only the observations in the introduced anomalous region as anomalies.

## Input Arguments

`Mdl`

— Trained one-class SVM model

`incrementalOneClassSVM`

object

Trained one-class SVM model, specified as an `incrementalOneClassSVM`

model object.

`Tbl`

— Predictor data

table

Predictor data, specified as a table. Each row of `Tbl`

corresponds to one observation, and each column corresponds to one predictor variable.
Multicolumn variables and cell arrays other than cell arrays of character vectors are
not allowed.

If you train `Mdl`

using a table, then you must provide predictor
data by using `Tbl`

, not `X`

. All predictor
variables in `Tbl`

must have the same variable names and data types
as those in the training data. However, the column order in `Tbl`

does not need to correspond to the column order of the training data.

**Note**

Incremental learning functions support only numeric input predictor data. You
must prepare an encoded version of categorical data to use incremental learning
functions. Use `dummyvar`

to convert each categorical
variable to a dummy variable. For more details, see Dummy Variables.

**Data Types: **`table`

`X`

— Predictor data

numeric matrix

Predictor data, specified as a numeric matrix. Each row of `X`

corresponds to one observation, and each column corresponds to one predictor
variable.

If you train `Mdl`

using a matrix, then you must provide
predictor data by using `X`

, not `Tbl`

. The
variables that make up the columns of `X`

must have the same order as
the columns in the training data.

**Note**

Incremental learning functions support only numeric input predictor data. You
must prepare an encoded version of categorical data to use incremental learning
functions. Use `dummyvar`

to convert each categorical
variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable
matrices and any other numeric predictors, in the same way that the training function
encodes categorical data. For more details, see Dummy Variables.

**Data Types: **`single`

| `double`

`scoreThreshold`

— Threshold for anomaly score

`Mdl.ScoreThreshold`

(default) | numeric scalar in the range `(–Inf,Inf)`

Threshold for the anomaly score, specified as a numeric scalar in the range
`(–Inf,Inf)`

. `isanomaly`

detects observations
with scores above the threshold as anomalies.

The default value is the `ScoreThreshold`

property value of `Mdl`

.

**Example: **`ScoreThreshold=0.5`

**Data Types: **`single`

| `double`

## Output Arguments

`tf`

— Anomaly indicators

logical column vector

Anomaly indicators, returned as a logical column vector. An element of `tf`

is `true`

when the observation in the corresponding row of `Tbl`

or `X`

is an anomaly, and `false`

otherwise. `tf`

has the same length as `Tbl`

or `X`

.

`isanomaly`

detects observations with `scores`

above the threshold
(the `ScoreThreshold`

value) as anomalies.

**Note**

`isanomaly`

assigns the anomaly indicator of
`false`

(logical 0) to observations with at least one missing
value.

`scores`

— Anomaly scores

numeric column vector

Anomaly scores, returned as a numeric column vector whose values are in the range
`(–Inf,Inf)`

. `scores`

has the same length as
`Tbl`

or `X`

, and each element of
`scores`

contains an anomaly score for the observation in the
corresponding row of `Tbl`

or `X`

. A negative
score value with large magnitude indicates a normal observation, and a large positive
value indicates an anomaly.

**Note**

`isanomaly`

assigns the anomaly score of
`NaN`

to observations with at least one missing value.

## References

[1] Guha, Sudipto, N. Mishra, G. Roy, and O. Schrijvers. "Robust Random Cut Forest Based Anomaly Detection on Streams," *Proceedings of The 33rd International Conference on Machine Learning* 48 (June 2016): 2712–21.

[2] Bartos, Matthew D., A. Mullapudi, and S. C. Troutman. "rrcf: Implementation of the Robust Random Cut Forest Algorithm for Anomaly Detection on Streams." *Journal of Open Source Software* 4, no. 35 (2019): 1336.

## Version History

**Introduced in R2023b**
