# canonvars

## Syntax

## Description

## Examples

### Calculate Canonical Response Data for One-Way MANOVA

Load the `fisheriris`

data set.

`load fisheriris`

The column vector `species`

contains iris flowers of three different species: setosa, versicolor, and virginica. The matrix `meas`

contains four types of measurements for the flower: the length and width of sepals and petals in centimeters.

Perform a one-way MANOVA with `species`

as the factor and the measurements in `meas`

as the response variables.

maov = manova(species,meas);

`maov`

is a one-way `manova`

object that contains the results of the one-way MANOVA.

Calculate the canonical response data for `maov`

.

canon = canonvars(maov)

`canon = `*150×4*
-8.0618 0.3004 0.2780 -0.0147
-7.1287 -0.7867 0.0678 0.8910
-7.4898 -0.2654 -0.4915 0.2587
-6.8132 -0.6706 -0.7707 -0.2776
-8.1323 0.5145 -0.0240 -0.4797
-7.7019 1.4617 0.3962 -0.4742
-7.2126 0.3558 -1.0245 -0.3291
-7.6053 -0.0116 0.0437 -0.2531
-6.5606 -1.0152 -1.1049 0.1391
-7.3431 -0.9473 0.0965 -0.1066
⋮

The output shows the canonical response data for the first ten observations. Each column of the output corresponds to a different canonical variable.

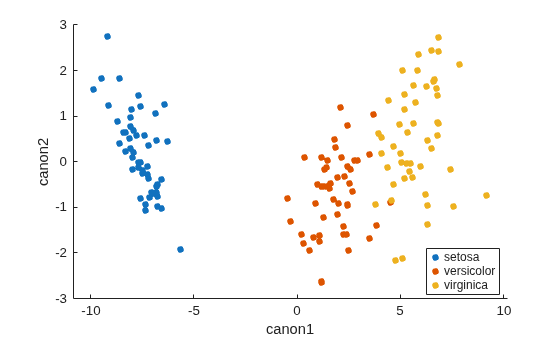

Create a scatter plot using the first and second canonical variables.

gscatter(canon(:,1),canon(:,2),species) xlabel("canon1") ylabel("canon2")

The function calculates the canonical variables by finding the lowest dimensional representation of the response variables that maximizes the correlation between the response variables and the factor values. The plot shows that the response data for the first two canonical variables is mostly separate for the different factor values. In particular, observations with the first canonical variable less than `0`

correspond to the `setosa`

group. Observations with the first canonical response variable greater than `0`

and less than `5`

correspond to the `versicolor`

group. Finally, observations with the first canonical response variable greater than `5`

correspond to the `virginica`

group.

### Return Canonical Coefficients

Load the `carsmall`

data set.

`load carsmall`

The variable `Model_Year`

contains data for the year a car was manufactured, and the variable `Cylinders`

contains data for the number of engine cylinders in the car. The `Acceleration`

and `Displacement`

variables contain data for car acceleration and displacement.

Use the `table`

function to create a table from the data in `Model_Year`

and `Cylinders`

.

tbl = table(Model_Year,Cylinders,VariableNames=["Year" "Cylinders"]);

Create a matrix of response variables from `Acceleration`

and `Displacement`

.

y = [Acceleration Displacement];

Perform a two-way MANOVA using the factor values in `tbl`

and the response variables in `y`

.

maov = manova(tbl,y);

`maov`

is a two-way `manova`

object that contains the results of the two-way MANOVA.

Return the canonical response data, canonical coefficients, and eigenvalues for the response data in `maov`

, grouped by the `Cylinders`

factor.

`[canon,eigenvec,eigenval] = canonvars(maov,"Cylinders")`

`canon = `*100×2*
2.9558 -0.5358
4.2381 -0.4096
3.2798 -0.8889
2.8661 -0.5600
2.7996 -1.2391
6.5913 -0.4348
7.3336 -0.6749
6.9131 -1.0089
7.3680 -0.2249
5.4195 -1.4126
⋮

`eigenvec = `*2×2*
0.0045 0.4419
0.0299 0.0081

`eigenval = `*2×1*
6.5170
0.0808

The output shows the canonical response data for each canonical variable, and the vectors of canonical coefficients for each canonical variable with their corresponding eigenvalues.

You can use the coefficients in `eigenvec`

to calculate canonical response data manually. Normalize the training data in `maov.Y`

by using the `mean`

function.

normres = maov.Y - mean(maov.Y)

`normres = `*100×2*
-3.0280 99.4000
-3.5280 142.4000
-4.0280 110.4000
-3.0280 96.4000
-4.5280 94.4000
-5.0280 221.4000
-6.0280 246.4000
-6.5280 232.4000
-5.0280 247.4000
-6.5280 182.4000
⋮

Calculate the product of the matrix of normalized response data and matrix of canonical coefficients.

mcanon = normres*eigenvec

`mcanon = `*100×2*
2.9558 -0.5358
4.2381 -0.4096
3.2798 -0.8889
2.8661 -0.5600
2.7996 -1.2391
6.5913 -0.4348
7.3336 -0.6749
6.9131 -1.0089
7.3680 -0.2249
5.4195 -1.4126
⋮

The first ten rows of `mcanon`

are identical to the first ten rows of data in `canon`

.

Check that `mcanon`

is identical to `canon`

by using the `max`

and `sum`

functions.

max(abs(canon-mcanon))

`ans = `*1×2*
0 0

The zero output confirms that the two methods of calculating the canonical response data are equivalent.

## Input Arguments

`maov`

— MANOVA results

`manova`

object

MANOVA results, specified as a `manova`

object.
The properties of `maov`

contain the factor values and response data
used by `canonvars`

to calculate the canonical response
data.

`factor`

— Factor used to group response data

string scalar | character array

Factor used to group the response data, specified as a string scalar or character array.
`factor`

must be a name in
`maov.FactorNames`

.

**Example: **`"Factor2"`

**Data Types: **`char`

| `string`

## Output Arguments

`canon`

— Canonical response data

*n*-by-*r* numeric matrix

Canonical response data, returned as an *n*-by-*r*
numeric matrix. *n* is the number of observations in
`maov`

, and *r* is the number of response
variables. To get the canonical response data, `canonvars`

normalizes the data in `maov.Y`

and then calculates linear
combinations of the normalized data using the canonical coefficients. For more
information, see eigenvec.

**Data Types: **`single`

| `double`

`eigenvec`

— Canonical coefficients

*r*-by-*r* numeric matrix

Canonical coefficients used to calculate the canonical response data, returned as an
*r*-by-*r* numeric matrix. *r* is
the number of response variables in `maov.Y`

. Each column of
`eigenvec`

corresponds to a different canonical variable. The
leftmost column of `eigenvec`

corresponds to the canonical variable
that is the most correlated to the factor values, and the rightmost column corresponds
to the variable that is the least correlated. The canonical variables are uncorrelated
to each other. For more information, see Canonical Coefficients.

**Data Types: **`single`

| `double`

`eigenval`

— Eigenvalues

*r*-by-1 numeric vector

Eigenvalues for the characteristic equation `canonvars`

uses to
calculate the canonical coefficients, returned as an *r*-by-1 numeric
vector. For more information, see Canonical Coefficients.

**Data Types: **`single`

| `double`

## More About

### Canonical Coefficients

The canonical coefficients are the `r`

eigenvectors of the
characteristic equation

$$\{\begin{array}{l}Mv=\lambda v\\ M=H{E}^{-1},\end{array}$$

where *H* is the hypothesis matrix for
`maov`

, *E* is the error matrix, and
`r`

is the number of response variables.

The canonical variables correspond to projections of the response variables into linear
spaces with dimensions equal to or smaller than the number of response variables. The first
canonical variable is the projection of the response variables into the one-dimensional
Euclidean space that has the maximum correlation with the factor values. For 0 < *n* ≤ `r`

, the *n*th canonical variable is the projection into the
one-dimensional Euclidean space that has the maximum correlation with the factor values,
subject to the constraint that the canonical variable is uncorrelated with the previous *n* – 1 canonical variables. For more information, see
*Q _{e}* and

*Q*in Multivariate Analysis of Variance for Repeated Measures.

_{h}## Version History

**Introduced in R2023b**
