manova
Description
A manova
object contains the results of a one-, two-, or N-way
MANOVA. Use the properties of a manova
object to determine if the vector of
means in a set of response data differs with respect to the values (levels) of a factor or
multiple factors. The object properties include information about the coefficient estimates,
MANOVA model fit to the response data, and factors used to perform the analysis. For more
information about MANOVA, see Multivariate Analysis of Variance for Repeated Measures.
Creation
Syntax
Description
uses the variables in maov
= manova(tbl
,ResponseVarNames
)tbl
as factors and response variables. The
ResponseVarNames
argument specifies which variables contain the
response data.
specifies the MANOVA model in Wilkinson notation. The terms of
maov
= manova(tbl
,formula
)formula
use only the variable names in
tbl
.
specifies options using one or more name-value arguments in addition to any of the input
argument combinations in previous syntaxes. For example, you can specify which test
statistic to calculate, which factors are categorical, and the MANOVA model type. maov
= manova(___,Name=Value
)
Input Arguments
Y
— Response data
numeric matrix | numeric vector
Response data, specified as a numeric matrix or numeric vector. Each column of
Y
corresponds to a separate response variable. You must also
specify factor values by passing the factors
or
tbl
input argument to manova
.
Y
must have the same number of rows as the input argument
containing the factor values, because manova
assigns factor
values to response data by row index.
The following example shows how manova
assigns factor
values to response data for a one-way MANOVA:
In this example, g contains the factor values, y contains the response data, and is a row vector of response data for the ith observation. R is the number of response variables.
The following example shows how manova
assigns factor
values to response data for a three-way MANOVA:
In this example, g1, g2, and g3 contain the values for the three factors.
Note
The manova
function ignores NaN
values, <undefined>
values, empty characters, and empty
strings in Y
. If factors
or
tbl
contains NaN
or
<undefined>
values, or empty characters or strings, the
function ignores the corresponding observations in Y
.
Data Types: single
| double
factors
— factors and factor values
numeric vector | logical vector | categorical vector | string vector | cell array of character vectors | numeric matrix
Factors and factor values for the MANOVA, specified as a numeric, logical, categorical, or string vector, a cell array of character vectors, or a numeric matrix. Factors and factor values are sometimes called grouping variables and group names, respectively.
For a one-way MANOVA, factors
is a column vector or cell
array of vectors in which each element represents the factor value of the response
data in the same row of Y
. For a two- or N-way MANOVA,
factors
is a numeric matrix in which each column corresponds to
a different factor. Each row of factors
contains the factor
values for the observation in the same row of Y
.
factors
and Y
must have the same number of
rows.
The following example shows how manova
assigns the
factor values to response data for a one-way MANOVA:
In this example, g is a vector containing the factor values, y is a matrix of response data, and is a row vector of response data for the ith observation. R is the number of response variables.
The following example shows how manova
assigns factor
values to the response data for a three-way MANOVA:
In this example, g1, g2, and g3 are columns of a numeric matrix that contain values for three factors.
Note
If factors
or tbl
contains
NaN
values, <undefined>
values, empty
characters, or empty strings, the manova
function ignores
the corresponding observations in Y
.
Example: [1,2,1,3,1,...,3,1]
Example: ["white","red","white",...,"black","red"]
Example: stats=[height,age]; manova(stats,Y)
;
Data Types: single
| double
| logical
| categorical
| string
| cell
tbl
— Factors, factor values, and response data
table
Factors, factor values, and response data, specified as a table. The variables of
tbl
can contain numeric, logical, categorical, or string
elements, or cell arrays of characters. When you specify tbl
, you
must also specify the response data Y
,
ResponseVarNames
, or formula
.
If you specify the response data in
Y
, the table variables represent only the factors for the MANOVA. A factor value in a variable oftbl
corresponds to the response dataY
at the same row index.tbl
must have the same number of rows as the length ofY
.If you do not specify
Y
, you must indicate which variables intbl
contain the response data by using theResponseVarNames
orformula
input argument. You can also choose a subset of factors intbl
to use in the MANOVA by setting the name-value argumentFactorNames
. Themanova
function associates the values of the factor variables intbl
with the response data in the same row.
Note
If factors
or tbl
contains
NaN
values, <undefined>
values, empty
characters, or empty strings, the manova
function ignores
the corresponding observations in Y
.
Example: mountain=table(altitude,temperature,soilpH,iron);
manova(mountain,["soilpH" "iron"])
Data Types: table
ResponseVarNames
— Names of response variables
string vector | cell array of character vectors
Names of the response variables, specified as a string vector or a cell array of
character vectors. ResponseVarNames
indicates which variables in
tbl
contain the response data. When you specify
ResponseVarNames
, you must also specify the
tbl
input argument. The names in
ResponseVarNames
must be names of variables in
tbl
.
Example: "r"
Data Types: char
| string
| cell
formula
— MANOVA model
string scalar | character vector
MANOVA model, specified as a string scalar or a character vector in Wilkinson notation. When you specify formula
, you must
also specify tbl
. The terms in formula
must
be names of variables in tbl
.
Example: "r1-r3 ~ f1 + f1:f2:f3"
Data Types: char
| string
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: manova(factors,Y,CategoricalFactors=[1 2],FactorNames=["school"
"major" "age"],ResponseNames=["GPA" "StartYear" "GraduationYear"])
specifies
the first two factors in factors
as categorical, the factor names as
"school"
, "major"
, and "age"
,
and the names of the response variables as "GPA"
,
"StartYear"
, and "GraduationYear"
.
CategoricalFactors
— Factors to treat as categorical
"all"
(default) | numeric vector | logical vector | string vector | cell array of character vectors
Factors to treat as categorical, specified as a numeric, logical, or string
vector, or a cell array of character vectors. When
CategoricalFactors
is set to the default value
"all"
, the manova
function treats all
factors as categorical.
Specify CategoricalFactors
as one of the following:
A numeric vector with indices between 1 and N, where N is the number of factor variables. The
manova
function treats factors with indices inCategoricalFactors
as categorical. The index of a factor is the order in which it appears in the columns oftbl
.A logical vector of length N, where a
true
entry means that the corresponding factor is categorical.A string vector of factor names that match names in
tbl
orFactorNames
.
Example: CategoricalFactors=["Location"
"Smoker"]
Example: CategoricalFactors=[1 3 4]
Data Types: single
| double
| logical
| char
| string
| cell
FactorNames
— Factor names
string vector | cell array of character vectors
Factor names, specified as a string vector or a cell array of character vectors.
If you specify
tbl
in the call tomanova
,FactorNames
must be a subset of the table variables intbl
.manova
uses only the factors specified inFactorNames
. In this case, the default value ofFactorNames
is the collection of names of the factor variables intbl
.If you specify
factors
in the call tomanova
, you can specify any names forFactorNames
. In this case, the default value ofFactorNames
is["Factor1","Factor2",…,"FactorN"]
, where N is the number of factors.
When you specify formula
, manova
ignores FactorNames
.
Example: FactorNames=["time","latitude"]
Data Types: char
| string
| cell
ModelSpecification
— Type of MANOVA model to fit
"linear"
(default) | "interactions"
| "purequadratic"
| "quadratic"
| "polyIJK"
| "full"
| integer | string scalar | character vector | terms matrix
Type of MANOVA model to fit, specified as one of the options in the following
table or an integer, string scalar, character vector, or terms matrix. The default
value for ModelSpecification
is
"linear"
.
Option | Terms Included in MANOVA Model |
---|---|
"linear" (default) | Main effect (linear) terms |
"interactions" | Main effect and pairwise interaction terms |
"purequadratic" | Main effects and squared main effects. All factors must be continuous
to use this option. Set CategoricalFactors = [] to
specify all factors as continuous. |
"quadratic" | Main effects, squared main effects, and pairwise interaction terms. All factors must be continuous to use this option. |
"polyIJK" | Polynomial terms up to degree I for the first factor, degree J for the second factor, and so on. The degree of an interaction term cannot exceed the maximum exponent of a main term. You must specify a degree for each factor. |
"full" | Main effect and all interaction terms |
To include all main effects and interaction terms up to the
kth level, set ModelSpecification
equal to
k
. When ModelSpecification
is an integer,
the maximum level of an interaction term in the MANOVA model is the minimum between
ModelSpecification
and the number of factors.
If you specify formula
, manova
ignores ModelSpecification
.
You can also specify the terms of a MANOVA model using one of the following:
Double or single terms matrix T with a column for each factor. Each term in the MANOVA model is a product corresponding to a row of T. The row elements are the exponents of their corresponding factors. For example,
T(i,:) = [1 2 1]
means that termi
is . Because themanova
function automatically includes a constant term in the MANOVA model, you do not need to include a row of zeros in the terms matrix.Character vector or string scalar formula in Wilkinson notation, representing one or more terms. The formula must use names contained in
FactorNames
,ResponseNames
, or table variable names (iftbl
is specified).
Example: ModelSpecification="poly3212"
Example: ModelSpecification=3
Example: ModelSpecification="r1-r3 ~ c1*c2"
Example: ModelSpecification=[0 0 0;1 0 0;0 1 0;0 0
1]
Data Types: single
| double
| char
| string
ResponseNames
— Names of response variables
1-by-R string vector | 1-by-R cell array of character vectors
Names of the response variables, specified as a 1-by-R string
vector or a 1-by-R cell array of character vectors, where
R is the number of response variables. If you specify
ResponseVarNames
or formula
,
manova
ignores
ResponseNames
.
Example: ResponseNames=["soilpH" "plantHeight"]
Data Types: char
| string
| cell
TestStatistic
— MANOVA test statistics
"pillai"
(default) | "all"
| "hotelling"
| "wilks"
| "roy"
MANOVA test statistics, specified as
"all"
or one or more of the following values.
Value | Test Name | Equation |
---|---|---|
"pillai" (default) | Pillai's trace | where θi values are the solutions of the characteristic equation Qh – θ(Qh + Qe) = 0. Qh and Qe are, respectively, the hypotheses and the residual sum of squares product matrices. |
"hotelling" | Hotelling-Lawley trace | where λi are the solutions of the characteristic equation |Qh – λQe| = 0. |
"wilks" | Wilk's lambda |
|
"roy" | Roy's maximum root statistic |
|
If you specify TestStatistic
as
"all"
, manova
calculates all the test
statistics in the table above.
Example: TestStatistic=["pillai" "roy"]
Data Types: char
| string
| cell
Properties
CategoricalFactors
— Indices of categorical factors
numeric vector
This property is read-only.
Indices of categorical factors, specified as a numeric vector. This property is set
by the CategoricalFactors
name-value argument.
Data Types: double
Coefficients
— Fitted MANOVA model coefficients
numeric matrix
This property is read-only.
Fitted MANOVA model coefficients, specified as a numeric matrix. Each column of the matrix corresponds to a different response variable, and each row corresponds to a different term in the MANOVA model.
For each categorical factor in the maov
object,
manova
reserves one factor value as the reference value.
manova
then expands each categorical factor into F – 1 dummy variables, where F is the number of values
for the factor. Each dummy variable is fit with a different coefficient during the
MANOVA. A dummy variable corresponding to a factor value is 1
when an
observation is assigned the same factor value, -1
when it is assigned
the reference factor value, and 0
otherwise. For more information,
see Dummy Variables Created with Effects Coding.
Continuous factors have coefficients that are constant across factor values.
Data Types: single
| double
DFE
— Degrees of freedom for error
positive integer
This property is read-only.
Degrees of freedom for the error (residuals), equal to the number of observations minus the number of estimated coefficients, specified as a positive integer.
Data Types: double
ExpandedFactorNames
— Names of coefficients
string vector
This property is read-only.
Names of the coefficients, specified as a string vector. The
manova
function expands each categorical factor into F – 1 dummy variables, where F is the number of values
for the factor. The vector ExpandedFactorNames
contains the name of
each dummy variable. For more information, see Coefficients.
Data Types: string
Factors
— Names and values of factors
table
This property is read-only.
Names and values of the factors used to fit the MANOVA model, specified as a table.
The names of the table variables are the factor names, and each variable contains the
values of its corresponding factor. If the factors used to fit the model are not given
as a table, manova
converts them into a table with one column
per factor.
This property is set by the tbl
input argument, or the factors
input argument together with the FactorNames
name-value argument.
Data Types: table
FactorNames
— Names of factors
string vector
This property is read-only.
Names of the factors used to fit the MANOVA model, specified as a string vector.
This property is set by the tbl
input argument or the
FactorNames
name-value argument.
Data Types: string
Formula
— MANOVA model
MultivariateLinearFormula
object
This property is read-only.
MANOVA model, specified as a MultivariateLinearFormula
object. This
property is set by the formula
input argument or the
ModelSpecification
name-value argument.
ResponseCovariance
— Estimated covariance matrix
double matrix | single matrix
This property is read-only.
Estimated covariance matrix for the response variables, specified as a double or single matrix. For more information about covariance matrices, see Covariance.
Data Types: single
| double
ResponseNames
— Names of response variables
string vector
This property is read-only.
Names of the response variables, specified as a string vector. This property is set
by the ResponseVarNames
input argument or the
ResponseNames
name-value argument.
Data Types: string
TestStatistic
— Test statistics
string vector
This property is read-only.
Test statistics used to perform the MANOVA, specified as a string vector. This
property is set by the TestStatistic
name-value argument.
Data Types: string
Y
— Response data
numeric vector
This property is read-only.
Response data used to fit the MANOVA model, specified as a numeric vector. This
property is set by the Y
input argument, or the
tbl
input argument together with the
ResponseVarNames
input argument.
Data Types: single
| double
Object Functions
barttest | Bartlett's test for multivariate analysis of variance (MANOVA) |
boxchart | Box chart (box plot) for multivariate analysis of variance (MANOVA) |
canonvars | Canonical variables |
coeftest | Linear hypothesis test on MANOVA model coefficients |
groupmeans | Mean response estimates for multivariate analysis of variance (MANOVA) |
multcompare | Multiple comparison of marginal means for multiple analysis of variance (MANOVA) |
plotprofile | Plot MANOVA response variable means with grouping |
stats | Multivariate analysis of variance (MANOVA) table |
Examples
Perform One-Way MANOVA
Load the fisheriris
data set.
load fisheriris
The column vector species
contains three iris flower species: setosa, versicolor, and virginica. The matrix meas
contains four types of measurements for the flower: the length and width of sepals and petals in centimeters.
Perform a one-way MANOVA to test the null hypothesis that the vector of means for the four measurements is the same across the three flower species.
maov = manova(species,meas)
maov = 1-way manova Y1,Y2,Y3,Y4 ~ 1 + Factor1 Source DF TestStatistic Value F DFNumerator DFDenominator pValue _______ ___ _____________ ______ ______ ___________ _____________ __________ Factor1 2 pillai 1.1919 53.466 8 290 9.7422e-53 Error 147 Total 149 Properties, Methods
maov
is a one-way manova
object that contains the results of the one-way MANOVA. The output displays the formula for the MANOVA model and a MANOVA table. In the formula, the flower measurements are represented by the terms Y1
, Y2
, Y3
, and Y4
. Factor1
represents the flower species. The MANOVA table contains the p-value for the Pillai's trace test statistic. The p-value indicates that enough evidence exists to reject the null hypothesis at the 95% confidence level, and that the iris species has an effect on at least one of the four measurements.
Perform Bartlett's Test for Two-Way MANOVA
Load the carsmall
data set.
load carsmall
The variable Model_Year
contains data for the year a car was manufactured, and the variable Cylinders
contains data for the number of engine cylinders in the car. The Acceleration
and Displacement
variables contain data for car acceleration and displacement.
Use the table
function to create a table of factor values from the data in Model_Year
and Cylinders
.
tbl = table(Model_Year,Cylinders,VariableNames=["Year" "Cylinders"]);
Create a matrix of response variables from Acceleration
and Displacement
.
y = [Acceleration Displacement];
Perform a two-way MANOVA using the factor values in tbl
and the response variables in y
.
maov = manova(tbl,y)
maov = 2-way manova Y1,Y2 ~ 1 + Year + Cylinders Source DF TestStatistic Value F DFNumerator DFDenominator pValue _________ __ _____________ ________ ______ ___________ _____________ __________ Year 2 pillai 0.084893 2.1056 4 190 0.081708 Cylinders 2 pillai 0.94174 42.27 4 190 2.5049e-25 Error 95 Total 99 Properties, Methods
maov
is a two-way manova
object that contains the results of the two-way MANOVA. The output displays the formula for the MANOVA model and a MANOVA table. In the formula, the car acceleration and displacement are represented by the variables Y1
and Y2
, respectively. The MANOVA table contains a small p-value corresponding to the Cylinders
term in the MANOVA model. The small p-value indicates that, at the 95% confidence level, enough evidence exists to conclude that Cylinders
has a statistically significant effect on the mean response vector. Year
has a p-value larger than 0.05, which indicates that not enough evidence exists to conclude that Year
has a statistically significant effect on the mean response vector at the 95% confidence level.
Use the barttest
function to determine the dimension of the space spanned by the mean response vectors corresponding to the factor Year
.
barttest(maov,"Year")
ans = 0
The output shows that the mean response vectors corresponding to Year
span a point, indicating that they are not statistically different from each other. This result is consistent with the large p-value for Year
.
Get Marginal Means for Two-Way MANOVA
Load the patients
data set.
load patients
The variables Systolic
and Diastolic
contain data for patient systolic and diastolic blood pressure. The variables Smoker
and SelfAssessedHealthStatus
contain data for patient smoking status and self-assessed heath status.
Use the table
function to create a table of factor values from the data in Systolic
, Diastolic
, Smoker
, and SelfAssessedHealthStatus
.
tbl = table(Systolic,Diastolic,Smoker,SelfAssessedHealthStatus,VariableNames=["Systolic" "Diastolic" "Smoker" "SelfAssessed"]);
Perform a two-way MANOVA to test the null hypothesis that smoking status does not have a statistically significant effect on systolic and diastolic blood pressure, and the null hypothesis that self-assessed health status does not have an effect on systolic and diastolic blood pressure.
maov = manova(tbl,["Systolic" "Diastolic"])
maov = 2-way manova Systolic,Diastolic ~ 1 + Smoker + SelfAssessed Source DF TestStatistic Value F DFNumerator DFDenominator pValue ____________ __ _____________ ________ _______ ___________ _____________ __________ Smoker 1 pillai 0.67917 99.494 2 94 6.2384e-24 SelfAssessed 3 pillai 0.053808 0.87552 6 190 0.51392 Error 95 Total 99 Properties, Methods
maov
is a manova
object that contains the results of the two-way MANOVA. The small p-value for the Smoker
term in the MANOVA model indicates that enough evidence exists to conclude that mean response vectors are statistically different across the factor values of Smoker
. However, the large p-value for the SelfAssessed
term indicates that not enough evidence exists to reject the null hypothesis that the mean response vectors are statistically the same across the values for SelfAssessed
.
Calculate the marginal means for the values of the factor Smoker
.
groupmeans(maov,"Smoker")
ans=2×5 table
Smoker Mean SE Lower Upper
______ ______ _______ ______ ______
false 99.203 0.45685 98.296 100.11
true 109.45 0.62574 108.21 110.7
The output shows that the marginal mean for non-smokers is lower than the marginal mean for smokers.
Perform Three-Way MANOVA with Interaction
Load the patients
data set.
load patients
The variables Systolic
and Diastolic
contain data for patient systolic and diastolic blood pressure. The variables Weight
, Height
, and Smoker
contain data for patient weight, height, and smoking status.
Use the table
function to create a table of factor values from the data in Systolic
, Diastolic
, Weight
, Height
, and Smoker
.
tbl = table(Systolic,Diastolic,Smoker,Weight,Height,VariableNames=["Systolic" "Diastolic" "Smoker" "Weight" "Height"]);
Perform a three-way MANOVA to test the null hypothesis that smoking status does not have a statistically significant effect on systolic and diastolic blood pressure, and the null hypothesis that the interaction between weight and height does not have a statistically significant effect on systolic and diastolic blood pressure.
maov = manova(tbl,"Systolic,Diastolic ~ Smoker + Weight*Height",CategoricalFactors=["Smoker"])
maov = N-way manova Systolic,Diastolic ~ 1 + Smoker + Weight*Height Source DF TestStatistic Value F DFNumerator DFDenominator pValue _____________ __ _____________ ________ _______ ___________ _____________ __________ Smoker 1 pillai 0.66141 91.809 2 94 7.8511e-23 Weight 1 pillai 0.020516 0.98446 2 94 0.37746 Height 1 pillai 0.012788 0.6088 2 94 0.54613 Weight:Height 1 pillai 0.019438 0.93169 2 94 0.39749 Error 95 Total 99 Properties, Methods
maov
is a manova
object that contains the results of the three-way MANOVA. The small p-value for the Smoker
term in the MANOVA model indicates that enough evidence exists to conclude that mean response vectors are statistically different across the factor values of Smoker
. However, the large p-value for the Weight:Height
term indicates that not enough evidence exists to reject the null hypothesis that the mean response vectors are not statistically different across the combinations of the values for weight and height.

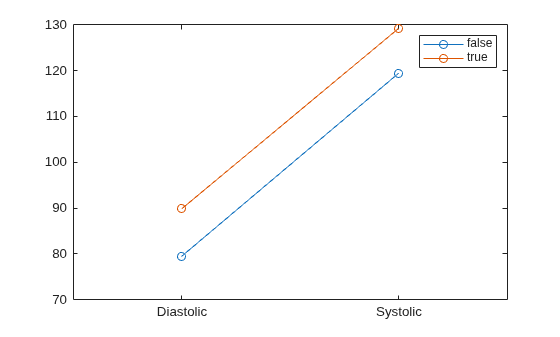

Display a profile plot of the means for the values of Smoker
.
plotprofile(maov,"Smoker")
legend
The plot shows that the mean systolic and diastolic blood pressure values are higher for smokers than non-smokers.
More About
Covariance
For two random variable vectors A and B, the covariance is defined as
where N is the length of each column,
μA and
μB are the mean values of A
and B, respectively, and *
denotes the complex
conjugate.
The covariance matrix of two random variables is the matrix of pairwise covariance calculations between each variable,
For a matrix X, in which each column is a random variable composed of observations, the covariance matrix is the pairwise covariance calculation between each column combination. In other words, .
Alternative Functionality
The manova1
function returns the output of the barttest
object function, and a subset of the manova
object properties. manova1
is limited to one-way MANOVA.
References
[1] Krzanowski, Wojtek. J. Principles of Multivariate Analysis: A User's Perspective. New York: Oxford University Press, 1988.
[2] Morrison, Donald F. Multivariate Statistical Methods. 2nd ed, McGraw-Hill, 1976.
Version History
Introduced in R2023b
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
