Fit robust linear regression
Estimate Robust Regression Coefficients
Estimate robust regression coefficients for a multiple linear model.
carsmall data set. Specify car weight and horsepower as predictors and mileage per gallon as the response.
load carsmall x1 = Weight; x2 = Horsepower; X = [x1 x2]; y = MPG;
Compute the robust regression coefficients.
b = robustfit(X,y)
b = 3×1 47.1975 -0.0068 -0.0333

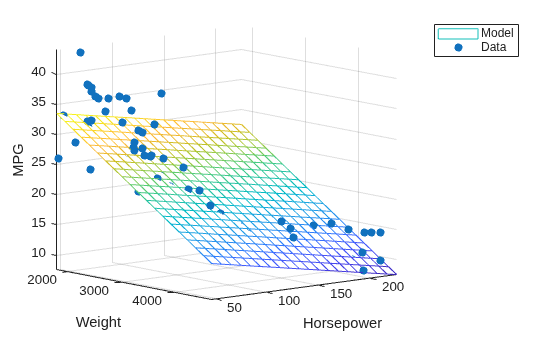

Plot the fitted model.
x1fit = linspace(min(x1),max(x1),20); x2fit = linspace(min(x2),max(x2),20); [X1FIT,X2FIT] = meshgrid(x1fit,x2fit); YFIT = b(1) + b(2)*X1FIT + b(3)*X2FIT; mesh(X1FIT,X2FIT,YFIT)
Plot the data.
hold on scatter3(x1,x2,y,'filled') hold off xlabel('Weight') ylabel('Horsepower') zlabel('MPG') legend('Model','Data') view(50,10) axis tight
Tune Robust Weight Function
Tune the weight function for robust regression by using different tuning constants.
Generate data with the trend , and then change one value to simulate an outlier.
x = (1:10)'; rng ('default') % For reproducibility y = 10 - 2*x + randn(10,1); y(10) = 0;
Compute the robust regression residuals using the bisquare weight function for three different tuning constants. The default tuning constant is 4.685.
tune_const = [3 4.685 6]; for i = 1:length(tune_const) [~,stats] = robustfit(x,y,'bisquare',tune_const(i)); resids(:,i) = stats.resid; end

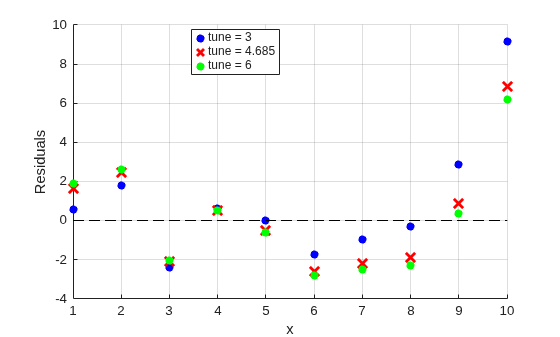

Create a plot of the residuals.
scatter(x,resids(:,1),'b','filled') hold on plot(resids(:,2),'rx','MarkerSize',10,'LineWidth',2) scatter(x,resids(:,3),'g','filled') plot([min(x) max(x)],[0 0],'--k') hold off grid on xlabel('x') ylabel('Residuals') legend('tune = 3','tune = 4.685','tune = 6','Location','best')
Compute the root mean squared error (RMSE) of residuals for the three different tuning constants.
rmse = sqrt(mean(resids.^2))
rmse = 1×3 3.2577 2.7576 2.7099
Because increasing the tuning constant decreases the downweight assigned to outliers, the RMSE decreases as the tuning constant increases.
Compare Robust and Least-Squares Regression
Generate data with the trend , and then change one value to simulate an outlier.
x = (1:10)'; rng('default') % For reproducibility y = 10 - 2*x + randn(10,1); y(10) = 0;
Fit a straight line using ordinary least-squares regression. To compute coefficient estimates for a model with a constant term, include a column of ones in x.
bls = regress(y,[ones(10,1) x])
bls = 2×1 7.8518 -1.3644
Estimate a straight-line fit using robust regression.
robustfit adds a constant term to the model by default.
[brob,stats] = robustfit(x,y); brob
brob = 2×1 8.4504 -1.5278
Identify potential outliers by comparing the residuals to the median absolute deviation of the residuals.
outliers_ind = find(abs(stats.resid)>stats.mad_s);

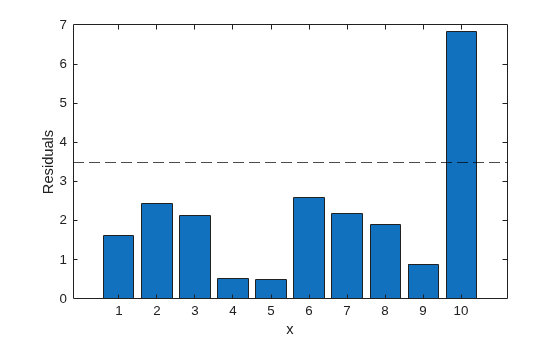

Plot a bar graph of the residuals for robust regression.
bar(abs(stats.resid)) hold on yline(stats.mad_s,'k--') hold off xlabel('x') ylabel('Residuals')
Create a scatter plot of the data.
Plot the outlier.
hold on plot(x(outliers_ind),y(outliers_ind),'mo','LineWidth',2)

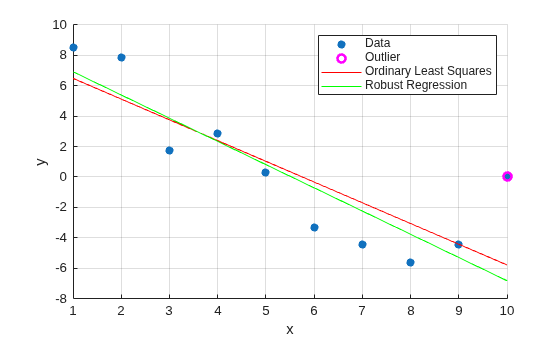

Plot the least-squares and robust fit.
plot(x,bls(1)+bls(2)*x,'r') plot(x,brob(1)+brob(2)*x,'g') hold off xlabel('x') ylabel('y') legend('Data','Outlier','Ordinary Least Squares','Robust Regression') grid on
The outlier influences the robust fit less than the least-squares fit.
X — Predictor data
Predictor data, specified as an n-by-p numeric
matrix. Rows of
X correspond to observations, and columns
correspond to predictor variables.
X must have the same number of
robustfit adds a constant term to the model, unless
you explicitly remove it by specifying
'off'. So, do not include a column of 1s in
y — Response data
Response data, specified as an n-by-1 numeric vector. Rows of
y correspond to different observations.
must have the same number of rows as
wfun — Robust fitting weight function
'fair' | function handle | ...
Robust fitting weight function, specified as the name of a weight function described
in the following table, or a function handle.
robustfit uses the
corresponding default tuning constant, unless otherwise specified by
|Weight Function||Description||Default Tuning Constant|
|Ordinary least squares (no weighting function)||None|
|function handle||Custom weight function that accepts a vector ||1|
The value r in the weight functions is
r = resid/(tune*s*sqrt(1–h)),
residis the vector of residuals from the previous iteration.
tuneis the tuning constant.
his the vector of leverage values from a least-squares fit.
sis an estimate of the standard deviation of the error term given by
s = MAD/0.6745.
MAD is the median absolute deviation of the residuals from their
median. The constant 0.6745 makes the estimate unbiased for the normal distribution. If
X has p columns, the software excludes the
smallest p absolute deviations when computing the median.
tune — Tuning constant
Tuning constant, specified as a positive scalar. If you do not set
robustfit uses the corresponding
default tuning constant for each weight function (see the table in
The default tuning constants of built-in weight functions give coefficient estimates that are approximately 95% as statistically efficient as the ordinary least-squares estimates, provided that the response has a normal distribution with no outliers. Decreasing the tuning constant increases the downweight assigned to large residuals; increasing the tuning constant decreases the downweight assigned to large residuals.
const — Indicator for constant term
b — Coefficient estimates for robust multiple linear regression
stats — Model statistics
Model statistics, returned as a structure. The following table describes the fields of the diagnostic statistics structure from the robust regression.
|Sigma estimate (root mean squared error) from ordinary least squares|
|Robust estimate of sigma|
|Estimate of sigma computed using the median absolute deviation of the residuals from their median; used for scaling residuals during iterative fitting|
|Final estimate of sigma, the largest between |
|Residuals, observed minus fitted values (see Raw Residuals)|
|Studentized residuals, the residuals divided by an independent estimate of the residual standard deviation (see Studentized Residuals)|
|Standard error of the estimated coefficient value
|Estimated covariance matrix for coefficient estimates|
|Estimated correlation of coefficient estimates|
|t-statistic for each coefficient to test the null
hypothesis that the corresponding coefficient is zero against the alternative
that it is different from zero, given the other predictors in the model. Note
|p-values for the t-statistic of the hypothesis test that the corresponding coefficient is equal to zero or not|
|Vector of weights for a robust fit|
|Degrees of freedom for the error (residuals), equal to the number of observations minus the number of estimated coefficients|
|Vector of leverage values for a least-squares fit|
Leverage is a measure of the effect of a particular observation on the regression predictions due to the position of that observation in the space of the inputs.
The leverage of observation i is the value of the ith diagonal term hii of the hat matrix H. The hat matrix H is defined in terms of the data matrix X:
H = X(XTX)–1XT.
The hat matrix is also known as the projection matrix because it projects the vector of observations y onto the vector of predictions , thus putting the "hat" on y.
Because the sum of the leverage values is p (the number of coefficients in the regression model), an observation i can be considered an outlier if its leverage substantially exceeds p/n, where n is the number of observations.
For more details, see Hat Matrix and Leverage.
robustfitestimates the variance-covariance matrix of the coefficient estimates
stats.covbusing the formula
inv(X'*X)*stats.s^2. This estimate produces the standard error
In a linear model, observed values of
yand their residuals are random variables. Residuals have normal distributions with zero mean but with different variances at different values of the predictors. To put residuals on a comparable scale,
robustfit“Studentizes” the residuals. That is,
robustfitdivides the residuals by an estimate of their standard deviation that is independent of their value. Studentized residuals have t-distributions with known degrees of freedom.
robustfitreturns the Studentized residuals in
robustfit is useful when you simply need the output arguments of the
function or when you want to repeat fitting a model multiple times in a loop. If you need to
investigate a robust fitted regression model further, create a linear regression model object
LinearModel by using
fitlm. Set the value for the name-value pair
 DuMouchel, W. H., and F. L. O'Brien. “Integrating a Robust Option into a Multiple Regression Computing Environment.” Computer Science and Statistics: Proceedings of the 21st Symposium on the Interface. Alexandria, VA: American Statistical Association, 1989.
 Holland, P. W., and R. E. Welsch. “Robust Regression Using Iteratively Reweighted Least-Squares.” Communications in Statistics: Theory and Methods, A6, 1977, pp. 813–827.
 Huber, P. J. Robust Statistics. Hoboken, NJ: John Wiley & Sons, Inc., 1981.
 Street, J. O., R. J. Carroll, and D. Ruppert. “A Note on Computing Robust Regression Estimates via Iteratively Reweighted Least Squares.” The American Statistician. Vol. 42, 1988, pp. 152–154.
Introduced before R2006a
