Visual SLAM with RGB-D Camera

This example shows how to process RGB-D image data to build a map of an indoor environment and estimate the trajectory of the camera. It then shows how to modify the code to support code generation using MATLAB® Coder™. The example uses a version of the ORB-SLAM2 [1] algorithm, which is feature-based and supports RGB-D cameras.

Visual simultaneous localization and mapping (vSLAM), refers to the process of calculating the position and orientation of a camera with respect to its surroundings, while simultaneously mapping the environment.

You can perform vSLAM using a monocular camera. However, the depth cannot be accurately calculated, and the estimated trajectory is unknown and drifts over time. To produce an initial map, which cannot be triangulated from the first frame, you must use multiple views of a monocular camera. A better, more reliable solution is to use an RGB-D camera, which is composed of one RGB color image and one depth image.

Code generation requires a MATLAB Coder license.

Overview of Processing Pipeline

The pipeline for RGB-D vSLAM is very similar to the monocular vSLAM pipeline in the Monocular Visual Simultaneous Localization and Mapping example. The major difference is that in the Map Initialization stage, the 3-D map points are created from a pair of images consisting of one color image and one depth image instead of two frames of color images.


  • Map Initialization: The initial 3-D world points can be constructed by extracting ORB feature points from the color image and then computing their 3-D world locations from the depth image. The color image is stored as the first key frame.

  • Tracking: Once a map is initialized, the pose of the camera is estimated for each new RGB-D image by matching features in the color image to features in the last key frame.

  • Local Mapping: If the current color image is identified as a key frame, new 3-D map points are computed from the depth image. At this stage, bundle adjustment is used to minimize reprojection errors by adjusting the camera pose and 3-D points.

  • Loop Closure: Loops are detected for each key frame by comparing it against all previous key frames using the bag-of-features approach. Once a loop closure is detected, the pose graph is optimized to refine the camera poses of all the key frames.

Download and Explore the Input Image Sequence

The data used in this example is from the TUM RGB-D benchmark [2]. You can download the data to a temporary folder using a web browser or by running the following code:

baseDownloadURL = "";
dataFolder      = fullfile(tempdir, 'tum_rgbd_dataset', filesep);
options         = weboptions('Timeout', Inf);
tgzFileName     = [dataFolder, 'fr3_office.tgz'];
folderExists    = exist(dataFolder, 'dir');

% Create a folder in a temporary directory to save the downloaded file
if ~folderExists
    disp('Downloading fr3_office.tgz (1.38 GB). This download can take a few minutes.')
    websave(tgzFileName, baseDownloadURL, options);
    % Extract contents of the downloaded file
    disp('Extracting fr3_office.tgz (1.38 GB) ...')
    untar(tgzFileName, dataFolder);
imageFolder = [dataFolder, 'rgbd_dataset_freiburg3_long_office_household/'];

Create two imageDatastore objects to store the color and depth images, respectively.

imgFolderColor = [imageFolder,'rgb/'];
imgFolderDepth = [imageFolder,'depth/'];
imdsColor      = imageDatastore(imgFolderColor);
imdsDepth      = imageDatastore(imgFolderDepth);

Note that the color and depth images are generated in an un-synchronized way in the dataset. Therefore, we need to associate color images to depth images based on the time stamp.

% Load time stamp data of color images
timeColor = helperImportTimestampFile([imageFolder, 'rgb.txt']);

% Load time stamp data of depth images
timeDepth = helperImportTimestampFile([imageFolder, 'depth.txt']);

% Align the time stamp
indexPairs = helperAlignTimestamp(timeColor, timeDepth);

% Select the synchronized image data
imdsColor     = subset(imdsColor, indexPairs(:, 1));
imdsDepth     = subset(imdsDepth, indexPairs(:, 2));

% Inspect the first RGB-D image
currFrameIdx  = 1;
currIcolor    = readimage(imdsColor, currFrameIdx);
currIdepth    = readimage(imdsDepth, currFrameIdx);

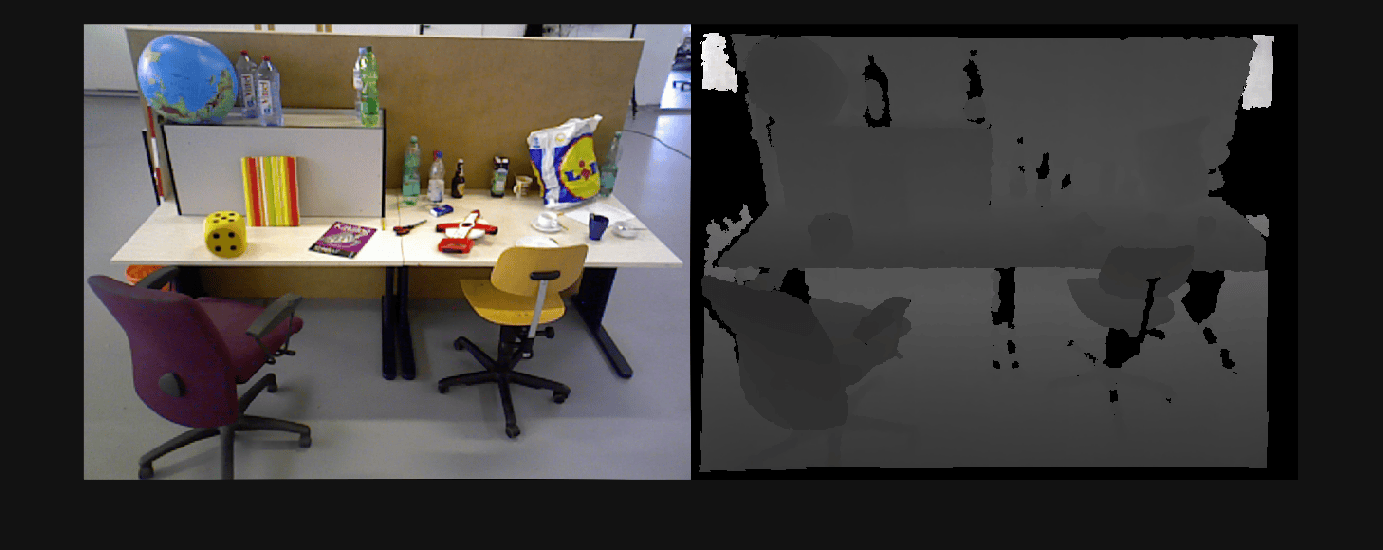

imshowpair(currIcolor, currIdepth, "montage");

Figure contains an axes object. The axes object contains an object of type image.

Map Initialization

The pipeline starts by initializing the map that holds 3-D world points. This step is crucial and has a significant impact on the accuracy of the final SLAM result. Initial ORB feature points are extracted from the first color image using helperDetectAndExtractFeatures. Their corresponding 3-D world locations can be computed from the pixel coordinates of the feature points and the depth value using helperReconstructFromRGBD.

% Set random seed for reproducibility

% Create a cameraIntrinsics object to store the camera intrinsic parameters.
% The intrinsics for the dataset can be found at the following page:
focalLength    = [535.4, 539.2];    % in units of pixels
principalPoint = [320.1, 247.6];    % in units of pixels
imageSize      = size(currIcolor,[1,2]); % in pixels [mrows, ncols]
depthFactor    = 5e3;
intrinsics     = cameraIntrinsics(focalLength,principalPoint,imageSize);

% Detect and extract ORB features from the color image
scaleFactor = 1.2;
numLevels   = 8;
numPoints = 1000;
[currFeatures, currPoints] = helperDetectAndExtractFeatures(currIcolor, scaleFactor, numLevels, numPoints);

initialPose = rigidtform3d();
[xyzPoints, validIndex] = helperReconstructFromRGBD(currPoints, currIdepth, intrinsics, initialPose, depthFactor);

Initialize Place Recognition Database

Loop detection is performed using the bags-of-words approach. A visual vocabulary represented as a bagOfFeatures object is created offline with the ORB descriptors extracted from a large set of images in the dataset by calling:

bag = bagOfFeatures(imds,CustomExtractor=@helperORBFeatureExtractorFunction, TreeProperties=[5, 10], StrongestFeatures=1);

where imds is an imageDatastore object storing the training images and helperORBFeatureExtractorFunction is the ORB feature extractor function. See Image Retrieval with Bag of Visual Words for more information.

The loop closure process incrementally builds a database, represented as an invertedImageIndex object, that stores the visual word-to-image mapping based on the bag of ORB features.

% Load the bag of features data created offline
bofData         = load("bagOfFeaturesDataSLAM.mat");

% Initialize the place recognition database
loopDatabase    = invertedImageIndex(bofData.bof, SaveFeatureLocations=false);

% Add features of the first key frame to the database
currKeyFrameId = 1;
addImageFeatures(loopDatabase, currFeatures, currKeyFrameId);

Data Management and Visualization

After the map is initialized using the first pair of color and depth image, you can use imageviewset and worldpointset to store the first key frames and the corresponding map points:

% Create an empty imageviewset object to store key frames
vSetKeyFrames = imageviewset;

% Create an empty worldpointset object to store 3-D map points
mapPointSet   = worldpointset;

% Add the first key frame
vSetKeyFrames = addView(vSetKeyFrames, currKeyFrameId, initialPose, Points=currPoints,...

% Add 3-D map points
[mapPointSet, rgbdMapPointsIdx] = addWorldPoints(mapPointSet, xyzPoints);

% Add observations of the map points
mapPointSet = addCorrespondences(mapPointSet, currKeyFrameId, rgbdMapPointsIdx, validIndex);

% Update view direction and depth
mapPointSet = updateLimitsAndDirection(mapPointSet, rgbdMapPointsIdx, vSetKeyFrames.Views);

% Update representative view
mapPointSet = updateRepresentativeView(mapPointSet, rgbdMapPointsIdx, vSetKeyFrames.Views);

% Visualize matched features in the first key frame
featurePlot = helperVisualizeMatchedFeaturesRGBD(currIcolor, currIdepth, currPoints(validIndex));

% Visualize initial map points and camera trajectory
xLim = [-4 4];
yLim = [-3 1];
zLim = [-1 6];
mapPlot  = helperVisualizeMotionAndStructure(vSetKeyFrames, mapPointSet, xLim, yLim, zLim);

% Show legend


The tracking process is performed using every RGB-D image and determines when to insert a new key frame.

% ViewId of the last key frame
lastKeyFrameId    = currKeyFrameId;

% Index of the last key frame in the input image sequence
lastKeyFrameIdx   = currFrameIdx;

% Indices of all the key frames in the input image sequence
addedFramesIdx    = lastKeyFrameIdx;

currFrameIdx      = 2;
isLoopClosed      = false;

Each frame is processed as follows:

  1. ORB features are extracted for each new color image and then matched (using matchFeatures), with features in the last key frame that have known corresponding 3-D map points.

  2. Estimate the camera pose using Perspective-n-Point algorithm, which estimates the pose of a calibrated camera given a set of 3-D points and their corresponding 2-D projections using estworldpose.

  3. Given the camera pose, project the map points observed by the last key frame into the current frame and search for feature correspondences using matchFeaturesInRadius.

  4. With 3-D to 2-D correspondences in the current frame, refine the camera pose by performing a motion-only bundle adjustment using bundleAdjustmentMotion.

  5. Project the local map points into the current frame to search for more feature correspondences using matchFeaturesInRadius and refine the camera pose again using bundleAdjustmentMotion.

  6. The last step of tracking is to decide if the current frame should be a new key frame. A frame is a key frame if both of the following conditions are satisfied:

  • At least 20 frames have passed since the last key frame or the current frame tracks fewer than 100 map points or 25% of points tracked by the reference key frame.

  • The map points tracked by the current frame are fewer than 90% of points tracked by the reference key frame.

If the current frame is to become a key frame, continue to the Local Mapping process. Otherwise, start Tracking for the next frame.

% Main loop
isLastFrameKeyFrame = true;
while ~isLoopClosed && currFrameIdx < numel(imdsColor.Files)

    currIcolor = readimage(imdsColor, currFrameIdx);
    currIdepth = readimage(imdsDepth, currFrameIdx);

    [currFeatures, currPoints]    = helperDetectAndExtractFeatures(currIcolor, scaleFactor, numLevels, numPoints);

    % Track the last key frame
    % trackedMapPointsIdx:  Indices of the map points observed in the current left frame
    % trackedFeatureIdx:    Indices of the corresponding feature points in the current left frame
    [currPose, trackedMapPointsIdx, trackedFeatureIdx] = helperTrackLastKeyFrame(mapPointSet, ...
        vSetKeyFrames.Views, currFeatures, currPoints, lastKeyFrameId, intrinsics, scaleFactor);
    if isempty(currPose) || numel(trackedMapPointsIdx) < 30
        currFrameIdx = currFrameIdx + 1;
    % Track the local map and check if the current frame is a key frame.
    % A frame is a key frame if both of the following conditions are satisfied:
    % 1. At least 20 frames have passed since the last key frame or the
    %    current frame tracks fewer than 100 map points.
    % 2. The map points tracked by the current frame are fewer than 90% of
    %    points tracked by the reference key frame.
    % localKeyFrameIds:   ViewId of the connected key frames of the current frame
    numSkipFrames     = 20;
    numPointsKeyFrame = 100;
    [localKeyFrameIds, currPose, trackedMapPointsIdx, trackedFeatureIdx, isKeyFrame] = ...
        helperTrackLocalMap(mapPointSet, vSetKeyFrames, trackedMapPointsIdx, ...
        trackedFeatureIdx, currPose, currFeatures, currPoints, intrinsics, scaleFactor, ...
        isLastFrameKeyFrame, lastKeyFrameIdx, currFrameIdx, numSkipFrames, numPointsKeyFrame);

    % Visualize matched features
    updatePlot(featurePlot, currIcolor, currIdepth, currPoints(trackedFeatureIdx));
    if ~isKeyFrame
        currFrameIdx = currFrameIdx + 1;
        isLastFrameKeyFrame = false;
        % Match feature points between the stereo images and get the 3-D world positions
        [xyzPoints, validIndex] = helperReconstructFromRGBD(currPoints, currIdepth, ...
            intrinsics, currPose, depthFactor);

        [untrackedFeatureIdx, ia] = setdiff(validIndex, trackedFeatureIdx);
        xyzPoints = xyzPoints(ia, :);
        isLastFrameKeyFrame = true;

    % Update current key frame ID
    currKeyFrameId  = currKeyFrameId + 1;

Local Mapping

Local mapping is performed for every key frame. When a new key frame is determined, add it to the key frames and update the attributes of the map points observed by the new key frame. To ensure that mapPointSet contains as few outliers as possible, a valid map point must be observed in at least 3 key frames.

New map points are created by triangulating ORB feature points in the current key frame and its connected key frames. For each unmatched feature point in the current key frame, search for a match with other unmatched points in the connected key frames using matchFeatures. The local bundle adjustment refines the pose of the current key frame, the poses of connected key frames, and all the map points observed in these key frames.

    % Add the new key frame
    [mapPointSet, vSetKeyFrames] = helperAddNewKeyFrame(mapPointSet, vSetKeyFrames, ...
        currPose, currFeatures, currPoints, trackedMapPointsIdx, trackedFeatureIdx, localKeyFrameIds);
    % Remove outlier map points that are observed in fewer than 3 key frames
    if currKeyFrameId == 2
        triangulatedMapPointsIdx = [];
    [mapPointSet, trackedMapPointsIdx] = ...
        helperCullRecentMapPointsRGBD(mapPointSet, trackedMapPointsIdx, triangulatedMapPointsIdx, ...
    % Add new map points computed from disparity
    [mapPointSet, rgbdMapPointsIdx] = addWorldPoints(mapPointSet, xyzPoints);
    mapPointSet = addCorrespondences(mapPointSet, currKeyFrameId, rgbdMapPointsIdx, ...
    % Create new map points by triangulation
    minNumMatches = 10;
    minParallax   = 0.35;
    [mapPointSet, vSetKeyFrames, triangulatedMapPointsIdx, rgbdMapPointsIdx] = helperCreateNewMapPointsStereo( ...
        mapPointSet, vSetKeyFrames, currKeyFrameId, intrinsics, scaleFactor, minNumMatches, minParallax, ...
        untrackedFeatureIdx, rgbdMapPointsIdx);

    % Update view direction and depth
    mapPointSet = updateLimitsAndDirection(mapPointSet, [triangulatedMapPointsIdx; rgbdMapPointsIdx], ...

    % Update representative view
    mapPointSet = updateRepresentativeView(mapPointSet, [triangulatedMapPointsIdx; rgbdMapPointsIdx], ...

    % Local bundle adjustment
    [mapPointSet, vSetKeyFrames, triangulatedMapPointsIdx, rgbdMapPointsIdx] = ...
        helperLocalBundleAdjustmentStereo(mapPointSet, vSetKeyFrames, ...
        currKeyFrameId, intrinsics, triangulatedMapPointsIdx, rgbdMapPointsIdx);

    % Visualize 3-D world points and camera trajectory
    updatePlot(mapPlot, vSetKeyFrames, mapPointSet);

Loop Closure

The loop closure detection step takes the current key frame processed by the local mapping process and tries to detect and close the loop. Loop candidates are identified by querying images in the database that are visually similar to the current key frame using evaluateImageRetrieval. A candidate key frame is valid if it is not connected to the last key frame and three of its neighbor key frames are loop candidates.

When a valid loop candidate is found, use estgeotform3d to compute the relative pose between the loop candidate frame and the current key frame. The relative pose represents a 3-D rigid transformation stored in a rigidtform3d object. Then add the loop connection with the relative pose and update mapPointSet and vSetKeyFrames.

    % Check loop closure after some key frames have been created
    if currKeyFrameId > 20
        % Minimum number of feature matches of loop edges
        loopEdgeNumMatches = 120;
        % Detect possible loop closure key frame candidates
        [isDetected, validLoopCandidates] = helperCheckLoopClosure(vSetKeyFrames, currKeyFrameId, ...
            loopDatabase, currIcolor, loopEdgeNumMatches);
        if isDetected
            % Add loop closure connections
            maxDistance = 0.1;
            [isLoopClosed, mapPointSet, vSetKeyFrames] = helperAddLoopConnectionsStereo(...
                mapPointSet, vSetKeyFrames, validLoopCandidates, currKeyFrameId, ...
                currFeatures, currPoints, loopEdgeNumMatches, maxDistance);
    % If no loop closure is detected, add current features into the database
    if ~isLoopClosed
        addImageFeatures(loopDatabase,  currFeatures, currKeyFrameId);
    % Update IDs and indices
    lastKeyFrameId  = currKeyFrameId;
    lastKeyFrameIdx = currFrameIdx;
    addedFramesIdx  = [addedFramesIdx; currFrameIdx]; %#ok<AGROW>
    currFrameIdx    = currFrameIdx + 1;
end % End of main loop

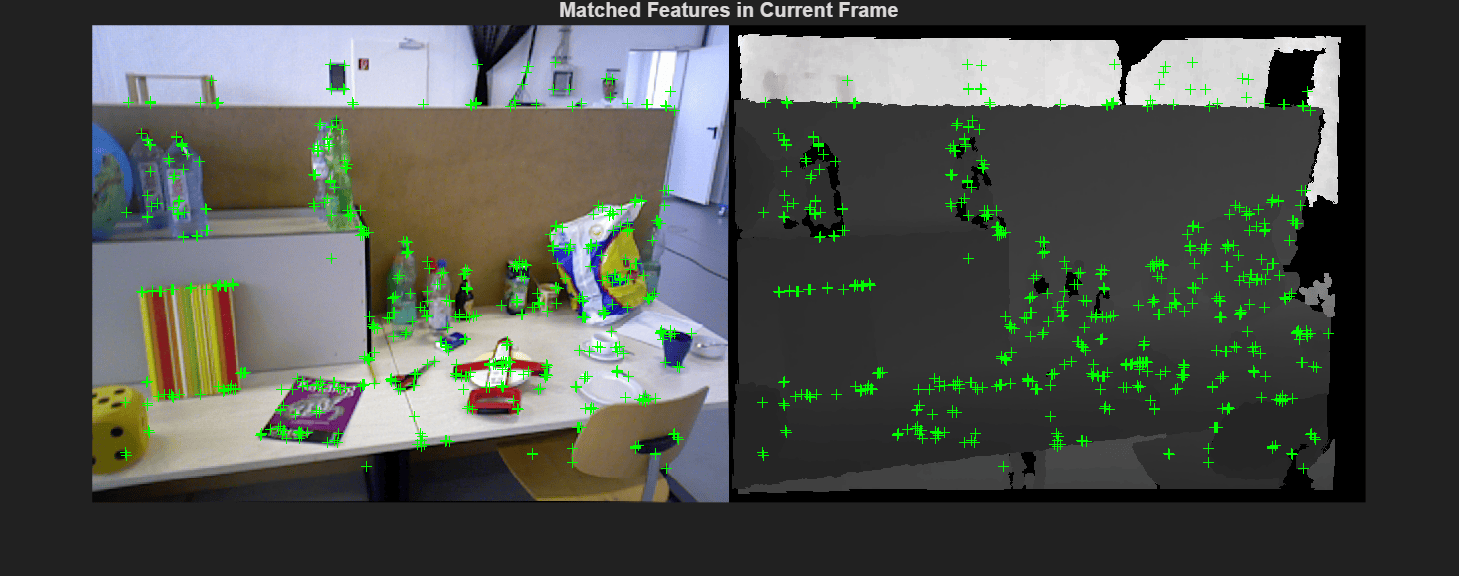

Figure contains an axes object. The axes object with title Matched Features in Current Frame contains 4 objects of type image, line. One or more of the lines displays its values using only markers

Loop edge added between keyframe: 3 and 86
Loop edge added between keyframe: 4 and 86

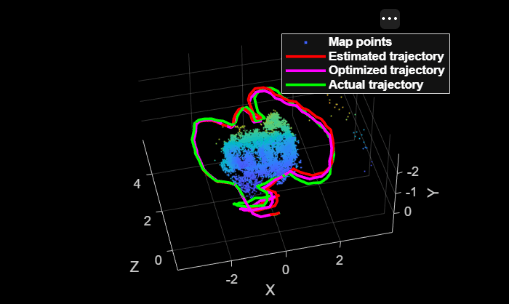

Finally, apply pose graph optimization over the essential graph in vSetKeyFrames to correct the drift. The essential graph is created internally by removing connections with fewer than minNumMatches matches in the covisibility graph. After pose graph optimization, update the 3-D locations of the map points using the optimized poses.

% Optimize the poses
minNumMatches      = 50;
vSetKeyFramesOptim = optimizePoses(vSetKeyFrames, minNumMatches, Tolerance=1e-16);

% Update map points after optimizing the poses
mapPointSet = helperUpdateGlobalMap(mapPointSet, vSetKeyFrames, vSetKeyFramesOptim);

updatePlot(mapPlot, vSetKeyFrames, mapPointSet);

% Plot the optimized camera trajectory
optimizedPoses  = poses(vSetKeyFramesOptim);
plotOptimizedTrajectory(mapPlot, optimizedPoses)

% Update legend

Compare with the Ground Truth

You can compare the optimized camera trajectory with the ground truth to evaluate the accuracy. The downloaded data contains a groundtruth.txt file that stores the ground truth of camera pose of each frame. The data has been saved in the form of a MAT-file. You can also calculate the root-mean-square-error (RMSE) of trajectory estimates.

% Load ground truth
gTruthData = load("orbslamGroundTruth.mat");
gTruth     = gTruthData.gTruth;

% Plot the actual camera trajectory
plotActualTrajectory(mapPlot, gTruth(indexPairs(addedFramesIdx, 1)), optimizedPoses);

% Show legend

Figure Point Cloud Player contains an axes object. The axes object with xlabel X, ylabel Y contains 4 objects of type scatter, line. These objects represent Map points, Estimated trajectory, Optimized trajectory, Actual trajectory.

% Evaluate tracking accuracy
helperEstimateTrajectoryError(gTruth(indexPairs(addedFramesIdx, 1)), optimizedPoses);
    "Absolute RMSE for key frame trajectory (m): "    "0.072354"

Dense Reconstruction from Depth Image

Given the refined camera poses, you can reproject all the valid image points in the associated depth images back to the 3-D space to perform dense reconstruction.

% Create an array of pointCloud objects to store the world points constructed
% from the key frames
ptClouds =  repmat(pointCloud(zeros(1, 3)), numel(addedFramesIdx), 1);

% Ignore image points at the boundary
offset = 40;
[X, Y] = meshgrid(offset:2:imageSize(2)-offset, offset:2:imageSize(1)-offset);

for i = 1: numel(addedFramesIdx)
    Icolor = readimage(imdsColor, addedFramesIdx(i));
    Idepth = readimage(imdsDepth, addedFramesIdx(i));

    [xyzPoints, validIndex] = helperReconstructFromRGBD([X(:), Y(:)], ...
        Idepth, intrinsics, optimizedPoses.AbsolutePose(i), depthFactor);

    colors = zeros(numel(X), 1, 'like', Icolor);
    for j = 1:numel(X)
        colors(j, 1:3) = Icolor(Y(j), X(j), :);
    ptClouds(i) = pointCloud(xyzPoints, Color=colors(validIndex, :));

% Concatenate the point clouds
pointCloudsAll = pccat(ptClouds);

pcshow(pointCloudsAll,VerticalAxis="y", VerticalAxisDir="down");

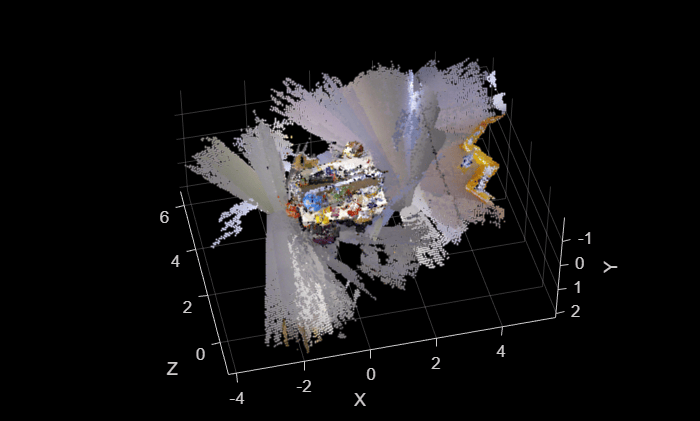

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains an object of type scatter.

Code Generation

Because code generation does not support ImageDatastore objects, read the input images, and store them in a cell array.

for i = 1:numel(imdsColor.Files)
    imagesColor{i,1} = readimage(imdsColor,i);
for i = 1:numel(imdsDepth.Files)
    imagesDepth{i,1} = readimage(imdsDepth,i);

Use the helperRGBDVisualSLAMCodegen function to generate C++ code for deployment on a host computer. To meet the requirements of MATLAB Coder, you must restructure the code to isolate the algorithm from the visualization code. The helperRGBDVisualSLAMCodegen function encapsulates the algorithmic process of map initialization, tracking, local mapping, and loop closure. The function takes two cell arrays of images, imagesColor, and imagesDepth, as inputs and outputs 3-D worldpointset, estimated camera poses, and indices of all the key frames.

Use the Compilation Directive %#codegen (MATLAB Coder) command to compile the helperRGBDVisualSLAMCodegen function into a MEX file. Note that, by default, the generated MEX file has the same name as the original MATLAB function with "_mex" appended as a suffix: helperRGBDVisualSLAMCodegen_mex. To save the MEX file with a custom filename, use the -o option. You can specify the -report option to generate a compilation report that shows the original MATLAB code and the associated files created during code generation. You can also create a temporary directory where MATLAB Coder can store the generated files. For more options related to MEX file generation, see options (MATLAB Coder) on the codegen page.

cpuConfig = coder.config("mex");
cpuConfig.TargetLang = "C++";
% Generate C++ code
codegen -config cpuConfig helperRGBDVisualSLAMCodegen -args {imagesColor,imagesDepth}
Code generation successful.

Use the helperRGBDVisualSLAMCodegen_mex function to find the estimated and optimized camera poses based on imagesColor, and imagesDepth.

% Set the random number generation seed to default, for reproducibility
% Run the generated MEX file
rgbdSlamOut = helperRGBDVisualSLAMCodegen_mex(imagesColor,imagesDepth);

Plot the estimated trajectory and actual trajectory of the camera by specifying rgbdSlamOut as an input argument to the helperVisualizeRGBDVisualSlam helper function.

% Visualize the results

Figure Point Cloud Player contains an axes object. The axes object with xlabel X, ylabel Y contains 4 objects of type scatter, line. These objects represent Map points, Estimated trajectory, Optimized trajectory, Actual trajectory.

Supporting Functions

This example includes these helper functions as separate files:

helperDetectAndExtractFeatures Detects and extracts ORB features from the image.

helperReconstructFromRGBD Reconstructs the scene from the color and depth images.

helperCullRecentMapPointsRGBD Culls recently added map points.

helperAddLoopConnectionsStereoAdds connections between the current key frame and the valid loop candidate key frames.

helperAddNewKeyFrame Adds key frames to the key frame set.

helperCheckLoopClosureDetects loop candidate key frames by retrieving visually similar images from the feature database.

helperCreateNewMapPointsStereoCreates new map points by triangulating matched feature points in the current key frame and the connected key frames.

helperLocalBundleAdjustmentStereoRefines the pose of the current key frame and the map of the surrounding scene.

helperORBFeatureExtractorFunctionImplements the ORB feature extraction used by the bagOfFeatures.

helperRGBDVisualSLAMCodegenContains the algorithm for codegen for RGB-D visual SLAM.

helperTrackLastKeyFrameEstimates the camera pose by tracking the last key frame.

helperTrackLocalMapRefines the camera pose by tracking the local map.

helperVisualizeMatchedFeaturesRGBDShows the matched features in a frame.

helperVisualizeMatchedFeaturesShows map points and camera trajectory.

helperVisualizeRGBDVisualSlamShows the codegen results of RGB-D vSLAM.

The example also uses these helper functions:

helperImportTimestampFileImports the timestamp file.

function timestamp = helperImportTimestampFile(filename)

% Input handling
dataLines = [4 Inf];

%% Set up the Import Options and import the data
opts = delimitedTextImportOptions("NumVariables",2);

% Specify range and delimiter
opts.DataLines = dataLines;
opts.Delimiter = " ";

% Specify column names and types
opts.VariableNames = ["VarName1","Var2"];
opts.SelectedVariableNames = "VarName1";
opts.VariableTypes = ["double","string"];

% Specify file level properties
opts.ExtraColumnsRule = "ignore";
opts.EmptyLineRule = "read";
opts.ConsecutiveDelimitersRule = "join";
opts.LeadingDelimitersRule = "ignore";

% Specify variable properties
opts = setvaropts(opts,"Var2","WhitespaceRule","preserve");
opts = setvaropts(opts,"Var2","EmptyFieldRule","auto");

% Import the data
data = readtable(filename,opts);

% Convert to output type
timestamp = table2array(data);

helperAlignTimestampAligns the timestamps of the color and depth images.

function indexPairs = helperAlignTimestamp(timeColor,timeDepth)
idxDepth = 1;
indexPairs = zeros(numel(timeColor),2);
for i = 1:numel(timeColor)
    for j = idxDepth:numel(timeDepth)
        if abs(timeColor(i)-timeDepth(j)) < 1e-4
            idxDepth = j;
            indexPairs(i,:) = [i,j];
        elseif timeDepth(j)-timeColor(i) > 1e-3
indexPairs = indexPairs(indexPairs(:,1)>0,:);

helperEstimateTrajectoryErrorCalculates the tracking error.

function rmse = helperEstimateTrajectoryError(gTruth,cameraPoses)
locations = vertcat(cameraPoses.AbsolutePose.Translation);
gLocations = vertcat(gTruth.Translation);
scale = median(vecnorm(gLocations,2,2))/median(vecnorm(locations,2,2));
scaledLocations = locations*scale;

rmse = sqrt(mean(sum((scaledLocations-gLocations).^2,2)));
disp(["Absolute RMSE for key frame trajectory (m): ",num2str(rmse)]);

helperUpdateGlobalMapUpdates the 3-D locations of map points after pose graph optimization.

function mapPointSet = helperUpdateGlobalMap(mapPointSet,vSetKeyFrames,vSetKeyFramesOptim)

posesOld = vSetKeyFrames.Views.AbsolutePose;
posesNew = vSetKeyFramesOptim.Views.AbsolutePose;
positionsOld = mapPointSet.WorldPoints;
positionsNew = positionsOld;
indices = 1:mapPointSet.Count;

% Update world location of each map point based on the new absolute pose of
% the corresponding major view
for i = 1: mapPointSet.Count
    majorViewIds = mapPointSet.RepresentativeViewId(i);
    tform = rigidtform3d(posesNew(majorViewIds).A/posesOld(majorViewIds).A);
    positionsNew(i,:) = transformPointsForward(tform,positionsOld(i,:));
mapPointSet = updateWorldPoints(mapPointSet,indices,positionsNew);


[1] Mur-Artal, Raul, and Juan D. Tardós. “ORB-SLAM2: An Open-Source SLAM System for Monocular, Stereo, and RGB-D Cameras.” IEEE Transactions on Robotics 33, no. 5 (October 2017): 1255–62.

[2] Sturm, Jürgen, Nikolas Engelhard, Felix Endres, Wolfram Burgard, and Daniel Cremers. “A Benchmark for the Evaluation of RGB-D SLAM Systems.” In 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, 573–80, 2012.
