wlanLLTFChannelEstimate

Channel estimation using L-LTF

Syntax

chEst = wlanLLTFChannelEstimate(demodSig,cfg)

chEst = wlanLLTFChannelEstimate(demodSig,cbw)

chEst = wlanLLTFChannelEstimate(___,span)

Description

chEst = wlanLLTFChannelEstimate(demodSig,cfg) returns the channel estimate between the transmitter and all receive antennas using the demodulated L-LTF¹ , demodSig, given the parameters specified in configuration object cfg.

chEst = wlanLLTFChannelEstimate(demodSig,cbw) returns the channel estimate given channel bandwidth cbw. The channel bandwidth can be used instead of the configuration object.

chEst = wlanLLTFChannelEstimate(___,span) returns the channel estimate and performs frequency smoothing over the specified filter span. For more information, see Frequency Smoothing.

This syntax supports input options from prior syntaxes.

Examples

Estimate SISO Channel Using L-LTF

Create VHT format configuration object. Generate a time-domain waveform for an 802.11ac VHT packet.

vht = wlanVHTConfig;
txWaveform = wlanWaveformGenerator([1;0;0;1],vht);

Multiply the transmitted VHT signal by -0.1 + 0.5i and pass it through an AWGN channel with a 30 dB signal-to-noise ratio.

rxWaveform = awgn(txWaveform*(-0.1+0.5i),30);

Extract the L-LTF field indices and demodulate the L-LTF. Perform channel estimation without frequency smoothing.

idxLLTF = wlanFieldIndices(vht,'L-LTF');
demodSig = wlanLLTFDemodulate(rxWaveform(idxLLTF(1):idxLLTF(2),:),vht);

est = wlanLLTFChannelEstimate(demodSig,vht);

Plot the channel estimate.

scatterplot(est)
grid

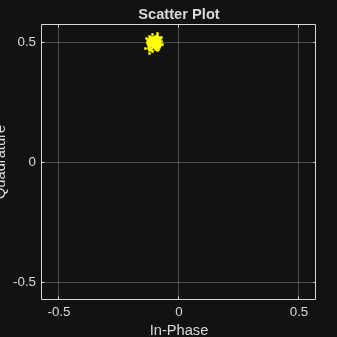

The channel estimate matches the complex channel multiplier.

L-LTF Channel Estimation After TGn Channel

Generate a time domain waveform for an 802.11n HT packet, pass it through a TGn fading channel and perform L-LTF channel estimation. Trailing zeros are added to the waveform to allow for TGn channel delay.

Create the HT packet configuration and transmit waveform.

cfgHT = wlanHTConfig;
txWaveform = wlanWaveformGenerator([1;0;0;1],cfgHT);

Configure a TGn channel with 20 MHz bandwidth.

tgnChannel = wlanTGnChannel;
tgnChannel.SampleRate = 20e6;

Pass the waveform through the TGn channel, adding trailing zeros to allow for channel delay.

rxWaveform = tgnChannel([txWaveform; zeros(15,1)]);

Skip the first four samples to synchronize the received waveform for channel delay.

rxWaveform = rxWaveform(5:end,:);

Extract the L-LTF and perform channel estimation.

idnLLTF = wlanFieldIndices(cfgHT,'L-LTF');
sym = wlanLLTFDemodulate(rxWaveform(idnLLTF(1):idnLLTF(2),:),cfgHT);
est = wlanLLTFChannelEstimate(sym,cfgHT);

Estimate 80 MHz SISO Channel Using L-LTF

Create a VHT format configuration object. Using these objects, generate a time-domain waveform for an 802.11ac VHT packet.

vht = wlanVHTConfig('ChannelBandwidth','CBW80');
txWaveform = wlanWaveformGenerator([1;0;0;1],vht);

Multiply the transmitted VHT signal by -0.4 + 0.3i and pass it through an AWGN channel.

rxWaveform = awgn(txWaveform*(-0.4+0.3i),30);

Specify the channel bandwidth for demodulation and channel estimation. Extract the L-LTF field indices, demodulate the L-LTF, and perform channel estimation without frequency smoothing.

chanBW = 'CBW80';
idxLLTF = wlanFieldIndices(vht,'L-LTF');
demodSig = wlanLLTFDemodulate(rxWaveform(idxLLTF(1):idxLLTF(2),:),chanBW);
est = wlanLLTFChannelEstimate(demodSig,chanBW);

Plot the channel estimate.

scatterplot(est)
grid

The channel estimate matches the complex channel multiplier.

Estimate SISO Channel Using L-LTF and Smoothing Filter

Create a VHT format configuration object. Generate a time-domain waveform for an 802.11ac VHT packet.

vht = wlanVHTConfig;
txWaveform = wlanWaveformGenerator([1;0;0;1],vht);

Multiply the transmitted VHT signal by 0.2 - 0.6i and pass it through an AWGN channel having a 10 dB SNR.

rxWaveform = awgn(txWaveform*complex(0.2,-0.6),10);

Extract the L-LTF from the received waveform. Demodulate the L-LTF.

idxLLTF = wlanFieldIndices(vht, 'L-LTF');
lltfDemodSig = wlanLLTFDemodulate(rxWaveform(idxLLTF(1):idxLLTF(2),:),vht);

Use the demodulated L-LTF signal to generate the channel estimate.

est = wlanLLTFChannelEstimate(lltfDemodSig,vht);

Plot the channel estimate.

scatterplot(est)
grid

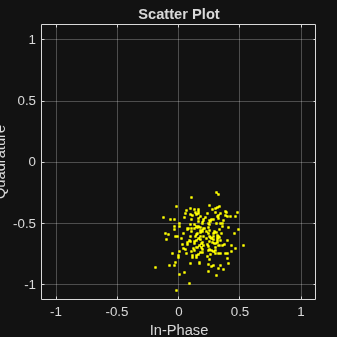

The channel estimate is noisy, which may lead to inaccurate data recovery.

Estimate the channel again with the filter span set to 11.

est = wlanLLTFChannelEstimate(lltfDemodSig,vht,11);
scatterplot(est)
grid

The filtering provides a better channel estimate.

Estimate Channel with L-LTF and Recover VHT-SIG-A

Create a VHT format configuration object. Generate L-LTF and VHT-SIG-A fields.

vht = wlanVHTConfig;
txLLTF = wlanLLTF(vht);
txSig = wlanVHTSIGA(vht);

Create a TGac channel for an 80 MHz bandwidth and a Model-A delay profile. Pass the transmitted L-LTF and VHT-SIG-A signals through the channel.

tgacChan = wlanTGacChannel('SampleRate',80e6,'ChannelBandwidth','CBW80', ...
    'DelayProfile','Model-A');

rxLLTFNoNoise = tgacChan(txLLTF);
rxSigNoNoise = tgacChan(txSig);

Create an AWGN noise channel with an SNR = 15 dB. Add the AWGN noise to L-LTF and VHT-SIG-A signals.

chNoise = comm.AWGNChannel('NoiseMethod','Signal to noise ratio (SNR)', ...
    'SNR',15);

rxLLTF = chNoise(rxLLTFNoNoise);
rxSig = chNoise(rxSigNoNoise);

Create an AWGN channel having a noise variance corresponding to a 9 dB noise figure receiver. Pass the faded signals through the AWGN channel.

nVar = 10^((-228.6 + 10*log10(290) + 10*log10(80e6) + 9)/10);
awgnChan = comm.AWGNChannel('NoiseMethod','Variance','Variance',nVar);

rxLLTF = awgnChan(rxLLTF);
rxSig = awgnChan(rxSig);

Demodulate the received L-LTF.

demodLLTF = wlanLLTFDemodulate(rxLLTF,vht);

Estimate the channel using the demodulated L-LTF.

chEst = wlanLLTFChannelEstimate(demodLLTF,vht);

Recover the VHT-SIG-A signal and verify that there was no CRC failure.

[recBits,crcFail] = wlanVHTSIGARecover(rxSig,chEst,nVar,'CBW80');
crcFail

crcFail = logical
   0

Input Arguments

demodSig — Demodulated L-LTF OFDM symbols

3-D array

Demodulated L-LTF OFDM symbols, specified as an N_ST-by-N_SYM-by-N_R array. N_ST is the number of occupied subcarriers. N_SYM is the number of demodulated L-LTF symbols (one or two). N_R is the number of receive antennas. Each column of the 3-D array is a demodulated L-LTF OFDM symbol. If you specify two L-LTF symbols, wlanLLTFChannelEstimate averages the channel estimate over both symbols.

Data Types: single | double
Complex Number Support: Yes

cfg — Format configuration

wlanEHTRecoveryConfig object | wlanEHTTBConfig object | wlanEHTMUConfig object | wlanHERecoveryConfig object | wlanHETBConfig object | wlanHEMUConfig object | wlanHESUConfig object | wlanVHTConfig object | wlanHTConfig object | wlanNonHTConfig object

Format configuration, specified as one of these objects:

• wlanEHTRecoveryConfig for EHT signal recovery

• wlanEHTTBConfig for the EHT trigger-based format

• wlanEHTMUConfig for the EHT multi-user format

• wlanHERecoveryConfig for HE signal recovery

• wlanHETBConfig for the HE trigger-based format

• wlanHEMUConfig for the HE multi-user format

• wlanHESUConfig for the HE single user format

• wlanVHTConfig for the VHT format

• wlanHTConfig for the HT format

• wlanNonHTConfig for the non-HT format

The wlanLLTFChannelEstimate function uses the ChannelBandwidth property of cfg.

cbw — Channel bandwidth

'CBW5' | 'CBW10' | 'CBW20' | 'CBW40' | 'CBW80' | 'CBW160' | 'CBW320'

Channel bandwidth, specified as one of these values.

• 'CBW5' — Channel bandwidth of 5 MHz

• 'CBW10' — Channel bandwidth of 10 MHz

• 'CBW20' — Channel bandwidth of 20 MHz

• 'CBW40' — Channel bandwidth of 40 MHz

• 'CBW80' — Channel bandwidth of 80 MHz

• 'CBW160' — Channel bandwidth of 160 MHz

• 'CBW320' — Channel bandwidth of 320 MHz

Data Types: char | string

span — Filter span

positive odd integer

Filter span of the frequency smoothing filter, specified as a positive odd integer and expressed as a number of subcarriers. Frequency smoothing is applied only when span is specified and is greater than one. See Frequency Smoothing.

Data Types: single | double

Output Arguments

chEst — Channel estimate

3-D array

Channel estimate containing data and pilot subcarriers, returned as an N_ST-by-1-by-N_R array. N_ST is the number of occupied subcarriers. The value of 1 corresponds to the single transmitted stream in the L-LTF. N_R is the number of receive antennas.

More About

L-LTF

The L-LTF is the second field in the 802.11™ OFDM PLCP legacy preamble. The L-LTF is a component of EHT, HE, VHT, HT, and non-HT PPDUs.

Channel estimation, fine frequency offset estimation, and fine symbol timing offset estimation rely on the L-LTF.

The L-LTF is composed of a cyclic prefix (CP) followed by two identical long training symbols (C1 and C2). The CP consists of the second half of the long training symbol.

The L-LTF duration varies with channel bandwidth.

Channel Bandwidth (MHz)	Subcarrier Frequency Spacing ΔF (kHz)	Fast Fourier Transform (FFT) Period (TFFT = 1 / ΔF)	Cyclic Prefix or Training Symbol Guard Interval (GI2) Duration (TGI2 = TFFT / 2)	L-LTF Duration (TLONG = TGI2 + 2 × TFFT)
20, 40, 80, 160, and 320	312.5	3.2 μs	1.6 μs	8 μs
10	156.25	6.4 μs	3.2 μs	16 μs
5	78.125	12.8 μs	6.4 μs	32 μs

Frequency Smoothing

Frequency smoothing can improve channel estimation by averaging out noise.

Frequency smoothing is recommended only for cases in which a single transmit antenna is used. Frequency smoothing consists of applying a moving-average filter that spans multiple adjacent subcarriers. Channel conditions dictate whether frequency smoothing is beneficial.

• If adjacent subcarriers are highly correlated, frequency smoothing results in significant noise reduction.

• In a highly frequency-selective channel, smoothing can degrade the quality of the channel estimate.

References

[1] Van de Beek, J.-J., O. Edfors, M. Sandell, S. K. Wilson, and P. O. Borjesson. “On Channel Estimation in OFDM Systems.” Vehicular Technology Conference, IEEE 45th, Volume 2, IEEE, 1995.

[2] IEEE Std 802.11-2020 (Revision of IEEE Std 802.11-2016). “Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications.” IEEE Standard for Information Technology — Telecommunications and Information Exchange between Systems — Local and Metropolitan Area Networks — Specific Requirements.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2015b

R2024b: Generate C/C++ code for EHT blind recovery

You can now generate C and C++ code using MATLAB^® Coder™ when you specify the cfg input as a wlanEHTRecoveryConfig object.

R2023b: HE and EHT support

You can specify the cfg input as an object of one of these types:

• wlanEHTRecoveryConfig

• wlanEHTTBConfig

• wlanEHTMUConfig

• wlanHERecoveryConfig

• wlanHETBConfig

• wlanHEMUConfig

• wlanHESUConfig

• wlanVHTConfig

• wlanHTConfig

• wlanNonHTConfig

R2022b: Single precision support

You can specify the function's numeric inputs as single precision values.
