Detect preamble in data


The comm.PreambleDetector System object™ detects a preamble in an input data sequence. A preamble is a set of symbols or bits used in packet-based communication systems to indicate the start of a packet. The preamble detector object finds the location corresponding to the end of the preamble.

To detect a preamble in an input data sequence:

  1. Create a comm.PreambleDetector object and set the properties of the object.

  2. Call step to detect the presence of a preamble.


Alternatively, instead of using the step method to perform the operation defined by the System object, you can call the object with arguments, as if it were a function. For example, y = step(obj,x) and y = obj(x) perform equivalent operations.


prbdet = comm.PreambleDetector creates a preamble detector object, prbdet, using the default properties.

prbdet = comm.PreambleDetector(Name,Value) specifies additional properties using Name,Value pairs. Unspecified properties have default values.

prbdet = comm.PreambleDetector(prb,Name,Value) specifies the preamble, prb in addition to those properties specified by using Name,Value pairs.


prbdet = comm.PreambleDetector('Input','Bit','Detections','First');


expand all

Type of input data, specified as 'Symbol' or 'Bit'. For binary inputs, set this parameter to 'Bit'. For all other inputs, set this parameter to 'Symbol'. Symbol data can be of data type single or double while bit data can, in addition, support the Boolean, int8, and uint8 data types.

Preamble sequence, specified as a real or complex column vector. The object uses this sequence to detect the presence of the preamble in the input data. If Input is 'Bit', the preamble must be a binary sequence. If Input is 'Symbol', the preamble can be any real or complex sequence.

Data Types: double | single | logical | int8 | uint8
Complex Number Support: Yes

Detection threshold, specified as a nonnegative scalar. When the computed detection metric is greater than or equal to Threshold, the preamble is detected. This property is available when Input is set to 'Symbol'. Tunable.

Number of preambles to detect, specified as 'All' or 'First'.

  • 'All' — Detects all the preambles in the input data sequence.

  • 'First' — Detect only the first preamble in the input data sequence.


stepDetect preamble in data
Common to All System Objects

Allow System object property value changes


Reset internal states of System object


collapse all

Specify a six-bit preamble.

prb = [1 0 0 1 0 1]';

Create a preamble detector object using preamble prb and taking bit inputs.

prbdet = comm.PreambleDetector(prb,'Input','Bit');

Generate a binary data sequence containing two preambles and using random bits to represent the data fields.

pkt = [prb; randi([0 1],10,1); prb; randi([0 1],10,1)];

Locate the indices of the two preambles. The indices correspond to the end of the preambles. The detector correctly identified indices 6 and 22 as the end of the two preambles inserted in the sequence.

idx = prbdet(pkt)
idx = 2×1


Using a preamble sequence with good correlation properties, find the last sample of the preamble for a transmitted data frame in a stream of delayed received data.

Define the preamble with a length of 17 by using the ninth root of the Zadoff-Chu sequence. Generate a transmission signal by concatenating several samples from a random signal, the preamble, and a random signal of 100 samples.

M = 16;                                 % 16-QAM modulation
preamble = zadoffChuSeq(9,17);
x = randi([0 M-1],100,1);
xmod = qammod(x,M,UnitAverage=true);
txsig = [xmod(23:30); preamble; xmod];

Create a variable fractional delay System object. Introduce a variable fractional delay of 82.3 samples. To return the full frame when executing the variable fractional delay object, add zero padding at the end of the transmitted signal. Add AWGN to the transmitted signal.

vfd = dsp.VariableFractionalDelay;
samplesToDelay = 82.3;
txsigdelayed = vfd([txsig; zeros(ceil(samplesToDelay),1)],samplesToDelay);

SNR = 40;
rxsig = awgn(txsigdelayed,SNR);

Create a preamble detector System object, specifying the preamble, the threshold level, and output of the index for the first detection. For the conditions in the example, setting the threshold to 60% of the total magnitude of the preamble samples finds the correct index for the preamble. Run the preamble detection object, returning the preamble index and detection metric.

thr = 0.6*sum(abs(preamble).^2);
preambleDet = comm.PreambleDetector( ...
    Preamble=preamble, ...
    Threshold=thr, ...
[idx,detmet] = preambleDet(rxsig);
idx = 107

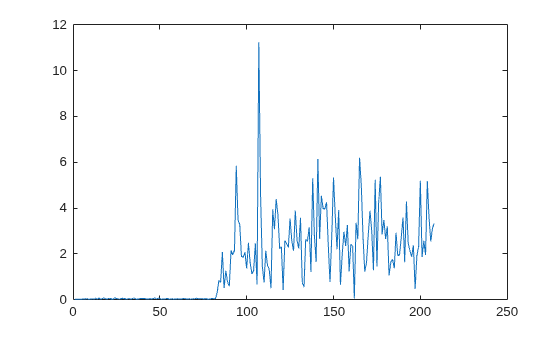

The detection metric is the absolute value of the cross-correlation of the preamble and the input signal. The cross-correlation peak should align with the returned preamble index. To confirm the returned index has identified the preamble, plot the returned cross-correlation values and compare the retuned index value to the peak in the cross-correlation values.


Figure contains an axes object. The axes object contains an object of type line.

Create a preamble and apply QPSK modulation.

p1 = [0 1 2 3 3 2 1 0]';
p = [p1; p1];
prb = pskmod(p,4,pi/4,'gray');

Create a comm.PreambleDetector object using preamble prb.

prbdet = comm.PreambleDetector(prb)
prbdet =
  comm.PreambleDetector with properties:

         Input: 'Symbol'
      Preamble: [16x1 double]
     Threshold: 3
    Detections: 'All'

Generate a sequence of random symbols. The first sequence represents the last 20 symbols from a previous packet. The second sequence represents the symbols from the current packet.

d1 = randi([0 3],20,1);
d2 = randi([0 3],100,1);

Modulate the two sequences.

x1 = pskmod(d1,4,pi/4,'gray');
x2 = pskmod(d2,4,pi/4,'gray');

Create a sequence of modulated symbols consisting of the remnant of the previous packet, the preamble, and the current packet.

y = [x1; prb; x2];

Add white Gaussian noise.

z = awgn(y,10);

Determine the preamble index and the detection metric.

[idx,detmet] = prbdet(z);

Calculate the number of elements in idx. Because the number of elements is greater than one, the detection threshold is too low.

ans = 80

Display the five largest detection metrics.

detmetSort = sort(detmet,'descend');
ans = 5×1


Increase the threshold and determine the preamble index. The result of 36 corresponds to the sum of the preamble length (16) and the remaining samples in the previous packet (20). This indicates that the preamble has been successfully detected.

prbdet.Threshold = 15;
idx = prbdet(z)
idx = 36


Bit Inputs

When the input data is composed of bits, the preamble detector uses an exact pattern match.

Symbol Inputs

When the input data is composed of symbols, the preamble detector uses a cross-correlation algorithm. A finite impulse response (FIR) filter, in which the coefficients are specified from the preamble, computes the cross-correlation between the input data and the preamble. When a sequence of input samples match the preamble, the filter output reaches its peak. The index of the peak corresponds to the end of the preamble sequence in the input data. See Discrete FIR Filter (Simulink) for further information on the FIR filter algorithm.

The cross-correlation values that are greater than or equal to the specified threshold are reported as peaks.

  • If the detection threshold is too low, the algorithm will detect false peaks, or, in the extreme case, detect as many detected peaks as there are input samples.

  • If the detection threshold is too high, the algorithm will miss detecting peaks, or, in the extreme case, detect no peaks.

Consequently, the selection of the detection threshold is critical.
