# Convolutional Encoder

Create convolutional code from binary data

## Library

Convolutional sublibrary of Error Detection and Correction

## Description

The Convolutional Encoder block encodes a sequence of binary input vectors to produce a sequence of binary output vectors. This block can process multiple symbols at a time.

This block can accept inputs that vary in length during simulation. For more information about variable-size signals, see Variable-Size Signal Basics (Simulink).

### Input and Output Sizes

If the encoder takes *k* input bit streams (that is, it can
receive 2^{k} possible input symbols),
the block input vector length is L**k* for some positive integer
L. Similarly, if the encoder produces *n* output bit streams
(that is, it can produce 2^{n} possible
output symbols), the block output vector length is L**n*.

This block accepts a column vector input signal with any positive integer for L.
For variable-size inputs, the L can vary during simulation. The operation of the
block is governed by the **Operation mode** parameter.

For both its inputs and outputs for the data ports, the block supports
`double`

, `single`

,
`boolean`

, `int8`

, `uint8`

,
`int16`

, `uint16`

, `int32`

,
`uint32`

, and `ufix1`

. The port data types are
inherited from the signals that drive the block. The input reset port supports
`double`

and `boolean`

typed signals.

### Specifying the Encoder

To define the convolutional encoder, use the **Trellis
structure** parameter. This parameter is a MATLAB^{®} structure whose format is described in Trellis Description of a Convolutional Code. You can use this
parameter field in two ways:

If you have a variable in the MATLAB workspace that contains the trellis structure, enter its name in the

**Trellis structure**parameter. This way is preferable because it causes Simulink^{®}to spend less time updating the diagram at the beginning of each simulation, compared to the usage described next.If you want to specify the encoder using its constraint length, generator polynomials, and possibly feedback connection polynomials, use a

`poly2trellis`

command in the**Trellis structure**parameter. For example, to use an encoder with a constraint length of 7, code generator polynomials of 171 and 133 (in octal numbers), and a feedback connection of 171 (in octal), set the**Trellis structure**parameter topoly2trellis(7,[171 133],171)

The encoder registers begin in the all-zeros state. Set the **Operation
mode** parameter to ```
Reset on nonzero input via
port
```

to reset all encoder registers to the all-zeros state during
the simulation. This selection opens a second input port, labeled
`Rst`

, which accepts a scalar-valued input signal. When the
input signal is nonzero, the block resets before processing the data at the first
input port. To reset the block after it processes the data at the first input port,
select **Delay reset action to next time step**.

## Parameters

**Trellis structure**MATLAB structure that contains the trellis description of the convolutional encoder.

**Operation mode**In

`Continuous`

mode, the block retains the encoder states at the end of each input, for use with the next frame.In

`Truncated (reset every frame)`

mode, the block treats each input independently. The encoder states are reset to all-zeros state at the start of each input.**Note**When this block outputs sequences that vary in length during simulation and you set the

**Operation mode**to`Truncated (reset every frame)`

or`Terminate trellis by appending bits`

, the block's state resets at every input time step.In

`Terminate trellis by appending bits`

mode, the block treats each input independently. For each input frame, extra bits are used to set the encoder states to all-zeros state at the end of the frame. The output length is given by $$y=n\cdot (x+s)/k$$, where*x*is the number of input bits, and $$s=\text{constraintlength}-1$$ (or, in the case of multiple constraint lengths,*s*=`sum(ConstraintLength(i)-1)`

).**Note**This block works for cases $$k\ge 1$$, where it has the same values for constraint lengths in each input stream (e.g., constraint lengths of [2 2] or [7 7] will work, but [5 4] will not).

In

`Reset on nonzero input via port`

mode, the block has an additional input port, labeled`Rst`

. When the`Rst`

input is nonzero, the encoder resets to the all-zeros state.**Delay reset action to next time step**When you select

**Delay reset action to next time step**, the Convolutional Encoder block resets after computing the encoded data. This check box only appears when you set the**Operation mode**parameter to`Reset on nonzero input via port`

.The delay in the reset action allows the block to support HDL code generation. In order to generate HDL code, you must have an HDL Coder™ license.

**Output final state**When you select

**Output final state**, the second output port signal specifies the output state for the block. The output signal is a scalar, integer value. You can select**Output final state**for all operation modes except`Terminate trellis by appending bits`

.**Specify initial state via input port**When you select

**Specify initial state via input port**the second input port signal specifies the starting state for every frame in the block. The input signal must be a scalar, integer value.**Specify initial state via input port**appears only in`Truncated`

operation mode.**Puncture code**Selecting this option opens the field

**Puncture vector**.**Puncture vector**Vector used to puncture the encoded data. The puncture vector is a pattern of

`1`

s and`0`

s where the`0`

s indicate the punctured bits. This field appears when you select**Punctured code**.

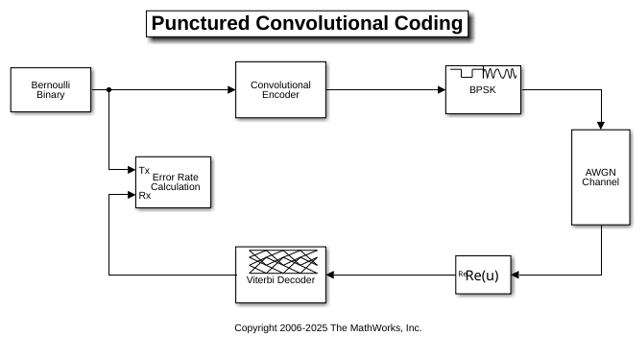

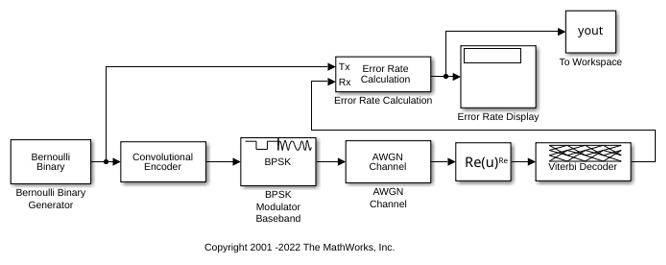

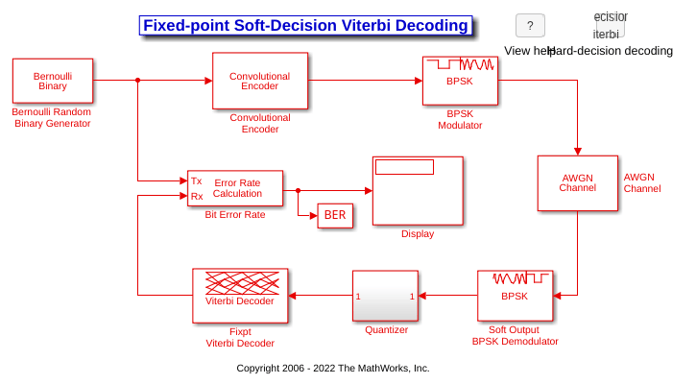

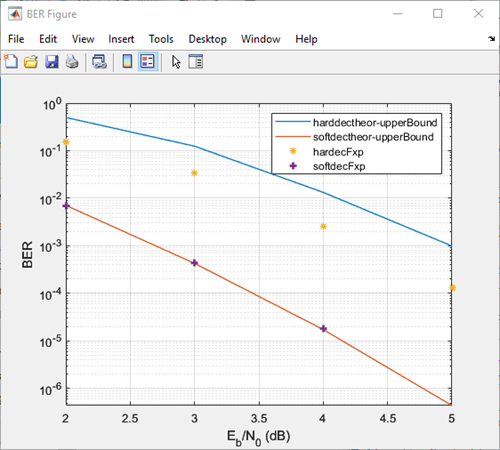

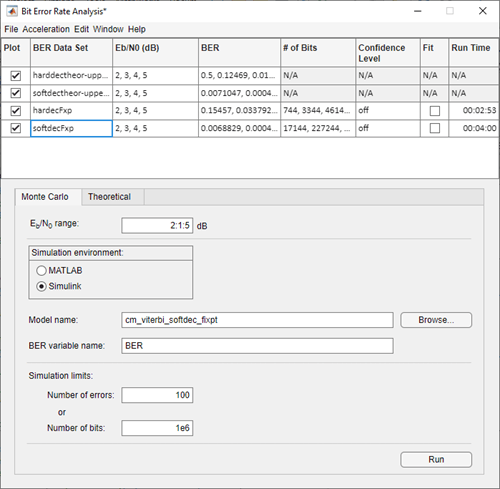

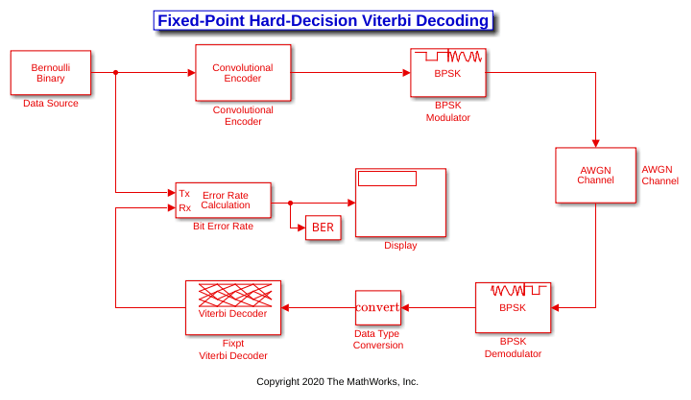

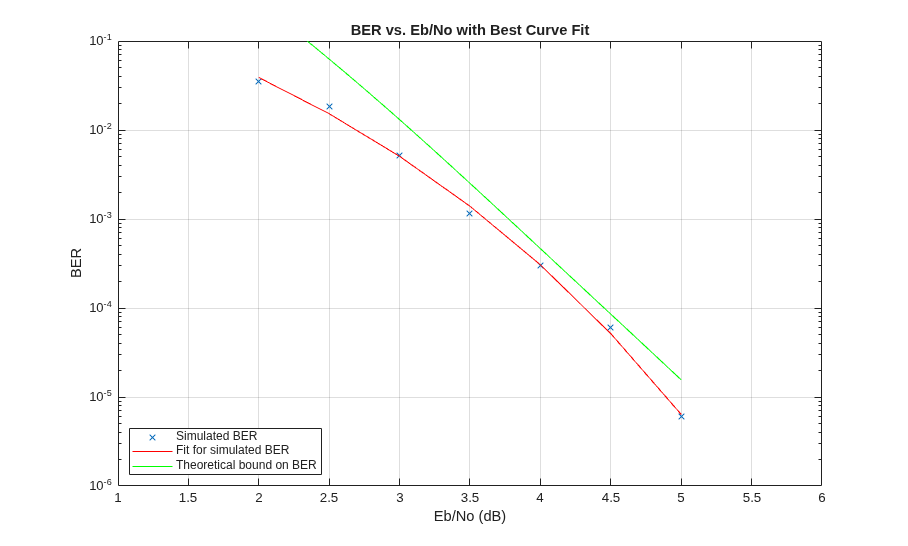

## Puncture Pattern Examples

For some commonly used puncture patterns for specific rates and polynomials, see the last three references listed on this page.

## See Also

## References

[1] Clark, George C. Jr. and J. Bibb Cain,
*Error-Correction Coding for Digital Communications*, New
York, Plenum Press, 1981.

[2] Gitlin, Richard D., Jeremiah F. Hayes, and Stephen B.
Weinstein, *Data Communications Principles*, New York, Plenum,
1992.

[3] Yasuda, Y., et. al., “High rate punctured
convolutional codes for soft decision Viterbi decoding,” *IEEE
Transactions on Communications*, Vol. COM-32, No. 3, pp 315–319,
March 1984.

[4] Haccoun, D., and Begin, G., “High-rate punctured
convolutional codes for Viterbi and Sequential decoding,” *IEEE
Transactions on Communications*, Vol. 37, No. 11, pp 1113–1125, Nov.
1989.

[5] Begin, G., et.al., “Further results on high-rate
punctured convolutional codes for Viterbi and sequential decoding,”
*IEEE Transactions on Communications*, Vol. 38, No. 11, pp
1922–1928, Nov. 1990.

## Extended Capabilities

## Version History

**Introduced before R2006a**
