Deep Network Quantizer

Quantize deep neural network to 8-bit scaled integer data types

Since R2020a

Description

Use the Deep Network Quantizer app to reduce the memory requirement of a deep neural network by quantizing weights, biases, and activations of layers to 8-bit scaled integer data types. Using this app, you can:

• Visualize the dynamic ranges of convolution layers in a deep neural network.

• Select individual network layers to quantize.

• Assess the performance of a quantized network.

• Generate GPU code to deploy the quantized network using GPU Coder™.

• Generate HDL code to deploy the quantized network to an FPGA using Deep Learning HDL Toolbox™.

• Generate C++ code to deploy the quantized network to an ARM Cortex-A microcontroller using MATLAB^® Coder™.

• Generate a simulatable quantized network that you can explore in MATLAB without generating code or deploying to hardware.

This app requires Deep Learning Toolbox Model Quantization Library. To learn about the products required to quantize a deep neural network, see Quantization Workflow Prerequisites.

×

Open the Deep Network Quantizer App

• MATLAB command prompt: Enter deepNetworkQuantizer.

• MATLAB toolstrip: On the Apps tab, under Machine Learning and Deep Learning, click the app icon.

Examples

Quantize Network for GPU Deployment

To explore the behavior of a neural network with quantized convolution layers, use the Deep Network Quantizer app. This example quantizes the learnable parameters of the convolution layers of the squeezenet neural network after retraining the network to classify new images.

This example uses a DAG network with the GPU execution environment.

Load the network to quantize into the base workspace.

load squeezenetmerch
net

net =
  DAGNetwork with properties:

         Layers: [68×1 nnet.cnn.layer.Layer]
    Connections: [75×2 table]
     InputNames: {'data'}
    OutputNames: {'new_classoutput'}

Define calibration and validation data.

The app uses calibration data to exercise the network and collect the dynamic ranges of the weights and biases in the convolution and fully connected layers of the network and the dynamic ranges of the activations in all layers of the network. For the best quantization results, the calibration data must be representative of inputs to the network.

The app uses the validation data to test the network after quantization to understand the effects of the limited range and precision of the quantized learnable parameters of the convolution layers in the network.

In this example, use the images in the MerchData data set. Define an augmentedImageDatastore object to resize the data for the network. Then, split the data into calibration and validation data sets.

unzip('MerchData.zip');
imds = imageDatastore('MerchData', ...
    'IncludeSubfolders',true, ...
    'LabelSource','foldernames');
[calData, valData] = splitEachLabel(imds,0.7,'randomized');
aug_calData = augmentedImageDatastore([227 227],calData);
aug_valData = augmentedImageDatastore([227 227],valData);

At the MATLAB command prompt, open the app.

deepNetworkQuantizer

In the app, click New and select Quantize a network.

The app verifies your execution environment. For more information, see Quantization Workflow Prerequisites.

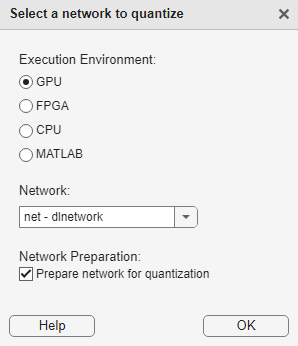

In the dialog, select the execution environment and the network to quantize from the base workspace. For this example, select a GPU execution environment and net - DAGnetwork.

Decide whether to use the Network Preparation option. Network preparation modifies your neural network to improve performance and avoid error conditions in the quantization workflow. These modifications include conversion of your network to a dlnetwork object. For more information, see prepareNetwork.

For this example, deselect the Prepare network for quantization check box so the network remains a DAGNetwork object. This workflow uses the default metric function for validation, which is only supported for DAGNetwork and SeriesNetwork objects.

The app displays the layer graph of the selected network.

In the Calibrate section of the toolstrip, under Calibration Data, select the augmentedImageDatastore object from the base workspace containing the calibration data, aug_calData. Select Calibrate.

The Deep Network Quantizer uses the calibration data to exercise the network and collect range information for the learnable parameters in the network layers.

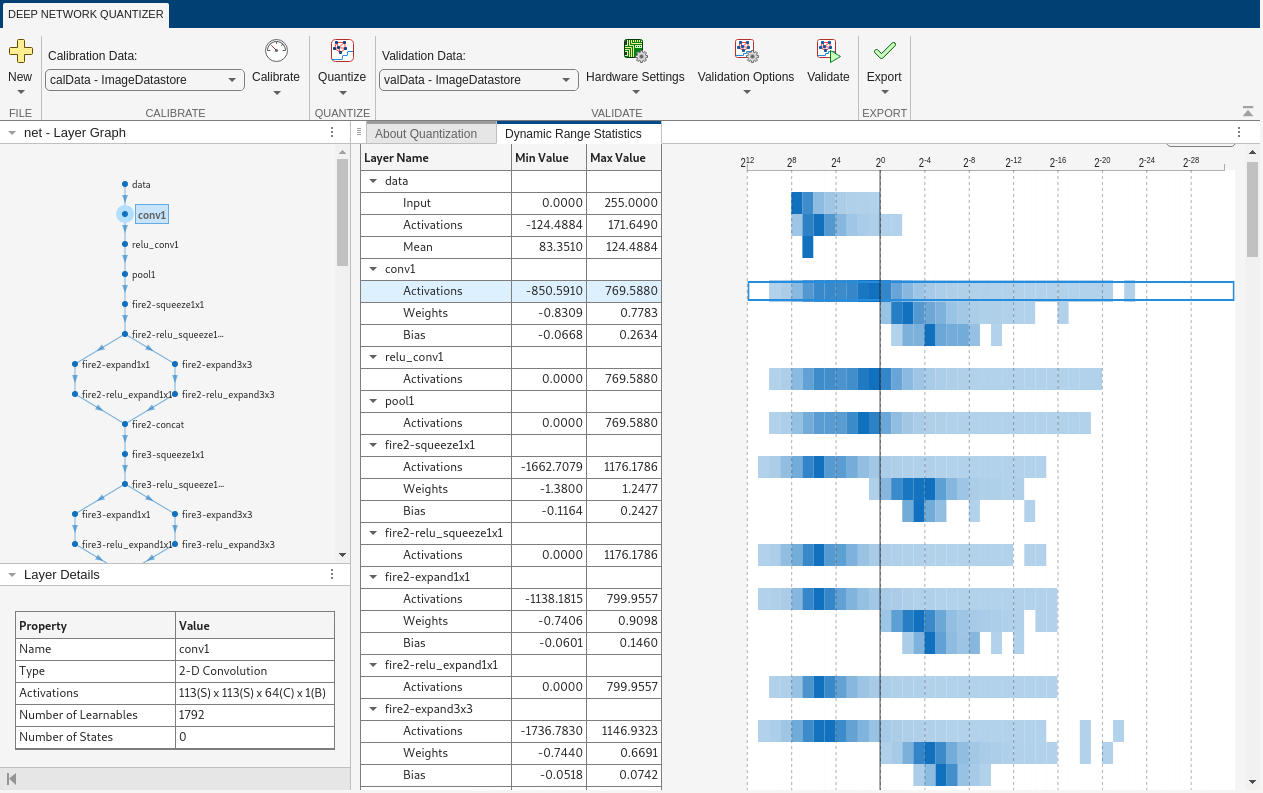

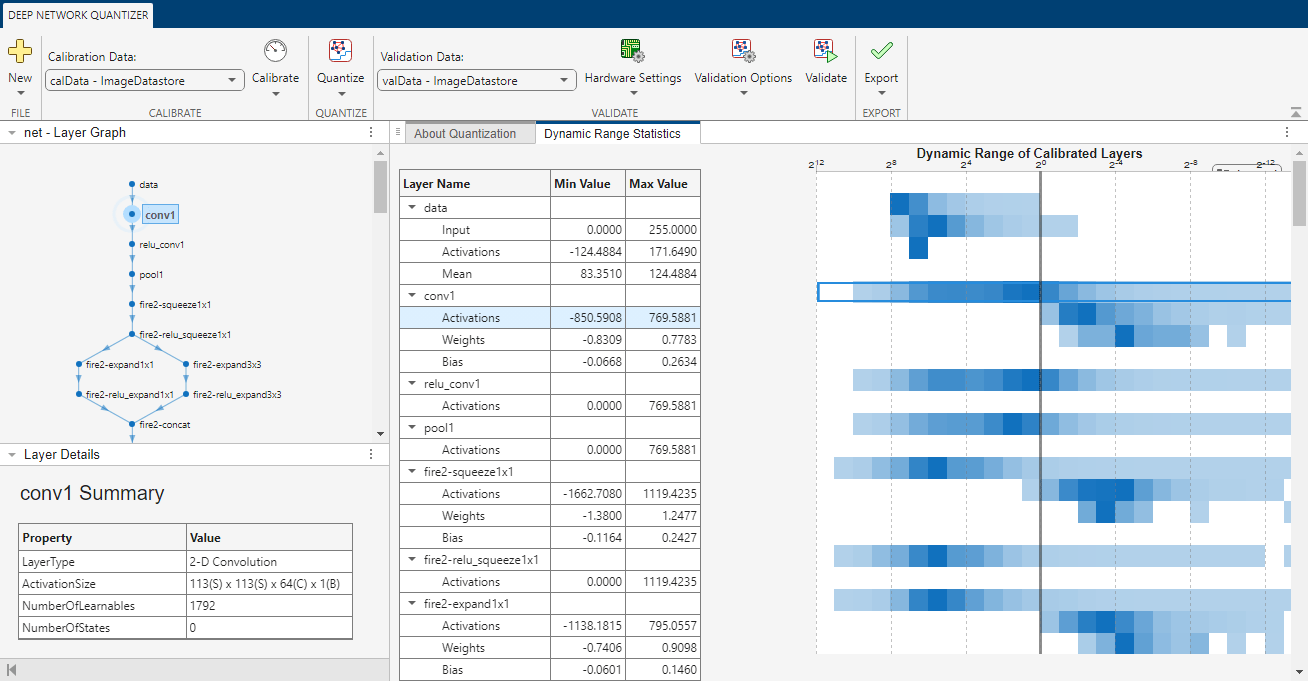

When the calibration is complete, the app displays a table containing the weights and biases in the convolution and fully connected layers of the network as well as the dynamic ranges of the activations in all layers of the network and their minimum and maximum values during the calibration. To the right of the table, the app displays histograms of the dynamic ranges of the parameters.

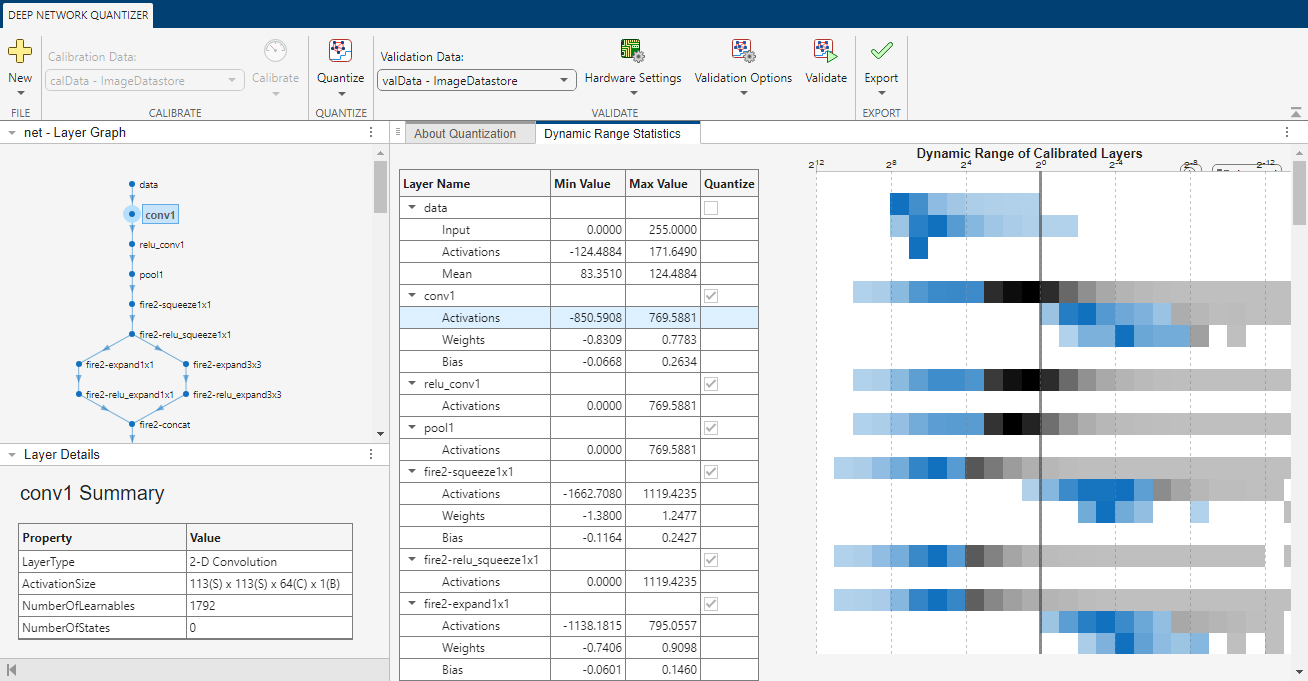

In the Quantize column of the table, indicate whether to quantize the learnable parameters in the layer. Layers that are not quantized remain in single precision after quantization.

In the Quantize section of the toolstrip, under Quantize, select the MinMax exponent scheme. Click Quantize.

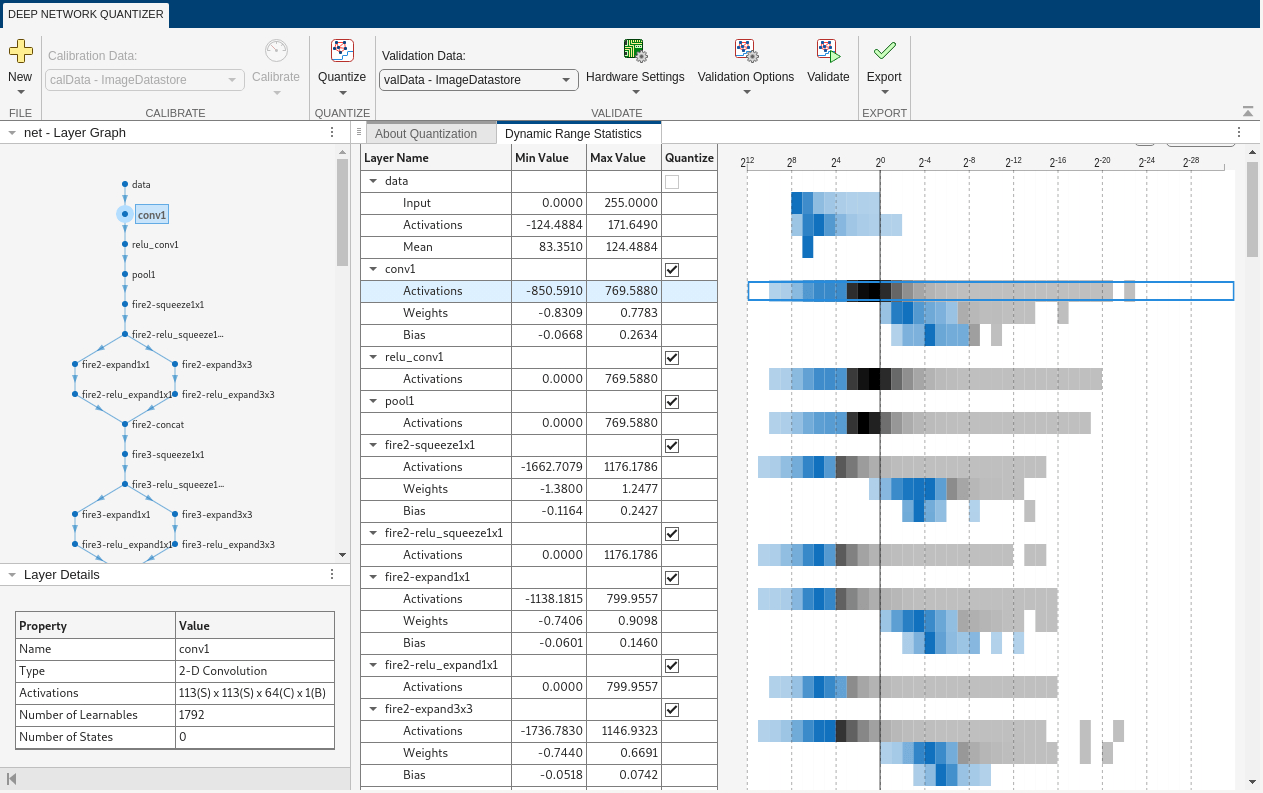

The Deep Network Quantizer quantizes the weights, activations, and biases of convolution layers in the network to scaled 8-bit integer data types. The app updates the histogram of the dynamic ranges of the parameters. The gray regions of the histograms indicate data that cannot be represented by the quantized representation. For more information on how to interpret these histograms, see Quantization of Deep Neural Networks.

In the Validate section of the toolstrip, under Validation Data, select the augmentedImageDatastore object from the base workspace containing the validation data, aug_valData.

In the Validate section of the toolstrip, under Validation Options, select the Default metric function.

Click Validate. The app uses the validation data to exercise the network. The app determines a default metric function to use for the validation based on the type of network that is being quantized. For a classification network, the app uses the top-1 accuracy metric.

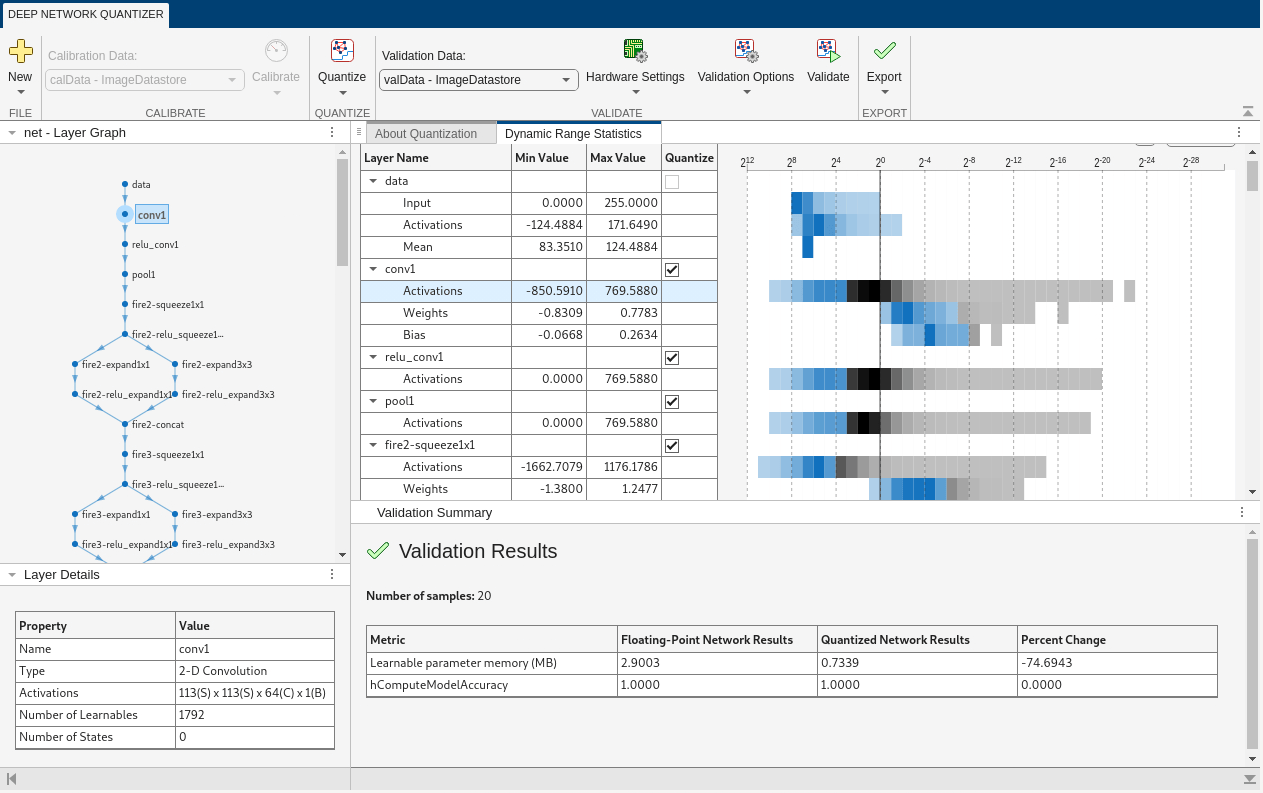

When the validation is complete, the app displays the results of the validation, including:

• Metric function used for validation

• Result of the metric function before and after quantization

• Memory requirement of the network before and after quantization (MB)

To use a metric function other than the default Top-1 accuracy metric, define a custom metric function. Save the custom metric function in a local file.

function accuracy = hComputeModelAccuracy(predictionScores, net, dataStore)
%% Computes model-level accuracy statistics

    % Load ground truth.
    tmp = readall(dataStore);
    groundTruth = tmp.response;

    % Compare predicted label with actual ground truth.
    predictionError = {};
    for idx=1:numel(groundTruth)
        [~, idy] = max(predictionScores(idx,:));
        yActual = net.Layers(end).Classes(idy);
        predictionError{end+1} = (yActual == groundTruth(idx)); %#ok
    end

    % Sum all prediction errors.
    predictionError = [predictionError{:}];
    accuracy = sum(predictionError)/numel(predictionError);
end

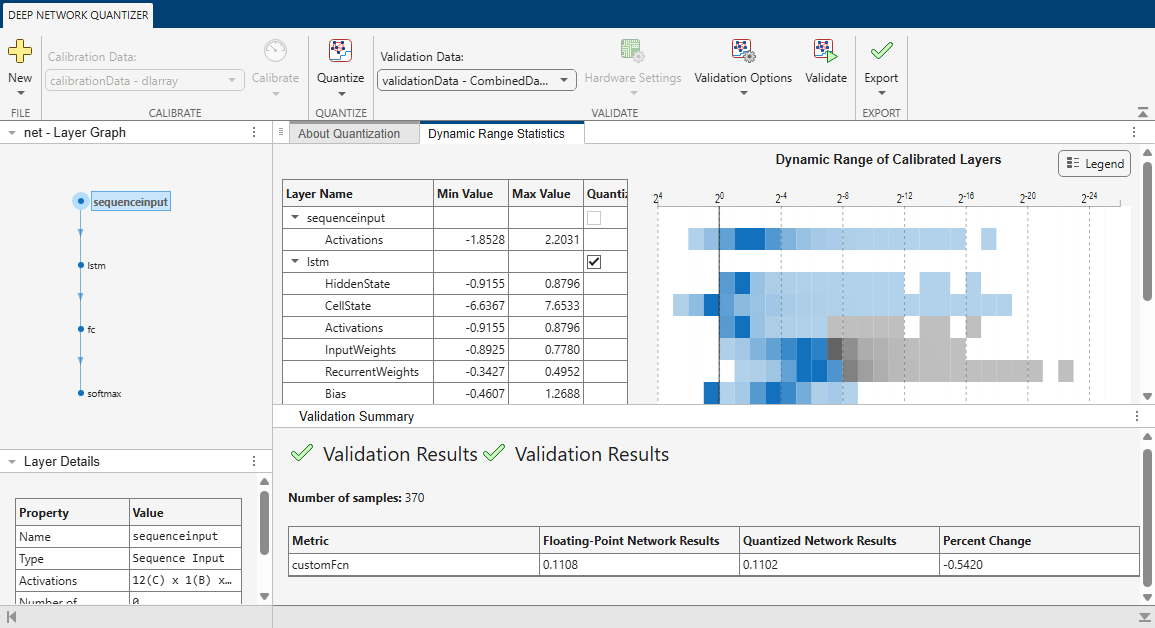

To revalidate the network using this custom metric function, under Validation Options, enter the name of the custom metric function, hComputeModelAccuracy. Select Add to add hComputeModelAccuracy to the list of metric functions available in the app. Select hComputeModelAccuracy as the metric function to use.

The custom metric function must be on the path. If the metric function is not on the path, this step causes an error.

Select Validate.

The app quantizes the network and displays the validation results for the custom metric function.

The app displays only scalar values in the validation results table. To view the validation results for a custom metric function with nonscalar output, export the dlquantizer object as described below, then validate it using the validate function in the MATLAB command window.

If the performance of the quantized network is not satisfactory, you can choose to not quantize some layers by clearing the layer in the table. You can also explore the effects of choosing a different exponent selection scheme for quantization in the Quantize menu. To see the effects of these changes, quantize and validate the network again.

After calibrating and quantizing the network, you can choose to export the quantized network or the dlquantizer object. Select the Export button. In the drop-down list, select from the following options:

• Export Quantized Network — Add the quantized network to the base workspace. This option exports a simulatable quantized network that you can explore in MATLAB without deploying to hardware.

• Export Quantizer — Add the dlquantizer object to the base workspace. You can save the dlquantizer object and use it for further exploration in the Deep Network Quantizer app or at the command line, or use it to generate code for your target hardware.

• Generate Code — Open the GPU Coder app and generate GPU code from the quantized neural network. Generating GPU code requires a GPU Coder™ license.

Quantize Network for CPU Deployment

To explore the behavior of a neural network with quantized convolution layers, use the Deep Network Quantizer app. This example quantizes the learnable parameters of the convolution layers of the squeezenet neural network after retraining the network to classify new images.

This example uses a DAG network with the CPU execution environment.

Load the network to quantize into the base workspace.

load squeezenetmerch
net

net =
  DAGNetwork with properties:

         Layers: [68×1 nnet.cnn.layer.Layer]
    Connections: [75×2 table]
     InputNames: {'data'}
    OutputNames: {'new_classoutput'}

Define calibration and validation data.

The app uses calibration data to exercise the network and collect the dynamic ranges of the weights and biases in the convolution and fully connected layers of the network and the dynamic ranges of the activations in all layers of the network. For the best quantization results, the calibration data must be representative of inputs to the network.

The app uses the validation data to test the network after quantization to understand the effects of the limited range and precision of the quantized learnable parameters of the convolution layers in the network.

In this example, use the images in the MerchData data set. Define an augmentedImageDatastore object to resize the data for the network. Then, split the data into calibration and validation data sets.

unzip('MerchData.zip');
imds = imageDatastore('MerchData', ...
    'IncludeSubfolders',true, ...
    'LabelSource','foldernames');
[calData, valData] = splitEachLabel(imds, 0.7, 'randomized');
aug_calData = augmentedImageDatastore([227 227], calData);
aug_valData = augmentedImageDatastore([227 227], valData);

At the MATLAB command prompt, open the app.

deepNetworkQuantizer

In the app, click New and select Quantize a network.

The app verifies your execution environment. For more information, see Quantization Workflow Prerequisites.

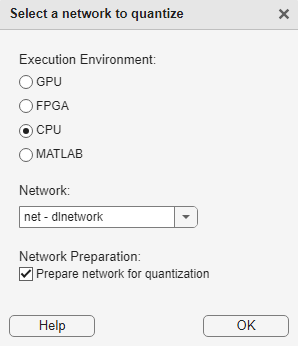

In the dialog, select the execution environment and the network to quantize from the base workspace. For this example, select a CPU execution environment and net - DAGnetwork.

Decide whether to use the Network Preparation option. Network preparation modifies your neural network to improve performance and avoid error conditions in the quantization workflow. These modifications include conversion of your network to a dlnetwork object. For more information, see prepareNetwork.

For this example, deselect the Prepare network for quantization check box so the network remains a DAGNetwork object. This workflow uses the default metric function for validation, which is only supported for DAGNetwork and SeriesNetwork objects.

The app displays the layer graph of the selected network.

In the Calibrate section of the toolstrip, under Calibration Data, select the augmentedImageDatastore object from the base workspace containing the calibration data, aug_calData. Select Calibrate.

The Deep Network Quantizer uses the calibration data to exercise the network and collect range information for the learnable parameters in the network layers.

When the calibration is complete, the app displays a table containing the weights and biases in the convolution and fully connected layers of the network as well as the dynamic ranges of the activations in all layers of the network and their minimum and maximum values during the calibration. To the right of the table, the app displays histograms of the dynamic ranges of the parameters.

In the Quantize column of the table, indicate whether to quantize the learnable parameters in the layer. Layers that are not quantized remain in single precision after quantization.

In the Quantize section of the toolstrip, under Quantize, select the MinMax exponent scheme. Click Quantize.

The Deep Network Quantizer quantizes the weights, activations, and biases of convolution layers in the network to scaled 8-bit integer data types. The app updates the histogram of the dynamic ranges of the parameters. The gray regions of the histograms indicate data that cannot be represented by the quantized representation. For more information on how to interpret these histograms, see Quantization of Deep Neural Networks.

In the Validate section of the toolstrip, under Validation Data, select the augmentedImageDatastore object from the base workspace containing the validation data, aug_valData.

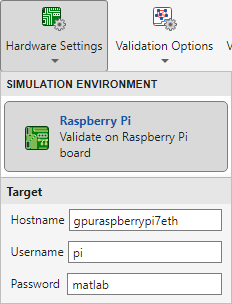

In the Validate section of the toolstrip, under Hardware Settings, select Raspberry Pi as the Simulation Environment. The app auto-populates the Target credentials from an existing connection or from the last successful connection. You can also use this option to create a new Raspberry Pi connection.

Click Validate. The app uses the validation data to exercise the network. The app determines a default metric function to use for the validation based on the type of network that is being quantized. For a classification network, the app uses top-1 accuracy metric.

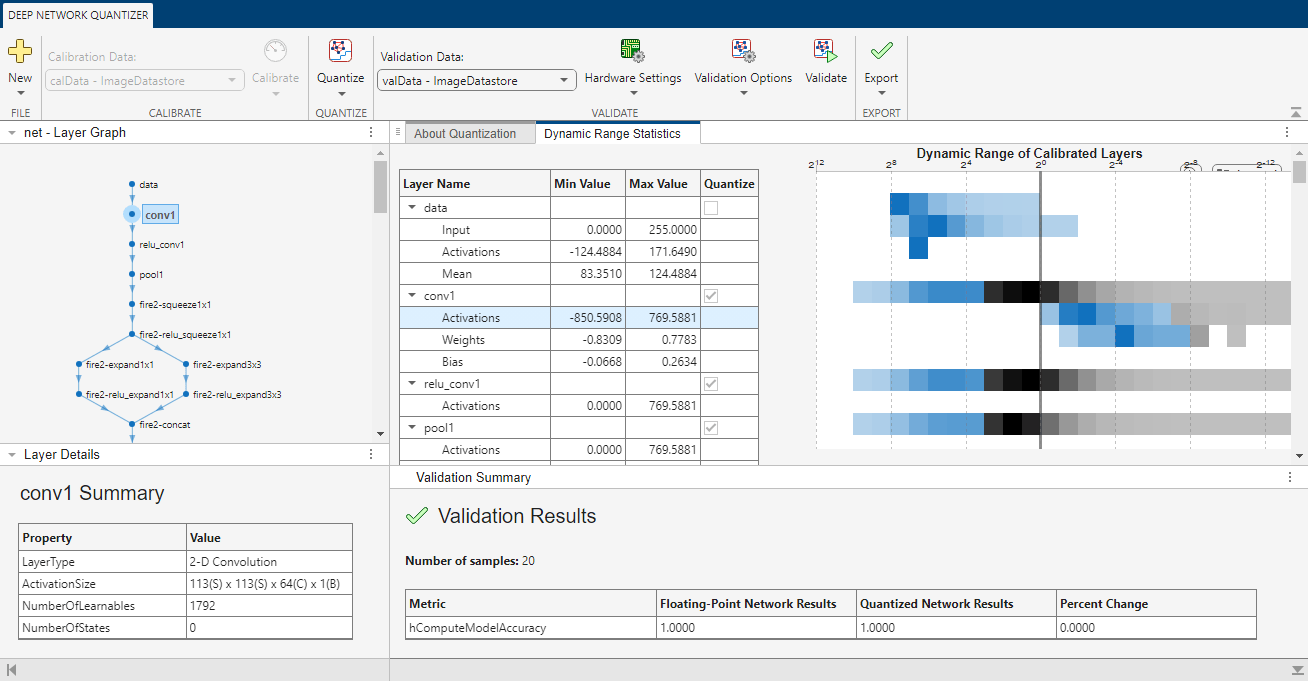

When the validation is complete, the app displays the results of the validation, including:

• Metric function used for validation

• Result of the metric function before and after quantization

• Memory requirement of the network before and after quantization (MB)

If the performance of the quantized network is not satisfactory, you can choose to not quantize some layers by clearing the layer in the table. You can also explore the effects of choosing a different exponent selection scheme for quantization in the Quantize drop-down list. To see the effects of these changes, quantize and validate the network again.

After calibrating and quantizing the network, you can choose to export the quantized network or the dlquantizer object. Select the Export button. In the drop down, select from the following options:

• Export Quantized Network — Add the quantized network to the base workspace. This option exports a simulatable quantized network that you can explore in MATLAB without deploying to hardware.

• Export Quantizer — Add the dlquantizer object to the base workspace. You can save the dlquantizer object and use it for further exploration in the Deep Network Quantizer app or at the command line, or use it to generate code for your target hardware.

• Generate Code — Open the MATLAB Coder app and generate C++ code from the quantized neural network. Generating C++ code requires a MATLAB Coder™ license.

Quantize Network for FPGA Deployment

To explore the behavior of a neural network that has quantized convolution layers, use the Deep Network Quantizer app. This example quantizes the learnable parameters of the convolution layers of the LogoNet neural network for an FPGA target.

For this example, you need the products listed under FPGA in Quantization Workflow Prerequisites.

Load the pretrained network to quantize into the base workspace. Create a file in your current working folder called getLogoNetwork.m. In the file, enter this code.

function net = getLogoNetwork
 if ~isfile('LogoNet.mat')
        url = 'https://www.mathworks.com/supportfiles/gpucoder/cnn_models/logo_detection/LogoNet.mat';
        websave('LogoNet.mat',url);
    end
    data = load('LogoNet.mat');
    net  = data.convnet;
end

Load the pretrained network.

snet = getLogoNetwork;

snet =

  SeriesNetwork with properties:

         Layers: [22×1 nnet.cnn.layer.Layer]
     InputNames: {'imageinput'}
    OutputNames: {'classoutput'}

Define calibration and validation data to use for quantization.

The Deep Network Quantizer app uses calibration data to exercise the network and collect the dynamic ranges of the weights and biases in the convolution and fully connected layers of the network. The app also exercises the dynamic ranges of the activations in all layers of the LogoNet network. For the best quantization results, the calibration data must be representative of inputs to the LogoNet network.

After quantization, the app uses the validation data set to test the network to understand the effects of the limited range and precision of the quantized learnable parameters of the convolution layers in the network.

In this example, use the images in the logos_dataset data set to calibrate and validate the LogoNet network. Define an imageDatastore object, then split the data into calibration and validation data sets.

Expedite the calibration and validation process for this example by using a subset of the calibration and validation data. Store the new reduced calibration data set in calData_concise and the new reduced validation data set in valData_concise.

currentDir = pwd;
openExample('deeplearning_shared/QuantizeNetworkForFPGADeploymentExample')
unzip('logos_dataset.zip');

imds = imageDatastore(fullfile(currentDir,'logos_dataset'),...
 'IncludeSubfolders',true,'FileExtensions','.JPG','LabelSource','foldernames');

[calData,valData] = splitEachLabel(imds,0.7,'randomized');

calData_concise = calData.subset(1:20);
valData_concise = valData.subset(1:6);

Open the Deep Network Quantizer app.

deepNetworkQuantizer

Click New and select Quantize a network.

Set the execution environment to FPGA and select snet - SeriesNetwork as the network to quantize.

Decide whether to use the Network Preparation option. Network preparation modifies your neural network to improve performance and avoid error conditions in the quantization workflow. These modifications include conversion of your network to a dlnetwork object. For more information, see prepareNetwork.

For this example, deselect the Prepare network for quantization check box so the network remains a SeriesNetwork object. This workflow uses the default metric function for validation, which is only supported for DAGNetwork and SeriesNetwork objects.

The app displays the layer graph of the selected network.

Under Calibration Data, select the calData_concise - ImageDatastore object from the base workspace containing the calibration data.

Click Calibrate. By default, the app uses the host GPU to collect calibration data, if one is available. Otherwise, the host CPU is used. You can use the Calibrate drop-down menu to select the calibration environment.

The Deep Network Quantizer app uses the calibration data to exercise the network and collect range information for the learnable parameters in the network layers.

When the calibration is complete, the app displays a table containing the weights and biases in the convolution and fully connected layers of the network. Also displayed are the dynamic ranges of the activations in all layers of the network and their minimum and maximum values recorded during the calibration. The app displays histograms of the dynamic ranges of the parameters.

In the Quantize Layer column of the table, indicate whether to quantize the learnable parameters in the layer. Layers that are not quantized remain in single precision.

From the Quantize button drop-down list, select the MinMax exponent scheme.

Click Quantize.

The Deep Network Quantizer app quantizes the weights, activations, and biases of layers in the network to scaled 8-bit integer data types. The gray regions of the histograms indicate data that cannot be represented by the quantized representation. For more information on how to interpret these histograms, see Quantization of Deep Neural Networks.

Under Validation Data, select the valData_concise - ImageDatastore object from the base workspace containing the validation data.

From the Validation Options drop-down list, select the Default metric function.

In the Hardware Settings section of the toolstrip, select the environment to use for validation of the quantized network. For more information on these options, see Hardware Settings.

This example uses Xilinx ZC706 (zc706_int8) and JTAG.

Click Validate.

The Deep Network Quantizer app uses the validation data to exercise the network. The app determines a default metric function to use for the validation based on the type of network that is being quantized. For more information, see Validation Options.

When the validation is complete, the app displays the validation results.

After quantizing and validating the network, you can choose to export the quantized network.

Click the Export button. In the drop-down list, select Export Quantizer to create a dlquantizer object in the base workspace. You can deploy the quantized network to your target FPGA board and retrieve the prediction results by using MATLAB. For an example, see Classify Images on FPGA Using Quantized Neural Network (Deep Learning HDL Toolbox).

Import dlquantizer Object into Deep Network Quantizer App

Import a dlquantizer object from the base workspace into the Deep Network Quantizer app to begin quantization of a deep neural network using either the command line or the app, and resume your work later in the app.

Open the Deep Network Quantizer app.

deepNetworkQuantizer

In the app, click New and select Import dlquantizer object.

In the dialog, select a dlquantizer object to import from the base workspace. For this example, use the dlquantizer object quantizer from the above example Quantize a Neural Network for GPU Target. You can create the quantizer object by selecting Export Quantizer from the Export drop-down list after quantizing the network.

The app imports any data contained in the dlquantizer object that was collected at the command line, including the quantized network, calibration data, validation data, and calibration statistics.

The app displays a table containing the quantization data contained in the imported dlquantizer object, quantizer. To the right of the table, the app displays histograms of the dynamic ranges of the parameters. The gray regions of the histograms indicate data that cannot be represented by the quantized representation. For more information on how to interpret these histograms, see Quantization of Deep Neural Networks.

Related Examples

• Quantization of Deep Neural Networks
• Quantize Residual Network Trained for Image Classification and Generate CUDA Code

Parameters

Execution Environment — Execution Environment

GPU (default) | FPGA | CPU | MATLAB

When you select New > Quantize a Network, the app allows you to choose the execution environment for the quantized network. How the network is quantized depends on the choice of execution environment.

When you select the MATLAB execution environment, the app performs target-agnostic quantization of the neural network. You do not need to have the target hardware to explore the quantized network in MATLAB.

Network Preparation — Prepare network for quantization

on (default) | off

When you select Network Preparation, your neural network is modified to improve performance and avoid error conditions. For more information, see prepareNetwork.

Hardware Settings — Hardware settings

simulation environment | target

Specify hardware settings based on your execution environment.

• GPU Execution Environment

  Select from the following simulation environments:

  Simulation Environment	Action
  GPU Simulate on host GPU	Deploys the quantized network to the host GPU. Validates the quantized network by comparing performance to single-precision version of the network.
  MATLAB Simulate in MATLAB	Simulates the quantized network in MATLAB. Validates the quantized network by comparing performance to single-precision version of the network.

• FPGA Execution Environment

  Select from the following simulation environments:

  Simulation Environment	Action
  Cosimulation Emulate on host	Emulates the quantized network in MATLAB. Validates the quantized network by comparing performance to single-precision version of the network.
  Intel Arria 10 SoC arria10soc_int8	Deploys the quantized network to an Intel® Arria® 10 SoC board by using the arria10soc_int8 bitstream. Validates the quantized network by comparing performance to single-precision version of the network.
  Xilinx ZCU102 zcu102_int8	Deploys the quantized network to a Xilinx® Zynq® UltraScale+™ MPSoC ZCU102 10 SoC board by using the zcu102_int8 bitstream. Validates the quantized network by comparing performance to single-precision version of the network.
  Xilinx ZC706 zc706_int8	Deploys the quantized network to a Xilinx Zynq-7000 ZC706 board by using the zc706_int8 bitstream. Validates the quantized network by comparing performance to single-precision version of the network.

  Each FPGA board selection uses a default bitstream that is specialized to meet the resource requirements of the board. If you want to specify another bitstream to use for deployment, select Add Custom Bitstream.

  When you select the Intel Arria 10 SoC, Xilinx ZCU102, or Xilinx ZC706 option, additionally select the interface to use to deploy and validate the quantized network.

  Target Option	Action
  JTAG	Programs the target FPGA board selected under Simulation Environment by using a JTAG cable. For more information, see JTAG Connection (Deep Learning HDL Toolbox).
  Ethernet	Programs the target FPGA board selected in Simulation Environment through the Ethernet interface. Specify the IP address for your target board in the IP Address field.

• CPU Execution Environment

  Select from the following simulation environments:

  Simulation Environment	Action
  Raspberry Pi	Deploys the quantized network to the Raspberry Pi board. Validates the quantized network by comparing performance to single-precision version of the network.

  When you select the Raspberry Pi option, additionally specify the following details for the raspi connection.

  Target Option	Description
  Hostname	Hostname of the board, specified as a string.
  Username	Linux® username, specified as a string.
  Password	Linux user password, specified as a string.

Exponent Scheme — Exponent scheme for quantization

MinMax (default) | Histogram

Select the exponent selection scheme to use for quantization of the network:

• MinMax — Evaluate the exponent based on the range information in the calibration statistics and avoid overflows.

• Histogram — Distribution-based scaling which evaluates the exponent to best fit the calibration data.

Validation Options — Options for validation

metric function

The Deep Network Quantizer app determines a metric function to use for the validation based on the type of the quantized network.

The default metric functions are supported for DAGNetwork and SeriesNetwork objects. You must define a custom metric function for a dlnetwork object. For an example of a custom metric function for a dlnetwork object, see Quantize Multiple-Input Network Using Image and Feature Data.

Type of Network	Default Metric Function
Classification	Top-1 Accuracy — Accuracy of the network
Object detection	Average Precision — Average precision over all detection results. See evaluateObjectDetection (Computer Vision Toolbox).
Regression	MSE — Mean squared error of the network
Semantic segmentation	WeightedIOU — Average IoU of each class, weighted by the number of pixels in that class. See evaluateSemanticSegmentation (Computer Vision Toolbox).

Export — Options for exporting quantized network

Export Quantized Network | Export Quantizer | Generate Code

• Export Quantized Network — After calibrating the network, quantize and add the quantized network to the base workspace. This option exports a simulatable quantized network, quantizedNet, that you can explore in MATLAB without deploying to hardware. This option is equivalent to using quantize at the command line.

  Code generation is not supported for the exported quantized network.

• Export Quantizer — Add the dlquantizer object to the base workspace. You can save the dlquantizer object and use it for further exploration in the Deep Network Quantizer app or at the command line, or use it to generate code for your target hardware.

• Generate Code

  Execution Environment	Code Generation
  GPU	Open the GPU Coder app and generate GPU code from the quantized and validated neural network. Generating GPU code requires a GPU Coder license.
  CPU	Open the MATLAB Coder app and generate C++ code from the quantized and validated neural network. Generating C++ code requires a MATLAB Coder license.

Limitations

• Validation on target hardware for CPU, FPGA, and GPU execution environments is not supported in MATLAB Online™. FPGA and GPU execution environments, perform validation through emulation on the MATLAB Online host. You can also perform GPU validation if GPU support has been added to your MATLAB Online Server™ cluster. For more information on GPU support for MATLAB Online, see Configure GPU Support in MATLAB Online Server (MATLAB Online Server).

Version History

Introduced in R2020a

R2024b: Fixed-Point Designer license required for Execution Environment MATLAB

When you use the MATLAB Execution Environment for quantization, simulation of the network is performed using fixed-point data types. This simulation requires a Fixed-Point Designer™ license for the quantization and validation steps of the deep learning quantization workflow.

R2023a: Specify Raspberry Pi connection in Hardware Settings

You can now validate the quantized network on a Raspberry Pi^® board by selecting Raspberry Pi in Hardware Settings and specifying target credentials for a raspi object in the validation step.

R2022b: Calibrate on host GPU or host CPU

You can now choose whether to calibrate your network using the host GPU or host CPU. By default, the calibrate function and the Deep Network Quantizer app will calibrate on the host GPU if one is available.

In previous versions, it was required that the execution environment be the same as the instrumentation environment used for the calibration step of quantization.

R2022b: dlnetwork support

The Deep Network Quantizer app now supports calibration and validation for dlnetwork objects.

R2022a: Validate the performance of quantized network for CPU target

The Deep Network Quantizer app now supports the quantization and validation workflow for CPU targets.

R2022a: Quantize neural networks without a specific target

Specify MATLAB as the Execution Environment to quantize your neural networks without generating code or committing to a specific target for code deployment. This can be useful if you:

• Do not have access to your target hardware.

• Want to inspect your quantized network without generating code.

Your quantized network implements int8 data instead of single data. It keeps the same layers and connections as the original network, and it has the same inference behavior as it would when running on hardware.

Once you have quantized your network, you can use the quantizationDetails function to inspect your quantized network. Additionally, you also have the option to deploy the code to a GPU target.
