# fegeometry

## Description

An `fegeometry`

object contains a geometry for use
in a finite element analysis with an `femodel`

object.

## Creation

### Syntax

### Description

creates an `gm`

= fegeometry(`geometry`

,`Name=Value`

)`fegeometry`

object using one or more name-value arguments.
For this syntax, `geometry`

must specify a path to an STL or STEP
file.

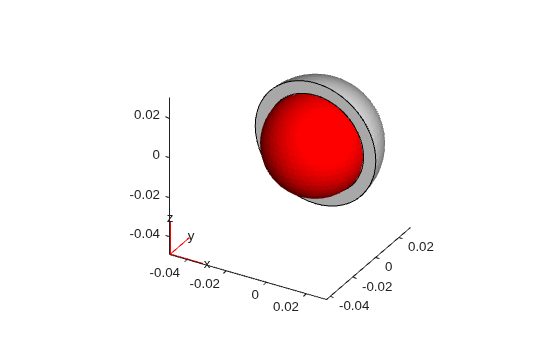

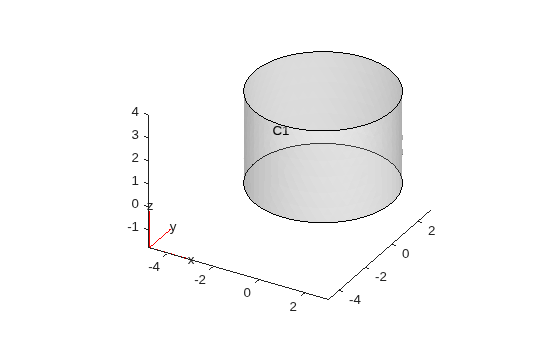

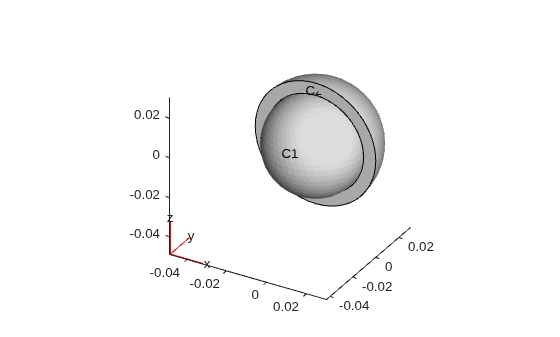

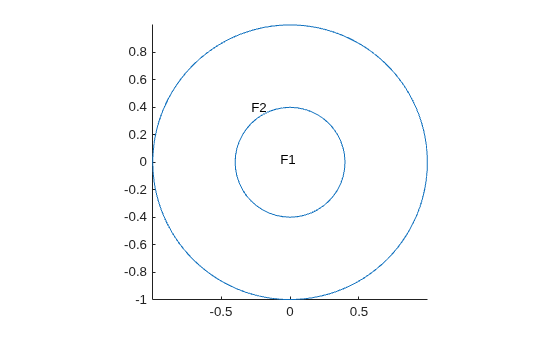

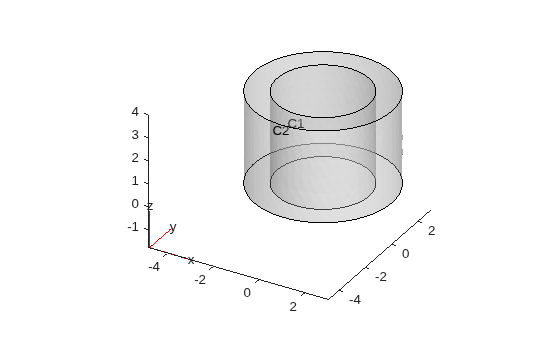

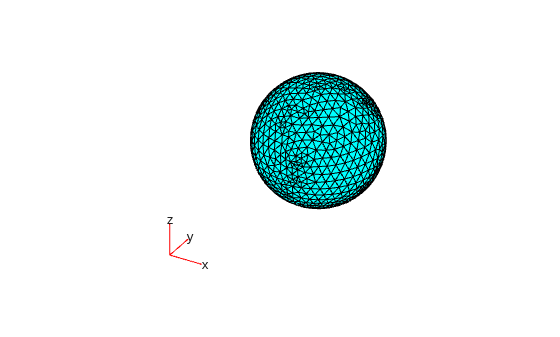

creates a multidomain geometry. `gm`

= fegeometry(`nodes`

,`elements`

,`ElementIDToRegionID`

)`ElementIDToRegionID`

specifies the
domain IDs for each element of the mesh.

### Input Arguments

`geometry`

— Geometry description

string scalar | character vector | decomposed geometry matrix | handle to a geometry function | `triangulation`

object | `delaunayTriangulation`

object | `DiscreteGeometry`

object | `AnalyticGeometry`

object

Geometry description, specified as one of these values:

String scalar or character vector that contains a path to an STL or STEP file. The path must end with the file extension

`".stl"`

,`".STL"`

,`".stp"`

,`".STP"`

,`".step"`

,`".STEP"`

, or any combination of uppercase and lowercase letters in this extension.Decomposed geometry matrix or a handle to a geometry function. For details about a decomposed geometry matrix, see

`decsg`

. A geometry function must return the same result for the same input arguments in every function call. Thus, it must not contain functions and expressions designed to return a variety of results, such as random number generators.`triangulation`

object. The`fegeometry`

function accepts both surface triangulation and triangulation with tetrahedra for 3-D geometries. For a 3-D geometry created from surface triangulation, the`Mesh`

property remains empty. For a 2-D geometry or a 3-D geometry created from triangulation with tetrahedra,`fegeometry`

uses triangulation points and connectivity list to specify a linear mesh. If the`Mesh`

property is empty or your task requires a more accurate quadratic mesh or a finer linear mesh, use the`generateMesh`

function.`delaunayTriangulation`

object. The`fegeometry`

function uses triangulation points to specify a mesh. If your task requires a more accurate quadratic mesh, use the`generateMesh`

function.`DiscreteGeometry`

object.`AnalyticGeometry`

object.

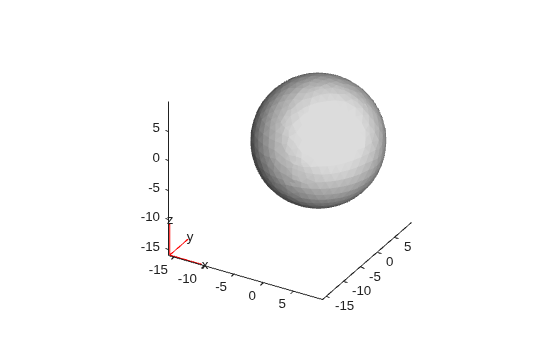

`nodes`

— Mesh nodes

`Nnodes`

-by-`2`

numeric matrix | `Nnodes`

-by-`3`

numeric matrix

Mesh nodes, specified as an `Nnodes`

-by-`2`

or
`Nnodes`

-by-`3`

matrix for a 2-D or 3-D geometry,
respectively. `Nnodes`

is the number of nodes in the mesh. Each row
of the matrix contains *x*-, *y*-, and, if
applicable, *z*- coordinates of one node.

**Data Types: **`double`

`elements`

— Mesh elements

`Nelements`

-by-`3`

integer matrix | `Nelements`

-by-`4`

integer matrix | `Nelements`

-by-`6`

integer matrix | `Nelements`

-by-`10`

integer matrix

Mesh elements, specified as an integer matrix with `Nelements`

rows and 3, 4, 6, or 10 columns, where `Nelements`

is the number of
elements in the mesh.

Linear planar mesh or linear mesh on the geometry surface has size

`Nelements`

-by-`3`

. Each row of`elements`

contains the indices of the triangle corner nodes for a surface element. In this case, the resulting geometry does not contain a full mesh. Create the mesh using the`generateMesh`

function.Linear elements have size

`Nelements`

-by-`4`

. Each row of`elements`

contains the indices of the tetrahedral corner nodes for an element.Quadratic planar mesh or quadratic mesh on the geometry surface has size

`Nelements`

-by-`6`

. Each row of`elements`

contains the indices of the triangle corner nodes and edge centers for a surface element. In this case, the resulting geometry does not contain a full mesh. Create the mesh using the`generateMesh`

function.Quadratic elements have size

`Nelements`

-by-`10`

. Each row of`elements`

contains the indices of the tetrahedral corner nodes and the tetrahedral edge midpoint nodes for an element.

For details on node numbering for linear and quadratic elements, see Mesh Data.

**Data Types: **`double`

`ElementIDToRegionID`

— Domain information for each mesh element

vector of positive integers

Domain information for each mesh element, specified as a vector of positive integers. Each mesh element is an ID of a geometric region for an element of the mesh. The length of this vector equals the number of elements in the mesh.

**Data Types: **`double`

**Name-Value Arguments**

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **`gm = fegeometry("AngleBlock.step",MaxRelativeDeviation=5)`

imports a geometry from the `AngleBlock.step`

file using the relative sag
of 5.

`AllowSelfIntersections`

— Indicator to allow import of self-intersecting geometry

`true`

or `1`

(default) | `false`

or `0`

*Since R2024a*

Indicator to allow the import of a self-intersecting geometry from an STL or
STEP file, specified as `true`

or `false`

. You
also can use `1`

or `0`

instead of
`true`

or `false`

. By default,
`fegeometry`

does not check for self-intersections and lets you
import these types of geometries. If you set this argument to
`false`

or `0`

, `fegeometry`

issues an error for a geometry with self-intersections.

**Example: **`AllowSelfIntersections=true`

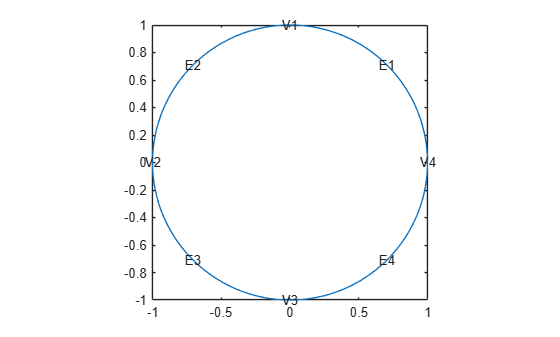

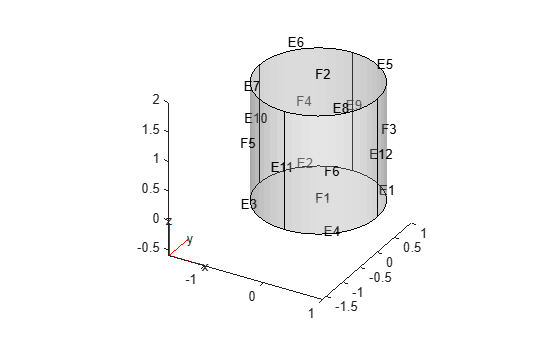

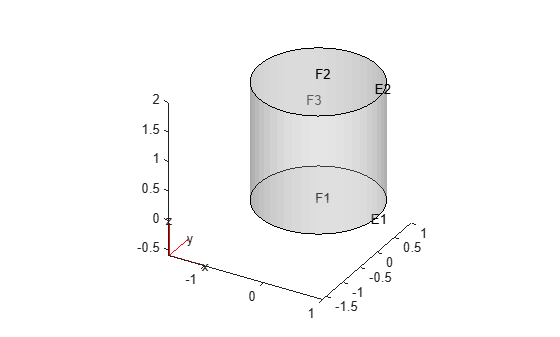

`FeatureAngle`

— Threshold for dihedral angle between adjacent triangles

44 (default) | number between 10 and 90

*Since R2024a*

Threshold for the dihedral angle between adjacent triangles to indicate the edge
and create two separate faces, specified as a number between 10 and 90. The
specified `FeatureAngle`

value represents degrees. This argument
works only for importing a geometry from an STL file.

If the angle between the triangles exceeds the threshold, the edge becomes a
topological (feature) edge separating two faces. If the angle does not exceed the
threshold, `fegeometry`

does not create a topological edge with two
separate faces, unless the function can create the edge based on other criteria.
Instead, `fegeometry`

creates one face.

**Example: **`FeatureAngle=30`

`MaxRelativeDeviation`

— Relative sag

1 (default) | number in the range [0.1, 10]

Relative sag for importing a STEP geometry, specified as a number in the range
`[0.1,10]`

. This value controls the accuracy of the geometry
import from a STEP file. A relative sag is the ratio between the local absolute sag
and the local mesh edge length. The absolute sag is the maximal gap between the mesh
and the geometry.

**Example: **`MaxRelativeDeviation=5`

**Data Types: **`double`

## Properties

`NumCells`

— Number of geometry cells

nonnegative integer

This property is read-only.

Number of geometry cells, returned as a nonnegative integer.

**Data Types: **`double`

`NumFaces`

— Number of geometry faces

positive integer

This property is read-only.

Number of geometry faces, returned as a positive integer.

**Data Types: **`double`

`NumEdges`

— Number of geometry edges

nonnegative integer

This property is read-only.

Number of geometry edges, returned as a nonnegative integer.

**Data Types: **`double`

`NumVertices`

— Number of geometry vertices

nonnegative integer

This property is read-only.

Number of geometry vertices, returned as a nonnegative integer.

**Data Types: **`double`

`Vertices`

— Coordinates of geometry vertices

`N`

-by-`2`

numeric matrix | `N`

-by-`3`

numeric matrix

This property is read-only.

Coordinates of geometry vertices, returned as an
`N`

-by-`2`

or
`N`

-by-`3`

numeric matrix for a 2-D or 3-D geometry,
respectively. Here, `N`

is the number of vertices.

**Data Types: **`double`

`Mesh`

— Mesh for solution

`FEMesh`

object

Mesh for solution, specified as an `FEMesh`

object. See FEMesh Properties for details.

## Object Functions

`addCell` | Combine two geometries by adding one inside a cell of another |

`addFace` | Fill void regions in 2-D and split cells in 3-D geometry |

`addVertex` | Add vertex on geometry boundary |

`addVoid` | Create void regions inside 3-D geometry |

`cellEdges` | Find edges belonging to boundaries of specified cells |

`cellFaces` | Find faces belonging to specified cells |

`extrude` | Vertically extrude 2-D geometry or specified faces of 3-D geometry |

`faceEdges` | Find edges belonging to specified faces |

`facesAttachedToEdges` | Find faces attached to specified edges |

`generateMesh` | Create triangular or tetrahedral mesh |

`mergeCells` | Merge geometry cells |

`nearestEdge` | Find edges nearest to specified point |

`nearestFace` | Find faces nearest to specified point |

`pdegplot` | Plot PDE geometry |

`pdemesh` | Plot PDE mesh |

`rotate` | Rotate geometry |

`scale` | Scale geometry |

`translate` | Translate geometry |

`triangulation` | Create `triangulation` object from
`fegeometry` |

## Examples

`fegeometry`

Object from `DiscreteGeometry`

Object

Create an `fegeometry`

object from a `DiscreteGeometry`

object by assigning it to an `femodel`

object for a finite element analysis.

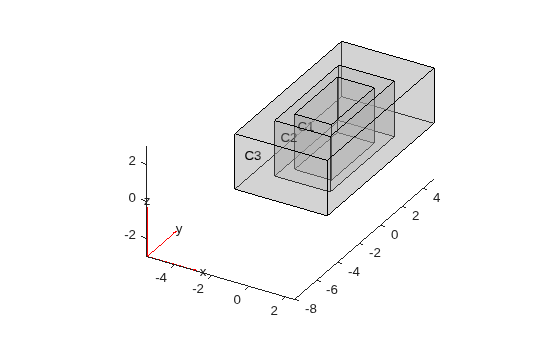

Create and plot a 3-D geometry consisting of three nested cuboids of the same height.

```
gm = multicuboid([2 3 5],[4 6 10],3);
pdegplot(gm,CellLabels="on",FaceAlpha=0.3)
```

Create an `femodel`

object for solving a static structural problem and assign the geometry to the model.

model = femodel(AnalysisType="structuralStatic", ... Geometry=gm); model.Geometry

ans = fegeometry with properties: NumFaces: 18 NumEdges: 36 NumVertices: 24 NumCells: 3 Vertices: [24x3 double] Mesh: []

`fegeometry`

Object from STL File

Create an `fegeometry`

object from an STL file representing a forearm link, and use it for a finite element analysis with an `femodel`

object.

Create an `femodel`

object for solving a static structural problem, and assign the geometry to the model.

model = femodel(AnalysisType="structuralStatic", ... Geometry="ForearmLink.stl"); model.Geometry

ans = fegeometry with properties: NumFaces: 147 NumEdges: 329 NumVertices: 213 NumCells: 1 Vertices: [213x3 double] Mesh: []

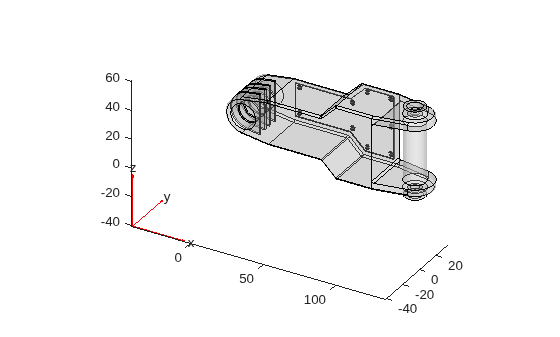

Plot the geometry.

pdegplot(model,FaceAlpha=0.3)

`fegeometry`

Object from Function Handle

Create an `fegeometry`

object from a function handle.

gm = fegeometry(@cardg)

gm = fegeometry with properties: NumFaces: 1 NumEdges: 4 NumVertices: 4 NumCells: 0 Vertices: [4x2 double] Mesh: []

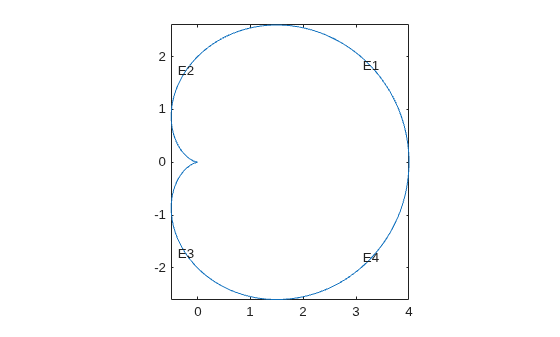

Plot the geometry with the edge labels.

`pdegplot(gm,EdgeLabels="on");`

`fegeometry`

Object from Geometry Description Matrix

Create an `fegeometry`

object from a geometry description matrix.

g = [3 4 0 1 1 0 0 0 1.0 1.0]; sf = 'S1'; ns = 'S1'; gm = fegeometry(decsg(g',sf,ns'))

gm = fegeometry with properties: NumFaces: 1 NumEdges: 4 NumVertices: 4 NumCells: 0 Vertices: [4x2 double] Mesh: []

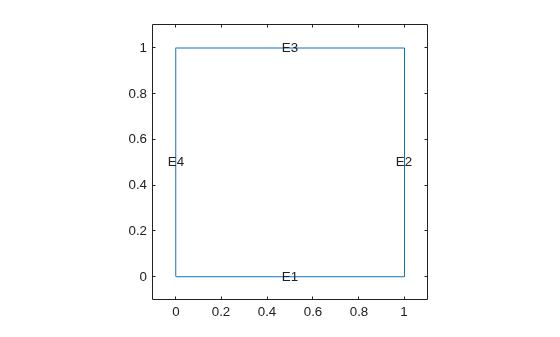

Plot the geometry with the edge labels.

```
pdegplot(gm,EdgeLabels="on");
xlim([-0.1 1.1])
ylim([-0.1 1.1])
```

`fegeometry`

Object from `triangulation`

Object

*Since R2023b*

Create an `fegeometry`

object from a 2-D `triangulation`

object.

Define the points in a 2-D triangulation.

P = [2.5 8.0; 6.5 8.0; 2.5 5.0; 6.5 5.0; 1.0 6.5; 8.0 6.5];

Define the triangulation connectivity list.

T = [5 3 1; 3 2 1; 3 4 2; 4 6 2];

Create the triangulation representation.

TR = triangulation(T,P)

TR = triangulation with properties: Points: [6x2 double] ConnectivityList: [4x3 double]

Create an `fegeometry`

object from the `triangulation`

object `TR`

.

gm = fegeometry(TR)

gm = fegeometry with properties: NumFaces: 1 NumEdges: 6 NumVertices: 6 NumCells: 0 Vertices: [6x3 double] Mesh: [1x1 FEMesh]

The created geometry includes a linear mesh.

gm.Mesh

ans = FEMesh with properties: Nodes: [2x6 double] Elements: [3x4 double] MaxElementSize: 5 MinElementSize: 2.1213 MeshGradation: [] GeometricOrder: 'linear'

To create a more accurate quadratic mesh, use `generateMesh`

.

gm = generateMesh(gm); gm.Mesh

ans = FEMesh with properties: Nodes: [2x871 double] Elements: [6x408 double] MaxElementSize: 0.3046 MinElementSize: 0.1523 MeshGradation: 1.5000 GeometricOrder: 'quadratic'

### Self-Intersecting Geometry

*Since R2024a*

Check for self-intersections while importing the geometry of a cover.

Create an `fegeometry`

object from an STL file and plot the
geometry.

```
gm = fegeometry("Cover.stl");
pdegplot(gm)
```

Create an `femodel`

object for solving a static structural problem,
and assign the geometry to the model.

model = femodel(AnalysisType="structuralStatic", ... Geometry=gm);

Generate a mesh and assign the result to the model to update the mesh stored in the
`Geometry`

property of the model. The mesh generator issues a warning
about poor quality of some of the mesh elements.

model = generateMesh(model);

Warning: Found elements with poor shape quality. (Type "warning off pde:pdeMeshGenerator:ElementQualityWarn" to suppress this warning.) > In pde.EquationModel/generateMesh (line 104) In fegeometry/generateMesh (line 220) In femodel/generateMesh (line 344)

Rotate the geometry plot to check for any problematic areas. By looking at the top of the geometry, you can see that three of the cylinders might be in contact with each other or intersecting each other.

figure pdegplot(gm) view([30 90])

Use the `AllowSelfIntersections`

argument to check for
self-intersections while importing a geometry. If you set this argument to
`false`

, `fegeometry`

does not allow the import if a
geometry has self-intersections.

`gm = fegeometry("Cover.stl",AllowSelfIntersections=false)`

Unable to import a self-intersecting geometry.

## Version History

**Introduced in R2023a**

### R2024a: Import geometries using `AllowSelfIntersections`

and `FeatureAngle`

When importing a geometry from a file, you can set the
`AllowSelfIntersections`

name-value argument to check for self
intersecting geometries. You can also use the `FeatureAngle`

name-value
argument to specify a threshold for the dihedral angle between adjacent triangles to
indicate the edge between separate faces.

Also, the `fegeometry`

function now removes scratch edges when
importing a geometry from an STL or STEP file. Scratch edges are the edges with both ends
disconnected from the rest of the geometry edges.

### R2023b: Create geometry from `triangulation`

and `delaunayTriangulation`

objects

You can use triangulation, specified as a `triangulation`

or `delaunayTriangulation`

object, to create an
`fegeometry`

object.

## See Also

### Functions

`generateMesh`

|`pdegplot`

|`addCell`

|`addFace`

|`addVertex`

|`addVoid`

|`rotate`

|`scale`

|`translate`

|`extrude`

|`cellEdges`

|`cellFaces`

|`faceEdges`

|`facesAttachedToEdges`

|`nearestEdge`

|`nearestFace`

### Objects

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
