phased.PhaseCodedWaveform

Phase-coded pulse waveform

Description

The PhaseCodedWaveform object creates a phase-coded pulse waveform.

To obtain waveform samples:

1. Define and set up your phase-coded pulse waveform. See Construction.

2. Call step to generate the phase-coded pulse waveform samples according to the properties of phased.PhaseCodedWaveform. The behavior of step is specific to each object in the toolbox.

Note

Starting in R2016b, instead of using the step method to perform the operation defined by the System object™, you can call the object with arguments, as if it were a function. For example, y = step(obj,x) and y = obj(x) perform equivalent operations. When the only argument to the step method is the System object itself, replace y = step(obj) by y = obj().

Construction

H = phased.PhaseCodedWaveform creates a phase-coded pulse waveform System object, H. The object generates samples of a phase-coded pulse.

H = phased.PhaseCodedWaveform(Name,Value) creates a phase-coded pulse waveform object, H, with additional options specified by one or more Name,Value pair arguments. Name is a property name, and Value is the corresponding value. Name must appear inside single quotes (''). You can specify several name-value pair arguments in any order as Name1,Value1,…,NameN,ValueN.

Properties

SampleRate	Sample rate Specify the sample rate in hertz as a positive scalar. The default value of this property corresponds to 1 MHz. The value of this property must satisfy these constraints: (SampleRate./PRF) is a scalar or vector that contains only integers — the number of samples in a pulse must be an integer. (SampleRate*ChipWidth) is an integer value — the number of samples in a chip must be an integer. Default: 1e6
Code	Phase code type Specify the phase code type used in phase modulation. Valid values are: 'Frank' 'P1' 'P2' 'Px' 'Zadoff-Chu' 'P3' 'P4' 'Barker' 'Maximum Length Sequence' 'Quadratic Residue Sequence' 'Custom' Default: 'Frank'
CustomCode	Custom phase code, specified as a length-M vector of complex values. Each element in the specified vector corresponds to a single chip. To enable this property, set the Code property to 'Custom'. You can use these functions and others to create custom phase code: Custom Code Functions     apaseq Pseudo-random binary almost perfect autocorrelation sequence legendreseq Legendre sequence with a perfect periodic autocorrelation mlseq Pseudo-random binary maximum length sequence pnkcode Polyphase code Default: [1 -1]
ChipWidth	Time duration of each chip Specify the time duration of each chip in a phase-coded waveform as a positive scalar. Units are seconds. For this waveform, the pulse duration is equal to the product of the chip width and number of chips. The value of this property must satisfy these constraints: ChipWidth is less than or equal to (1./(NumChips*PRF)) — the total time duration of all chips cannot exceed the duration of the pulse. (SampleRate*ChipWidth) is an integer value — the number of samples in a chip must be an integer. Default: 1e-5
NumChips	Number of chips Specify the number of chips per pulse in a phase-coded waveform as a positive integer. The value of this property must be less than or equal to (1./(ChipWidth*PRF)) — the total time duration of all chips cannot exceed the pulse repetition interval. The table shows additional constraints on the number of chips for different code types. If the Code property is ... Then the NumChips property must be... 'Frank', 'P1', or 'Px' A perfect square 'P2' An even number that is a perfect square 'Barker' 2, 3, 4, 5, 7, 11, or 13 Default: 4
SequenceIndex	Zadoff-Chu sequence index Specify the sequence index used in Zadoff-Chu code as a positive integer. This property applies only when you set the Code property to 'Zadoff-Chu'. The value of SequenceIndex must be relatively prime to the value of the NumChips property. Default: 1

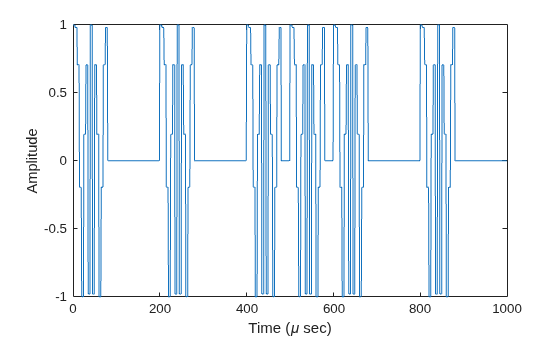

PRF	Pulse repetition frequency Pulse repetition frequency, PRF, specified as a scalar or a row vector. Units are in Hz. The pulse repetition interval, PRI, is the inverse of the pulse repetition frequency, PRF. ThePRF must satisfy these restrictions: The product of PRF and PulseWidth must be less than or equal to one. This condition expresses the requirement that the pulse width is less than one pulse repetition interval. For the phase-coded waveform, the pulse width is the product of the chip width and number of chips. The ratio of sample rate to any element of PRF must be an integer. This condition expresses the requirement that the number of samples in one pulse repetition interval is an integer. You can select the value of PRF using property settings alone or using property settings in conjunction with the prfidx input argument of the step method. When PRFSelectionInputPort is false, you set the PRF using properties only. You can implement a constant PRF by specifying PRF as a positive real-valued scalar. implement a staggered PRF by specifying PRF as a row vector with positive real-valued entries. Then, each call to the step method uses successive elements of this vector for the PRF. If the last element of the vector is reached, the process continues cyclically with the first element of the vector. When PRFSelectionInputPort is true, you can implement a selectable PRF by specifying PRF as a row vector with positive real-valued entries. But this time, when you execute the step method, select a PRF by passing an argument specifying an index into the PRF vector. In all cases, the number of output samples is fixed when you set the OutputFormat property to 'Samples'. When you use a varying PRF and set the OutputFormat property to 'Pulses', the number of samples can vary. Default: 10e3
PRFSelectionInputPort	Enable PRF selection input Enable the PRF selection input, specified as true or false. When you set this property to false, the step method uses the values set in the PRF property. When you set this property to true, you pass an index argument into the step method to select a value from the PRF vector. Default: false
FrequencyOffsetSource	Source of frequency offset Source of frequency offset for the waveform, specified as 'Property' or 'Input port'. When you set this property to 'Property', the offset is determined by the value of the FrequencyOffset property. When you set this property to 'Input port', the FrequencyOffset is determined by the freqoffset input argument. Default: 'Property'
FrequencyOffset	Frequency offset Frequency offset in Hz, specified as a scalar. Dependencies This property applies when you set the FrequencyOffsetSource property to 'Input port'. Default: 0 Hz
OutputFormat	Output signal format Specify the format of the output signal as 'Pulses' or 'Samples'. When you set the OutputFormat property to 'Pulses', the output of the step method takes the form of multiple pulses specified by the value of the NumPulses property. The number of samples per pulse can vary if you change the pulse repetition frequency during the simulation. When you set the OutputFormat property to 'Samples', the output of the step method is in the form of multiple samples. In this case, the number of output signal samples is the value of the NumSamples property and is fixed. Default: 'Pulses'
NumSamples	Number of samples in output Specify the number of samples in the output of the step method as a positive integer. This property applies only when you set the OutputFormat property to 'Samples'. Default: 100
NumPulses	Number of pulses in output Specify the number of pulses in the output of the step method as a positive integer. This property applies only when you set the OutputFormat property to 'Pulses'. Default: 1
PRFOutputPort	Set this property to true to output the PRF for the current pulse using a step method argument. Dependencies This property can be used only when the OutputFormat property is set to 'Pulses'. Default: false

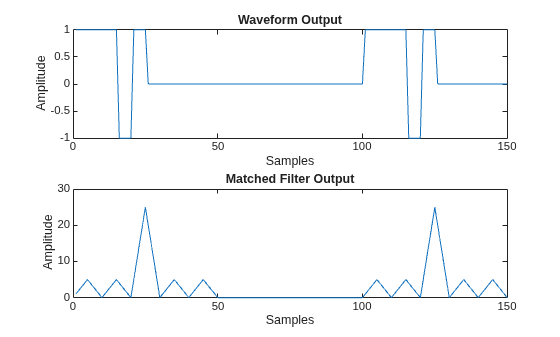

CoefficientsOutputPort	Enable matched filter coefficients output port Enable the matched filter coefficients output port, specified as false or true. When you set this property to false, the object does not provide the matched filter coefficients used during the simulation as an output. When you set this property to true, the object provides the matched filter coefficients used during the simulation as an output. Default: false

Methods

bandwidth	Bandwidth of phase-coded waveform
getMatchedFilter	Matched filter coefficients for waveform
plot	Plot phase-coded pulse waveform
reset	Reset states of phase-coded waveform object
step	Samples of phase-coded waveform

Common to All System Objects
release	Allow System object property value changes

Examples

Plot Phase-Coded Waveform and Spectrum

Create and plot a two-pulse phase-coded waveform that uses the Zadoff-Chu code.

sPCW = phased.PhaseCodedWaveform('Code','Zadoff-Chu',...
    'ChipWidth',5e-6,'NumChips',16,...
    'OutputFormat','Pulses','NumPulses',2);
fs = sPCW.SampleRate;

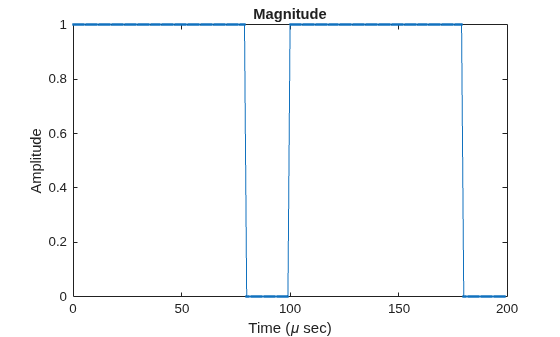

Generate signal samples and plot the magnitude and phase of the waveforms.

wav = step(sPCW);
nsamp = size(wav,1);
t = [0:(nsamp-1)]/fs;
plot(t*1e6,abs(wav),'.-')
title('Magnitude')
xlabel('Time (\mu sec)')
ylabel('Amplitude')

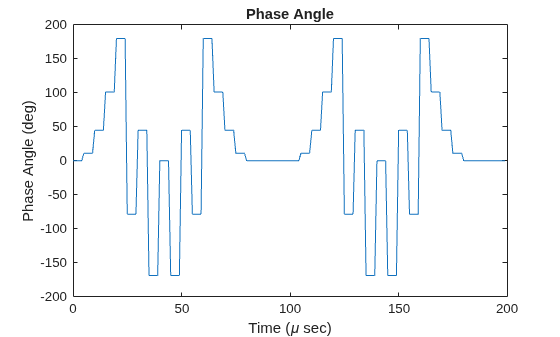

plot(t*1e6,180/pi*angle(wav))
title('Phase Angle')
xlabel('Time (\mu sec)')
ylabel('Phase Angle (deg)')

Plot the spectrum.

nsamp = size(wav,1);
nfft = 2^nextpow2(nsamp);
Z = fft(wav,nfft);
fr = [0:(nfft-1)]/nfft*fs;
fr = fr - fs/2;
plot(fr/1000,abs(fftshift(Z)))
xlabel('Frequency (kHz)')
ylabel('Amplitude')
grid

Apply Frequency Offset to Phase-Coded Waveform

Apply a frequency offset to a phase-coded waveform that uses the Zadoff-Chu code. Plot the frequency spectrum of the waveform with and without a frequency offset applied.

Create a phase-coded waveform object which is configured to set the frequency offset from an input when the object is executed.

fs = 1e6;
sPCW = phased.PhaseCodedWaveform('SampleRate',fs,'Code','Zadoff-Chu', ...
    'ChipWidth',8e-6,'NumChips',4,'OutputFormat','Pulses', ...
    'NumPulses',1,'FrequencyOffsetSource','Input port');

Execute the object two times. First set the frequency offset set to 0 Hz, and then to 2e4 Hz.

pcwav = sPCW(0);
pcwav_foffset = sPCW(2e4);

Plot the frequency spectrum of the complex signals. The frequency offset signal is shifted to the right.

[Pxx,f] = pwelch(pcwav,[],[],[],fs,'centered');
[Pxx_offset,foffset] = pwelch(pcwav_foffset,[],[],[],fs,'centered');
plot(f/1000,Pxx,foffset/1000,Pxx_offset)
ylabel('PSD');
xlabel('Frequency (kHz)');
legend({'No offset','Offset applied'},'Location','northwest');
grid on;

Create Two MLS Code Waveforms

Generate two phase-coded waveforms based on m-sequences of length N = 127. Show their ambiguity and crossambiguity functions. The chip width is $1\mu \sec$ and the modulation period is N times the chip width.

N = 127;
S = mlseq(N,[1 2]);

Set the chip width (tau) and the modulation period (T).

tau = 1e-6;
T = tau*N;

Create a custom phase coded waveform object. Set the pulse repetition frequency (PRF) equal to the inverse of the modulation period and set the sampling rate to 10 times the inverse chip width. Initialize the waveform with the first code.

fs = 10/tau;    % Sample rate
pmwaveform = phased.PhaseCodedWaveform('SampleRate',fs,'Code','Custom',...
    'CustomCode',S(:,1),'ChipWidth',tau,'PRF',1/T);

Generate samples of the first waveform.

x1 = pmwaveform();

Generate samples of the second waveform.

release(pmwaveform);
pmwaveform.CustomCode = S(:,2);
x2 = pmwaveform();

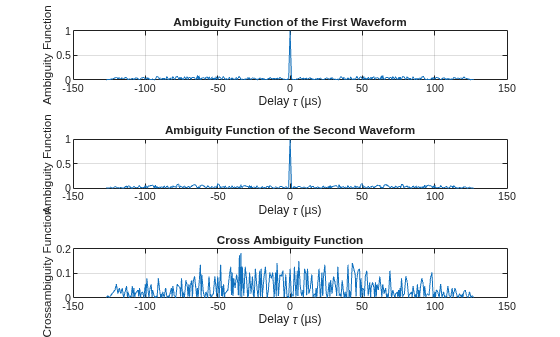

Plot the ambiguity and cross-ambiguity functions.

tiledlayout(3, 1)

nexttile
ambgfun(x1,fs,1/T,'Cut','Doppler');
title('Ambiguity Function of the First Waveform')

nexttile
ambgfun(x2,fs,1/T,'Cut','Doppler');
title('Ambiguity Function of the Second Waveform')

nexttile
ambgfun(x1,x2,fs,[1 1]/T,'Cut','Doppler');
title('Cross Ambiguity Function')

Algorithms

A 2-chip Barker code can use [1 –1] or [1 1] as the sequence of amplitudes. This software implements [1 –1].

A 4-chip Barker code can use [1 1 –1 1] or [1 1 1 –1] as the sequence of amplitudes. This software implements [1 1 –1 1].

A Zadoff-Chu code can use a clockwise or counterclockwise sequence of phases. This software implements the latter, such as $$\pi \cdot f(k)\cdot \text{SequenceIndex}/\text{NumChips}$$ instead of $$-\pi \cdot f(k)\cdot \text{SequenceIndex}/\text{NumChips}$$. In these expressions, k is the index of the chip and f(k) is a function of k.

For further details, see [1].

References

[1] Levanon, N. and E. Mozeson. Radar Signals. Hoboken, NJ: John Wiley & Sons, 2004.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• plot method is not supported.

• See System Objects in MATLAB Code Generation (MATLAB Coder).

Version History

Introduced in R2011b

R2022a: Custom waveforms

The System object

This release adds new types of phase modulation codes to the phased.PhaseCodedWaveform System object using the Code property. You can now specify 'Maximum Length Sequence', 'Quadratic Residue Sequence' and 'Custom' codes. The 'Custom' option lets you use the new CustomCode property to add your own phase modulation code.
