dsp.FIRFilter

Static or time-varying FIR filter

Description

The dsp.FIRFilter System object™ filters each channel of the input using static or time-varying FIR filter implementations.

To filter each channel of the input:

1. Create the dsp.FIRFilter object and set its properties.

2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

This object supports C/C++ code generation and SIMD code generation under certain conditions. For more information, see Code Generation.

Creation

Syntax

fir = dsp.FIRFilter

fir = dsp.FIRFilter(num)

fir = dsp.FIRFilter(___,SampleRate=Value)

fir = dsp.FIRFilter(___,PropertyName=Value)

Description

fir = dsp.FIRFilter returns a finite impulse response (FIR) filter object, fir, which independently filters each channel of the input over time using a specified FIR filter implementation.

fir = dsp.FIRFilter(num) returns an FIR filter System object, fir, with the Numerator property set to num.

fir = dsp.FIRFilter(___,SampleRate=Value) specifies the input sample rate as a positive real scalar or "normalized". (since R2026a)

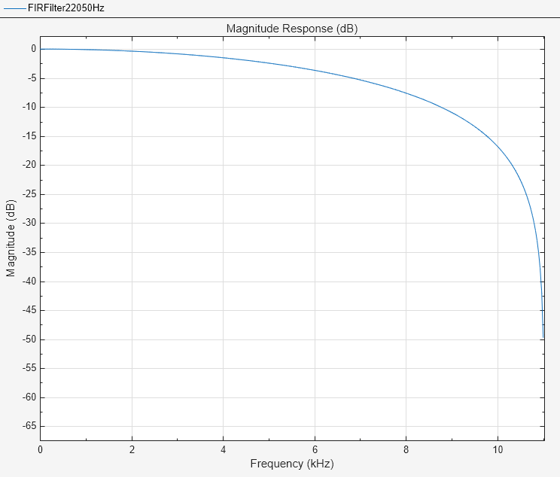

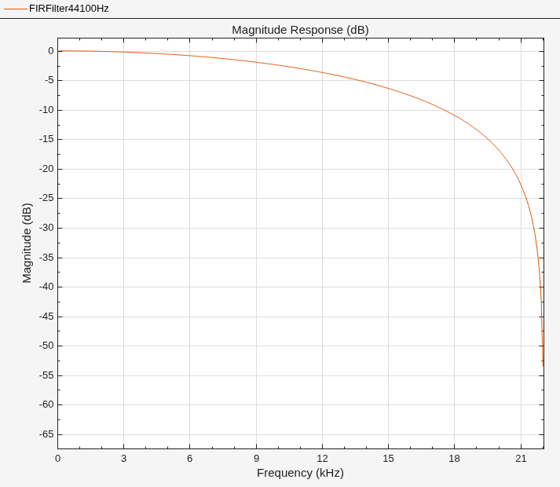

To specify an input sample rate of 22050 Hz, set SampleRate to 22050. To specify the input sample rate in normalized units, set SampleRate to "normalized". (since R2026a)

fir = dsp.FIRFilter(___,PropertyName=Value) sets properties using one or more name-value arguments. For example, to specify the initial conditions for the FIR filter as 3, set InitialConditions to 3.

Properties

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Structure — Filter structure

"Direct form" (default) | "Direct form symmetric" | "Direct form antisymmetric" | "Direct form transposed" | "Lattice MA"

Filter structure, specified as one of these:

• "Direct form"

• "Direct form symmetric"

• "Direct form antisymmetric"

• "Direct form transposed"

• "Lattice MA"

NumeratorSource — Source of filter coefficients

"Property" (default) | "Input port"

Source of the filter coefficients, specified as one of these:

• "Property" — Specify the filter coefficients using the Numerator property.

• "Input port" — Specify the filter coefficients through the coeff input. The filter object updates the time-varying filter once every frame.

Dependencies

This applies when you set the Structure to "Direct form", "Direct form symmetric", "Direct form antisymmetric", or "Direct form transposed".

ReflectionCoefficientsSource — Source of lattice filter coefficients

"Property" (default) | "Input port"

Source of the lattice filter coefficients, specified as one of these:

• "Property" — Specify the filter coefficients using the ReflectionCoefficients property.

• "Input port" — Specify the filter coefficients through the coeff input. The filter object updates the time-varying filter once every frame.

Dependencies

This applies when you set the Structure to "Lattice MA".

Numerator — Numerator coefficients

[0.5 0.5] (default) | row vector

Numerator coefficients, specified as a row vector.

Tunable: Yes

Dependencies

This property applies when you set the NumeratorSource property to "Property", and the Structure property is set to "Direct form", "Direct form symmetric", "Direct form antisymmetric", or "Direct form transposed".

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64
Complex Number Support: Yes

ReflectionCoefficients — Reflection coefficients of lattice filter structure

[0.5 0.5] (default) | row vector

Reflection coefficients of lattice filter, specified as a row vector.

Tunable: Yes

Dependencies

This property applies when you set the Structure property to "Lattice MA", and the ReflectionCoefficientsSource property to "Property".

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64
Complex Number Support: Yes

InitialConditions — Initial conditions for the FIR filter

0 (default) | scalar | vector | matrix

Initial conditions of filter states for the FIR filter, specified as a scalar, vector, or a matrix.

The number of states or delay elements equals the number of reflection coefficients for the lattice structure, or the number of filter coefficients–1 for the other direct form structures.

You can specify the initial conditions as a scalar, vector, or matrix. If you specify a scalar value, the FIR filter object initializes all delay elements in the filter to that value. If you specify a vector whose length equals the number of delay elements in the filter, each vector element specifies a unique initial condition for the corresponding delay element. The object applies the same vector of initial conditions to each channel of the input signal.

If you specify a vector whose length equals the product of the number of input channels and the number of delay elements in the filter, each element specifies a unique initial condition for the corresponding delay element in the corresponding channel.

If you specify a matrix with the same number of rows as the number of delay elements in the filter, and one column for each channel of the input signal, each element specifies a unique initial condition for the corresponding delay element in the corresponding channel.

Tunable: Yes

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Fixed-Point Properties

FullPrecisionOverride — Full precision override for fixed-point arithmetic

true (default) | false

Specify whether to use full precision rules. If you set FullPrecisionOverride to true, which is the default, the object computes all internal arithmetic and output data types using full precision rules. These rules provide the most accurate fixed-point numerics. It also turns off the display of other fixed-point properties because they do not apply individually. These rules guarantee that no quantization occurs within the object. Bits are added, as needed, to ensure that no roundoff or overflow occurs. If you set FullPrecisionOverride to false, fixed-point data types are controlled through individual fixed-point property settings. For more information, see Full Precision for Fixed-Point System Objects.

RoundingMethod — Rounding method for fixed-point operations

"Floor" (default) | "Ceiling" | "Convergent" | "Nearest" | "Round" | "Simplest" | "Zero"

Rounding method for fixed-point operations, specified as one of these:

• "Floor"

• "Ceiling"

• "Convergent"

• "Nearest"

• "Round"

• "Simplest"

• "Zero"

Dependencies

This property applies only if the object is not in full precision mode.

OverflowAction — Overflow action for fixed-point operations

"Wrap" (default) | "Saturate"

Overflow action for fixed-point operations, specified as "Wrap" or "Saturate".

Dependencies

This property applies only if the object is not in full precision mode.

CoefficientsDataType — Coefficients word and fraction lengths

"Same word length as input" (default) | "Custom"

Specify the coefficients fixed-point data type as "Same word length as input" or "Custom".

Dependencies

This property applies when you set the NumeratorSource property to "Property".

CustomCoefficientsDataType — Custom coefficients word and fraction lengths

numerictype(true,16,15) (default) | numerictype

Specify the coefficients fixed-point type as a signed or unsigned numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the CoefficientsDataType property to "Custom".

ReflectionCoefficientsDataType — Reflection coefficients word and fraction lengths

"Same word length as input" (default) | "Custom"

Specify the reflection coefficients fixed-point data type as "Same word length as input" or "Custom".

Dependencies

This property applies when you set the ReflectionCoefficientsSource property to "Property".

CustomReflectionCoefficientsDataType — Custom reflection coefficients word and fraction lengths

numerictype(true,16,15) (default) | numerictype

Specify the reflection coefficients fixed-point type as a signed or unsigned numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the ReflectionCoefficientsDataType property to "Custom".

ProductDataType — Product word and fraction lengths

"Full precision" (default) | "Same as input" | "Custom"

Specify the product fixed-point data type as "Full precision", "Same as input", or "Custom".

CustomProductDataType — Custom product word and fraction lengths

numerictype(true,32,30) (default) | numerictype

Specify the product fixed-point type as a signed or unsigned scaled numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the ProductDataType property to "Custom".

AccumulatorDataType — Accumulator word and fraction lengths

"Full precision" (default) | "Same as input" | "Same as product" | "Custom"

Specify the accumulator fixed-point data type to "Full precision", "Same as input", "Same as product", or "Custom".

CustomAccumulatorDataType — Custom accumulator word and fraction lengths

numerictype(true,32,30) (default) | numerictype

Specify the accumulator fixed-point type as a signed or unsigned scaled numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the AccumulatorDataType property to "Custom".

StateDataType — State word and fraction lengths

"Same as accumulator" (default) | "Same as input" | "Custom"

Specify the state fixed-point data type as one of "Same as input", "Same as accumulator", or "Custom".

Dependencies

This property does not apply to any of the direct form or direct form I filter structures.

CustomStateDataType — Custom state word and fraction lengths

numerictype(true,16,15) (default) | numerictype

Specify the state fixed-point type as a signed or unsigned scaled numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the StateDataType property to "Custom".

OutputDataType — Output word and fraction lengths

"Same as accumulator" (default) | "Same as input" | "Custom"

Specify the output fixed-point data type as one of "Same as input", "Same as accumulator", or "Custom".

CustomOutputDataType — Custom output word and fraction lengths

numerictype(true,16,15) (default) | numerictype

Specify the output fixed-point type as a signed or unsigned scaled numerictype (Fixed-Point Designer) object.

Dependencies

This property applies when you set the OutputDataType property to Custom.

Usage

Syntax

y = fir(x)

y = fir(x,coeff)

Description

y = fir(x) applies an FIR filter to the real or complex input signal x to produce the output y.

y = fir(x,coeff) uses the time-varying coefficients, coeff , to filter the input signal x and produce the output y. You can use this option when you set the NumeratorSource or ReflectionCoefficientsSource property to "Input port".

Input Arguments

x — Data input

vector | matrix

Data input, specified as a vector or a matrix. When the input data is of a fixed-point type, it must be signed when the structure is set to "Direct form symmetric" or "Direct form antisymmetric". The FIR filter object operates on each channel of the input signal independently over successive calls to the object.

This System object supports variable-size input.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fi
Complex Number Support: Yes

coeff — Filter coefficients

row vector

Time-varying filter coefficients, specified as a row vector. The data and coefficient inputs must have the same data type.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fi
Complex Number Support: Yes

Output Arguments

y — Filtered output

vector | matrix

Filtered output, returned as a vector or a matrix. The output has the same size as the input. For single and double inputs, the output data type matches the input data type. For integer and fixed-point inputs, the output data type depends on the setting of the FullPrecisionOverride and OutputDataType properties.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fi
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Specific to dsp.FIRFilter

freqz	Frequency response of discrete-time filter System object
filterAnalyzer	Analyze filters with Filter Analyzer app
impz	Impulse response of discrete-time filter System object
info	Information about filter System object
coeffs	Returns the filter System object coefficients in a structure
cost	Estimate cost of implementing filter System object
grpdelay	Group delay response of discrete-time filter System object
outputDelay	Determine output delay of single-rate or multirate filter
setInputSampleRate	Specify input sample rate in filter objects
ctf	Convert digital filter to coefficients in cascaded transfer function format

Common to All System Objects

step	Run System object algorithm
release	Release resources and allow changes to System object property values and input characteristics
reset	Reset internal states of System object

Examples

Lowpass Filter a Sinusoid Signal Using FIRFilter object

Use an FIR filter to apply a lowpass filter to a waveform with two sinusoidal components.

 t = (0:1000)'/8e3;
 xin = sin(2*pi*0.3e3*t)+sin(2*pi*3e3*t);

 sr = dsp.SignalSource;
 sr.Signal = xin;
 sink = dsp.SignalSink;

 fir = dsp.FIRFilter(designLowpassFIR(FilterOrder=10,CutoffFrequency=0.5));

sa = spectrumAnalyzer(...
     SampleRate=8e3,...
     Method="welch",...
     PlotAsTwoSidedSpectrum=false,...
     OverlapPercent=80,...
     SpectrumUnits="dBW",...
     YLimits=[-150 -10]);

 while ~isDone(sr)
      input = sr();
      filteredOutput = fir(input);
      sink(filteredOutput);
      sa(filteredOutput)
 end

 filteredResult = sink.Buffer;

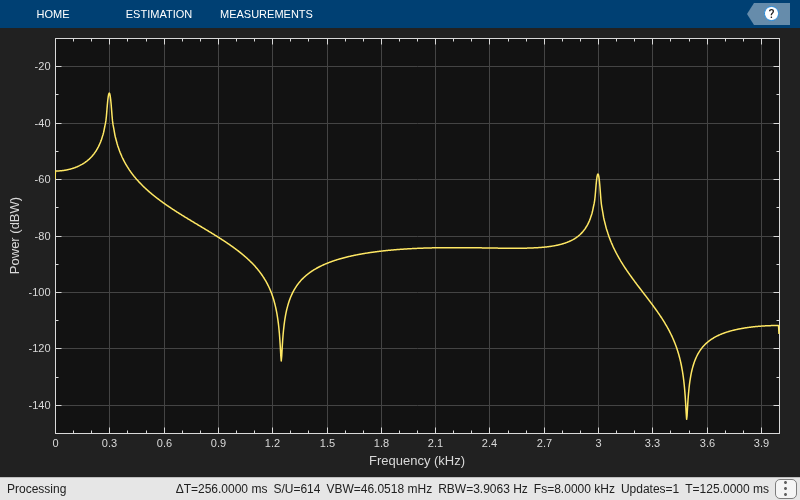

 filterAnalyzer(fir,SampleRates=8000)

Design an FIR filter as a System object.

N = 10;
Fc = 0.4;
firFiltObj = designLowpassFIR(FilterOrder=N,CutoffFrequency=Fc,SystemObject=true)

firFiltObj =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Property'
            Numerator: [-1.2414e-18 -0.0126 -0.0247 0.0635 0.2748 0.3981 0.2748 0.0635 -0.0247 -0.0126 -1.2414e-18]
    InitialConditions: 0

  Show all properties

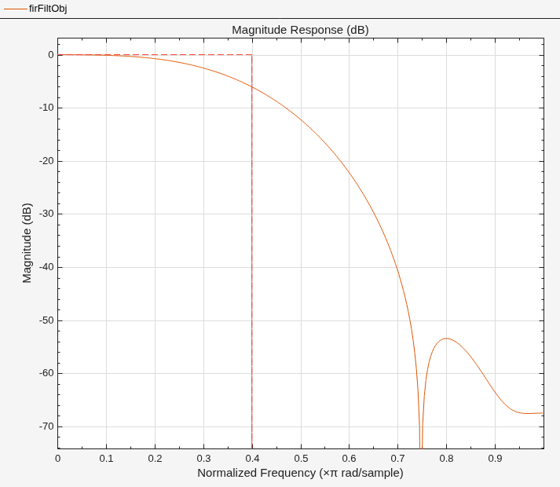

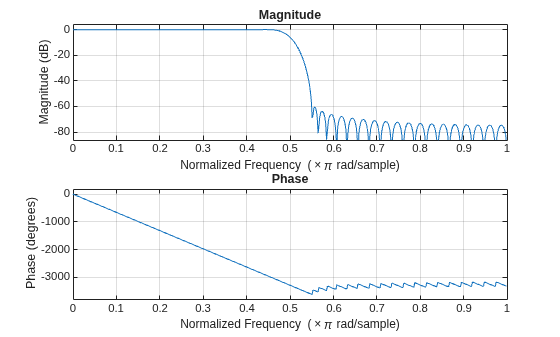

filterAnalyzer(firFiltObj)

Design and Implement Lowpass FIR Filter with Tunable Cutoff Frequency

Create a dsp.FIRFilter object, and set the NumeratorSource property to "Input port" so that you can vary the coefficients of the FIR filter through the input port during simulation.

firFilt = dsp.FIRFilter(NumeratorSource="Input port")

firFilt =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Input port'
    InitialConditions: 0

  Show all properties

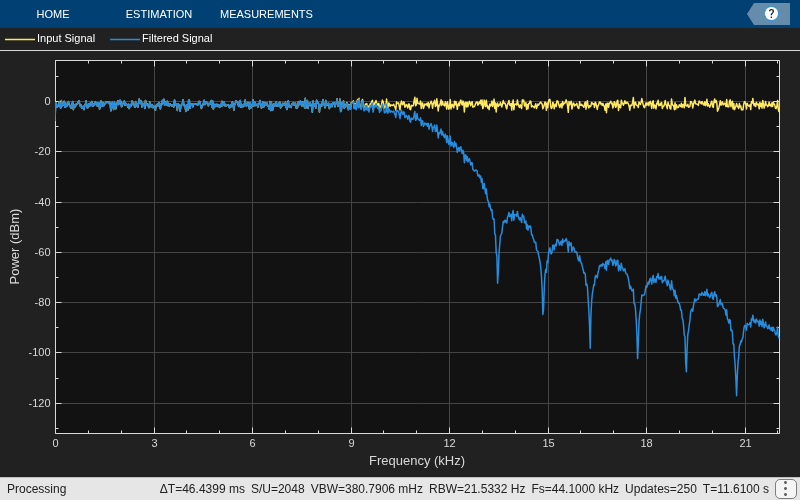

Create a spectrumAnalyzer object to visualize the spectra of the input and output signals.

spectrumScope = spectrumAnalyzer(SampleRate=44100,PlotAsTwoSidedSpectrum=false,...
    ChannelNames=["Input Signal","Filtered Signal"]);

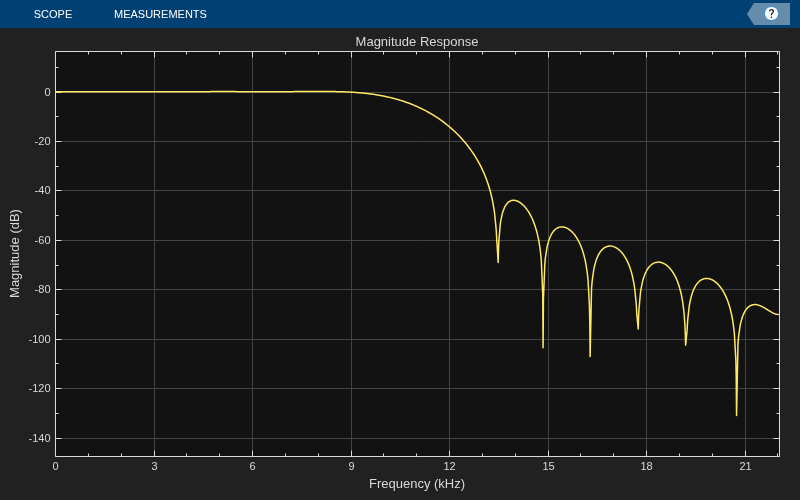

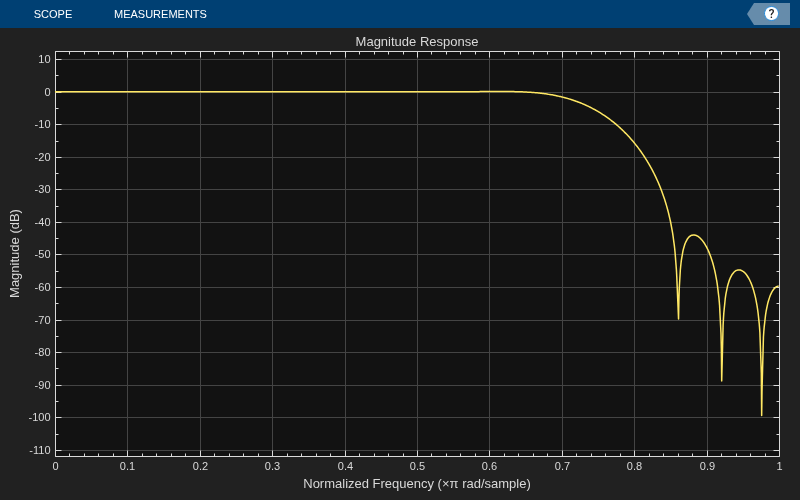

Create a dsp.DynamicFilterVisualizer object to visualize the magnitude response of the varying filter.

filterViz = dsp.DynamicFilterVisualizer(NormalizedFrequency=true);

Stream in random data and filter the signal using the dsp.FIRFilter object. Use the designLowpassFIR function to design the filter coefficients. By default, this function returns a vector of FIR filter coefficients. Assign these coefficients to the dsp.FIRFilter object.

Vary the cutoff frequency of the filter during simulation. The designLowpassFIR function redesigns the coefficients based on the updated filter specifications. Pass these updated coefficients to the FIR filter. Visualize the spectra of the input and filtered signals using the spectrum analyzer.

Fcut = 0.5;
for idx = 1:500
    num = designLowpassFIR(FilterOrder=30,CutoffFrequency=Fcut,Window="hann");
    x = randn(1024,1);
    y = firFilt(x,num);
    spectrumScope(x,y);
    filterViz(num,1);
    Fcut = Fcut + 0.0005;
end

Design and Implement Lowpass FIR Filter Object

Design and implement a lowpass FIR filter object using the designLowpassFIR function. The function returns a dsp.FIRFilter object when you set the SystemObject argument to true. To design the filter in single-precision, use the Datatype or like argument. Alternatively, you can specify any of the numerical arguments in single-precision.

firFilt = designLowpassFIR(FilterOrder=30,CutoffFrequency=0.5,Window="hann",...
        Datatype="single",SystemObject=true)

firFilt =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Property'
            Numerator: [0 2.1297e-19 0.0011 -1.8613e-18 -0.0048 4.8729e-18 0.0122 -8.7270e-18 -0.0251 1.2757e-17 0.0477 -1.6267e-17 -0.0960 1.8649e-17 0.3148 0.5000 0.3148 1.8649e-17 -0.0960 -1.6267e-17 0.0477 1.2757e-17 -0.0251 … ] (1×31 single)
    InitialConditions: 0

  Show all properties

Set the input sample rate to 44.1 kHz using the setInputSampleRate function.

setInputSampleRate(firFilt,44100)

Create a dsp.DynamicFilterVisualizer object to visualize the magnitude response of the filter.

filterViz = dsp.DynamicFilterVisualizer;
filterViz(firFilt)

Create a spectrumAnalyzer object to visualize the spectra of the input and output signals.

spectrumScope = spectrumAnalyzer(SampleRate=44100,PlotAsTwoSidedSpectrum=false,...
    ChannelNames=["Input Signal","Filtered Signal"]);

Stream in random data and filter the signal using the dsp.FIRFilter object. Visualize the spectra of the input and filtered signals using the spectrum analyzer.

for idx = 1:500
    x = randn(1024,1);
    y = firFilt(x);
    spectrumScope(x,y);
end

Design and Implement Equiripple FIR Halfband Filter

Design an equiripple FIR halfband filter with the order of 24 and a transition width of 0.1 using the designHalfbandFIR function. Assign the filter coefficients to a dsp.FIRFilter System object.

b = designHalfbandFIR(FilterOrder=24,DesignMethod="equiripple");
hbFIR = dsp.FIRFilter(b);

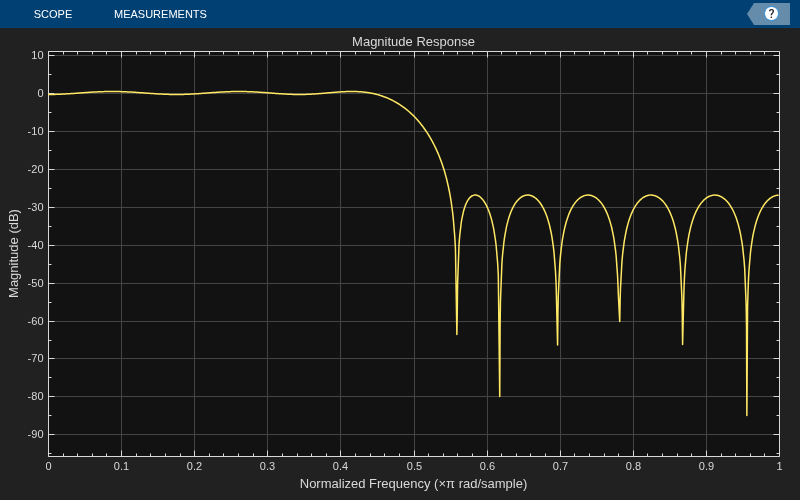

Create a dsp.DynamicFilterVisualizer object and visualize the magnitude response of the filter.

dfv = dsp.DynamicFilterVisualizer(NormalizedFrequency=true);
dfv(hbFIR);

Create a spectrumAnalyzer object to visualize the spectra of the input and output signals.

scope = spectrumAnalyzer(SampleRate=2, PlotAsTwoSidedSpectrum=false,...
    ChannelNames=["Input Signal","Filtered Signal"]);

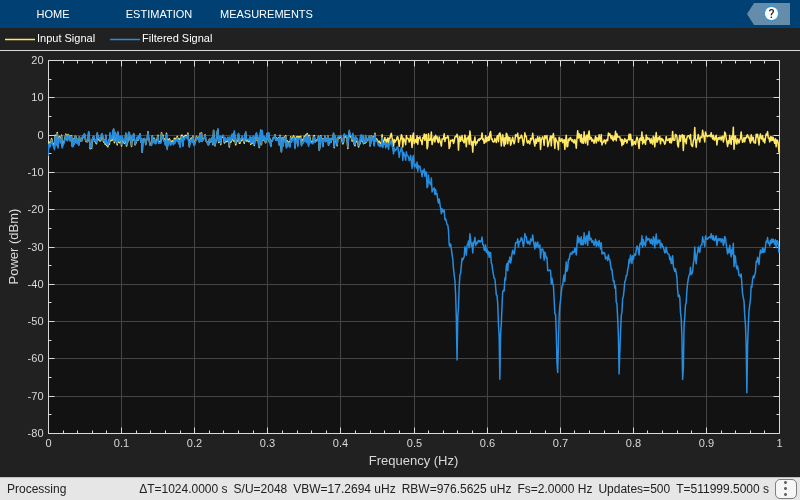

Stream in random data and filter the signal using the FIR halfband filter.

for i = 1:1000
    x = randn(1024, 1);
    y = hbFIR(x);
    scope(x,y);
end

Design Lowpass FIR Filter Using designfilt

Since R2023b

Design a lowpass FIR filter using the designfilt function.

The filter is a minimum order filter with a passband frequency of 0.45 and a stopband frequency of 0.55 in normalized frequency units. The passband ripple is 1 dB and the stopband attenuation is 60 dB. Use the Kaiser window design method and set the SystemObject argument to true.

With these specifications, the designfilt function generates a dsp.FIRFilter System object™.

lpFIRFilter = designfilt("lowpassfir", ...
    PassbandFrequency=0.45,StopbandFrequency=0.55, ...
    PassbandRipple=1,StopbandAttenuation=60, ...
    DesignMethod="kaiserwin",SystemObject=true)

lpFIRFilter =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Property'
            Numerator: [1.2573e-04 -1.9141e-04 -2.7282e-04 3.7207e-04 4.9141e-04 -6.3325e-04 -8.0016e-04 9.9490e-04 0.0012 -0.0015 -0.0018 0.0021 0.0025 -0.0029 -0.0034 0.0040 0.0046 -0.0053 -0.0060 0.0069 0.0079 -0.0090 -0.0102 0.0116 … ] (1×74 double)
    InitialConditions: 0

  Show all properties

Visualize the magnitude and phase responses of this filter using freqz.

freqz(lpFIRFilter.Numerator)

Specify Input Sample Rate in dsp.FIRFilter Object

Since R2026a

Using SampleRate Argument

Specify the input sample rate explicitly while constructing the dsp.FIRFilter object using the SampleRate argument.

firFilt = dsp.FIRFilter(SampleRate=22050)

firFilt =
  dsp.FIRFilter with properties:

            Structure: 'Direct form'
      NumeratorSource: 'Property'
            Numerator: [0.5000 0.5000]
    InitialConditions: 0

  Show all properties

You can view this information using the Input sample rate field of the info function.

info(firFilt)

ans = 7×35 char array
    'Discrete-Time FIR Filter (real)    '
    '-------------------------------    '
    'Filter Structure  : Direct-Form FIR'
    'Filter Length     : 2              '
    'Stable            : Yes            '
    'Linear Phase      : Yes (Type 2)   '
    'Input sample rate : 22050          '

Visualize the frequency response of the filter using filterAnalyzer. Note the frequency range from 0 to 11025 Hz.

filterAnalyzer(firFilt,FilterNames="FIRFilter22050Hz")

Using setInputSampleRate Function

To specify the input sample rate after constructing the object, use the setInputSampleRate function.

setInputSampleRate(firFilt,44100)

To confirm, view the sample rate information using the info function.

info(firFilt)

ans = 7×35 char array
    'Discrete-Time FIR Filter (real)    '
    '-------------------------------    '
    'Filter Structure  : Direct-Form FIR'
    'Filter Length     : 2              '
    'Stable            : Yes            '
    'Linear Phase      : Yes (Type 2)   '
    'Input sample rate : 44100          '

Visualize the frequency response of the filter using filterAnalyzer. Note the change in frequency interval from 0 to 22050 Hz.

filterAnalyzer(firFilt,FilterNames="FIRFilter44100Hz")

Algorithms

This object implements the algorithm, inputs, and outputs described on the Discrete FIR Filter (Simulink) block reference page. The object properties correspond to the block parameters.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Only the Numerator property is tunable for code generation.

• See System Objects in MATLAB Code Generation (MATLAB Coder).

Generate SIMD code using Intel AVX2 code replacement library

This functionality requires a MATLAB^® Coder™ license and an Embedded Coder^® license

The dsp.FIRFilter System object supports SIMD code generation using Intel^® AVX2 code replacement library under these conditions:

• Filter structure is set to "Direct form" or "Direct form transposed".

• Input signal is real-valued with real filter coefficients.

• When the filter structure is set to "Direct form", the input signal can also be complex-valued with real or complex filter coefficients.

• Input signal has a data type of single or double.

To generate SIMD code from this object using this workflow, see Use Intel AVX2 Code Replacement Library to Generate SIMD Code from MATLAB Algorithms.

Generate SIMD code by leveraging target hardware instruction set extensions

This functionality requires a MATLAB Coder or Embedded Coder license.

You can generate SIMD code for the dsp.FIRFilter object for the Intel platform and Apple silicon and ARM^® Cortex^®-A processors using the InstructionSetExtensions (Simulink Coder) configuration parameter under these conditions: (since R2026a)

Intel platforms

• Input signal data type is single or double.

• Input signal is real-valued with real filter coefficients.

• Filter structure is "Direct form" or "Direct form transposed".

For more information on this workflow, see Use Target Hardware Instruction Set Extensions to Generate SIMD Code for MATLAB System Objects for Intel Platforms.

ARM Cortex-A processors, Apple silicon processors

This functionality requires an Embedded Coder license.

• Input signal data type is single.

• Input signal is real-valued with real filter coefficients.

• Filter structure is "Direct form" or "Direct form transposed".

For more information on this workflow, see Use Target Hardware Instruction Set Extensions to Generate SIMD Code from MATLAB System Objects for Apple silicon and ARM Cortex-A Processors.

The SIMD technology significantly improves the performance of the generated code. For more information, see SIMD Code Generation.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

For workflow and limitations, see HDL Code Generation for System Objects (HDL Coder).

Note

For a hardware-optimized FIR filter algorithm that supports HDL code generation, use the dsphdl.FIRFilter (DSP HDL Toolbox) System object. This object has hardware-friendly valid and reset control signals, and models exact hardware latency behavior. The object supports HDL code generation with HDL Coder™ tools.

Version History

Introduced in R2012a

R2026a: Input sample rate specification enhancements

Using the SampleRate argument, you can now specify the input sample rate explicitly when creating the dsp.FIRFilter System object.

To specify the input sample rate after creating the object, use the setInputSampleRate function.

You can view the sample rate information using the Input sample rate field of the info function.

R2026a: Generate memory-efficient code

Generate memory-efficient code from the dsp.FIRFilter object when you set the Structure property to Direct form.

R2026a: Improved simulation speed for direct form transposed filter structure

The simulation speed of the dsp.FIRFilter object has improved when you set the Structure to "Direct form transposed".

R2026a: Leverage target hardware instruction set extensions to generate SIMD code

You can now generate SIMD code from the dsp.FIRFilter object for the Apple silicon platform, Intel platform, and ARM Cortex-A processors using the InstructionSetExtensions (Simulink Coder) configuration parameter. For more information, see Code Generation.

R2025a: generatehdl function discontinued

Starting in R2025a, the Filter Design HDL Coder™ product is discontinued. So, this object no longer supports HDL code generation by using the generatehdl function. The object still supports code generation using HDL Coder tools.

R2023b: The designfilt function and the Design Filter Live Editor task support dsp.FIRFilter object

The designfilt function generates a dsp.FIRFilter object when you specify "lowpassfir" and "highpassfir" filter responses and set the SystemObject flag to true.

lpFIRFilter = designfilt("lowpassfir", ...
    PassbandFrequency=0.45,StopbandFrequency=0.55, ...
    PassbandRipple=1,StopbandAttenuation=60, ...
    DesignMethod="kaiserwin",SystemObject=true)

lpFIRFilter =
  dsp.FIRFilter with properties:

            Structure: "Direct form"
      NumeratorSource: "Property"
            Numerator: [1.2573e-04 -1.9141e-04 -2.7282e-04 3.7207e-04 … ] (1×74 double)
    InitialConditions: 0

The Design Filter Live Editor task generates a dsp.FIRFilter object for lowpass FIR and highpass FIR filter responses when you select the Use a System object to implement filter check box in the task UI and run the designfilt code the task generates.
